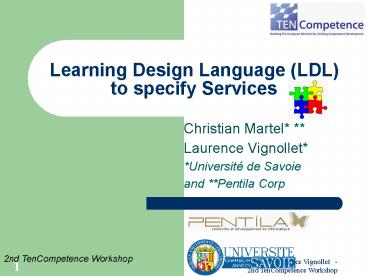

Learning Design Language LDL to specify Services

1
Learning Design Language (LDL)to specify
Services

• Christian Martel
• Laurence Vignollet
• Université de Savoie
• and Pentila Corp

2nd TenCompetence Workshop
2
Contents

• Introduction
• LDLs Metamodel to scenarize services
• Re-use of the service model in a learning
  scenario
• Implementation in the Learning Design
  Infrastructure (LDI)
• Conclusion future works

3
Introduction
4
Scientific works

•  Scenario  Team of University of Savoie in
  collaboration with PENTILA Corp.
• Research topics
• An alternative learning design language LDL
• An operationnalisation and execution
  infrastructure LDI

5
LDLs philosophy

• Organising the progression of a cooperative
  learning activity
• Organising participants interactions indicating
  which services will be used
• Observing participants reactions and
  interactions
• Facilitating scenario reusability

6
State of the art

• Several learning design languages
• A standard IMS-LD (introduced by R. Koper from
  Open University or The Netherlands)
• LAMS-LD (introduced by J. Dalziel, Macquarie
  University, Australia)
• LDL (University of Savoie, University of
  Grenoble, PENTILA)
• LDL has been created to allow to describe and
  specify learning activities on Internet

7
LDLs Metamodel to scenarize the activity
supported by services
8
LDL

• Learning Design Language (LDL)
• Based on a theoretical model the participation
  model Martel, 98
• Few concepts
• Roles held by participants
• Interactions between roles
• Arena where (and with which) interactions are
  performed
• Structures to describe the learning flow
• Positions expressed by learners/agents to make
  choice
• Rules on interactions or structures
• Observables as structured trails of activities.

9
Meta-model

• LDL conceptual meta-model

10
The  planet game  (ws ICALT 2006) (simplified
Activity diagram UML)
Team A
Team B
Teacher
Learner
Classify Planets
Classify Planets
Observe
Evaluate
Complete Map
Team
11
The  planet game  (ws ICALT 2006) (LDL analytic
view)

•

Organizational activity
Learning Activity Team B
Observation Activity Team A
Learning Activity Team A
Learner Teacher
Assessment Activity
12
Use of Services in the  planet game

• Each team has
• a 'Chat' to discuss,
• questionnaires to win new clues,
• a collaborative table-pad.
• Teams can negotiate clues discussing in a Forum
  (learning activity).

13
Service definition (in the context of this work)

• Software accessible on Internet through a
  standard API,
• Software Application supporting an activity
• Examples
• Forum
• Wikipedia
• Exerciser
• Chat

14
Observation limited description of services in LD

• IMS-LD

15
Observation limited description of services in LD

• LAMS List of pre-defined services

16
Observation limited description of services in LD

• LDL Arena

Takes place in
Arena
17
Problem in LD languages services are  black
boxes

• How to scenarize the use of a service
• Controlling the activity supported by the service
• How to observe what is going on when a service is
  used
• How to adapt the activity taking into account
  users actions

18
The new idea Use LDL to scenarize the use of a
service

• LDL allows to scenarize activities
• Services support activities
• Thus, activities supported by services can be
  scenarized using LDL

19
Re-use of the service model in a learning scenario
20
The new idea Use LDL to scenarize the use of a
service

• Method
• Study existing services describing the typical
  activity supported
• Specify this typical activity with LDL

21
The  planet game  (ws ICALT 2006) (LDL analytic
view)

•

Forum A
Forum B
FORUM Activity
Learning Activity Team B
Learning Activity Team A
N/2
Learner Teacher
22
Build the scenario of the forum

•

FORUM scenario
Forum
FORUM Activity
23
Example modelling a Forum by the activity it
supports

• where the activity will take place,
• who are the participants,
• how and when these participants interventions
  will be connected throughout the activity,
• the rules the participants will have to comply
  with,
• what the consequences of the participants
  reactions, actions and points of view on the
  activity will be and how they will be able to
  express these points of view,
• which part of the other participants activity
  the participants and the teacher will be able to
  see (awareness).

24
Example Forum Modelling

• The service supports two different activities

moderation
discussion
speaker
moderator
25
Example Modelling a Forum

• Definition of the structure of discussion

Add subject
Add intervention
Add comment
26
Example Modelling a Forum

• Interactions in Arena

Add comment
Add intervention
R_Start
Add subject
Subject
speaker
speaker
R_Stop
27
Example Modelling a Forum

• Interactions in Arena

Add comment
Add subject
R_Start
Intervention
Add intervention
speaker
speaker
R_Stop
28
Example Modelling a Forum

• Definition of observables
• Presence of speaker in the Forum
• Number of interventions to moderate
• Last intervention
• ...

29
Result

• It is possible to scenarize in LDL the activity
  supported by a service.
• The scenarization of the activity supported by a
  service can be integrated into an educational
  scenario as the Planet Game
• case study proposed during the ICALT2006
  workshop Vignollet al, 2006 for comparing
  Educational Modeling Languages. The solution of
  the case study using LDL is presented in Martel
  al, 2006b.

30
Concept of  Use_pattern  in LDL
Planet Game
31
Relations between scenarios in LDL
1 re-uses 2
2
3 launches 2 4
Forum
4 sees 1
re-use
Learning
1
see
launch
Observation
Organisation
launch
3
4
32
Implementation in Learning Design Infrastructure
33
Learning scenario life-cycle
cycle
Conception
Operationnalise
Execute
LD
workspace
infrastructure
tools
34
Operationnalisation of the model of a service in
LDI
35
Operationnalisation of the model of a service in
LDI
36
Conclusions and future works

• Proposed solution re-using LDL to specify the
  activity supported by a service.
• Current Work Automatisation by construction of
  the correspondences between the LDL concepts used
  to specify the activity, and the APIs of the
  service which could mediate the specified
  activity.

37
More info
ld.pentila.com
