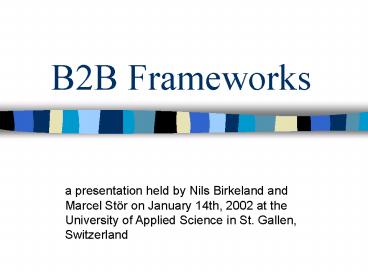

B2B Frameworks

1
B2B Frameworks
a presentation held by Nils Birkeland and Marcel
Stör on January 14th, 2002 at the University of
Applied Science in St. Gallen, Switzerland
2
B2B Frameworks

• Overview Defining an eb-environment
• Look at Electronic Data Interchange
• Glance at Microsoft BizTalk
• Glimpse at RosettaNet
• Focus on ebXML
• Goal Understanding B2B and ebXML

3
B2B Overview
Electronic Business Collaboration
4
B2B EDI (Electronic Data Interchange)
Seller proprietary document format
Buyer proprietary document format
Buyer application
Seller order management application
5
B2BEDI Runtime Topology
VAN Value Added Network A VAN is a networking
service that leases communication lines to
subscribers and adds extra services or
capability such as security, error detection,
guaranteed message delivery, and a message
buffer.
6
B2BEDI Drawbacks

• Very expensive technology
• Requires special networks
• Limited to large companies
• Implicit structure
• Intended for machines only

7
B2BEDI The Best of EDI

• Secure, one-to-one transactions
• End to end real-time transactions

8
B2BEDI mail example
N1SHACEMNUFCTRNG1987654321 N2RECEIVING N32
34 MAR N4SAN FRANCISCOCA94103US
9

• Warum ist XML wichtig ?

10
Warum ist XML wichtig

• Daten-Identifikation
• XML beschreibt Daten. Nicht die Darstellung der
  Daten. Model View Trennung.
• Verschiedene Applikationen benutzen dieselben
  Daten. Durch Identifizierung der Daten werden
  Daten in verschiedenste Art und Weise
  verartbeitet.
• Daten-Visualisierung mit XSL
• lttogtyou_at_yourAddress.comlt/togt
• Start a new line.
• Display "To" in bold, followed by a space
• Display the destination data.
• To you_at_yourAddress
• Diese Flexibilitaet garantiert "future-proofing"
  der Information.

11
Warum ist XML wichtig

• Inline Reusabiliy
• XML Dokumente können mittels andere Entitäten
  (XML Dokumenten) zusammengesetzt werden.
• XML Dokumente können in line in andere
  Dokumente eingefügt werden.
• Modularisierung von XML Dokumenten.
• Resultierendes XML Dokument ist ein XML Dokument
  und nicht ein XML Doukment bestehend aus Teilen.
• Easily Processed
• Aufgrund der großen Anzahl von Tools und der
  strengen Syntaxanforderungen (im Gegensatz zu
  html) kann XML leicht verarbeitet werden.
• Hierarchical
• XML Dokumente haben eine hierarchische Struktur.
  Datenverarbeitung einfach in einer hierarchischen
  Struktur.

12
B2BEDI Advantages of XML over EDI

• Explicit structure
• Easier validation
• Can easily use the Internet
• Cheaper to implement
• Can open up electronic commerce to small and
  medium-size businesses (social agenda again)

13
B2BEDI XML mail example
ltshipper duns"987654321"gt ltorganization
unique-id"aceman"gt ltnamegtACE
MANUFACTURINGlt/namegt ltdivisiongtRECEIVINGlt/div
isiongt ltaddressgt ltstreetgt234 MARKET
STREETlt/streetgt ltcitygtSAN FRANCISCOlt/citygt
ltstategtCAlt/stategt ltzipgt94103lt/zipgt
ltcountrygtUSlt/countrygt lt/addressgt
lt/organizationgt ltshippergt
14
XML Familie (I)
15
XML Familie (II)
16
B2BEDI the DTD

• lt!ELEMENT shipper (organization, address,
  attention)gt
• lt!ATTLIST shipper DUNS CDATA IMPLIED NAICS CDATA
  IMPLIEDgt
• lt!ELEMENT organization (name, division)gt
• lt!ELEMENT name (PCDATA)gt
• lt!ELEMENT division (PCDATA)gt
• lt!ELEMENT address (street, city, state?,
  country, postalcode)gt
• lt!ELEMENT street (PCDATA)gt
• lt!ELEMENT city (PCDATA)gt
• lt!ELEMENT state (PCDATA)gt
• lt!ELEMENT country (PCDATA)gt
• lt!ELEMENT postalcode (PCDATA)gt

17
B2B Microsoft BizTalk
internet
Seller proprietary document format
Buyer proprietary document format
Buyer application
Seller order management application
18
B2BBizTalk What is it?

• XML framework for electronic commerce and
  application integration
• Specifically, a set of XML schemas (XDR) produced
  by Microsoft, partners and standards bodies

19
B2BBizTalk What does it?

• Mapping proprietary formats to XML
• Solution for all size of companies
• Cost effective, highly versatile, easy to change,
  quick to implement
• Works well if you own a BizTalk server

20
B2B RosettaNet
21
B2BRosettaNet Rolemodel
22
B2BRosettaNet

• Originally centered on the computer technology
  industry
• Based on an early XML vocabulary
• Quick to integrate
• Many aspects of business
• Complete services integration
• PIP's (partner interface process)
• ...

23
B2BRosettaNet Influences

• Has become a model for other industries
• influence beyond its industry boundaries
• including the ebXML initiative

24
B2B Focusing on ebXML
ebXML framework
25
B2B ebXML
Business Process, Core Components
Registry/ Repository
Collaboration Protocol Profile
Business Process Reengeneering
Business Process Management
Collaboration Protocol Agreement
Business Service Interface
Transport / Routing and Packaging, Business
Service Interface
26
B2BebXML High level use case
( ebXML compliant System)
27
B2BebXML Architecture
28
B2BebXML Vision I

• Defining a single global market

29
B2BebXML Vision II

• A global electronic market where enterprises of
  any size, anywhere can
• Find each other electronically
• Conduct business through the exchange of XML
  based messages

30
B2BebXML What is it?

• Defines an open framework for global electronic
  business
• Based on XML standards
• Open non-proprietary public specifications

31
B2BebXML Who is behind it?

• UN/CEFACT (United Nations Center For Trade
  Facilitation And Electronic Business)
• OASIS (Organization for the Advancement of
  Structural Information Standards).

32
B2BebXML Who supports it?

• 1500 Companies all around the world
• Sun, IBM, Intel, CommerceOne, HP, SAP, China
  Commercial Trust, BT, Xerox, ...

33
B2BebXML Business Process
34
B2BebXML BP Schema
35
B2BebXML Collaboration Protocol Profile (CPP)
What Business capabilities it can perform when
conducting a Business Collaboration with other
parties
describe
build
Party A
36
Web Dienste Folie zu WSDL ...
QuelleSiemens Austria
37
B2BebXML WSDL vs. CPP

• WSDL
• Describes a Web Service
• Provided Information
• Name
• Parameter
• Endpoint

• CPP
• Describes a Web Service
• Provided Information
• Name
• Parameter
• Endpoint
• Roles (in a context)
• Error-handling
• Failure Scenarios

WSDL Web Service Description Language (
www.wsdl.org )
38
B2BebXML Collaboration Protocol Agreement (CPA)
39
B2BebXML CPA example

• lttpCollaborationProtocolAgreement ...
  tpcpaid"uriyoursandmycpa"
• tpversion"1.2"gt
• lttpStatus tpvalue"proposed"/gt
• lttpStartgt2001-05-20T072100Zlt/tpStartgt
• lttpEndgt2002-05-20T072100Zlt/tpEndgt
• lttpPartyInfogt
• lttpPartyId tptype"DUNS"gt123456789lt/tpPartyIdgt

• lttpCollaborationRole tpid"N00"gt
• lttpProcessSpecification tpversion"1.0"
  tpname"buySell" xlinktype"simple"/gt
• lttpRole tpname"buyer" xlinktype"simple"
  xlinkhref"http//ebxml.org/processes/buySell.xml
  buyer"/gt
• lt/tpCollaborationRolegt
• lttpTransport tptransportId"N05"gt
• lttpSendingProtocol tpversion"1.1"gtHTTPlt/tpSen
  dingProtocolgt
• lttpReceivingProtocol tpversion"1.1"gtHTTPlt/tpR
  eceivingProtocolgt
• ...
• lt/tpCollaborationProtocolAgreementgt

40
B2BebXML Business Documents Conceptual Mode
41
B2BebXML SOAP Packaging
42
B2BebXML Soap Package example

• Content-Type text/xml
• ltsoap-envEnvelope xmlnssoap-env"http//schemas.
  xmlsoap.org/soap/envelope/"gt
• ltsoap-envHeadergt
• ltebMessageHeader xmlnsebhttp//www.ebxml.or
  g/namespaces/messageHeader...gt
• ltebFromgt
• ltebPartyId ebtype"URI"gthttp//localhost
  8080/rateservicelt/ebPartyIdgt
• lt/ebFromgt
• ltebTogt
• ltebPartyId ebtype"URI"gthttp//localhost
  8080/swr/rateservicelt/ebPartyIdgt
• lt/ebTogt
• ltebCPAIdgturiswr_neocello_cpa_0800460222F0lt
  /ebCPAIdgt ...
• lt/ebMessageHeadergt
• lt/soap-envHeadergt
• ltsoap-envBodygt ...
• lt/soap-envBodygt
• lt/soap-envEnvelopegt
• Content-Type text/xml
• lt?xml version"1.0" encoding"UTF-8"?gt

43
B2BebXML DNS-like Registry of Registries
44
B2BebXML Suns JAXM I Creation

• MessageFactory mf pc.createMessageFactory(ebxml
  )
• // Create a message from the message factory.
• EbXMLMessageImpl ebxmlMsg (EbXMLMessageImpl)mf.
  createMessage()
• MessageFactory mf pc.createMessageFactory(bizta
  lk)

45
B2BebXML Suns JAXM II Soap Header

• ebxmlMsg.setSender(new Party(from))
• ebxmlMsg.setReceiver(new Party(to))
• Service service new Service("SupplierDataQuery")

• ebxmlMsg.setRefToMessageId("20001209-133003-28572_at_
  mnemonia.ch")
• ebxmlMsg.setCPAId("uriswr_neocello_cpa_7A57C100-.
  ..-0800460222F0")
• ebxmlMsg.setConversationId("20001209-133003-28572"
  )
• ebxmlMsg.setService(service)
• ebxmlMsg.setAction("ConversionFactor_Request")

46
B2BebXML Suns JAXM III SOAP Body

• Manifest manifest new Manifest("manifest",
  "1.0")
• Reference ref new Reference("pay01",
  "cidpay01",
• "http//regrep.org/gci/purchaseorder")
• Schema schema new Schema(
• "http//regrep.org/gci/purchaseorder.xsd",

• "1.0")
• ref.setSchema(schema)
• Description desc new Description("en-us")
• desc.setText("PurchaseOrder for rate query")
• ref.setDescription(desc)
• manifest.addReference(ref)
• ebxmlMsg.setManifest(manifest)

47
B2BebXML Suns JAXM IV Attachment

• Document doc db.newDocument()
• Element queryElement doc.createElement("Currency
  Query")
• Element inIsoElement doc.createElement("inISO")

• Element outIsoElement doc.createElement("outISO"
  )
• Text text doc.createTextNode(inISO)
• inIsoElement.appendChild(text)
• text doc.createTextNode(outISO)
• outIsoElement.appendChild(text)
• queryElement.appendChild(inIsoElement)
• queryElement.appendChild(outIsoElement)
• doc.appendChild(queryElement)
• DOMSource sss new DOMSource(doc)
• AttachmentPart ap
• ebxmlMsg.createAttachmentPart(sss,
  "text/xml")
• ebxmlMsg.addAttachmentPart(ap)

48
B2BebXML Suns JAXM IV RPC

• String to "http//localhost8080/reuters/rates"

• URLEndpoint urlEndpoint new URLEndpoint(to)
• SOAPMessage reply con.call(ebxmlmsg,
  urlEndpoint)

49
Ressources

• http//www.ebxml.org
• http//www.webservicesarchitect.com
• http//developer.java.sun.com
• http//www.theserverside.com
• IBM Redbook sg246104.pdf
• IT-day in the snowing Elm
