Transcript and Presenter's Notes

Title: MicroChip 3


1

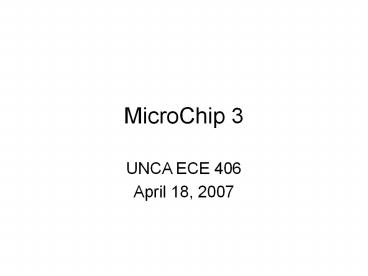

MicroChip 3
  • UNCA ECE 406
  • April 18, 2007

2
C variable view
  • int state
  • int nxtState
  • int oldRST
  • int oldDIN
  • int oldCLK
  • volatile int RST
  • volatile int DIN
  • volatile int CLK
  • int DOUT

3
C initialization
  • / many of these choices are arbitrary /
  • nxtState state 0
  • oldRST 0
  • oldDIN 0
  • oldCLK 0

4
C Loop
  • while (1)
  • if (CLK ! oldCLK)
  • processClockTrans()
  • if (RST ! oldRST
  • DIN ! oldDIN)
  • processDataTrans()

5
Process Clock Transaction
  • processClockTrans()
  • oldCLK CLK
  • if (CLK)
  • state nxtState
  • processDataTrans()

6
Process Data Transaction
  • processDataTrans()
  • oldRST RST
  • oldDIN DIN
  • if (RST)
  • nxtState 0
  • else
  • nxtState (2stateDIN)3
  • DOUT (state0 DIN0)
  • (state2 DIN1)

7
Action at reset
  • Program starts at reset vector
  • goto FSM
  • Loading the OSCAL p 21
  • pre-programmed internal callibration value
  • Location FFh contains callibration value
  • Loaded into W before reset
  • Suggest loading at first instruction
  • FSM movwf OSCAL

8
Things that might be done
  • Examine STATUS to determine how reset
  • Could awaken on sleep on pin change
  • Register 03h
  • Set OPTION to allow wakeup
  • On pin change or reset
  • But how to avoid resetting the registers
  • Requires use of OPTION instruction

9
Setting I/O direction
  • TRIS register
  • Input (high-impedance) 0
  • Output 1
  • We need xxxx1011 (0Ah)
  • Requires TRIS instruction
  • movlw 0Ah
  • tris GPIO
  • The GPIO does seem odd

10
Setting the initial output
  • Not really specified in the problem
  • GPIO register
  • Register 06h
  • Buffer for I/O
  • Can read an output pin
  • bcf GPIO,BOUT

11
Initialize registers
  • clrf STATE
  • clrf NXTST
  • clrf OLDRST
  • clrf OLDDIN
  • clrf OLDCLK

12
Start the loop
  • Check for a CLK transition
  • FSMLP
  • movf GPI0,W
  • andlw fdh (BCLK)
  • xorf OLDCLK,W
  • btfsc STATUS,Z
  • goto CLKTRANS

13
Check for RST transition
  • movf GPI0,W
  • andlw f7h (BRST)
  • xorf OLDRST,W
  • btfsc STATUS,Z
  • goto DATTRANS
  • goto FSMLP

14
Check for DAT transition
  • movf GPI0,W
  • andlw feh (BDAT)
  • xorf OLDRST,W
  • btfsc STATUS,Z
  • goto DATTRANS

15
Start the loop
  • Check for a CLK transition
  • FSMLP
  • movf GPI0,W
  • andlw fdh (BCLK)
  • xorf OLDCLK,W
  • btfsc STATUS,Z
  • goto CLKTRANS

16
Clock transition
  • CLKTRANS
  • movf GPIO,W
  • andlw BCLK
  • movwf OLDCLK
  • btfsc STATUS,Z
  • goto FSMLP
  • movf NXTST,W
  • movwf STATE
  • goto DATTRANS
  • Only update STATE here!

17
Data transition -- save old
  • DATTRANS
  • movf GPIO,W
  • andlw BDAT
  • movwf OLDDAT
  • movf GPIO,W
  • andlw BRST
  • movwf OLDRST

18
Reset check
  • btfsc STATUS,Z
  • goto NOTRST
  • clrf NXTST
  • goto FSMLP

19
Next state and output
  • decf STATE,W
  • btfsc STATUS,C
  • goto ST0TRANS
  • btfsc STATUS,Z
  • goto ST1TRANS
  • goto ST2TRANS

20
State 0 transition
  • ST1TRANS
  • clrf NXTST
  • btfsc GPIO,BDIN
  • goto ST1D1TRANS
  • bsf GPIO,BDOUT
  • goto FSMLP
  • ST1D1TRANS
  • incf NXTST,F
  • bsc GPIO,BDOUT
  • goto FSMLP

21
Arithmetic approach
  • DATTRANS
  • movf STATE,W
  • addf STATE,W
  • btfsc GPIO,BDAT
  • addlw 1
  • movwf NXTST
  • sublw 3
  • btfsc STATUS,C
  • movwf NXTST

22
Table approach part 1
  • movf STATE,W
  • addf STATE,W
  • btfsc GPIO,BDAT
  • addlw 1
  • call TBLLKUP

23
Table lookup
  • TBLLKUP
  • addlw NXTSTTAB
  • movf PCL
  • NXTSTTAB
  • retlw 10h
  • retlw 01h
  • retlw 02h
  • retlw 00h
  • retlw 01h
  • retlw 12h

24
Table approach part 2
  • call TBLLKUP
  • movwf NXTST
  • btfsc NXTST,4
  • goto SETOUT1
  • bcf GPIO,BDOUT
  • goto FSMLP
  • SETOUT1
  • bcf NXTST,4
  • bsf GPIO,BDOUT
  • goto FSMLP

25
Perils of PIC Assembly
  • Quirky instruction set
  • Quirky special registers
  • Quirky addressing
  • Quirky initialization
  • Variations with processors

26
Data memory PIC18
  • Data memory addressed by 12 bits
  • Most instructions can address 8 bits
  • BSR, Bank Select Register
  • Provides access to addition sets
  • But must be set before access
  • Processors vary in number of banks
  • Similar to segments in x8086
  • Leads to far and near pointers

27
Program memory PIC 18
  • Program memory address by 22 bits
  • PC is 21 bits
  • Last bit is always 0
  • Held in three registers
  • Only PCL (low 8 bits) are directly accessable
  • Use PCLATH to write other two
  • Program memory can be read/written
  • While running

28
Program branching
  • GOTO and CALL instructions
  • Use two words of program memory
  • Holds 20 bits of PC
  • Entire 2-Mbyte memory range
  • BRA (unconditional) instruction
  • 11 bit offset (actually 12) of PC
  • BC (conditional) instruction
  • 8 bit offset (actually 9) from PC

29
C compilation
  • Huge criticism of PIC
  • Too many variations
  • Unusual memory struction
  • No good stack support
  • Addressing relative to stack pointer
  • But the x8086 wasnt that go either

30
C compilation
  • Not bad with the right chip
  • Pin I/O
  • With TRISx and PORTx variables
  • Some printf
  • Through UARTS
  • Interrupt handlings
  • Hard working optimization

31
PIC examples
  • MadLab
  • PIC Source
  • MicroChip Application Notes
  • John Hopkins ECE448
