Introduction Outline

1

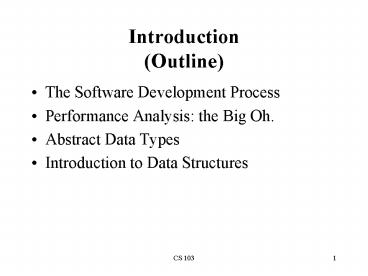

Introduction(Outline)

• The Software Development Process
• Performance Analysis the Big Oh.
• Abstract Data Types
• Introduction to Data Structures

2

• The Software Development Process

3
Software Development

• Requirement analysis, leading to a specification
  of the problem
• Design of a solution
• Implementation of the solution (coding)
• Analysis of the solution
• Testing, debugging and integration
• Maintenance and evolution of the system.

4
Specification of a problem

• A precise statement/description of the problem.
• It involves describing the input, the expected
  output, and the relationship between the input
  and output.
• This is often done through preconditions and
  postconditions.

5
Design

• Formulation of a method, that is, of a sequence
  of steps, to solve the problem.
• The design language can be pseudo-code,
  flowcharts, natural language, any combinations of
  those, etc.
• A design so expressed is called an algorithm(s).
• A good design approach is a top-down design where
  the problem is decomposed into smaller, simpler
  pieces, where each piece is designed into a
  module.

6
Implementation

• Development of actual C code that will carry
  out the design and solve the problem.
• The design and implementation of data structures,
  abstract data types, and classes, are often a
  major part of design implementation.

7
Implementation(Good Principles)

• Code Re-use
• Re-use of other peoples software
• Write your software in a way that makes it
  (re)usable by others
• Hiding of implementation details emphasis on the
  interface.
• Hiding is also called data encapsulation
• Data structures are a prime instance of data
  encapsulation and code re-use

8
Analysis of the Solution

• Estimation of how much time and memory an
  algorithm takes.
• The purpose is twofold
• to get a ballpark figure of the speed and memory
  requirements to see if they meet the target
• to compare competing designs and thus choose the
  best before any further investment in the
  application (implementation, testing, etc.)

9
Testing and Debugging

• Testing a program for syntactical correctness (no
  compiler errors)
• Testing a program for semantic correctness, that
  is, checking if the program gives the correct
  output.
• This is done by
• having sample input data and corresponding, known
  output data
• running the programs against the sample input
• comparing the program output to the known output
• in case there is no match, modify the code to
  achieve a perfect match.
• One important tip for thorough testing Fully
  exercise the code, that is, make sure each line
  of your code is executed.

10
Integration

• Gluing all the pieces (modules) together to
  create a cohesive whole system.

11
Maintenance and Evolution of a System

• Ongoing, on-the-job modifications and updates of
  the programs.

12
Preconditions and Postconditions

• A semi-formal, precise way of specifying what a
  function/program does, and under what conditions
  it is expected to perform correctly
• Purpose Good documentation, and better
  communications, over time and space, to other
  programmers and user of your code

13
Precondition

• It is a statement of what must be true before
  function is called.
• This often means describing the input
• the input type
• the conditions that the input values must
  satisfy.
• A function may take data from the environment
• Then, the preconditions describe the state of
  that environment
• that is, the conditions that must be satisfied,
  in order to guarantee the correctness of the
  function.
• The programmer is responsible for ensuring that
  the precondition is valid when the function is
  called.

14
Postcondition

• It is a statement of what will be true when the
  function finishes its work.
• This is often a description of the function
  output, and the relationship between output and
  input.
• A function may modify data from the environment
  (such as global variables, or files)
• the postconditions describe the new values of
  those data after the function call is completed,
  in relation to what the values were before the
  function was called.

15
Example of Pre/Post-Conditions

• void get_sqrt( double x)
• // Precondition x gt 0.
• // Postcondition The output is a number
• // y the square root of x.

16
C Way of Asserting Preconditions

• Use the library call
• assert (condition)
• You have to include include ltcassertgt
• It makes sure that condition is satisfied (
  true), in which case the execution of the program
  continues.
• If condition is false, the program execution
  terminates, and an error message is printed out,
  describing the cause of the termination.

17

• Performance Analysis and Big-O

18
Performance Analysis

• Determining an estimate of the time and memory
  requirement of the algorithm.
• Time estimation is called time complexity
  analysis
• Memory size estimation is called space complexity
  analysis.
• Because memory is cheap and abundant, we rarely
  do space complexity analysis
• Since time is expensive , analysis now defaults
  to time complexity analysis

19
Big-O Notation

• Let n be a non-negative integer representing the
  size of the input to an algorithm
• Let f(n) and g(n) be two positive functions,
  representing the number of basic calculations
  (operations, instructions) that an algorithm
  takes (or the number of memory words an algorithm
  needs).

20
Big-O Notation (contd.)

• f(n)O(g(n)) iff there exist a positive constant
  C and non-negative integer n0 such that
• f(n) ? Cg(n) for all n?n0.
• g(n) is said to be an upper bound of f(n).

21
Big-O Notation(Examples)

• f(n) 5n2 O(n) // g(n) n
• f(n) ? 6n, for n ? 3 (C6, n03)
• f(n)n/2 3 O(n)
• f(n) ? 0.5 n for n ? 0 (C0.5, n00)
• n2-n O(n2) // g(n) n2
• n2-n ? n2 for n ? 0 (C1, n00)
• n(n1)/2 O(n2)
• n(n1)/2 ? n2 for n ? 0 (C1, n00)

22
Big-O Notation (In Practice)

• When computing the complexity,
• f(n) is the actual time formula
• g(n) is the simplified version of f
• Since f(n) stands often for time, we use T(n)
  instead of f(n)
• In practice, the simplification of T(n) occurs
  while it is being computed by the designer

23
Simplification Methods

• If T(n) is the sum of a constant number of terms,
  drop all the terms except for the most dominant
  (biggest) term
• Drop any multiplicative factor of that term
• What remains is the simplified g(n).
• amnm am-1nm-1... a1n a0O(nm).
• n2-nlog n O(n2)

24
Big-O Notation (Common Complexities)

• T(n)O(1) // constant time
• T(n)O(log n) // logarithmic
• T(n)O(n) // linear
• T(n)O(n2) //quadratic
• T(n)O(n3) //cubic
• T(n)O(nc), c? 1 // polynomial
• T(n)O(logc n), c? 1 // polylogarithmic
• T(n)O(nlog n)

25
Big-O Notation(Characteristics)

• The big-O notation is a simplification mechanism
  of time/memory estimates.
• It loses precision, trading precision for
  simplicity
• Retains enough information to give a ballpark
  idea of speed/cost of an algorithm, and to be
  able to compare competing algorithms.

26
Common Formulas

• 123n n(n1)/2 O(n2).
• 122232n2 n(n1)(2n1)/6 O(n3)
• 1xx2x3xn(x n1 1)/(x-1) O(xn).

27
Example of Time Complexity Analysis and Big-O

• Pseudo-code of finding a maximum of xn

double Mx0 for i1 to n-1 do if (xi gt
M) Mxi endif endfor return M
28
Complexity of the algorithm

• T(n) a(n-1)(ba) O(n)
• Where a is the time of one assignment, and b
  is the time of one comparison
• Both a and b are constants that depend on the
  hardware
• Observe that the big O spares us from
• Relatively unimportant arithmetic details
• Hardware dependency

29

• Abstract Data Types

30
Abstract Data Types

• An abstract data type is a mathematical set of
  data, along with operations defined on that kind
  of data
• Examples
• int it is the set of integers (up to a certain
  magnitude), with operations , -, /, ,
• double its the set of decimal numbers (up to a
  certain magnitude), with operations , -, /,

31
Abstract Data Types (Contd.)

• The previous examples belong to what is called
  built-in data types
• That is, they are provided by the programming
  language
• But new abstract data types can be defined by
  users, using arrays, enum, structs, classes (if
  object oriented programming), etc.

32

• Introduction to Data Structures

33
Data Structures

• A data structure is a user-defined abstract data
  type
• Examples
• Complex numbers with operations , -, /, ,
  magnitude, angle, etc.
• Stack with operations push, pop, peek, isempty
• Queue enqueue, dequeue, isempty
• Binary Search Tree insert, delete, search.
• Heap insert, min, delete-min.

34
Data Structure Design

• Specification
• A set of data
• Specifications for a number of operations to be
  performed on the data
• Design
• A lay-out organization of the data
• Algorithms for the operations
• Goals of Design fast operations

35
Implementation of a Data Structure

• Representation of the data using built-in data
  types of the programming language (such as int,
  double, char, strings, arrays, structs, classes,
  pointers, etc.)
• Language implementation (code) of the algorithms
  for the operations

36
Object-Oriented Programming (OOP) And Data
Structures

• When implementing a data structure in non-OOP
  languages such as C, the data representation and
  the operations are separate
• In OOP languages such as C, both the data
  representation and the operations are aggregated
  together into what is called objects
• The data type of such objects are called classes.
• Classes are blue prints, objects are instances.
