Title: LIDAR Light Detection and Ranging


1

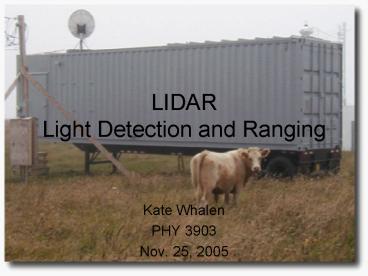

LIDARLight Detection and Ranging
  • Kate Whalen
  • PHY 3903
  • Nov. 25, 2005

2
Outline
  • Some applications
  • How lidar works
  • Examples of current lidar projects
  • Purple Crow Lidar
  • Dalhousie Raman Lidar

3
Applications
  • Distance measurements
  • Atmospheric composition
  • Weather
  • Mapping
  • Speed measurements

4
Lidar Basics
  • Active remote sensing
  • Light is emitted, scattered, and detected.
  • Since we know the speed of light, we can measure
    the distance travelled!

5
Details
  • 3 main parts
  • Transmitter
  • Example Pulsed NdYAG laser (532 nm)
  • Low beam divergence
  • Narrow spectral width
  • Receiver
  • Optical telescope
  • Detector
  • PMT
  • Chopper
  • Eliminates near-field returns

6
Purple Crow Lidar (UWO)
  • Detector consists of a 2.65 m mercury mirror,
    rotating at 10 rpm
  • Parabolic mirror
  • 532 nm NdYAG laser used for Rayleigh scattering
  • Elastic scattering at 30-90 km
  • Obtain T(z) from density profile
  • Assumptions
  • Hydrostatic equilibrium
  • Ideal gas

7
PCL Projects
8
Dalhousie Raman Lidar
  • CABOT Observatory
  • Canadian Atmosphere-Biosphere Observations
    Trailer
  • 607 nm NdYAG laser
  • Raman scattering
  • Inelastic scattering (change in rotational or
    vibrational energy)
  • Frequency of scattered photon depends on
    temperature, type of molecule
  • Investigates atmospheric aerosols clouds
  • Transboundary pollution transport

9
CABOT Projects
10
In Conclusion
  • Lidar is an example of physics for the benefit of
    the planet!

11
References
  • Thanks to Dr. Bob Sica and the PCL group at UWO!
  • Argall, P. S. R. J. Sica, Lidar (Laser Radar).
    In The Encyclopedia of Optics, Vol. 2, Ed. T. G.
    Brown et al., Wiley-VCH, Weinheim, 2005.
  • Duck, T. J. et al., Lidar measurements of
    atmospheres. Physics in Canada 61 (5) 247-252,
    2005.
  • Sica, R. J. et al., Lidar measurements taken with
    a large-aperture liquid mirror. 1.
    Rayleigh-scatter system. Applied Optics 34 (30)
    6925-6936, 1995.
  • Environment Canada Air Quality Processes
    Research Division Online. http//www.msc.ec.gc.c
    a/arqp/index_e.cfm Nov. 24, 2005.
  • Purple Crow Lidar Online. http//pcl.physics.uwo
    .ca/ Nov. 24, 2005.
  • REALM Regional East Atmospheric Lidar Mesonet
    Online. http//alg.umbc.edu/REALM/ Nov. 24,
    2005.
  • The Atmospheric Optics Laboratory Online.
    http//aolab.phys.dal.ca Nov. 24, 2005.
