Buckeye FRS No'1 Rehabilitation Project

1

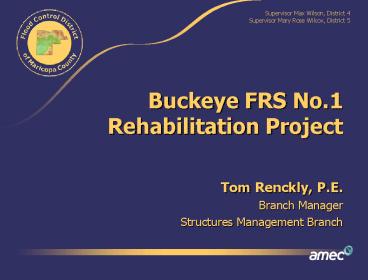

Buckeye FRS No.1Rehabilitation Project

• Tom Renckly, P.E.
• Branch Manager
• Structures Management Branch

2
Flood Control Dams
3
Dam Safety Program

• Recurrent Dam Safety
• Structures Assessment and Repairs
• Dam Rehabilitation

Buckeye FRS No. 1 looking west
4
Buckeye FRS No.1 Rehabilitation
ProjectBackground

• Earthfill Flood Retarding Structure (FRS)
• Constructed by SCS (NRCS) 1974 and Modified in
  1980
• Operated Maintained by FCDMC
• ADWR is Regulatory Agency
• Crest Length is 7.1 miles
• Height is 26 ft.

Buckeye FRS No. 1
5
Buckeye FRS No.1 Rehabilitation ProjectBuckeye
Watershed Project
6
Buckeye FRS No.1 Rehabilitation ProjectFloodways
Floodways
7
Buckeye FRS No.1 Rehabilitation ProjectOutlets
for Dams
60 Pipe Outlet
30 Pipe Outlet
48 Pipe Outlet
8
Buckeye FRS No.1 Rehabilitation ProjectBuckeye
FRS No.1 Outlet
9
Buckeye FRS No.1 Rehabilitation ProjectEmergency
Spillways
Emergency Spillway
10
Buckeye FRS No.2 Emergency Spillway
11
Buckeye FRS No.1 Rehabilitation
ProjectTransverse Cracks Investigation and
Repair
12
Buckeye FRS No.1 Rehabilitation
ProjectAlternatives Analysis Study

• Correct Dam Safety Deficiencies
• Identify Opportunities for
• Incorporate Multi-use for the Community
• Improved Landscaping and Aesthetics
• Enhance Environment
• Public and Stakeholder Involvement

13
Buckeye FRS No.1 Rehabilitation
ProjectAlternatives Analysis Study (continued)

• Possible Alternatives
• Floodway and Levee
• Flood Control Basins
• Rehabilitate Dam
• Combination

14
Buckeye FRS No.1 Rehabilitation Project
PartnersNatural Resources Conservation Service
(NRCS)

• Federal Workplan and Environmental Assessment
• Dam Rehabilitation Program (PL-462 65-35 cost
  share)
• Multi-use Recreational Component (50-50 cost
  share)
• District Encourages Recreational Cost Share By
  Others

15
Buckeye FRS No.1 Rehabilitation Project
PartnersFlood Control District Funding

• Capital Improvement Program
• Compete with Other Flood Control Projects

16
Buckeye FRS No.1 Rehabilitation Project
PartnersSchedule
September
September
November
November
January
January
March
March
May
May
July
July
2007
2008


Alternatives Analysis
Planning and Pre-design
Final Design
Construction (Potentially to be phased)
TBD
Public Meeting
