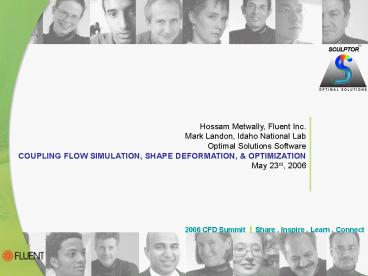

Hossam Metwally, Fluent Inc. Mark Landon, Idaho
National Lab Optimal Solutions Software COUPLING
FLOW SIMULATION, SHAPE DEFORMATION,
OPTIMIZATION May 23rd, 2006
2006 CFD Summit Share . Inspire . Learn .
Connect
2
Objective
  • To demonstrate how arbitrary shape deformation
    (ASD) technology can be coupled to computational
    fluid dynamics (CFD) for the process of die
    balancing of
  • Spiral mandrel dies (coupling SCULPTOR with
    FLUENT)
  • Profile dies (coupling SCULPTOR with POLYFLOW)

3
Agenda
  • Objective
  • Spiral Mandrel Die
  • Description
  • Computational Model
  • Arbitrary Shape Deformation (ASD)
  • Results
  • Conclusions
  • Profile Die
  • Description
  • Computational Model
  • Arbitrary Shape Deformation (ASD)
  • Results
  • Conclusions

4
Spiral Mandrel Die
  • Coupling FLUENT with SCULPTOR

5
Problem Description
inlet
  • Blown film
  • Pipe/hose extrusion
  • Wire/cable coating

die
mandrel
6
Geometrical Parameters
die land
manifold
spiral height
die height
die-mandrel gap
die lip (gap)
7
Geometrical Parameters
inlet
helical angle
Spiral depth
8
Modeling Techniques
  • Many geometrical parameters
  • 1d and 2d models
  • Fast (allows analytical solutions)
  • Can be used for optimization
  • Complex geometry effects??
  • Full 3d models are also used
  • Realistic representation of geometry
  • Non-Newtonian behavior highly dependant on
    geometry
  • Model creation and update is a time consuming
    process
  • CAD
  • Meshing
  • Set up, simulation, process results

man hours
man/CPU hours
9
Ideal Modeling Scenario
Initial Geometry
3d Computational Model meshing, problem set up,
simulation, results interpretation
automated
automated
No
Modify Geometry
Flow Balanced
Yes
Cut and Test Die
10
Computational Model
  • Full three dimensional
  • Model size 1.3 M cells
  • Non-Newtonian viscosity (Bird-Carreau)
  • ? ?oo (?o - ?oo)1( ??)2(n-1)/2
  • ?oo infinite strain rate viscosity 0
  • ?o zero shear viscosity 105,059 Pa.s
  • ? time constant 0.6509 s
  • ? strain rate, s-1
  • n power-law index 0.4

?o
?
?oo
?
Values taken from Sun Gupta
11
Baseline Model Results
spirals
inlet
inlet
12
Arbitrary Shape Deformation
  • Shape deformation is applied on an existing
    (baseline) model
  • Arbitrary Shape Deformation (ASD) parameterizes
    the geometry and the mesh
  • No need to revisit CAD No re-meshing
  • Deform manually or perform Automatic Shape
    Optimization
  • Smooth Volumetric Deformations maintaining cell
    quality

13
(No Transcript)
14
(No Transcript)
15
Two Parameters Studied
die land
helical angle
helical length const
16
Effect of Twist
17
die land 11.3 mm const.
helical angle 405? (baseline 45?)
helical angle 315? (baseline - 45?)
helical angle 360? (baseline)
18
Deformed Mesh Quality
helical angle 315? Maximum skew 0.73
helical angle 360? Maximum skew 0.71
helical angle 405? Maximum skew 0.77
good
bad
19
helical angle 360?
helical angle 315?
helical angle 405?
20
Exit Velocity Distribution
inlet
spiral direction
21
Effect of Twist and Die Land- die land changed
/- 20 of baseline value- helical angle changed
/-45?
22
Pressure drop, Pa
Flow uniformity
23
Design Space Map
(1.2, 405?)
(1, 405?)
(0.8, 405?)
(1.2, 360?)
(1, 360?)
(0.8, 360?)
(1.2, 315?)
(0.8, 315?)
(1, 315?)
const. helical angle
const. die land
24
Conclusions
  • Computational fluid dynamics has been used with
    arbitrary shape deformation to model numerous
    designs of a spiral mandrel die
  • Only ONE baseline model was manually created from
    which eight new different designs were
    automatically generated
  • The effects of the helical angle and the die land
    were studied on the flow uniformity and pressure
    drop
  • A design map can be used to select which geometry
    may be used depending on available pressure drop
  • Next step would be to couple an optimizer to
    drive the entire loop
  • Additional geometrical parameters

25
Profile Die
  • Coupling POLYFLOW with SCULPTOR

26
Problem Description
plane of symmetry
  • Full three dimensional
  • Model size 20,000 cells
  • Non-Newtonian viscosity (Bird-Carreau)
  • ? ?oo (?o - ?oo)1( ??)2(n-1)/2
  • ?oo infinite strain rate viscosity 0
  • ?o zero shear viscosity 10,000 Pa.s
  • ? time constant 0.01 s
  • ? strain rate, s-1
  • n power-law index 0.25
  • No slip occurring on die walls
  • Flow rate 320 cm3/s

27
Solution Results
28
Shape Deformation (I)
29
Shape Deformation (II)
30
(No Transcript)
31
Top only deformed Vmax 7.676e-02 Die balance
6.57
Initial Shape Vmax 8.372e-02 Die balance 6.67
  • Best Design
  • Notice the equal shades of red at the corners.
    This means a good Die Balance of max velocities
    at the corners.

Bottom only deformed Vmax 7.64e-02 Die balance
6.55
Top and Bottom deformed Vmax 7.936e-02 Die
balance 6.73
32
(No Transcript)
