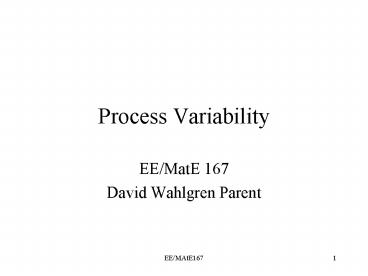

Process Variability

1
Process Variability

• EE/MatE 167
• David Wahlgren Parent

2
Introduction

• Fabricator to Fabricator Variation
• The differences in SPC data from fab house to fab
  house
• If you use the same fab house every time, you can
  optimize your design for one set of SPC data
• If you need to be able to use any vendor, you
  must take care to not optimize for any one process

3
Intro Cont.

• Inter-Die Variation How much all your process
  parameters vary from chip to chip
• This is the most commonly talked about form of
  variation.
• Intra-Die Variation How much your process
  parameters vary on the chip.

4
What Varies?

• Everything but Plancks constant and Boltzmans
  constant
• Threshold voltage
• Gate oxide thickness
• Doping in the channel
• Channel Length
• Fixed oxide charge
• Threshold Voltage affects
• Current
• Noise
• Power
• Speed of a circuit

5
Inter-Die Variations

• Timing of circuits must take into account sources
  of delay variability
• Functionality needs to be assured at the porcess
  extremes
• Circuit designers love to blame the process when
  their designs have a low yield.
• Rule of thumb
• Designs need to allow for a /- three sigma
  timing delay variation.

6
Sort percent yield dependence on process for a
non-optimized design.

• CLY Circuit Limited Yield
• The number of parts that meet your performance
  spec (parts that fail totally are not included).
• This design can not handle process variations.

7
Response variation can be caused by path
compositional differences.

• We are concerned with the ratio of various delays
• Intrinsic delay Unloaded CMOS stage delay. How
  much time is takes for the logic levels to
  stabilize before they are buffered up to drive
  large fan out or long wires.
• RC delay The delay associated with long wires
  or driving large fan outs.
• Global critical paths The slowest path for any
  signal. Any slow down on this signal will cause
  the circuit to fail the performance
  specification.
• On a processor 95 intrinsic 5 RC to a 40/60
  split.

8
Effect of varying path composition on
functionality
9
Intra-Die Variation

• Parameters that do not track on the die are of a
  particular concern.
• Paths that are short are at risk, because these
  effects can not be averaged out over long paths.

10
Failure Causes

• Race Conditions
• If two signals are launched by the same event,
  then the timing relationship has to be preserved
• If path A needs the results of path B then the
  circuit will fail if path A reads the data before
  path B has arrived.
• Conventional timing
• Standard timing margin, make sure everything is
  evaluated within a clock cycle.
• Clock skew and jitter
• Circuit fails

11
Failure Causes

• Clock skew and jitter
• Skew is when the clock arrives earlier or later
  from one logic gate to the other.
• Jitter is when the period of the cclock varies
  over time.
• Circuit fails
• If a device property strays to far from design is
  can cause circuit logic styles to fail.

12
Front-End-Of-Line Variability Considerations

• EE/MatE 167
• David Wahlgren Parent

13
Introduction

• FEOL variability affects the response of discrete
  electrical components.
• transistors, capacitors, resistors
• MOSFET
• Poly gate length
• Spacer widths
• Gate oxide thickness
• Device width and edge effects

14
Threshold Voltage
15
Inter fab variation

• Spacer thickness
• Simple method
• Large spacers
• Leads to larger overlap variations
• LDD
• Narrow spacers
• spacer then LDD implant
• 20 spacer then S/D implant
• Channel length can vary by 10 on die for even a
  mature process

16
Across the Chip Line-width Variation (ACLV)

• How the line with varies on the die.
• To combat ACLV have device gates
• have the same physical dimensions
• oriented in the same direction
• close together
• have same nearest neighbor distances
• are placed in area with similar pattern density.

17
NMOS to PMOS Length Tracking

• The ratios of NMOS and PMOS driving capability
  vary.
• Some styles are very dependant on this.
• Even though the gates are etched at the same
  time, differences in spacers for pmos and nmos
  can affect LEFF
• Some times they do not track
• leff of nmos gets larger while pmos gets smaller
  across die.
• Keep device length the same.
• Keep everything close together.

18
Channel Width Variations

• For narrow channel widths the threshold voltage
  can change.
• Unlike SCE the effect can be directly
  proportional to width or inversely proportional
  with width fro fabrication house to fabrication
  house.

19
VT Variations

• Everything varies but Plancks constant and
  Boltzmans constant
• Threshold voltage
• Gate oxide thickness
• Doping in the channel
• Channel Length
• Fixed oxide charge
• Mobile charge

20
Hot Carrier Effects

• Degrades devices over the lifetime depending on
  how much they are used.
• Since all gates are not used the same amount
  except for clock trees there will be a ID/VT
  variation that will creep in over time.
• NMOS VT goes up ID goes down.
• PMOS VT goes down ID goes up.

21
Type of HCE

• Conducting
• In pinch off Inversion region does not reach
  depletion region and carriers are inject with a
  high electric field. This gives them a high
  energy or temperature and it causes crystal
  damage.
• Worse when VDD/2
• Slow slew rates or fast switching degrades FET
  even faster.
• Energetic carriers get trapped in the gate oxide.

22
Drain Resistance Modulation

• If spacer is too short dopant can get trapped in
  spacer thus lowering drain conductance.
• If too large there is too much overlap
  capacitance and the speed goes down.

23
Other Variations

• Negative Bias Temperature Instability
• Inter fab variation
• not well understood
• aging
• Body effect
• Threshold voltage can vary if source is not tied
  to ground.
