Title: This Dog Dont Hunt


1

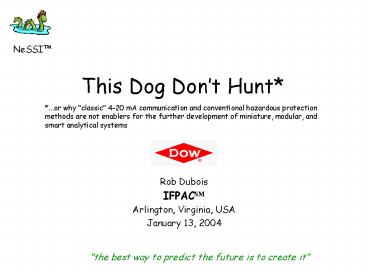

This Dog Dont Hunt
NeSSI
...or why classic 4-20 mA communication and
conventional hazardous protection methods are not
enablers for the further development of
miniature, modular, and smart analytical systems
  • Rob Dubois
  • IFPACSM
  • Arlington, Virginia, USA
  • January 13, 2004

the best way to predict the future is to create
it
2
This Dog Dont Hunt
Courtesy of M. and D. Dubois
Chance
3
Presentation Topics
  • NeSSI Objectives Recap
  • Progress Update
  • The Impact of ANSI/ISA SP76
  • Generation II Update
  • The NeSSI-box A Case Study
  • The I/O and Interface Dilemma
  • The problem with hazardous compliance
  • The problem with 4-20 mA Communication
  • Conclusions and Acknowledgments

4
Objective 1 Modular, miniature smart process
analytical systems
Courtesy of Dow Chemical, Fort Saskatchewan,
Canada
Courtesy of Dow Chemical, Fort Saskatchewan,
Canada
5
Objective 2 A platform for microAnalytical
devices
Oxygen Sensor
Courtesy of Swagelok and GE/Panametrics
6
Objective 3 An enabler for By-Line Analysis
Both pictures Courtesy of Dow Chemical, Freeport,
Texas
7
Objective 4 Common Communication Architecture
Field
microClimate Enclosure
Div/Zone 1
Sensor - Level 0 LAN DeviceNet lt100 ft
Segment 1 (NIS)
Segment 2 (IS)
Wireless Handheld HMI
Gas Analyzer
By-Line Analysis
Sample System
8
Its all about Standard Interfaces(the rail
concept)
Standard Electrical (Digital) Interface Rail
SAM
Standard robust miniPC
Anyones Actuator
Anyones Sensor
Standard Mechanical Interface Rail
Sensor/Actuator Manager
9
NeSSI Development Progress
2006
2004-05
END USER VALUE
10
Gen I The Impact of a Standard Mechanical
Interface
  • No confusion within our manufacturing community
    on which footprint to build to
  • Lowers the cost to build
  • Allows interchangeability between various
    components irregardless of manufacturer

Courtesy of Parker-Hannifin

11
Gen I The Impact of Adopting the ANSI/ISA SP76
Standard
  • Over 50 SP76 components now available
  • Price point has decreased from x3 to about x1.2
    classical
  • New product categories are in the pipeline
    including microPumps, aspirators, sensors...

Courtesy of CIRCOR
12
Gen I SP76 Component Availability
Projected
13
2003 New Developments
  • New substrate designs
  • Swagelok (Jan IFPAC)
  • CIRCOR (May ISA-AD)
  • Parker (Oct. ISAexpo)
  • New SP76 Components
  • Brooks MFC (2p)
  • Porter MFC (2 p/Div2)
  • Horiba/STEC MFC (1p)
  • Bronkhörst MFC (Zone1)
  • New SP76 Components
  • FlowMatrix
  • Flow (insens. to press.)
  • Hanbay mini-actuators
  • Teledyne (PPB Oxygen)
  • Rotameters (Porter, Brooks)
  • Function Blocks (CIRCOR, Parker)
  • Auxiliary Systems
  • Intertec smart heater

14
SP76 Surface Mount Component Trends
  • A move from high purity to process
  • A trend to Functional Blocks
  • atmospheric reference vent valve module
  • leak detection/purge modules
  • bypass modules
  • back-pressure control module
  • sample injection module
  • Analytical cluster applications (eg H2O)

15
Gen II So why Get Smart?
Maxwell Smart
  • Benefits to Industry
  • predict failures before they happen
  • decrease maintenance
  • increase confidence
  • remote operation in robust environments
  • ARC Advisory Group suggests that 40 maintenance
    savings can be achieved by automation

16
Recap of the Seven Elements of a Gen II Miniature
System
17
Status Update Gen II/III(encouraging news)
  • DOE award for NeSSI systems (3MM)
  • Won by Honeywell led consortia
  • Smart Gas/Liquid System (2004-05)
  • microGC (2006)
  • wireless, robust standard (2006 funded sep.)
  • Generation II Specification
  • working version at hand
  • www.cpac.washington.edu/NeSSI/NeSSI.htm

18
Status Update Gen II/III(work in progress)
  • Who can cut the Gordian knot?
  • No clear target to industry on an industrially
    robust low cost digital standard to build to.
  • DeviceNet requires 0.5MM to certify for
    Intrinsic Safety
  • IEEE 1451.6 standard for IS in progress (with
    CiA/CANopen)
  • Profibus or FF an option?
  • Power to operate multiple actuators and sensors
    within IS (low power) constraint is a formidable
    goal. (target 20-30 devices)

Alexander the Great cutting the Gordian Knot
19
Case Study Hard-earned lessons from the
NeSSI-box installation
Upper Enclosure PLC with 4-20mA
Bottom Enclosure Heated Sample System
in Propylene Service
Courtesy of Dow Chemical, Fort Saskatchewan,
Canada
20
Upper Enclosure Control System (SAM Jr.)
  • Conventional PLC controller (Div. 2)
  • 12 I/O points
  • Expensive to design and build
  • Custom programming
  • Highly engineered

Courtesy of Dow Chemical, Fort Saskatchewan,
Canada
21
Lower Enclosure Sample Handling Conditioning
  • X-purged pressurized enclosure/interlock
  • LEL gas detector/interlock
  • Integrated an x-proof heating system into the
    control strategy

Courtesy of Dow Chemical, Fort Saskatchewan,
Canada
22
The Field Human Machine Interface (NeSSI-box)
Courtesy of Danny Quevillon. Dow Chemical, Fort
Saskatchewan, Canada
23
The I/O Dilemma
  • Conventional analyzers do not support flexible
    I/O interfacing with sample systems
  • expensive to implement
  • multiple interfaces (RS-232, analogue, digital,
    proprietary bus, etc.)
  • lack of HMI for monitoring data
  • may have limited AI/AO/DI/DO Input/Output

24
4-20 mA Communication not viable for NeSSI Gen
II/III
  • highly engineered and labor intensive
  • space hungry
  • expensive to wire for haz. electrical areas
  • conduit and cabling systems can be larger than
    the actual components and do not support
    miniaturization
  • different global certification rules
  • this dog dont hunt

25
The Solution Low cost Intrinsically Safe Serial
Comm. for Gen II/III
  • First analytical serial bus now demonstrated
    (POCA project)
  • simple wiring and connections

Courtesy of Dow Chemical, Fort Saskatchewan
POCA Proof of Concept Apparatus
26
Free at Last
  • A wiring method with no conduits, cables
  • Plug and play identification of sensors and
    actuators
  • An industry standard connector
  • Smart diagnostics
  • Global certification

27
Conclusions
  • Gen I products are streaming to market
  • DOE award will bring Gen II/III prototypes to
    market in 2-3 years
  • 4-20 mA I/O is not optimal for NeSSI miniature
    systems
  • target the NeSSI-bus

28
Acknowledgments
  • Special Thanks
  • Peter van Vuuren (ret.) ExxonMobil Chemical
  • Jeff Gunnell (EMCC)
  • John Cumbus (EMCC)
  • John Mosher (Hwell)
  • Bob Nickels (Hwell)
  • Ulrich Bonne (Hwell)
  • Dave Veltkamp (CPAC)
  • Mel Koch (CPAC)
  • Rick Ales (Swagelok)
  • Special Thanks (Dow)
  • D. Quevillon, R. Hartwig, H. Quartel (Fort Sask.)
  • P. Williams, B. Vu, J. Leach, D. Yates, D. Gay,
    W. Henslee, M. Walsh, C. Snook (Texas)
  • G. Timmermans, E. Engelen (Netherlands)
  • Paul Landry (Louisiana)
  • Ralf Schade (Germany)
  • M. Dittenhafer, M. Buchmann (Michigan)

29
Thanks Peter!
