Dynamics of Gestures: Temporal Patterning

1

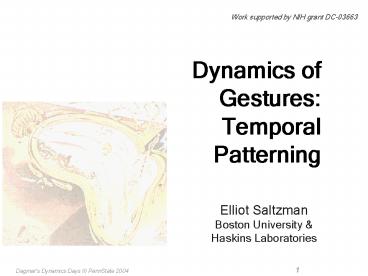

Dynamics of Gestures Temporal Patterning
Work supported by NIH grant DC-03663

• Elliot Saltzman
• Boston University
• Haskins Laboratories

2
Colleagues

• Dani Byrd
• University of Southern California, USA
• Louis Goldstein
• Yale University Haskins Laboratories, USA
• Hosung Nam
• Yale University Haskins Laboratories, USA

3
Question What is being learned when we learn a
skilled behavior?

• Answer The dynamical system, or coordinative
  structure, that shapes functional, coordinated
  activity defined across animal and environment
• But what is a dynamical system?
• Roughly, it is a system of interacting variables
  whose change over time are shaped by laws or
  rules of motion
• what types of variables?
• what types of rules of motion?

4
System states, parameters, and graphsand their
dynamics

• Any dynamical system can be completely
  characterized according to three types of
  variablesstate, parameter, and graphand their
  dynamics (Farmer, 1986)
• State variables a systems active degrees of
  freedom
• defined by the number of autonomous 1st order
  equations used to describe the system
• Ex) position velocity of the mass in a damped
  mass-spring system
• Ex) activations of nodes in a connectionist
  network
• State dynamics the forces (velocity vector
  field) defined in the space of state variables
  (state space) that shapes motion patterns of the
  state variables

5
System states, parameters, and graphsand their
dynamics(cont.)

• System parameters
• Ex) m, b, k, and escapement strength in a limit
  cycle equation
• Ex) target position in a point attractor equation
• Ex) pendulum length
• Ex) inter-node synaptic connection strength in a
  connectionist network
• Parameter dynamics the forces/processes that
  shape motion patterns of the system parameters
• Ex) intentional changes in oscillation frequency
  in finger-wiggling experiment
• Ex) actor-environment field equation for
  specifying target position in reaching
• Ex) changing system eigenfrequency due to
  alteration of pendulum lengths in
  pendulum-swinging experiment
• Ex) connectionist learning algorithms for
  changing system weights to solve a given
  computational task

6
System states, parameters, and graphsand their
dynamics(cont.)

• System graph Architecture of the systems
  equation of motion
• the parameterized set of relationships defined
  among a systems state variables
• Ex) circuit diagram (e.g., Simulink)
  representation of mbk equation of motion

• Ex) node/connection diagram in a connectionist
  network

7
System states, parameters, and graphsand their
dynamics(cont.)

• Graph dynamics the forces/processes that
  change the system graph
• state variables (i.e., system dimensionality)
• Ex) recruitment/selection/assembly of degrees of
  freedom appropriate for task in a particular
  actor-environment context
• e.g., recruitment of trunk leaning or body
  twisting for reaching, depending on distance to
  target
• interconnection/linkage structure defined across
  state variables
• Ex) learning/discovering appropriate interlimb
  oscillator coupling functions to perform bimanual
  mn rhythms
• Ex) constructivist connectionist learning
  algorithms that add/delete nodes and/or
  connections to implement grammar appropriate
  for learning given class of functions

8
Outline of Remaining Presentation

• Part 1 Overview and review of task-dynamic model
  of speech production
• Four types of timing phenomena Intragestural,
  transgestural, intergestural, and global
• Hybrid dynamical model Task dynamics recurrent
  connectionist network
• Part 2 Focus on system graphs and intergestural
  timing/phasing in speech production
• Influence of system graph on patterns of relative
  timing between vowels and consonants in syllables
• Competitive, coupled oscillator model of syllable
  structure
• task-dynamic model of intergestural phasing
  (Saltzman Byrd, 2000)

9
Outline of Remaining Presentation (cont.)

• Part 3 State and/or parameter dynamics and
  transgestural timing
• Phrasal boundary effects on local speaking rate
• Prosodic gestures (p-gestures) induce local
  slowings of central clock
• Part 4 Intragestural timing Gestural
  anticipation intervals
• Self-organization of gestural onsets given
  required times of target attainment
• Constrained temporal elasticity of anticipation
  intervals

10
Part 1 Overview and Review

• General Theoretical Question
• How can we characterize the dynamics that
  underlie the temporal coordination among the
  units (gestures) of speech?

11
Dynamics Defined

• Dynamics
• Laws or rules that specify the forces that
  change a systems variables (system state) from
  one moment to the next

12
Speech Gestures

• Equivalence classes of goal-directed actions by
  different sets of articulators in the vocal tract
• examples
• /p/, /b/, /m/Upper lip, lower lip, and jaw work
  together to close the lips.
• /a/, /o/Tongue body and jaw work together to
  position and shape the tongue dorsum (surface)
  for the vowel.

13
Articulatory Phonology Catherine Browman and
Louis Goldstein

• Speech can be described with a unitary structure
  that captures both phonological and physical
  properties.
• Act of speaking can be decomposed into atomic
  units, or gestures.
• Units of information Linguistic primitives of
  speech production
• Units of action Dynamically-controlled
  constriction actions of distinct vocal tract
  organs (e.g., lips, tongue tip, tongue body,
  velum, glottis)
• Coordinated into larger molecular structures

14
Four Aspects of Speech Timing

• Intragestural variations of temporal patterns of
  individual gestures
• Ex. Temporal asymmetry of velocity profiles
• Intergestural relative phasing among gestures
• Sequencing and partial temporal overlap
  (coproduction) of vowel and consonant gestures in
  the word (and syllable) /pub/
• Transgestural modulations of temporal patterns
  of all active gestures during a relatively
  localized portion of an utterance
• Ex. Temporally localized slowing of all gestures
  in neighborhood of phrasal boundaries
• Global temporal pattern of entire utterance
• Ex. Overall speaking rate or style

15
Overview Hybrid Dynamical Model

• Modeling dynamics of speech production a hybrid
  dynamical model
• 2 components
• Task-dynamic component shapes articulatory
  trajectories given gestural timing information as
  input. Uses tract-variable and model articulator
  coordinates.
• Recurrent neural network provides a dynamics of
  gestural timing. Uses activation coordinates.

16
Tract Variable Model Articulator Coordinates
17
Gestural Activation

• A gestures dynamics influence vocal tract
  activity for a discrete interval of time.
• Activations wax and wane gradually at edges.
• A gestures strength is defined by its activation
  level (range 0-1)

bad
time
18
Gestures as Dynamical Systems

• Gestural activations are used to define
  gesture-specific control dynamics in goal/task
  space coordinates
• point attractor dynamics of damped mass-spring
  systems in the task-space
• constriction space (tract variables) closing the
  lips, raising the tongue tip, etc.
• constriction target is approached regardless of
  initial conditions or perturbations along the way

19
Gestural Equation of Motion
Total gestural acceleration is the sum of the
constriction gesture and neutral gesture
acceleration components.
Constriction gesture
Neutral gesture (governs return to neutral
posture)
20
Hybrid Model Three Coordinate Systems
21
Hybrid Dynamical Model Overall Structure
22
Part 2 Intergestural Timing, System Graphs, and
Syllable Structure

• Phenomenon Vowel and consonant gestures within
  syllables show characteristic signatures of
  relative timing/phasing
• We hypothesized that these different patterns
  were due to corresponding differences in
  intergestural coupling graphs
• coupling graphs were implemented in simulations
• simulations were compared with actual data

23
Syllable Structure Some Definitions

• The vowel and consonant gestures in a syllable
  can be partitioned in three componentsOnset,
  Nucleus, Coda

24
Relative Timing in Syllables

• There is an asymmetry in patterns of relative
  timing displayed within syllable-initial (onset)
  and syllable-final (coda) consonant clusters
• C-center effect on mean values of intergestural
  relative phase
• c-center pattern occurs syllable-initially in
  onsets but not syllable- finally in codas
• Browman Goldstein (1988), Byrd (1995)
• Stability of relative phasing
• Greater stability (lower standard deviation) of
  relative phasing occurs syllable initially in
  onsets than syllable-finally in codas
• Byrd (1996), Cho (2001)
• Both effects are hypothesized to emerge from
  appropriate dynamic coordination of gestures
  viewed in a oscillatory framework

25
C-center Effect in Onsets, not Codas
Hypothetical Model
C-center
If add an additional coordination (C-C phasing)?
But C-V phasing is preserved as global
c-center-to-V coordination
CV and CC phasings in competition
C-C phasing separates CC in timing
C-V phasing
26
Why C-center Effect in Onsets and not Codas?

• Browman Goldstein (2000)s Hypothesis
• there are different coupling structures (system
  graphs) for onsets (C1,oC2,oV) and codas
  (VC1,cC2,c)
• there is C1,o-V coupling in onsets, but there is
  no V-C2,c coordination (coupling) in codas
• as a result, there is competition betweenVC and
  CC phasings for onsets, but not for codas

27
Proposed Coupling Graphs CCV vs. VCC

• CCV
• C1 C2 V
• VCC
• V C1 C2

Competitive coupling structure
No V-C2 coordination No competition
28
Stability of Relative Phasing

• Browman Goldstein (2000) additionally
  hypothesized that
• Competitive coupling structures in syllable
  initial position may also help explain the
  greater stability of intergestural phasing in
  onsets than in codas

29
Outline of Simulation Experiments

• C-center effect in CCV but not VCC?
• Greater stability (lower variability) between
  consonants in CCV than VCC?
• Effect of syllable boundary in heterosyllabic CC
  sequences

30
What do Oscillators Have to do with Speech?

• Oscillatory units have a well defined variable
  representing timephase
• dynamics of coupled limit cycle oscillators
  allows their relative timing to emerge in a
  self-organized manner due to intrinsic oscillator
  dynamics and the nature of the coupling.
• the best developed theories of inter-unit timing
  come from work in (non-speech) rhythmic movement

31
What do oscillators have to do with speech?
(cont.)

• Phase has also been adopted as a measure of
  intrinsic gestural time in speech gestures
  (Browman Goldstein, Kröger, et al.)
• although point attractor models have been used to
  model these gestures, intrinsic gestural phase
  has been defined relative to an associated
  abstract, underlying gestural oscillator
• Previously, the coordination of gestures in terms
  of their relative phase has been specified by
  hand in models of word production
• we have been pursuing a model of speech timing
  that allows relative phasing to self-organize as
  it does in oscillatory systems

32
Task-dynamics of Intergestural Phasing

• We assume that rhythmic and non-rhythmic speech
  behavior have a common underlying dynamical
  organization
• here, we attempt to reconcile work in coupled
  oscillator dynamics and intergestural timing in
  speech.
• Saltzman Byrd (2000) implemented a task-dynamic
  approach to controlling (generalized) relative
  phase and (mn) frequency ratio in a single pair
  of coupled nonlinear oscillators
• For a pair of oscillators in 11 frequency
  locking
• the component oscillators must be coupled to one
  another in a manner specific to the desired
  relative phasing
• We have generalized the Saltzman Byrd (2000)
  model to implement intergestural coupling among
  multiple (gt2) gestures (Nam, Saltzman,
  Goldstein, 2003)

33
Control of Relative Phase General Approach

• Intergestural coupling is defined in a pairwise
  manner among a set of oscillators in three steps
• 1stdefine set of task space potential functions,
  V(y),
• state-variable represents relative phase (? øi
  øj)
• point minimum corresponds to desired relative
  phase value, y0
• 2nddefine corresponding task-space (relative
  phase) dynamics
• 3rdtransform these dynamics into the required
  coupling forces between the component oscillators
• see Saltzman Byrd (2000) for details

34
Simulation Experiment 1 C-center effect in CCV
Competition
C-centers

• Target relative phase
• C1-V 50?
• C2-V 50?
• C1-C2 30?

C1
C1
V
C2
C2

• Resultant rel. phase(Final output)
• C1-V 59.94?
• C2-V 39.96?
• C1-C2 19.98?

Mean of c-centers
C1
C-center effect
V
C2
35
Simulation Experiment 1 No C-center effect in
VCC
No competition
C-center

• Target relative phase
• V-C1 50?
• V-C2 none
• C1-C2 30?

C1
C1
V
C2
Mean of c-centers

• Resultant rel phase(Final output)
• V-C1 49.96?
• V-C2 79.90?
• C1-C2 29.94?

C1
No c-center effect
V
C2
36
Adding noiseSimulation Experiment 2

• Source of noise
• slight differences in frequencies of oscillators
  (detuning)
• Noise modeled by adding a linear function to the
  potential energy function
• V (?) -a cos (? - ?0) b (? - ?0)
• b represents the amount of inter-oscillator
  detuning,
• which perturbs the location of potential
  minimum
• b randomly varied across simulations trials
  within conditions defined by a given standard
  deviation
• standard deviation of b manipulated across
  simulation conditions

37
Results Simulation Experiment 2

• Interconsonant phasing is more variable in
  syllable-final position

std. of CC phase (radian)
1.0
Onsets
Codas
std. of detuning b
.05
.65
.25
.45
.85

• Browman Goldsteins hypothesis proved correct
• Onsets in competition show greater stability

38
Simulation Experiment 3 Generalizing the Model
to Hetero-Syllabic Consonant Sequences
e.g. a scab e.g. mask amp e.g. bag sab

• V C C V
• V C C V
• V C C V

39
Results Simulation Experiment 3

• C-to-C phasing is more variable across boundaries

std. of CC phase (radian)
Onsets
1.0
Codas
X-bound
std. of detuning b
.05
.65
.25
.45
.85

• The result (VCCV lt VCCV lt VCCV) corresponds to
  Byrd (1994)s findings

40
Conclusion Importance of System Graph

• Dynamic structure (system graphs coupling
  structure) generates observed phonetic
  asymmetries of intergestural phasing (mean
  patterns and their stability)
• C-center effect
• mean relative phasing
• Greater temporal stability

Competitive coupling structure in onset
Consonants not directly coupled across boundaries

• Effect of boundaries
• (Greater variability)

41
Future Directions Where are the Underlying
Oscillators?

• Hypothesis Underlying oscillators live at the
  state-unit level of the hybrid models recurrent
  network as members of an entrained oscillatory
  ensemble
• Question Is there a 11 association between
  oscillators and gestures?
• Question How are the mappings learned between
  oscillators and gestural activations?

42
Part 3 Transgestural Effects of Phrasal
Boundaries

• It has been shown that prosodic boundaries induce
  temporally local contextual variation in ongoing
  articulation
• prosodic boundaries are boundaries between words
  and higher order phrases in speech
• Boundary effects on articulation include
• lengthening of gestural durations
• decreased overlap (coarticulation) between
  adjacent gestures
• spatially larger gestures in phrase-initial
  positions
• Boundary effects appear to be graded
• stronger boundaries induce greater lengthening

43
Boundary Adjacent Slowing

• It has been shown that speech gestural durations
  lengthen in the region of word and phrase
  boundaries
• It also appears that stronger boundaries induce
  greater lengthening
• Example (Byrd Saltzman 1998)

44
Boundary Adjacent Slowing(Byrd Saltzman 1998)
45
Boundary Adjacent Slowing(Byrd Saltzman 1998)
Speaker J
mmi
none
word
pre-boundary lip opening duration
list
vocative
post-boundary lip closing duration
Boundary Type
utterance
Speaker K
none
word
list
vocative
utterance
0
100
200
300
(ms)
46
Boundary Adjacent Relative Timing

• Additionally, evidence exists suggesting that
  phrase boundaries affects the relative timing
  (i.e. overlap) between gestures.
• Chitoran, Goldstein Byrd (to appear), Byrd
  (1996), Hardcastle, (1985), Byrd, Kaun,
  Narayanan, Saltzman, (2000), Jun (1993),
  Keating et al. (in press)

Time between displacement extrema in CC
.
70
47
Approach Prosodic (p)-gestures

• Question How can we account for the variations
  of gestural timing associated with prosodic
  context?
• p-gestures (prosodic gestures) influence the
  expression of all constriction gestures which are
  concurrently active with the p-gestures
• Transgestural effect
• Effect in proportion to the activation level of
  the p-gesture.
• p-gesture activation determined by boundary
  strength.

Byrd, Kaun, Naryanan, Saltzman (2000), Byrd
(2000), Byrd Saltzman (subm)
48
Two constrictions spanning a phrase boundary
49
How is this Prosodic Action Effected?Parameter
Dynamics Stiffness Lowering

• Lowering of gestural stiffness values has been
  hypothesized to underlie gestural lengthening
  adjacent to phrasal boundaries.
• Beckman et al. 1992, Byrd Saltzman 1997
• Local, transgestural on-line modulation of
  gestural parameter values.
• E.g. Locally lower stiffness local
  slowing

50
But...

• Changes in both duration and relative timing
  occur at phrase boundaries.
• Stiffness scaling does not account for changes in
  relative timing.
• modulates point-attractor parameter values, but
  does not specifically influence the domain of
  gestural activation.

51
How is this Prosodic Action Effected?Central
Clock Slowing

• Hypothesis Prosodic effects are induced by time
  slowing at the gestural control level.
• slowing the timecourse of gestural activation
  (Byrd Saltzman, subm)
• Slowing the central clock has both intragestural
  and intergestural timing consequences.
• Related Work V.-Bateson, Hirayama, Honda,
  Kawato, 1992 Bailly, Laboissière, Schwarz,
  1991 ODell Nieminen, 1999 and especially,
  Port Cummins, 1992, and Barbosa Bailly, 1994

52
Gestural Activation
53
Slowing Activation Timecourse
Stretched with time slowing
1
0.5
No time slowing
0
0
0.05
0.1
0.15
0.2
0.25
Equation for time scaling/stretching/slowing

• ? is scaled time,
• t is unscaled time whose flowrate 1, and
• a(t ), gestural activations (constriction and
  p-gestures), are functions of scaled time.

54
Simulation data No p-gesture
1
GESTURE 1
GESTURE 2
Activation
0.5
0
0
0.05
0.1
0.15
0.2
0.25
1
0.5
Position
0
-0.5
-1
0
0.05
0.1
0.15
0.2
0.25
gesture 2 duration
1
0.5
Velocity
0
-0.5
gesture 1 duration
-1
0
0.05
0.1
0.15
0.2
0.25
55
Simulation p-gesture realized via clock slowing
Activation (faint unslowed bold slowed)
1
GESTURE 1 (phrase-final)
GESTURE 2 (phrase-initial)
0
.
5
p-gesture
0
0
0
.
0
5
0
.
1
0
.
1
5
0
.
2
0
.
2
5
Position (faint unslowed bold slowed)
1
0
.
5
0
-
0
.
5
-
1
0
0
.
0
5
0
.
1
0
.
1
5
0
.
2
0
.
2
5
56
Initial Strengthening

• Initial strengthening apparently spatially
  larger gestures in phrase-initial positions.
• E.g., more linguapalatal contact in lingual
  consonants longer linguapalatal seal durations
  longer VOTs (Keating, Jun, Fougeron, Cho, Hsu,
  others) more breathy hs (Pierrehumbert
  Talkin, 1992) more lip rounding in rounded
  vowels (van Lieshout et al., 1995)
• BUT what is the articulatory foundation for these
  very different types of effects?

Can we unite slowing, lesser overlap, and
strengthening in terms of articulatory
dynamicsspecifically clock slowing??
57
Simulation Clock slowing withtwo (same
constriction) phrase-initial gestures
Gesture1closing (e.g. lingual
C) Gesture2opening (e.g. following
V) Gesture1 duration Gesture2 duration Time
between peak velocities Spatial strengthening
(phrase initial)
Activation (faint unslowed bold slowed)
gest 1 (consonant)
gest 2 (vowel)
1
0.5
p-gesture
0
0
0.05
0.1
0.15
0.2
0.25
Position (faint unslowed bold slowed)
2
Refererence line for plausible linguapalatal
contact
1
0
-1
-2
0
0.05
0.1
0.15
0.2
0.25
58
Summary p-gestures

• Local slowing of a central clock appears to be a
  plausible way to capture prosodically driven
  shaping of articulatory behavior.
• Unlike stiffness modulation which only affects
  gestural durations, clock rate modulation
  generates several experimentally observed
  prosodic effects
• gestural lengthening
• reduced intergestural overlap
• spatial strengthening

59
Theoretical Implications of Prosodic-Gestures

• First step in conceiving a dynamical
  implementation of phrasal structure.
• Just like articulatory gestures, phrasal
  junctures are viewed as
• Having inherent durational properties
• Being temporally coordinated with other gestures
• Provides a theoretical reconciliation of what in
  the past has been an inconsistency in the manner
  in which prosodic structure and segmental
  structure have been conceptualized in
  Articulatory Phonology (Browman Goldstein, 1992
  and elsewhere).

60
Part 4 Anticipatory Behavior of Speech Gestures

• Question
• When does gestural motion begin relative to its
  required time of target attainment in an
  utterance?
• Answer Controversial
• Look-ahead modelas early as possible given no
  other conflicting demands
• Frame modeltime-locked to the time of target
  attainment

61
Intragestural Effects Gestural Anticipation
Intervals

• Intragestural shaping of gestural anticipation
  intervals
• Self-organization of gestural onsets given
  required times of target attainment
• Emergent behavior from a bidirectionally coupled
  set of dynamical systems
• Activation dynamics (recurrent neural network)
• Primary responsibility shaping gestural
  activation patterns
• Acts as sequence-specific central controller
  (clock, c.p.g.)
• drives task-dynamic model (feedforward)
• Interarticulator coordination dynamics (task
  dynamics)
• Primary responsibility shaping articulator
  trajectories
• Ongoing state modulates recurrent controller
  (feedback)

62
Architecture of a Simple Hybrid Model


task-dynamic elements
sequential network elements


inter-element synapses
label delay lines



numbers symbols fixed weights assigned to some
synapses.
63
Network Training Side Constraints Interval
Types

• Network training/programming.
• backprogagation-in-time distal supervised
  learning
• Two constraint types during training
• Task constraints specific to current task,
  e.g., reach target at a specified time
• Side constraints generic constraints, e.g.,
  maximize smoothness, minimize effort, etc.
• Two types of training interval
• Care task and side constraints
• Dont care only side constraints
• We used a side constraint that minimized gestural
  activation.

64
Anticipatory Behavior Effect of Side Constraints
Care
Don't care
interval
interval
Activation
level
Tract variable
position

• Left column Look-ahead behavior occurs when
  side constraints are absent, and gestural onset
  occurs near the beginning of the dont-care
  interval, regardless of its length.
• Right column Frame model behavior occurs when
  side constraints are present, regardless of the
  dont-care intervals length, and gestural
  onsets are approximately time-locked to the
  care interval.

65
Constrained Temporal Elasticity in Speech

• Data on anticipatory lip-protrusion in French
  speakers (e.g., Abry Lallouache, 1995) suggests
  that anticipatory behavior may be neither rigidly
  time-locked nor totally unconstrained. This
  suggests a constrained temporal elasticity,
  intermediate between these two extremes.
• Abry Lallouaches Movement Expansion Model,
  i.e., a gestures anticipatory interval lengthens
  as the preceding dont care interval lengthens,
  but only fractionally. Different speakers show
  different lengthening fractions.
• We generated temporally elastic behavior using
  intermediate values of side-constraints.

66
Constrained Elasticity in the Hybrid Network
67
Constrained Elasticity Lengthening Fractions
68

• Thank you
