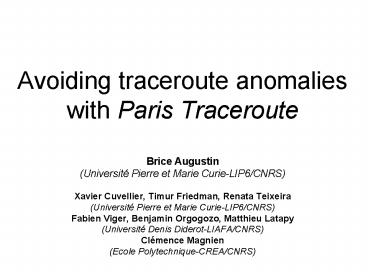

Avoiding traceroute anomalies with Paris Traceroute

1
Avoiding traceroute anomalies with Paris
Traceroute

• Brice Augustin
• (Université Pierre et Marie Curie-LIP6/CNRS)
• Xavier Cuvellier, Timur Friedman, Renata Teixeira

• (Université Pierre et Marie Curie-LIP6/CNRS)
• Fabien Viger, Benjamin Orgogozo, Matthieu Latapy
• (Université Denis Diderot-LIAFA/CNRS)
• Clémence Magnien
• (Ecole Polytechnique-CREA/CNRS)

2
Contributions

• Identified traceroute deficiencies on load
  balanced paths
• Measured paths are inaccurate and incomplete
• False diamonds, false loops and false cycles
• Built a new traceroute Paris traceroute

3
Traceroute under load balancing
Actual topology
A
C
Dst
E
Src
L
TTL 2
B
D
TTL 3
Inferred topology
A
C
False link
Dst
E
Src
L
D
B
Missing nodes and links
4
Anomalies false diamonds
A
C
Actual topology
Dst
E
Src
L
B
D
Inferred topology
A
C
Dst
E
Src
L
D
B
5
Anomalies false loops and cycles
TTL 3
A
Actual topology
Src
Dst
L
D
B
C
TTL 4
TTL 2
Inferred topology
Src
Dst
L
D
B
6
Anomalies happen even under per-flow load
balancing
Port 2
Flow 1
A
C
Port 1
Dst
E
Src
L
TTL 2
Port 3
B
D
TTL 1
TTL 3

• Traceroute uses the destination port as
  identifier
• Per-flow load balancers use the destination port
  as part of the flow identifier

7
Paris traceroute

• Solves the problem with per-flow load balancing
• Probes to a destination belong to same flow
• How to identify probes?
• Use the UDP checksum
• Does not address per-packet load balancing

Checksum 3
Checksum 2
Port 1
Port 1
A
C
Checksum 1
Port 1
Dst
E
Src
L
TTL 2
TTL 3
B
D
TTL 1
8
Measurement infrastructure
5000 reachable destinations

• Measurements
• 1 round takes 100 minutes
• 2 months
• 1465 rounds

Paris traceroute
Classic traceroute
Classic traceroute
Paris traceroute
Paris

Paris traceroute
INTERNET
Source
9
Unusual observations
Diamonds
Loops
Cycles
A
A
A
C
B
B
B
D
C
C

• What portion of these are false, i.e. anomalies?

10
Measurement artifacts are common
From our LIP6 vantage point

• Diamonds appear in 30 of the destinations
• Paris traceroute removes 10,662 from 19,159 (56)
• Loops appear in 4.5 of the measured routes
• Paris traceroute removes 5,047 from 5,795 (87)
• Cycles appear in 0.25 of the measured routes
• Paris traceroute removes 3,886 from 5,674 (68)
• Other causes
• Routing changes
• NAT boxes
• Buggy routers
• Per-packet load balancing

11
Conclusion

• Classic traceroute leads to anomalies
• False diamonds, false loops and false cycles
• Per-flow load balancers cause most of the
  anomalies
• Paris traceroute reports more precise paths

12
More information
www.paris-traceroute.net
13
Future Directions

• Exhaustive algorithm
• Find all paths
• Fine characterization of load balancers
• Impact on inferred graphs (stats, dynamics)
• Broader experiments
• More sources and destinations
• Path diversity
• Optimize Internet connections by selecting the
  appropriate flow identifier

14
Anomalies false loops and cycles
TTL 3
A
Dst
D
Src
L
B
C
E
TTL 5
TTL 4
TTL 2
Dst
D
Src
L
B
E
15
AnomaliesLoops caused by buggy routers
-bash traceroute Dst traceroute to Dst 1 B
0.289 ms 2 B 0.278 ms 3 Dst 0.578 ms
Dst
Src
A
B
X
Forwards the probe with TTL equal to 0
Rejects the probe with a TTL of 0 and sends it
back to the source
TTL 1
TTL 2
TTL 1
Rejects the probe with a TTL of 0 and sends it
back to the source
Forwards the probe with TTL equal to 0
-bash traceroute-paris Dst traceroute to Dst 1
B 0.289 ms !T0 2 B 0.278 ms 3 Dst
0.578 ms
Src
Dst
B
16
AnomaliesLoops caused by NAT boxes
Response TTL 254 IP Identifier 12375
Response TTL 252 IP Identifier 9356

Dst (NAT)
Src
B
C
A
Dst
B
TTL 2
TTL 3
TTL 3
Response TTL 253 IP Identifier 5286
2
Dst
Src
A
See Bellovin 2002
17
An intriguing traceroute output
A
-bash -bash traceroute F traceroute to F, 64
hops max, ... 1 A 0.353 ms 0.358 ms 0.222
ms 2 B 0.848 ms C 0.264 ms B 0.985 ms 3 D
0.225 ms E 0.718 ms D 0.778 ms 4 F 0.590 ms
0.609 ms 0.750 ms -bash -bash -bash
C
B
?
E
D
F
18
An intriguing traceroute output
-bash -bash traceroute F traceroute to F, 64
hops max, ... 1 A 0.353 ms 0.358 ms 0.222
ms 2 B 0.848 ms C 0.264 ms B 0.985 ms 3 D
0.225 ms E 0.718 ms D 0.778 ms 4 F 0.590 ms
0.609 ms 0.750 ms -bash -bash -bash
traceroute F traceroute to F, 64 hops max, ...
1 A 0.253 ms 0.354 ms 0.325 ms 2 C 0.342
ms 0.364 ms B 0.825 ms 3 E 0.216 ms D 0.614
ms 0.820 ms 4 F 0.612 ms 0.503 ms 0.728
ms -bash
A
C
B
?
E
D
F
19
Anomalies diamonds
A
C
Dst
E
Src
L
B
D
A
C
Dst
E
Src
L
D
B
20
What we expect with per-flow load balancing
Flow 1
A
C
Dst
E
Src
L
TTL 2
B
D
TTL 3
A
Dst
E
Src
L
D
21
How traceroute works
Src
Dst
A
B
0
0
1
1
TTL 1
TTL 2
TTL 3
Src
Dst
A0
B0
Src
Dst
A1
B1
