Title: Electron Backscattering

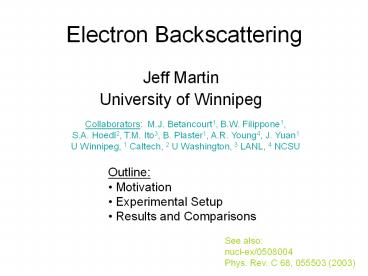

1
Electron Backscattering
  • Jeff Martin
  • University of Winnipeg

Collaborators M.J. Betancourt1, B.W.
Filippone1, S.A. Hoedl2, T.M. Ito3, B. Plaster1,
A.R. Young4, J. Yuan1 U Winnipeg, 1 Caltech, 2 U
Washington, 3 LANL, 4 NCSU
  • Outline
  • Motivation
  • Experimental Setup
  • Results and Comparisons

See also nucl-ex/0508004 Phys. Rev. C 68, 055503
(2003)
2
Motivation
  • Electron backscattering is an important
    systematic effect in many low-energy electroweak
    experiments.
  • E.g. Asymmetries in Neutron Beta-Decay (UCNA)

UCNA Experimental Goal Asymmetry to
0.2 Residual correction due to backscattering
0.1
3
Backscattering Data
  • Below 40 keV lots of data on variety of targets,
    oblique/normal incidence, integration of current,
    silicon detectors, secondary electrons, etc.
  • Above 1 MeV detailed Monte Carlo simulations,
    relatively well-calibrated.
  • In between only measurements of normal incidence
    using integration of current.
  • Our goal to link the two regimes with detailed
    measurements, focus on low Z

4
Experimental Setup
Electron gun
Beam diagnostics
Backscattering chamber
Electron Beam
5
Experimental Setup
  • Two modes
  • Silicon detector mode (det on rotating arm)
  • Current integration mode (with grid)

6
Silicon detector data
Normalized Yield vs. energy deposition in silicon
detector Rate at ? gt 90? is due to
rescattering from chamber walls. (chamber
background)
7
New Scintillator Target Results
Geant 4
Lines data Histo simulation
Penelope
  • Additional systematics
  • charging
  • deterioration at high current

8
Current Mode andSi Mode Compared
total systematic uncertainty shown
9
Statistical Analysis with Single Normalization
Factor
  • Tends to confirm visual comparison
  • In general ?2(G4) gt ?2(Penelope)
  • For observables free of extrapolation
    uncertainty, always within 16
  • Normalization uncertainty is 12 (double-diff.)
    and 9 (current int)

10
Conclusions
  • New detailed data set for normal incidence
    backscattering from 43.5 to 124 keV.
  • Good agreement with Geant4 and Penelope Penelope
    gives superior description of relative
    distributions and normalization.
  • Fit gives normalization scale factors in
    agreement with unity to within systematic
    uncertainties of 12 and 9 (mostly).
  • Results will be used to assign systematic
    uncertainty in UCNA.

11
Si Det Final Results
Lines data Histo simulation
Geant 4
Penelope
