Air Toxics Compound Analysis: A New NEPA Requirement

1

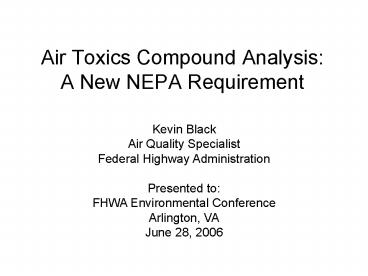

Air Toxics Compound AnalysisA New NEPA
Requirement
Kevin Black Air Quality Specialist Federal
Highway Administration Presented to FHWA
Environmental Conference Arlington, VA June 28,
2006
2
Outline of MSAT Presentation

• Background on Mobile Source Air Toxics
• MSAT Policy Interim Guidance
• MSAT Analysis Methods
• MSAT Mitigation
• Conclusion/Questions

3
Background on Mobile Source Air Toxics (MSATs)
4
Background on MSATs

• Clean Air Act (CAA) of 1970 originally
  established air quality standards (NAAQS) for the
  criteria pollutants (CAPs)
• Sufficient data from health studies allowed
  establishing these standards
• CAA recognized that these standards might need to
  be revised (and others added) and established a
  process for making revisions

5
Background on MSATs
6
Background on MSATs

• During subsequent amendments to CAA and periodic
  standard reviews, revisions have been made to the
  NAAQS
• In the CAA Amendments (CAAA) of 1990, Hazardous
  Air Pollutants were defined and regulated by
  release into atmosphere, but this only applied to
  stationary sources
• CAAA did, however, required EPA to evaluate
  impacts from mobile sources

7
Background on MSATs

• EPA conducted the Motor Vehicle Air Toxics Study
  (MVATS) in 1993 to determine the emissions from
  vehicles
• This lead to the Mobile Source Air Toxics Rule in
  March 2001
• The Rule designated 21 compounds emitted by
  vehicles or fuels that were HAPs and referred to
  these as MSATS
• Six were identified as priorities for regulation

8
Background on MSATs
9
Background on MSATs

• In addition, refineries were to maintain current
  standards for the fuel produced essentially
  prohibiting reformulations with other toxic
  compound
• Current regulations for CAPs also benefited HAPs
• - limits on gasoline volatility as determined by
  the Reid Vapor Pressure (RVP)
• - limits on sulfur in diesel fuel

10
Background on MSATs

• EPAs Second Mobile Source Air Toxics Rule
  (February 2006) - Proposed
• Benzene content of gasoline to be limited to an
  annual average of 0.62 by volume beginning in
  2011
• Exhaust emissions of hydrocarbons from passenger
  vehicles operated in cold temperatures phased in
  between 2010 and 2015
• Passenger Vehicle Standards to be equivalent to
  those existing in California
• Hydrocarbon emission standard for gasoline cans
  in 2009

11
Background on MSATs
12
MSAT Policy Interim Guidance

• FHWA decided it was important to address MSATs in
  environmental documents
• Several studies pointed to MSATs as a significant
  health problem (MATES, NATA)
• FHWA was sued for not having addressed them in
  some environmental documents
• Some projects had been analyzed for MSATs so
  approaches to conduct analyses had been developed

13
MSAT Policy Interim Guidance

• FHWA determined that project sponsors must be
  encouraged to analyze MSATs
• Failure to analyze for MSATs could result in the
  sponsor and FHWA being sued
• FHWA developed the MSAT Interim Guidance
• A three tiered approach was established in this
  Guidance which divided projects into groups
• - projects not requiring analysis
• - projects requiring qualitative analysis
• - projects requiring quantitative analysis

14
MSAT Policy Interim Guidance

• Projects not requiring analysis
• - these projects are projects currently exempt
  under NEPA and conformity rules mostly project
  types that have been determined to have no
  significant impact or one that address safety
  problems
• - those projects that are CE or result in FONZIs
  after and EA would likely not have to do and MSAT
  analysis

15
MSAT Policy Interim Guidance

• Projects requiring qualitative analysis
• - these projects are projects that the sponsor
  could readily identify as having some impact,
  although likely a smaller impact
• - most projects will be in this group

16
MSAT Policy Interim Guidance

• Projects requiring quantitative analysis
• - this class of projects will likely be obvious
  too larger, high profile, often drawing
  significant negative comments from the community
• - these projects may represent only 10 of more
  but will require a greater analysis effort
  including the development of emission inventories
• - table summarizes analysis criteria and
  approaches

17
MSAT Policy Interim Guidance

• The Guidance provides criteria to assist project
  sponsors determine the required analysis approach

18
MSAT Policy Interim Guidance
Contents of Guidance Guidance memo Appendix A
Sample language for exempt projects Appendix B
Sample language for qualitative analysis Appendix
C Sample 1502.22 compliance language Appendix
D Background Attachment A List of MSAT
compounds Attachment B FHWA Research
Activities Attachment C 40 CFR
1502.22 Appendix E MSAT mitigation strategies
19
MSAT Analysis Methods

• Exempt
• Qualitative
• - descriptive
• - charts and graphs
• Quantitative
• - emission inventory (burden analysis)
• - dispersion analysis
• - toxic weighting factor
• - risk analysis

20
MSAT Analysis Methods

• Exempt Projects still must discuss MSATs
• The Guidance for Exempt Projects can be found in
  Appendix A

21
MSAT Analysis Methods - Qualitative

• Descriptive Text (Appendix B)
• Charts and graphs
• !502.22 qualifying statements (Appendix C)

22
MSAT Analysis Methods - Qualitative
23
MSAT Analysis Methods - Quantitative

• Descriptive Text
• Analysis discussion method, and data
• !502.22 qualifying statements (Appendix C)

24
MSAT Analysis Methods - Quantitative
25
MSAT Mitigation

• MSAT mitigation will generally only be required
  for those projects which have used quantitative
  analysis
• Mitigation is discussed in the Guidance
• Some possible strategies
• - restrict idling of vehicles especially diesel
  trucks and buses using no idling ordinances
• - incorporate wider buffers adjacent to project
• - restrict the types of development adjacent to
  project (i.e., no residences, schools, hospitals)
• - evaluate and control emissions from off-road
  equipment such as construction vehicles

26
Conclusion

• Interim Guidance has been released and is
  effective for all projects which have not
  completed the NEPA process
• All environmental documents processed should
  include an analysis (or statement noting
  exemption) addressing the impacts created by
  MSATs
• It is useful to note the new emphasis on project
  impacts created by both the MSAT Guidance and the
  PM Hotspot Rule released earlier this year, table
  illustrates similarities

27
Conclusion
28
Questions ???
Kevin Black Air Quality Specialist Phone
410-962-2177 E-Mail Kevin.N.Black_at_fhwa.dot.gov
