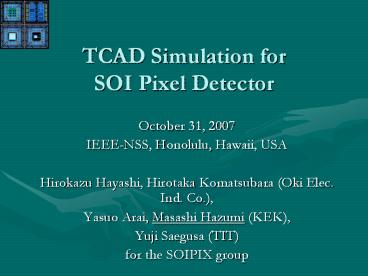

TCAD Simulation forSOI Pixel Detector

• October 31, 2007
• IEEE-NSS, Honolulu, Hawaii, USA
• Hirokazu Hayashi, Hirotaka Komatsubara (Oki Elec.
  Ind. Co.),
• Yasuo Arai, Masashi Hazumi (KEK),
• Yuji Saegusa (TIT)
• for the SOIPIX group

2
SOIPIX collaborators
KEK Detector Technology Project SOIPIX Group
Y. Arai, M. Hazumi, Y. Ikegami, T. Kohriki, O.
Tajima, S. Terada, T. Tsuboyama, Y. Unno, H.
Ushiroda,H. IkedaA,K. HaraB, H. MiyakeB, H.
IshinoC, Y. SaegusaC, T. KawasakiD, E. MartinE,
G. VarnerE, H. TajimaF, K. FukudaG, H. HayashiG,
H. KomatsubaraG, J. IdaG , M. OhnoG KEK?JAXAA,
U. TsukubaB, TITC,Niigata U.D, U. HawaiiE,
SLACF, OKI Elec. Ind. Co.G ()contact person
3
Overview
TCAD Technology CAD

• ENEXSS (Environment for NExt Simulation System)
• Developed by Selete (Semiconductor Leading Edge
  Technologies) ( http//www.selete.co.jp/?langEN
  )
• Full 3D process/device simulation !
• Commercially available from TCAD-International (
  http//www.tcad-international.com/ENEXSS_e.html )

LSI Manufacturing
Real
Specifications
Virtual
Fast ? Deeper understanding ?
Function design
Logic design
Process data
Circuit design
Device data
Layout design
3mon. ?
Characterization
Mask fabrication
Prototyping
Device production
4
Back gate effect
Substrate voltage acts as Back Gate, and changes
transistor threshold.
TCAD
Measurement
5
Back gate effectmitigation with p implants
MPW06
NMOS
distance (D) (40 2 mm)
BOX (200nm)
(5 mm wide P, 1 x 1020 cm-3)
Bulk N- (700ohm cm, 6 x 1012 cm-3)
?
?
350mm
p implant (0V) for I/O buffer
ENEXSS
D
Measurement (10MHz clock)
Back bias 40V
Out
In
Back bias
Much improved !
6
Circuit-sensor crosstalk
Signals in the circuitry very close to the sensor
may inject noise to the sensor.
ENEXSS
Input
OK for charge-integrated device. Need some care
for other cases
7
Implantation parameters
Find the best ion and beam energy to achieve
the highest breakdown voltage (vital important
for full depletion)
Example 1)
Ion 2
Ion 1
2mm
Vbreak 88.5V
102.4V
Example 2)

• Deeper implantation mitigates impact ionization
  (II) and results in a higher breakdown voltage.
• 20 improvement expected by doing both.

ENEXSS
8
Test structure (strip sensor)
MPW06
Standard New
Measurement
20 improvement observed
9
Guard ring design
Better guard ring design also helpful to improve
breakdown voltage.
ENEXSS
MPW06 1 guard 1bias
MPW06 2 guards 1bias
20V at the back side
An additional guard ring is effective to
reduce the electric field concentration.
10
Pixel layout
For digital readout, charge sharing curve at the
cell boundary should be as steep as possible.
cell A
cell B
Note that in our design there are 4 p implants
in one cell connected in the readout.
MIP-like charge injection with TCAD for the 3
layouts shown below
ENEXSS
? ? ?
x
mm
Narrower gap b/w two cells (?) slightly better.
x
2
11
Summary

• Back gate effect largely mitigated with
  additional p implants near the circuitry.
• Circuit-sensor crosstalk is not an issue for
  digital pixel readout with charge integration.
• Higher breakdown voltage with improved
  implantation parameters (20 achieved)
• Additional guard ring can reduce the electric
  field by factor 2.
• Implantation gap b/w two cells should be
  minimized (present design seems close to the
  best)
• Good prospects for thinned fully-depleted SOI
  pixel !
