A New Parallel Debugger for Franklin: DDT

1

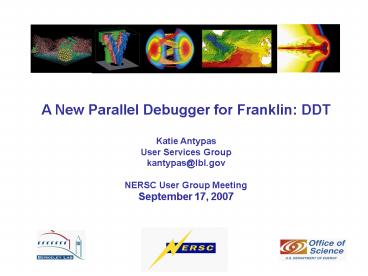

A New Parallel Debugger for Franklin DDT Katie
Antypas User Services Group kantypas_at_lbl.gov NERS
C User Group Meeting September 17, 2007
2
Outline

• Parallel debugger usage at NERSC
• Comparison of Totalview and Allinea DDT
• Selecting a parallel debugger for NERSC Allinea
  DDT
• Functionality
• License model and Price
• Current Status
• Acceptance Testing
• User availability

3
Motivation

• Since parallel debuggers are valuable, yet
  expensive tools for HPC centers, survey actual
  debugger usage at NERSC on Seaborg and Bassi to
  see if resources can be better optimized.

4
Totalview Usage on Seaborg and Bassi
Number of times users have run Totalview on Bassi
in the past 18 months
Number of times users have run Totalview on
Seaborg in the past year
27 Users ran Totalview fewer than 5 times
23 Users ran Totalview between 10 and 25 times
Number of times
Number of times
5
Totalview usage

• Very roughly 15-20 of active users have run
  Totalview
• Functionality requested is basic
• Find cause for crashes and code hangs
• Examine variables across processors
• Users typically arent using Totalview for
  analysis
• Users are running at lower concurrencies than we
  expected
• Many users debug codes locally and run in
  production mode at NERSC
• In many codes an error at 512 processors can be
  detected at 32 processors.
• Totalview runs interactively and users must wait
  a longer time for more nodes
• Debuggers can run slowly at 256 processors
• Rarely were all licenses checked out

6
Another Debugger in the Market Allinea
Softwares DDT

• DDT (Distributed Debugging Tool)
• Some HPC Customers
• Lawrence Livermore National Lab (LLNL)
• Texas Advanced Computing Center (TACC)
• Barcelona Supercomputing Center (BSC)
• Leibniz Computing Center (LRZ)
• HPC Center Stuttgart (HLRS)
• CEA, IPGP, ONERA - France
• CINECA, CASPUR - Italy
• AWE, RAL - UK
• Spring 2007 tested DDT on NERSC platforms
• Low learning curve for Totalview users
• Basic debugging functionality worked as expected
• Found some bugs, all on AIX
• Responsive developers
• Viable alternative to Totalview
• Created an RFP to get best response from vendors

7
Weighing the Debuggers ...
Totalview
Allinea DDT

• Established company and technology with large
  market share
• Totalview debugger ported to most platforms and
  tested on many codes
• Full featured parallel debugger with advanced
  features such as debugging with multiple
  executables, GAS languages, sophisticated
  analysis tools
• Inflexible license server model
• Expensive

• Younger company, established market in Europe but
  smaller American presence
• Basic Parallel Debugging functionality
• Linux strongest supported operating system.
  (Increasing support for AIX)
• Responsive developers
• Flexible license model
• Lower price

8
DDT Licensing Model and Price

• Flexible model
• 1024 processors
• Can be divided any way
• One 1024 processor job
• Two 512 processor jobs
• One 512, one 256, four 64 processor jobs
• Significantly cheaper than Totalview

9
DDT Functionality

• Parallel Debugger
• Support for MPI, OpenMP, pthreads
• Fortran, C, C
• Typical serial debugging features
• set breakpoints and watches, step through
  program, dive into arrays, evaluate expressions,
  analyze core files
• Parallel debugging features
• Step through processors
• View variables across processors
• Grouping processors Parallel Stack View
• Other Features
• Memory Debugging
• Visualization Tools

10
User Interface
11
Parallel Stack View

• Allows user to see position of each processor in
  the code in the same window
• Essentially groups processors by location in code
  -- only reasonable strategy at high concurrencies
• Easily can find stray processor
• Can create sub-groups of processors

12
Current Status

• Acceptance Testing DDT on Franklin
• Running 5-6 codes with DDT at various
  concurrencies
• Testing MPI, OpenMP, Fortran, C, C, mixed-mode
  applications
• Demo on Thursday
• Available for users to try
• Please let us know if you have any problems
• Excited to have DDT on Franklin and think it is
  good for the HPC community to have options in
  parallel debugging

13
Questions?
