Developments in IntermediateTemperature Binder Specifications Fatigue

1

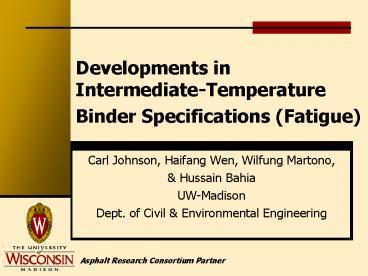

Developments in Intermediate-Temperature Binder
Specifications (Fatigue)

• Carl Johnson, Haifang Wen, Wilfung Martono,
• Hussain Bahia
• UW-Madison
• Dept. of Civil Environmental Engineering

2
What is fatigue damage?
3
Performance Grading Superpave PG HT-LT
Thermal Cracking
Fatigue Cracking
Rutting
Workability
G.sin d
Traffic speed, Traffic volume
RTFO
PAV
Testing Temperatures, C
4
Superpave Binder SpecificationsAcceptable Limits
to Resist Failures
S300MPa
mgt0.3
Gsind5 MPa
Flash Point For safety
Modulus
PAV-aged
RTFO
h 3.0 pa-s
G/sind.001, .0022 MPa
Unaged
Temperature
LT
IT
5
PG-grading system
t
tmax
g
gmax

• Assumes thin asphalt pavement thickness/weak
  structure ? strain-controlled condition
• Less dissipated energy less damage
• ? reduce G.sin (d)

6
Evaluation of CurrentBinder Fatigue Parameter
Gsind
7
Gsin d of Binders vs. Mixture NfPacific Coast
AUPG Study Results (Monismith et al.)
G.sin d of binders
8
Do binders affect fatigue of pavements ?

• If not, why bother testing binders!

9
Binder Effect on Mixture Fatigue Life
Change Due to Binder
10
Significantly Less Fatigue of HMA by Use of
Polymer Modified Binders(H. Von Quintus AMAP
Meeting 2/2004
80 less Fatigue Cracking
11
Problem Statement

• So binders are important for fatigue.
• What is wrong with G sin d ?
• Measured in Linear Visco-elastic
• Damage not considered
• Non-linearity not considered
• Could not correlate with mixture fatigue nor
  field fatigue.

12
Possible Solutions

• Binder Fatigue test-NCHRP Study
• Time sweep test (DSR)
• Surrogate (accelerated) binder test
• R-master curve, m, DTT, others

13
Binder Fatigue Test

• Use test protocols that simulate traffic
• (cyclic loading until we can see damage)

tmax
Stress
?max
Strain
14
Binder Fatigue Test Time sweep
G
LVE Limit
Initial G
95 of LVE G
50 of LVE G
N cycles
No / Low damage accumulation
Non-Linear Region High damage accumulation
G.sin(d) range
Nf Binder Fatigue life
15
Binder Fatigue testing Different binders of same
PG grade
16
Possible Solutions Binder Fatigue Test

• NCHRP 9-10 Report 459
• Based on ratio of dissipated energy
• Np20 as fatigue indicator
• Non-linearity considered
• Damage considered

17
Binder Nf vs Mixture Nf Much better correlation !
R2 gt 80
18
Possible Solutions Binder Fatigue Test

• However, binder fatigue test is
• Time-consuming,
• Not very repeatable,
• Failure criteria not simple to define

19
Research Progression

• FHWA ETG (2003 2006)
• Surrogate (accelerated) binder testing
• Stress sweep- Dissipated pseudo-strain energy
  (WR1, WR2)- (with help from TTI- E. Masad)
• Difficulty in execution
• Failure criteria not defined
• Paper in session 523
• DTT
• Operational difficulties
• Modeling to account for temp effect is very
  difficult
• Machine not serviced anymore

20
FHWA Turner Fairbanks RC Group Strain Sweep

• Shenoy (2002) low strain levels were a cause of
  Gsin d inadequacies.
• Proposed specification parameter is based on
  modulus values at 25 strain
• Temperature at which Gs has a value of 1 MPa
  at 25 strain is designated Te
• Intermediate temp spec is written as
• The lower the TIS, the better the ranking.

21
Research Progression

• Asphalt Research Consortium
• (2007 to date)
• 1. Binder monotonic shear test ( DSR)
• Constant strain rate in DSR
• 2. Fundamental characterization of binder fatigue
• Visco-elastic continuum damage (VECD) mechanics
• Target Characteristics independent of external
  conditions, temperature, and test type

22
Monotonic Test- Background

• For asphaltic mixture,
• Wen and Kim (2002)- NC State Univ.
• Fracture energy from IDT test correlated well
  with fatigue performance of mixes at WesTrack.
• Roque et al. (2005) Univ. of Florida, DCSE.
• F. Perez et al. (2006)- Polytech of Catalonia-
  Spain, Maximum strain in a monotonic test
• For binders
• Investigate monotonic test using DSR on binders
  with known field performance

23
Proposed Binder Fatigue Test

• Fracture energy for mixtures (Wen and Kim, 2002)

• Area under the stress-strain curve up to the peak
  stress

24
Monotonic Binder Test Following Dissipated Creep
Strain Energy (DCSE), Roque et al.
DCSE
25
LABORATORIO DE CAMINOS
Félix E. Pérez Jiménez, Rodrion M. Recasens,
Adriana Martínez Universidad Politécnica de
Cataluña
Nomograph for determining the mixture fatigue law
from the direct tensile test
ITT
26
Binder Monotonic Test Using DSR

• Test procedures (C. Johnson and H. Wen)
• Apply constant strain-rate
• Stop the test after the peak stress is reached

Shear Stress
Strain
27
Sample of Asphalt Failing in Monotonic Shear


28
Initial Validation Alf Binders -Experimental
Design
100 mm
560 mm
29
Monotonic Test Using DSR

• Used three strain rates
• 30 per min.
• 45 per min.
• 60 per min.
• Test temperature 19?C (ALF Control)
• Three replicates for each binder
• Test time less than 30 minutes

30
Monotonic Testing Constant Strain Rate
30/min(3 replicates)- Fracture energy
Binder Fracture Energy (Pa) form DSR- Monotonic
31
Monotonic Binder Test Strain at Peak Stress 30
60 / min
Strain at Peak Stress, (30 /min)
Strain at Peak Stress, (60 /min)
32
Considering pavement Structure
AC 3
Granular Base
Granular Subbase
AC 6
Subgrade
Granular Base
Granular Subbase
Subgrade
33
Effect of Pavement Structure on Fatigue Strain
in binder testing
34
2. Fundamental Characterization

• Use monotonic test to predict effect of traffic
  volume and pavement structure
• Apply VECD to the monotonic tests results
• Collaborate with FHWA group studying fatigue of
  mixtures. (Gibson Kutay)

35
Binder- Monotonic Test
36
Fundamental CharacterizationBinder Testing
C, Material Integrity
S, Damage Intensity
37
Selection of Yield Energy Level
Binder Yield Energy, YE (Pa)
38
Cracking in ALF vs. Simulated Nf (50 Gi) of
Binders
39
Typical Values of Yield Energy
40
Proposed Limits for Yield Energy, MPa
41
Simplified Proposed Limits for Yield Energy, MPa

42
How would it fit in Specification Table? Yield
Energy, MPa
Test Temp oC
11
Can use SN instead of Thick Int. Temp
8 C
43
Monotonic Test Procedure
YE, MPa
44
Grade shifting for Traffic speed and volume- PG
64-22
45
Findings

• The monotonic test can lead to a simple
  specification parameter
• Both Yield Energy and strain at maximum stress
  correlated well with field performance
• Need to study repeatability
• Need further validation LTPP
• Define limits on YE and Temperature

46
Acknowledgments

• Texas AM group
• Eyad Masad, Dallas Little and Ahmit Bhasin
• Y. R. Kim and H. J. Lee
• Richard Kim and Jo Daniel
• Felix Perez group (UPC)
• FHWA Group
• E. Kutay and N. Gibson

47
Comparison of Monotonic and Binder Fatigue Test
Binder Fatigue Test
Binder Monotonic Test
