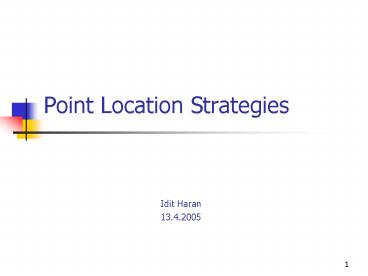

Point Location Strategies

1
Point Location Strategies

• Idit Haran
• 13.4.2005

2
Outline

• Problem Description
• Other strategies
• Our strategy - Landmarks
• Benchmark
• Working with conic arrangementsand some number
  theory
• Future work
• Summary

3
Point Location Problem Description

• Given
• A map (which divides space of interest into
  regions)
• A query point q (specified by coordinates)
• Find the region of the map containing q

• Requirement
• (segments/conics)
• Fast query
• Reasonable preprocess time
• Good data structure (small space)

INPUT
OUTPUT
4
Other Strategies

• Strategies implemented in CGAL
• Naïve
• Walk along line
• Random Incremental Algorithm (Trapezoidal)
• Triangulation
• Other strategies
• Persistent search trees

5
Naïve Approach (CGAL)
6
Walk Along a Line
7
Random Incremental Algorithm (Trapezoidal)
8
Vertical Decomposition

• Assume a bounding box.
• Extend the vertical line from each vertex upward
  and downward, until it touches another segment.

9
Trapezoidal Maps

• Contains triangles and trapezoids.
• Each trapezoid or triangle is determined by two
  vertices and two segments.
• A refinement of the original subdivision.

10
Trapezoidal Maps

• Theorem In a trapezoidal map of n segments,
  there are at most 6n4 vertices, and at most 3n1
  faces.
• Proof
• Vertices
• 2n original vertices
• 4n 2 extensions for each original vertex.
• 4 Vertices of the bounding box.
• Total 6n4
• Faces Similar

11
Trapezoidal Map Data Structure

• For each Trapezoid store
• The vertices that define its right and left
  sides.
• The (up to two) neighboring trapezoids on right
  and left.
• (Optional) The neighboring trapezoids from above
  and below. This number might be linear, so we
  store only the leftmost of these.

12
The DAG Search Structure
DAG Directed Acyclic Graph
13
Using the DAG Search Structure
14
Triangulation
15
Persistent Search Trees (Sarnak-Tarjan)
16
Other Strategies - Summary
More Algorithms on Delaunay Triangulations The
Delaunay Hierarchy, Jump Walk
17
Point location using Landmarks
l
18
Choosing the Landmarks

• Number of landmarks
• Distribution of the landmarks in the arrangement
• Geometric entities of the arrangement
• Vertices
• Edge Midpoints
• Points inside the faces Preprocess the
  arrangement into trapezoids and triangles
• Independent of the arrangement geometry

Grid
Random
19
Quality of the landmarks Arrangement Distance
(AD)

• The Arrangement Distance (AD) between two points
  is the number pf faces in which the straight
  line segment that connect these points passes.
• Arrangement Distance ? Euclidean Distance

AD 0
AD 4
v
p
20
Nearest Neighbor Search Structure

• Input
• Landmarks
• Query point q
• Question
• Find nearest landmark l to the query point q
• Answer
• Voronoi?
• - Again, point location problem !

21
Kd-trees

• The kd-tree is a powerful data structure that is
  based on recursively subdividing a set of points
  with alternating axis-aligned hyper-planes.
• The classical kd-tree uses O(dn lgn)
  preprocessing time, O(dn) space and answers
  queries in time logarithmic in n, but exponential
  in d

l1
l3
l2
l4
l5
l7
l6
l8
l9
l10
22
Kd-trees - Construction
l1
l9
l3
l2
l5
l6
l3
l2
l4
l5
l7
l6
l10
l8
l7
l8
l9
l10
l4
23
Kd-trees - Query
l1
4
6
l9
7
l3
l2
l5
l6
8
l3
l2
5
l4
l5
l7
l6
9
10
3
l10
l8
l7
l8
l9
l10
2
1
l4
11
24
Using Kd-trees with the landmarks

• Quick
• Approximate nearest neighbor
• Operations on points only
• Round all points to double
• Inexact computation.
• Final result is always exact !

25
Landmarks point location Query
Find Nearest Landmark
Walk
Decide on Startup Face
Is query point in face ?
Cross to Next Face
No
Yes
Query Point Located
26
Landmarks point location Query

• Decide on startup face
• From vertex
• Check all incident face to the vertex, and find
  the face in qs direction.
• From Edge
• Choose between the two incident face to the edge.

• From Face
• This is the startup face.

27
Landmarks point location Query

• Is query point in face?
• Count the number of edges on fs boundary that
  are above q.
• Odd q is inside f found !
• Even need to cross to the next face.

q
28
Landmarks point location Query

• Cross to next face
• Create a segment s from the landmark l to the
  query point q
• find the edge e in f that intersects s
• flip e to get a new face f.
• check if q is in f

f
e
f
s
q
29
Benchmark

• Categories Query Preprocess time
• Algorithms Naïve, Walk, Triangle, RIC, 2
  variants of landmarks algorithm.
• Arrangements random and degenerate. similar
  results.

Random
Onebig
30
Benchmark Query Arrangements of random line
segments
Time in milliseconds
31
Benchmark Preprocess Arrangements of random
line segments
Time in seconds
Naïve and Walk algorithms do not require any
specific preprocessing besides constructing the
arrangement
32
Landmarks Algorithm Analysis
Algorithm performance for varying number of
random landmarks
Results on an arrangement of 500 original
segments, include 56,000 edges and 28,000
vertices
33
Landmarks Algorithm Analysis
Algorithm performance vs. the type of landmarks
used
34
Landmarks Algorithm Analysis
35
Conics

• Differences from segments
• Bench results
• Problems invoked, and their solutions
• Cross to next face
• The chord method
• Number type theory

36
Conics differences from segments

• More complex curves (every operator on the curves
  takes longer)
• Working with irrational number types
• Basically the same methods work (except triangle)

37
Benchmark Query Arrangements of random conic
arcs
Time in seconds
38
Conics - Cross to Next Face

• Find exact intersection point a complex
  operation on conics !
• Instead use a simple method to decide what edge
  to flip.
• The idea check vertical order on the left and
  right boundaries of the common x-range.

e
l
l
e
s
e
s
q
q
q
s
l
x-range
x-range
x-range
(a) (b)
(c)
39
Whats the problem with the vertices in an
arrangement of conic arcs ?
v
p
Problem 1vertex may be complex irrational
number (algebraic with degree 4)
40
The Chord Method

• Given
• Unit circle equation x2 y2 1
• The point (-1,0) is on the circle
• Find
• Rational point v close to v
• Solution
• Every line passing through this point isy
  t(x1) where t is the slope of the line.
• solve x2 (t(x1))2 1

x2y21
v
yt(x1)
(-1,0)
41
One Rational Point

• Apparently, not all conics with rational (or even
  integer) coefficients have rational points on
  them
• For example, the circle x2 y2 3 does
  not have any rational points on it.

42
Does a conic have rational solution?

• Change the equation into homogenic coordinates

• A r x2 s y2 t xy u x v y w 0
  ? (x?x/z,
  y?y/z)B r x2 s y2 t xy u xz v yz
  wz2 0
• (Rational solution to A ? Integer solution to
  B)
• Theory 1 if there is a solution for every
  congruence modulo pk for every prime p and every
  k, then there is a solution.
• Theory 2 Check only p2 and ps that divide
  the determinant of the equation coefficients. It
  is also sufficient to check only for k lt 3 the
  largest exponent in the determinant
  factorization.

3 Variables
43
How to find a rational solution (if there is
one)

• Theoremif a conic equation has an integer
  solution,
• then the size of the solution ? (3F),
• where F is the sum of the absolute value of the
  coefficients.

44
What to do in practice?

• Change the equation into homogenic coordinates
• Go over all small pk and check if there is a
  solution modulo pk.
• One NO no solution.
• All Yes
• search for pairs (x,y) so that xlt3F, ylt3F
• check whether z is also an integer.
• YES we found a solution.
• All NO there is no solution.
• Complexity (3F)2

45
If there are no rational points on the conic?

• Euclids algorithm to approximate real number x
  into rational number r

x a0 1/x1, x1gt1, a0 - integer x1 a1
1/x2, x2gt1, a1 - interger Finally, r a0
1/(a1 (1/ (a2 .) ) ) pn/qn.
If x is irrational, and the algorithm ends after
n stages, then x - pn/qn lt 1/qn2
46
How to find ??

• ? the approximation value.should stay close
  to the vertex.
• Find the minimum distance between v and other
  vertices. or
• Find the minimum distance to all edges/vertices
  in the adjacent faces to the vertex.

47
Landmarks future work

• Rationalization of the vertices
• More types of landmarks
• Combination of different landmarks types
• Memory usage of the algorithms

Halton sequence Hammersley Points
48
Summary

• Point location using landmarks
• Fast query
• Efficient preprocess, using inexact computation
• Low memory
• Simple to understand and implement
• Many ways to improvements different search
  structure, other choice of points
