Helsinki, 1792007

1

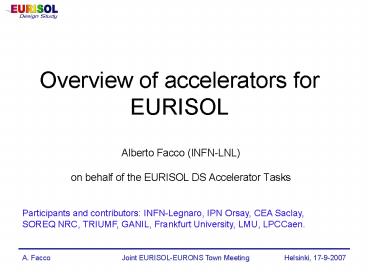

Overview of accelerators for EURISOL

• Alberto Facco (INFN-LNL)
• on behalf of the EURISOL DS Accelerator Tasks

Participants and contributors INFN-Legnaro, IPN
Orsay, CEA Saclay, SOREQ NRC, TRIUMF, GANIL,
Frankfurt University, LMU, LPCCaen.
2
EURISOL Accelerators

• Proton Driver it must deliver the high power
  primary beam used for RIB production in the
  dedicated RIB target sources
• Post-accelerator it must bring the low power
  Radioactive Ion Beam to the different
  experimental points, at the required energy (from
  a few keV to 150 MeV/u)
• the accelerator specifications are determined by
  technical and experimental requirements coming
  from RIB sources, RIB preparation apparati, RIB
  intensity calculations and from the final users
• Both accelerators are Superconducting and present
  challenges that are at the frontier of the
  present accelerator technology

3
The EURISOL facility
4
Proton Accelerator
Collaborators INFN-LNL, IPNO, CEA, SOREQ, TRIUMF

• The baseline driver-beam options
• 1 GeV, 4 MW protons on a neutron converter
  target
• 1 GeV, 100 kW protons on a direct target
• Additional options
• 2 GeV 3He on a direct target
• 125 A MeV heavy-ion beam with A/Q 2
• 250 MeV deuterium driver beam (converter option)

• multi-user operation

5
Baseline scheme with extended capabilities

• 2 injection lines for H,D, He and A/q2 ions
• SARAF scheme up to 60 MeV/q
• IPNO scheme from 60 to 140 MeV/q
• CEA scheme from 140 to 1000 MeV/q
• cw beam splitting at 1 GeV
• Total length of the linac 240 m

4 MW H-
B stripper
Elliptical 704 MHz
1 GeV/q
RFQ 176 MHz
HWR 176 MHz
3-SPOKE 352 MHz
H-
100 kW H, 3He2
?0.47
?0.3
?0.09 ?0.15
?0.65 ?0.78
H,D, 3He
1.5 MeV/u
foil stripper
60 MeV/q
140 MeV/q
gt200 MeV/q D, A/q2
10
36
31
63
97
6
LEBT

• Modified SARAF-type scheme, with confluence of 2
  lines
• Beam energy 20 keV/u

• source 1 (TRIUMF-type)
• H- 5 mA
• D- 5 mA
• source 2
• (commercial ECR)
• H 5 mA
• D 5 mA
• 3He 0.1 mA

Schematic of the modified SARAF injector

• Heavy Ion beams with A/q?2 (up to Calcium) also
  possible with last generation ECR sources

7
RFQ and low-? section

• SARAF-type176 MHz RFQ
• Ein 20 keV/u, Eout1.5 MeV/u

The SARAF-NTG RFQ

• 176 MHz low-? Superconducting Half-Wave
  Resonators
• Ein1.5 MeV/u, Eout 60 MeV/u

8
II (Medium-low ?) 60?140 MeV/q III (Medium-?)
140?300 MeV/q IV (High-?) 300?1000 MeV/q

• Resonators prototypes developed by EURISOL DS
  participants
• A/q?2 up to 250 MeV/q, and A/q?1.5 up to 1 GeV/q

IPNO cryostat design and SPOKE resonators
IPNO-CEA-INFN 5-cell cavity
schematic of the elliptical 5-cell cryomodule
9
60 MeV Error analysis - d
no losses (intermediate design)
10
60 MeV Error analysis - p
no losses (intermediate design)
11
Deuteron extraction

• Deuteron extraction can be achieved at 125 MeV/q
  by replacing one medium-? cryomodule with a
  dipole
• Negligible D- neutralization at this energy
• The H- and 3He beam transport is not affected
  by this modification
• Feasibility demonstrated, final layout still
  under study

normalized rms emittance
D extraction section layout
4 MeV -2 GeV 3He beam
12
EURISOL 1 GeV Multiple Extraction

• 3 splitting stations for cw proton beams
• 4 simultaneous users
• 1 ? 4 MW
• 3 ? 0?100 kW

EURISOL parallel cw Proton extraction
13
New 1 GeV proton beam splitter

• new splitter for high power, cw proton beams
• it allows parallel extraction to different
  targets
• no choppers nor kickers
• finely adjustable beam intensity in the secondary
  lines
• low beam losses

See dedicated talk by R. Paparella today 1010
14
SARAF 0?5 MeV section commissioning at SOREQ
(model for the low-? section of the EURISOL
Driver)
15
SARAF injector - SOREQ NRC
16
The SARAF SC HWRs and Solenoids mounting
17
SARAF LEBT emittance measurement
18
SARAF - protons emittance preliminary results
19
SARAF - deuterons emittance preliminary results
20
Task 7 main achievements Summary

• Proton Accelerator design scheme defined
• New, cost effective, baseline design with
  extended Driver capabilities
• New beam splitter design that allows multiple
  users of high power, cw proton beams
• New design requirements from physics tasks
  fulfilled

21
Beam preparation
q/m selection
Ion cooling and bunching
to Post-acceleration and Experimental areas
Electrostatic deflection
Charge breeding EBIS and ECR
Target-ion sources
High-resolution separators
Primary beams from Driver
A. Jokinen talk tomorrow 1215
Pre-separators, beam gates
22
Heavy-Ion Accelerator
Collaborators GANIL, Frankfurt University, IPNO,
LMU, INFN-LNL, LPCCaen

• New specifications
• 3 separate post-accelerators for radioactive
  Heavy Ion beams
• VLE (lt1 MeV/u - to the Physics and
  Instrumentation Task)
• LE (1-5 MeV/u), and HE (150 MeV/u) to Task 6
• The Beta-beam injector will be a separate
  machine, studied outside Task 6
• No stripping foils for normal use but only as an
  option for physics applications

23
Design of the HE post-accelerator
SPIRAL-2 philosophy Smoothest beam
dynamics (regular FDO lattice, low number of
?-sections), Modular solution and simple
cryostats, Separated vacuum (safety with FP),
Warm focusing (easier for alignement),
Possibility to insert diagnostics at each period,
ease of tuning
Main technical requirements Only 2-gap cavities
(high q/A acceptance) Max. accelerating fields
7.8 MV/m Nominal operation for A/Q between 4 and 8
24
SPIRAL-2 88 MHz QWRs
ß0.12 88 MHz
ß0.07 88 MHz
25
Normal conducting RFQ injector

• New NC RFQ for EURISOL under design, based on the
  MAFF technology
• MAFF RFQ Injector under testing at the MAFF test
  stand

MAFF RFQ
See next talk by H.Zimmermann
Steerer
Quads
LEBT tank
ion source
26
Superconducting RFQ injector

• The superconducting RFQs in LNL are now in
  operation on the PIAVE injector
• Some beam parameter measurements have been
  performed
• To account for the lower voltage (20 kV instead
  of 350) of the EURISOL post-accelerator injector
  platform, a third RFQ (NC) is required. This RFQ
  is under design.

Envelopes of the new RFQ, based on the 4vane
Spiral2 design
LNL PIAVE RFQ
PIAVE
27
Travelling-wave chopper

• Solution I Travelling wave chopper
• Description
• Association of a static B-field steerer and a
  100-O stripline
• - Beam always deflected by the B-field,
• - HV pulse in the stripline allows one bunch to
  pass
• Duty cycle lt 10 (instead of gt 90 !),
• Power consumption lt 5 kW,
• Power losses lt 400 W per plates,
• No pulse, no beam in the LINAC.
• Limitations
• Coverage Factor lt 75 ,
• Present max. power dissipation per ceramic plate
  electrode 100 W (SPL),
• Pulser High Voltage lt 2 kV _at_ Duty Cycle lt 1
  ,
• Attenuation overshoot of the pulse along its
  propagation (effects on the deflection ?),
• Effect of the E- and B-field superposition on
  the beam emittance ?
• Status under development.

28
C-type chopper

• Solution II C-type chopper
• C-type chopper
• Description
• Electrode divided in small plates driven by fast
  switchers.
• Limitations
• Present max. power dissipation into commercial
  switches around 1kW (water cooled),
• Effective total capacitance (plates,
  connections, switch) 70 pF,
• Many feedthroughs (vacuum ?),
• Max repetition rate of switches lt 1 MHz _at_ 2.5 kV
• One switch per plate,
• No pulse, all the beam in the LINAC.
• Status under study.

• Perspective
• Full beam dynamic studies,
• Development test of a TW 100-O stripline,
• Tests of pulse generators.

29
Beam Dynamics Design without strippers Simulatio
n results
Phase space and beam distribution at the end of
the linac

• No emittance increase
• No halo increase
• No losses
• All user requirements are reached, except the
  lt0,1 energy spread.
• Optimization still in progress to reach this goal

Beam envelopes
30
Post-Accelerator Beam Dynamics results
31
Task 6 main achievements Summary

• Design and beam dynamics validation of the SC
  linac, based on the SPIRAL2 technology.
  Requirements (except for ?E/Elt1) reached without
  strippers
• NC RFQ and injector under the first beam tests at
  Frankfurt Univ.
• SC RFQ and injector tested on PIAVE facility
  Adaptation to EURISOL under design
• High frequency chopper under design Prototype
  to be ordered at the end of 2007

32
Task 8 SC cavity development
Collaborators IPNO, INFN-LNL

• Objectives
• design, fabricate and test fully equipped
  superconducting cavities (following the
  recommendations of the proton driver group and
  the heavy ion accelerator group)
• study, build and test at 4.2 K a complete
  cryomodule, as they are foreseen to be used in
  the Eurisol driver or heavy ion linac.

33
Task 8 mandate "Study at first priority the
technical open problems related to the
construction of complete cryomodules"
34
Half Wave Resonator development _at_ LNL

• 2 prototypes at ?0.17 and ?0.31 and 352 MHz
  fabricated and successfully tested at 4.2 K.
• The same design, by simply doubling the cavity
  length, leads to ?0.09 and ?0.16 resonators
  suitable for the low-? section of the Driver
  linac.

HWR tuner
35
Spoke cavities development _at_ IPN Orsay

• 2 prototypes at ?0.15 and ?0.35 fabricated and
  successfully tested at 4.2 K.
• This technology is the basis for the 3-Spoke
  required by the Driver linac

Spoke cavity tuner
36
Triple Spoke cavity development _at_ IPN Orsay
A preliminary RF design for beta 0.49 exists and
an adaptation to the optimum beta for the Eurisol
linac is in progress
37
Solid state amplifier development _at_ Legnaro

• Modular mosfet technology with low-cost
  circulators included, developed at Orsay and
  Legnaro, unconditionally stable
• Design, construction and test of 3, solid state
  RF amplifiers _at_ 352 MHz

Second amplifier 10 kW
Third amplifier 10 kW
First amplifier 5 kW
under construction
Constructed tested
Constructed tested
330 W Modules
38
IPN Orsay Power coupler design for Spoke HWR

• broadband
• Nominal power up to 12 kW
• Design power 20 kW
• Capacitive coupling for CW operation
• Maximum reflection coefficient S11 lt -35 dB
• Window cooling capabilities
• Relatively simple design for reliability and
  cost reasons
• same design for spoke and half-wave resonators

3 units fabricated High power test autumn 2007
39
Cryomodule development
1st test (low power) in july 2007 with ?0.15
spoke cavity equipped with tuner validation of
the tuner and cryogenic performances
40
Task 8 main achievements Summary

• ?0.17 and 0.31, 352 MHz Superconducting Half
  Wave Resonator (HWR) designed, constructed and
  tested
• ?0.15 and 0.35, 352 MHz Superconducting Single
  Spoke Resonator designed, constructed and tested
  Triple Spoke Resonator under development
• Cold tuning system and Power coupler for both
  cavity types designed and constructed, under
  testing
• Solid state RF amplifiers 5 kW and 1 10 kW
  prototypes designed, constructed and tested 2
  10 kW unit under construction
• Cryomodule development Test cryostat
  constructed and low-power tested with a fully
  equipped Spoke cavity

41
Conclusions

• The EURISOL accelerators design and the RD in
  critical components are progressing. A large
  amount of studies, prototypes and new ideas have
  been produced within the EURISOL DS accelerator
  tasks framework
• Significant improvements were introduced in
  comparison with the old design, both in the
  Driver and in the Post-Accelerator
• The path to fulfill all the accelerator
  requirements is traced in a large part
• Hard work will be still necessary to complete the
  design, especially in the accelerator-sources
  interface it is time to converge!
