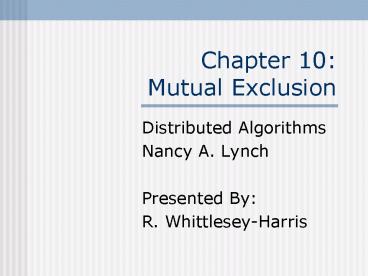

Chapter 10 Mutual Exclusion

• Distributed Algorithms
• Nancy A. Lynch
• Presented By
• R. Whittlesey-Harris

2
Contents

• Introduction
• Asynchronous Shared Memory Model
• Mutual Exclusion Problem
• Dijkstras Algorithm
• Stronger Conditions
• Lockout-Free ME Algorithms

3
Introduction

• Asynchronous algorithms differ from synchronous
  algorithms in that they must handle uncertainty
  due to asynchrony and distribution
• The Mutual Exclusion problem exists in both
  centralized and distributed OSs.

4
Introduction

• This chapter presents several mutual exclusion
  algorithms for the read/write shared memory model
• A Lower Bound is given for the number of
  read/write shared variables required to solve the
  problem

5
Introduction

• Upper and Lower bound results are provided for
  the case of shared variables that are
  read-modify-write

6
Asynchronous Shared Memory Model

• The system has a collection of processes (1..n)
  and shared variables
• Each process i is some form of state machine with
  a set statei of states and a subset starti of
  statesi that indicate the start states
• Process i has labeled actions which describe the
  activities for which it participates
• Actions are classified as, input, output, or
  internal
• Internal actions are classified as
• Those that involve a single shared memory
  variable
• Those that involve the local computation only

7
Asynchronous Shared Memory Model

• Add Figure 10.1

8
Asynchronous Shared Memory Model

• Since there are no messages in this model, there
  are no message-generation functions
• The system transition relation, trans, is a set
  of triples, (s,? ,s), where s and s are
  automaton states
• Combination of states for all processes and
  values for all the shared variables, called
  automaton states
• ? is the label of an input, output or internal
  action

9
Asynchronous Shared Memory Model

• (s, ?, s) ? trans
• From automaton state s, it is possible to go to
  automaton state s as a result of performing
  action ?
• The model allows for non-determinism (for
  convenience)
• System is input-enabled
• Input actions can always occur
• Controlled by an arbitrary external user
• Output and internal steps may be enabled only in
  a subset of states
• Controlled by the system itself

10
Asynchronous Shared Memory Model

• Locality restrictions are placed on the set of
  transitions
• For transitions that dont involve shared memory,
  the state of the process that performs the action
  is the only involved
• For transitions that involve a process i, and a
  shared variable x, only the state of process i
  and the value of x are involved
• Enabling of a shared memory action depends only
  on the process state and not the value of the
  shared variable accessed

11
Asynchronous Shared Memory Model

• Resulting changes to the process state and the
  variable value may depend on the variable value
• Shared variable steps are constrained to be
  either read or write
• Read step involves changing the process state
  based on its previous state and the value in the
  variable read however this variable does not
  change
• Write step involves writing a designated value to
  a shared variable, overwriting what was there
  previous. It may also involve changing the
  process state

12
Asynchronous Shared Memory Model

• Processes take steps one at a time in an
  arbitrary order
• Execution is formalized as an alternating
  sequence, s0,?1 ,s1, ., consisting of automaton
  states alternated with actions belonging to a
  particular process
• May be finite or infinite

13
Asynchronous Shared Memory Model

• One exception to the arbitrariness in the order
  of process steps exists
• It is not allowed for a process to stop taking
  steps when it is supposed to be taking steps
• When the process is in a state in which some
  locally controlled action is enabled

14
Asynchronous Shared Memory Model

• The fairness condition for this shared memory
  system is defined below,
• For Process i, we assume one of the following
  holds,
• The entire execution is finite, and in the final
  state no locally controlled action of process i
  is enabled
• The execution is infinite, and there are either
  infinitely many occurrences of locally controlled
  actions of I, ore else infinitely many places
  where no such action is enabled

15
Mutual Exclusion Problem

• Allocation of a single, indivisible,
  non-shareable resource amongst n users, U1Un
• A user with access to the resource is modeled as
  being in the critical region, otherwise the user
  is in the remainder region
• A user executes a trying protocol in order to
  gain access to its critical region

16
Mutual Exclusion Problem

• The exit protocol is executed after the user is
  done with the resource
• The user moves in a cycle through its remainder
  region (R) to its trying region (T) to its
  critical region (C) and then to its exit region
  (E) and then back again to (R)
• Figure 10.2 shows this cycle

17
Mutual Exclusion Problem

• Add Figure 10.2

18
Mutual Exclusion Problem

• Processes are numbered 1..n corresponding to one
  user Ui
• Inputs to process i are the tryi and exiti
  actions
• tryi models a request by user Ui for access to a
  shared resource
• exiti models an announcement by user Ui that it
  is done with the resource

19
Mutual Exclusion Problem

• Outputs of the process i are criti, and remi
• Criti models the granting of the resource to Ui
• Remi tells Ui that it can continue with the rest
  of its work
• Try, crit, exit, and rem are the external actions
  of the system
• The processes are responsible for performing the
  trying and exit protocols
• Each Process, i, acts as an agent on behalf of
  user Ui

20
Mutual Exclusion Problem

• Each user, Ui, 1 ? i ? n, is modeled as a state
  machine that communicates with its agent process
  using the tryi, criti, exiti, and remi actions
• Figure 10.3 depicts the external interface
  (external signature)

21
Mutual Exclusion Problem

• Insert Figure 10.3

22
Mutual Exclusion Problem

• Assume that Ui obeys the cyclic region protocol
• We define a sequence of tryi, criti, exiti and
  remi action to be well-formed for user i if it is
  a prefix of the cyclically ordered sequence tryi,
  criti, exiti, remi, tryi,
• Ui is required to preserve the trace property (as
  defined in 8.5.4) defined by the set of sequences
  that are well-formed for user i

23
Mutual Exclusion Problem

• For executions that observe the cyclic order of
  actions, we say that Ui is
• Initially in its remainder region in between any
  remi event and the following tryi event
• In its trying region in between any tryi event
  and the following criti event
• In its critical region in between any criti event
  and the following exiti event
• Ui should be thought of as being free to use the
  resource at this time
• In its exit region in between any exiti event and
  the following remi event

24
Mutual Exclusion Problem

• Add Figure 10.4

25
Mutual Exclusion Problem

• Let A be a shared memory system. For A to solve
  the mutual exclusion problem, the combination of
  A and the users must satisfy the following
  conditions,
• Well-formedness In any execution, and for any I,
  the subsequence describing the interactions
  between Ui and A is well-formed for i

26
Mutual Exclusion Problem

• Mutual Exclusion There is no reachable system
  state (that is a combination of an automaton
  state for A and states for all the Ui) in which
  more than one user is in the critical region C
• Progress At any point in a fair execution
• (Progress for the trying region) If at least one
  user is in T and no user is in C, then at some
  point some user enters C
• (Progress for the exit region) If at least one
  user is in E, then at some later point some user
  enters R

27
Mutual Exclusion Problem

• Shared memory system A solves the mutual
  exclusion problem provided that it solves the
  above for every collection of users
• Progress condition assumes the system is far (all
  processes and users continue taking steps)
• Fairness is not required for well-formedness and
  mutual exclusion
• Safety properties not liveness

28
Mutual Exclusion Problem

• Trace Properties (as defined in section 8.5.2)
• E.g., define trace property P, where sig(P) has
  all the try, crit, exit, and rem actions as
  outputs and traces(P) is the set of sequences ?
  of these actions that satisfy the following
  conditions
• ? is well-formed for each i
• ? does not contain two crit events without an
  intervening exit event

29
Mutual Exclusion Problem

• 3. At any point in ?,
• If some processs last event is try and no
  processs last event is crit, then there is a
  later crit event
• If some processs last event is exit, then there
  is a later rem event
• An equivalent restatement of the mutual exclusion
  problem is
• The requirement that all combinations B of A with
  users, fairtraces(B) ? traces(P)

30
Mutual Exclusion Problem

• Shared Responsibility for progress
• Responsibility does not rest only with the
  protocol (as given by the correctness conditions)
  but with the users as well
• If user Ui gets the resource but never returns
  it, the entire system grinds to a halt

31
Mutual Exclusion Problem

• Lockout
• Progress as defined does not guarantee access to
  a shared resource
• It is a global notion of progress
• some user reaches its critical region
• Restricting process activity
• A process within the shared memory system can
  have a locally controlled action enabled only
  when its user is in the trying or exit regions
• A process can be actively engaged in executing
  the protocol only while it has active requests
  (each process is an agent for its user)

32
Mutual Exclusion Problem

• Read/write shared variables
• Also known as registers
• In one step, a process can read or write a single
  shared variable
• Two actions involving process i and register x
  are
• (read) Process i reads register x and uses the
  value read to modify the state of process i
• (write) Process i writes a value determined from
  process is state to register x

33
Mutual Exclusion Problem

• Lemma 10.1

34
Mutual Exclusion Problem

• Proof
• Assume each user always returns the resource
• Let ? be a finite execution of B ending in s
• If process i is either in its trying or exit
  region in state s and no locally controlled
  action of process i is enabled in s
• Then, no events involving i occur in any
  execution of B that extend ?

35
Mutual Exclusion Problem

• Let ? be a fair execution of B that extends ? in
  which no try events occur after the prefix ?
• Repeated use of the progress assumption, with the
  fact that users always return the resource, imply
  that process i must eventually perform either a
  criti or a remi action
• This contradicts the fact that ? contains no
  further actions of i

36
Dijkstras Algorithm

• First mutual exclusion algorithm for the
  asynchronous read/write shared memory model
  developed in 1965
• Algorithm called DijkstraME

37
Dijkstras Algorithm

• Add Algorithm

38
Dijkstras Algorithm

• Shared Variables
• Multi-writer/multi-reader variable
• turn 1..n an integer
• Single-writer/multi-read variable
• flag(i), 1 ? i ? n values from 0,1,2
• Writable by process i only, but readable by all
  processes

39
Dijkstras Algorithm

• First Stage
• Set flag 1
• Check turn repeatedly to see if turni
• If not the current owner of turn is not
  currently active, set turni and move to stage
  two
• Second Stage
• Set flag 2
• Check that no other process is in stage 2
• If no other process is in stage 2, get the
  critical region, otherwise go to the first stage

40
Dijkstras Algorithm

• After leaving C, lower flag to 0
• The state of each process should consist of the
  values of its local variables and some other
  information, including
• Temporary variables needed to remember values
  just read from shared variables
• A program counter to say where the process is in
  its code
• Temporary variables introduced by the flow of
  control of the program (e.g., loop)
• A region designation, R ,T , C, or E

41
Dijkstras Algorithm

• Start state of each process should consist of,
• Specified initial values for local variables,
• Arbitrary values for temporary variables and
• The program counter and region designation
  indicating the remainder region

42
Dijkstras Algorithm

• Dijkstras algorithm has many ambiguities which
  should be state explicitly in an automaton
• S.A. when a tryi action occurs, is program
  counter should move to state L and is region
  designation should become T

43
Dijkstras Algorithm

• Dijkstras algorithm does not specify which
  portions of the code comprise of indivisible
  steps (necessary for reasoning)
• Indivisible steps are,
• The try, crit, exit, and rem steps at the user
  interface,
• Writes and read to and from the shared variables,
  and
• Some local computations

44
Dijkstras Algorithm

• Note, the test for whether flag(turn) 0 does
  not require two separate reads since turn was
  just read and a local copy can be used
• Dijkstras algorithm is rewritten to rid the code
  of the ambiguities

45
Dijkstras Algorithm

• Region designation R, T, C, and E are encoded
  into the program counter
• R corresponds to rem
• T corresponds to set-flag-1, test-turn,
  test-flag, set-turn, set-flag-2, check and
  leave-try
• C corresponds to crit and
• E corresponds to reset and leave-exit
• Note that each code fragment is performed
  indivisibly

46
Dikstras Algorithm

• Add rewritten Algorithm

47
Dijkstras Algorithm

• Add rewritten algorithm

48
Dijkstras Algorithm

• Correctness Argument
• Lemma 10.2 DijkstraME guarantees well-formedness
  for each user
• Proof Inspection of code shows that it
  preserves well-formedness for each user
• By assumption, the users also preserve
  well-formedness, theorem 8.11 implies that the
  system produces only well-formed sequences

49
Dijkstras Algorithm

• Lemma 10.3 DijkstraME satisfies mutual exclusion
• Proof Contradiction
• Assume that Ui and Uj, i ? j, are simultaneously
  in C in some reachable state
• Both processes i and j perform set-flag-2 steps
  before entering C
• Assume set-flag-2i comes first
• Thus, flag(i) remains 2 until i leaves C which
  must be after j enters C
• Process j must test flag(i) and find it unequal
  to 2 before entering C, Contradiction

50
Dijkstras Algorithm

• Add Figure 10.5

51
Dijkstras Algorithm

• Lemma 10.4 DijkstraME guarantees progress
• Proof
• Exit region if in a fair execution, Ui is in E,
  then process i keeps taking steps. After at most
  2 steps, process i will perform a remi action
• Trying region Assume ? is a fair execution that
  reaches a point where there is at least one user
  in T and no user in C, and no user ever enter C
• Any process in E keeps taking steps and goes to R
  (leaving all processes in either T or R)
• Since there are only n processes in the system,
  at some point, no new processes enter T (no
  processes ever again change state)

52
Dijkstras Algorithm

• Thus, ? has a suffix ?1 in which there is a fixed
  nonempty set of processes in T taking steps
  forever
• Call these processes contenders
• After at most a single step in ?1, each contender
  i ensures that flag(i) ? 1 and remains ? 1 for
  the rest of ?1
• Thus if turn is modified during ?1 it is changed
  to a contenders index

53
Dijkstras Algorithm

• Claim 10.5 In ?1, turn eventually acquires a
  contenders index
• Proof Assume the value of turn remains equal to
  the index of a non-contender throughout ?1
• If pci reaches test-turn (beginning of while
  loop) then i will set turn to i
• The only way i does not reach test-turn is if i
  succeeds in its checks of all other processess
  flags and proceeds to leave-try
• But, by assumption of ?1, i does not reach C and
  therefore, check must fail taking i back to
  set-flag-1 where it proceeds to test-turn

54
Dijkstras Algorithm

• In test-turn, i sets turn i and since i is a
  contender, this is a contradiction
• Let ?2 be a suffix of ?1 in which the value of
  turn is stabilized at some contenders index, i
• Claim In ?2, any contender j ? i eventually ends
  up with its program counter looping forever in
  the while loop
• If it ever reaches check, since it does not reach
  C, it must eventually return to set-flag-1, but
  then will be stuck looping forever
• Turn i ? j and flag(i) ? 0 throughout ?2

55
Dijkstras Algorithm

• Let ?3 be a suffix of ?2 in which all contenders
  other than i loop forever between test-turn and
  test-flag
• All contenders other than i have there flag 1
  throughout ?3
• In ?3, process i has nothing to stand in the way
  of its reaching C
• Add Figure 10.6

56
Dijkstras Algorithm

• Theorem 10.6 DijkstraME solves the mutual
  exclusion problem
• Proof of Lemma 10.3
• Assertion 10.3.1 In any reachable system state
  i pci criti ? 1
• Prove as a consequences of assertions 10.3.2 and
  10.3.3
• Assertion 10.3.2 In any reachable system state,
  if pci ? leave-try, crit, reset, then Si n
• Assertion 10.3.3 In any reachable system state,
  there do not exist i and j, i ? j, such that i ?
  Sj and j ? Si

57
Dijkstras Algorithm

• Assume, for contradiction, there are two distinct
  processes, i and j, in some reachable system
  state, s.t. pci pcj crit
• By Assertion 10.3.2, Si Sj n
• Then j ? Si and i ? Sj which contradicts
  Assertion 10.3.3
• Assertion 10.3.2 is proved by induction
• All processes are in R in the initial state
• Inductive Step
• consider all the types of actions one at a time.

• Only steps that could cause a violation are those
  that cause pci to enter the set of listed values
  and those that reset Si to ? (checki, reseti)

58
Dijkstras Algorithm

• For checki, the only the contradiction pci ?
  leave-try, crit, reset is true after the step
  is if Si n
• For reseti, the process leaves the indicated set
  of values after the step so the statement is true
  vacuously
• Assertion 10.3.3 is proved by three additional
  assertions,
• Assertion 10.3.4 In any reachable system state,
  if Si ? ?, then pci ? check, leave-try, crit,
  reset
• Si ? ? in the initial system state

59
Dijkstras Algorithm

• Inductive Step
• Only events that can cause a violation of this
  statement are events that cause Si to become
  unequal to ? and events that cause pci to leave
  the set of listed values set-flag-2, checki,
  reseti
• However, set-flag-2 sets pci check
• When checki causes pci to leave the set of listed
  values it also sets Si ?
• Thus all these events preserve the condition

60
Dijkstras Algorithm

• Assertion 10.3.5 In any reachable system state,
  if pci ? check, leave-try, crit, reset, then
  flag(i) 2
• Proved by induction on the length of an execution
  as well
• It follows that,
• Assertion 10.3.6 In any reachable system state,
  if Si ? ?, then flag(i) 2
• Assertion 10.3.3 is proved by induction on the
  length of an execution.
• All sets, Si ?
• Inductive Step
• The only event that could cause a violation is
  one that adds an element j to Si for some i and
  j, i ? j check(j)i for some i and j, i ? j

61
Dijkstras Algorithm

• Consider case where j gets added to Si as a
  result of a check(j)i event it must follow that
  flag(j) ? 2 when this event occurs
• However, Assertion 10.3.6 implies that Sj ?, so
  i ? Sj
• Running Time
• An upper bound on the time from any point in an
  execution when some process is in T and no one is
  in C, until someone enters C
• Assume that each step occurs at some point in
  real-time and that execution begins at real-time 0

62
Dijkstras Algorithm

• Impose an upper bound of l on the time between
  successive steps of each process
• Assume an upper bound of c on the maximum time
  that any user spends in the critical region
• Theorem 10.7 In DijkstraME, suppose that at a
  particular time some user is in T and no user is
  in C. Then, within O(ln), some user enters C

63
Dijkstras Algorithm

• Proof Suppose the lemma is false and consider an
  execution in which at some point process i is in
  T and no process is in C for at least kln, (for
  some large constant k)
• Time elapsed from the starting point until there
  is no process in either C or E is at most O(l)
• Additional time until process i performs a
  test-turni is at most O(l n)
• i can at worst spend this much time checking
  flags in the second stage before returning to
  set-flag-1

64
Dijkstras Algorithm

• 3. Additional time from when i does test-turni
  until the value of turn is a contender index is
  at most O(l )
• If at the time i does test-turni, turn already
  holds a contender index, so suppose this is not
  the case
• If turn j and j is not a contender, within O(l)
  after the test, i performs a test-flag(j)i.
• If i finds flag(j) 0 then i sets turn i,
  which is the index of the contender and we are
  done
• If it finds flag(j)i ?0 then it follows that in
  between the test-turni and test-flag(j)i, j
  entered the trying region and became a contender.
• If turn has not changed in the interim, turn is
  equal to the index of a contender (j) and we are
  done
• If turn has changed, then it must have been set
  to the index of a contender

65
Dijkstras Algorithm

• 4. After an additional time O(l ), a point is
  reached at which the value of turn has stabilized
  to the index of some contender and no process
  advances again to set-turn or set-flag-2 (until
  time kl n)
• 5. By an additional time O(l n), all contenders
  other than j will have their program counters in
  test-turn, test-flag, otherwise they would
  reach C.
• 6. An additional time O(l n), j must succeed in
  entering C which contradicts the assumption that
  no process enters C within this amount of time.

66
Dijkstras Algorithm

• Add figure 10.7

67
Stronger Conditions

• DijkstraME does not guarantee the critical region
  will be granted fairly to users
• It may grant a particular user access to the
  critical region repeatedly while other users
  wait, trying forever
• Called Lockout or starvation

68
Stronger Conditions

• To distinguish between the two types of fairness
  discussed thus far, the follow are defined
• Low-level fairness - process execution fairness
• High-level fairness - resource access fairness
• High-level fairness may be less critical in
  practice

69
Stronger Conditions

• DijkstraMEs multi-write/multi-read variable,
  turn, is difficult and expensive to implement in
  many kinds of multiprocessor systems
• Single-write/multi-read and single-write/single-re
  ad variables are easier to implement

70
Stronger Conditions

• Three notions of resource allocation fairness are
  defined for an algorithm A, with users U1,,Un
• Lockout-freedom The following hold for any
  low-level-fair execution,
• (Lockout-freedom for the trying region) If all
  users always return the resource, then any user
  that reaches T eventually enters C
• (Lockout-freedom for the exit region) Any user
  that reaches E eventually enters R

71
Stronger Conditions

• Time bound b The following hold for any
  low-level-fair execution with associated times,
• (Time bound b for the trying region) If each user
  always returns the resource within time c of when
  it is granted, an the time between successive
  steps of each process in T or E is at most l,
  then any user that reaches T enters C within time
  b
• (Time bound b for the exit region) If the time
  between successive steps of each process in T or
  E is at most l, then any user that reaches E
  enters R within time b
• b is typically a function of l and c

72
Stronger Conditions

• Number of bypasses a For any interval of an
  execution starting when a process i has performed
  a locally controlled step in T, and throughout
  its remainder in T,
• Any other user j, j ? i, can only enter C at most
  a times

73
Stronger Conditions

• Implications among the fairness conditions are,
• Theorem 10.8 Let A be a mutual exclusion
  algorithm, let U1,,Un be a collection of users,
  and let B be the composition of A with U1,,Un.
  If B has an infinite bypass bound and is
  lockout-free for the exit region, then B is
  lockout free.
• Proof If i is in T in a low-level-fair execution
  of B where all users always return the resource,
  suppose for contradiction, i never enters C

74
Stronger Conditions

• Lemma 10.1 implies that i must perform a locally
  controlled action in T, if not done so already.
  Repeated use of the progress condition and
  assumption that users always return the resource
  implies that infinitely many total region changes
  occur. With this, some process other than i must
  enter C an infinite number of times while i
  remains in T, which violates the bypass bound.

75
Stronger Conditions

• Theorem 10.9, Let A be a ME algorithm, let, let
  U1,,Un be a collection of user, and let B be the
  composition of A with U1,,Un. If B has any time
  bound b (for both the T and E regions), then B is
  lockout-free

76
Stronger Conditions

• Proof If i is in T in a low-level-fair execution
  of B where all users always return the resource
• Times are associated with the events in the
  execution in any monotone non-decreasing,
  unbounded way, so that the times for the steps of
  each process is at most l and the times for all
  critical regions is at most c.
• i enters C in at most time b since the algorithm
  satisfies the time bound b, and thus i eventually
  enters C as needed.

77
Lockout-Free ME Algorithms

• Two-Process Algorithm Peterson2P
• i ? 0,1
• i 1-i, i.e, counting mod 2
• Add Peterson2P algorithm (pg, 279)

78
Lockout-Free ME Algorithms

• Peterson2P algorithm
• i initially sets flag to 1 and proceeds to set
  turn to i
• i waits until either they other process flag is 0
  (leaves the CS) or turn ? i (other process wants
  to compete for CS)
• Temporary variables, a region designator and a
  program counter are added to translate the
  program into a state machine

79
Lockout-Free ME Algorithms

• Add rewritten algorithm (pgs, 280-281)

80
Lockout-Free ME Algorithms

• Lemma 10.10 Peterson2p satisfies mutual exclusion
• Proof
• Assertion 10.5.1 In any reachable system state,
  if flag(i) 0, then pci ? leave-exit, rem,
  set-flag
• Show by induction using assertion 10.5.1
• Assertion 10.5.2 In any reachable system state,
  if pci ? check-flag, check-turn, leave-try,
  crit, reset then turn ? i

81
Lockout-Free ME Algorithms

• Key events are,
• Successful check-flagi events, (those that
  cause pci to reach leave-try) flag(i) must be
  0 which implies by Assertion 10.5.1 that pci ?
  check-flag, check-turn, leave-try, crit, reset
• Successful check-turni events turn ? i
• Set-turni events, which cause pci to take on the
  value check-flag turn ? i
• Set-turni events, which falsify the conclusion
  turn ? i pci check-flag
• If both i and i are in C, then assertion 10.5.2
  applied twice implies that both turn ? i and turn
  ? i which is a contradiction

82
Lockout-Free ME Algorithms

• Lemma 10.11 Peterson2P guarantees progress
• Proof Contradiction ? is a low-level-fair
  execution that reaches a point where at least one
  of the processes, i, is in T and neither process
  is in C and neither process ever enters C.
• If i is in T sometime after ?, then both
  processes must get stuck in their check loops
  which cannot happen since turn must stabilize to
  a value favorable to one of them
• If i is never in T after ?, then we see that
  flag(i) eventually becomes and stays equal to 0,
  contradicting the assumption that i is stuck in
  its check loop

83
Lockout-Free ME Algorithms

• Lemma 10.12 Peterson2P is lockout-free
• Proof Consider the trying region, show the
  stronger condition of two-bounded bypass and
  invoke Theorem 10.8
• Suppose at some point in the execution, ?,
  process i remains in T and process i enters C
  three times
• The 2nd and 3rd times, i sets turn i and then
  sees turn i it cannot see flag(i) 0 since
  flag(i) remains at 1 (there are at least 2
  occurrences of set-turni after ? because only i
  can set turn to i). But since set-turni is only
  performed once during one of is trying regions,
  this is a contradiction.

84
Lockout-Free ME Algorithms

• Theorem 10.13 Peterson2P solves the mutual
  exclusion problem and guarantees lockout-freedom
• Given from above
• Complexity Analysis
• Let l be the upper bound on process step time and
  c be the upper bound on critical section time

85
Lockout-Free ME Algorithms

• Theorem 10.14 In Peterson2P, the time from when a
  particular process i enters T until it enters C
  is at most c O(l)
• Proof Sketch
• Suppose the time bound does not hold
• i is in T but does not enter C for at least c
  kl after that point
• Within time at most 3l, process i performs
  check-flagi and will not succeed in any of its
  checks, otherwise it will enter C within O(l).
• When check-flagi is performed, it must find
  flag(i) 1 since i would reach C otherwise
  within o(l).
• By assertion 10.5.1, pci ? set-turn, check-flag,
  check-turn, leave-try, crit, reset

86
Lockout-Free ME Algorithms

• Either criti occurs within an additional time
  O(l), or reseti occurs within additional time c
  O(l)
• Based on the value of turn and where the
  processes are in their code
• The former case means that i would reach C too
  early so the latter case is the only choice
• i performs check-flagi again, within an
  additional O(l) flag(i) 1 (i has entered T)
  after the reseti.
• Either turn has already taken the value i or will
  do so within additional time l
• Within at most another O(l), process i finds
  favorable conditions for it to enter C which
  contradicts the assumption that i does not enter
  C within this amount of time.
• See Figure 10.8 for the events

87
Lockout-Free ME Algorithms

• An n-Process Algorithm
• Use the idea of Peterson2P iteratively in a
  series of n-1 competitions at levels 1, 2, ,n-1
• The algorithm ensures at least one loser for each
  competition
• n processes may compete at level 1 but at most
  n-1 processes can win
• n-k processes can win at level k (in general)
• Processes are 1..n

88
Lockout-Free ME Algorithms

• Add PetersonNP algorithm (pg 284)

89
Lockout-Free ME Algorithms

• Process i completes one competition per level
  1..n-1
• Each level k has its own turn(k)
• At each level k, i sets turn(k) i and waits to
  see if either all the other processes flag
  variables are less than k or that turn(k) ? i (no
  other process is involved in the competition and
  no other process has reset the turn(k) variable)

90
Lockout-Free ME Algorithms

• Ambiguities need to be resolved to translate the
  code into a state machine
• Local variable level keeps track of which
  competition the process is engaged in (or ready
  to engage in) and,
• S keeps track of processes that have been
  observed to have flag values smaller than k
• Add rewritten PetersonNP algorithm (pgs 285-286)

91
Lockout-Free ME Algorithms

• We say, process i is a winner at level k if
  either leveli gt k for leveli k and pci ?
  leave-try, crit, reset
• We say process i is a competitor at level k if it
  is either a winner at level k or else leveli k
  and pci ? check-flag, check-turn

92
Lockout-Free ME Algorithms

• Lemma 10.15 PetersonNP satisfies mutual exclusion
• Proof
• Assertion 10.5.3 In any reachable system state of
  PetersonNP, the following are true
• If process i is a competitor at level k, if pci
  check-flag and if any process j ? i in Si is a
  competitor at level k, then turn(k) ? i.
• If process i is a winner at level k and if any
  other process is a competitor at level k, then
  turn(k) ? i.
• Proof left as an exercise.

93
Lockout-Free ME Algorithms

• Assertion 10.5.4 In any reachable system state of
  PetersonNP, if there is a competitor at level k,
  then the value of turn(k) is the index of some
  competitor at level k.
• Proof left as an exercise
• Assertion 10.5.5 In any reachable system state of
  PetersonNP and for any k, 1 ? k ? n-1, there are
  at most n-k winners at level k
• Basis k 1
• Inductive step Assume the statement for k, 1 ? k
  ? n-2 and show it for k1

94
Lockout-Free ME Algorithms

• Contradiction if the statement is false for k1,
  there are strictly more than n-(k1) winners at
  level k1
• Let W be the set of winners
• Every winner at level k1 is also a winner at
  level k, ( of winners at level k is at most
  n-k). Thus, W is also the set of winners at
  level k and W n-k ? 2, Thus,
• Assertion 10.5.3 implies that the value of
  turn(k1) cannot be the index of any of the
  processes in W and,
• Assertion 10.5.4 implies that the value of
  turn(k1) is the index of some competitor at
  level k1. But since every competitor at level
  K1 is a winner at level k, and so is in W.
  Therefore a contradiction.

95
Lockout-Free ME Algorithms

• Theorem 10.16 In PetersonNP, the time from when a
  particular process i enters T until it enters C
  is at most 2n-1 c O(2nnl)
• Proof Recurrence
• Define T(0) to be the maximum time from when a
  process enters T until it enters C.
• Define T(k) to be the max time from when a
  process becomes a winner at level k until it
  enters C for k, 1 ? k ? n-1.
• Bound T(0)
• We know T(n-1) ? l (by the code) since only one
  step is needed to enter C after winning the final
  competition
• 1 ? k ? n-2

96
Lockout-Free ME Algorithms

• If process i has won at level k if k ? 1, or has
  just entered T if k 0
• Within time 2l, process i performs set-turni
  setting turn(K1) i
• Let ? be the set-turni event
• Consider these two cases,
• If turn(k1) gets set to a value other than i
  within time T(k1) c (2n 2)l after ?, then
  i wins at level k1 within an additional time nl.
  With additional time T(k1), i enters C. The
  total time from ? until i enters C is at most
  2T(k1) c (3n2)l.
• Assume that turn(k1) does not get set to any
  value other than i within time T(k1) c
  (2n2)l after ?. No process can set its flag to
  k1 within time T(k1) c (2n 2)l after ?.

97
Lockout-Free ME Algorithms

• Let I be the set of processes j ? i for which
  flag(j) ? k1 when ? occurs. Then each process
  in I wins at level k1 within time at most nl
  after ? (it finds turn(k1) unequal to its
  index), then enters C within additional time
  T(k1), then leaves C within additional time c
  and performs reset within additional time l.
  (within time nl T(k1)cl T(k1)c(n1)l
  after ?, all processes in I set their flags to 0)
• Within time T(k1)c(n1)l after ?, all
  processes j ? i for which flag(j) ? k1when ?
  occurs, set their flags to 0.

98
Lockout-Free ME Algorithms

• For an additional time nl after than, no process
  sets its flag to k1. Which is significant time
  for process i to detect that all the flag
  variables are less than k1 and to win at level
  k1 (within T(k1) c(2n1)l) after ? and
  enters C within another T(k1)
• So, total time from ? until is entrance into C
  is at most 2T(k1)c(2n1)l.
• The worst case time is at most 2l max of the
  times in the two cases, 2t(k1)c(3n4)l.
• Solving for the recurrence for T(0)
• T(k) ? 2T(k1)c(3n4)l for 0 ?k ?n-2
• T(n-1) ? l

99
Lockout-Free ME Algorithms

• Theorem 10.17 PetersonNP solves the mutual
  exclusion problem and is lockout free
• seen from above
• Tournament Algorithm
• Assume the number of processes, n, is a power of
  2 (starting at 0)
• Each process engages in a series of log n
  competitions
• Arranged in a complete n-leaf binary tournament
  tree)
• n leaves correspond left-to-right to the n
  processes 0,,n-1

100
Lockout-Free ME Algorithms

• The following are defined for 0 ? i ? n-1 and 1 ?
  k ? log n
• comp(i,k) the level k competition of process i,
  is the string consisting of high-order log n-k
  bits of the binary representation of i
• can be used as a name for the internal node that
  is the level k ancestor of is leaf
• Root is named by ? (empty string)
• role(i,k) the role of process i in the level k
  competition of process i, is the (log n-k1)st
  bit of the binary representation of i
• indicates whether is leaf is a descendant of the
  left or right child of the node for competition
  comp(i,k).

101
Lockout-Free ME Algorithms

• opponents(i,k) the opponents of process i in
  the level k competition of process i, is the set
  of process indices with the same high-order log
  n-k bits as i and the opposite (log n-k1)st bit
• the processes in opponents(i,k) are those whose
  leaves are descendants of the opposite child node
  comp(i,k) (of the child that is not an ancestor
  of is leaf).

102
Lockout-Free ME Algorithms

• Example 10.5.1 Tournament Tree
• comp(5,2) 1, role(5,2) 0, opponents(5,2)
  6,7

103
Lockout-Free ME Algorithms

• Add Tournament Algorithm (pg 291)

104
Lockout-Free ME Algorithms

• For each competition, the process only checks the
  flags of its components in that competition
• Lemma 10.18 The Tournament algorithm satisfies
  mutual exclusion
• Proof Sketch
• Assertion 10.5.6 In any reachable system state of
  the Tournament algorithm, and for any k, 1 ? k ?
  log n, at most one process from any subtree
  rooted at level k is a winner at level k.

105
Lockout-Free ME Algorithms

• Assertion 10.5.7 If process i is a winner at
  level k and if any level-k opponent of i is a
  competitor at level k, then turn(comp(i,k)) ?
  role(i,k).
• Must be strengthened to include some information
  about what happens inside the waitfor loop after
  the process has discovered that some of its
  opponents have flag variables with the values
  that are strictly less than k.
• Theorem 10.19 In The Tournament algorithm, the
  time from when a particular process I enters T
  until it enters C is at most (n-1)cO(n2l).

106
Lockout-Free ME Algorithms

• Proof
• Define T(0) max time from when a process enters
  T until it enters C.
• T(k) max time from when a process wins at level
  k until it enters C, for k, 1 ? k ? log n.
• Bound T(0)
• T(log n) ? l since only one step is needed to
  enter C after winning the final competition
• Bound T(k) in terms of T(k1), 0 ? k ? log n-1
• If process i has just won at level k if k ? 1 or
  has just entered T if k 0, let x denote
  comp(i,k1).
• Within time 2l, process i sets the turn(x)
  variable to role(i,k1). Let ? denote this event
  and consider two cases,

107
Lockout-Free ME Algorithms

• If turn(x) gets changed within time
  T(k1)c(2k14)l after ?, then i wins at level
  k1 within an additional time (2k1)l. And
  within additional time T(k1), i enters C. Total
  time from ? until is entrance to C is at most
  2T(k1)c(2k12k5)l.
• If turn(x) does not get changed within the time
  T(k1)c(2k14)l after ?. Then no level k1
  opponent of i can set its flag to k1 within time
  T(k1)c(2k13)l after ?. If j is a level k1
  opponent of i for which flag(j) ? k1 when ?
  occurs, then within time (2k1)l T(k1)cl
  T(k1)c(2k2)l after ?, process j sets its flag
  to 0.

108
Lockout-Free ME Algorithms

• Within time T(k1)c(2k2)l after ?, all level
  k1 opponents j of i for which flag(j) ? k1 when
  ? occurs, set their flags to 0.
• For an additional time (2k1)l after that, no
  process sets its flag to k1 which is sufficient
  time for process i to detect that all its level
  k1 opponents flag variables are less than k1
  and to win.
• Wins within T(k1)c(2k13)l after ?.
• Within another T(k1), i enters C.
• Total time from ? until is entrance in C is at
  most 2T(k1)c(2k12k7)l
• The worst case time is at most 2l plus the max of
  the times in the two cases

109
Lockout-Free ME Algorithms

• Solve the recurrence for T(0)
• T(k) ? 2T(k1)c(2k12k7)l, for 0?k ? log n-1
• T(log n) ? l
• See Recurrence Solution page 293
• Theorem 10.20 The Tournament algorithm solves the
  mutual exclusion problem and is lockout-free
• From above

110
Lockout-Free ME Algorithms

• Bounded Bypass
• The Tournament algorithm does not guarantee any
  bound on the number of bypasses.
• Consider an execution in which process 0 enters
  the tournament at its leaf and takes steps with
  intervening times exactly equal to the assumed
  upper bound l.
• Process n-1 enters the tournament at its leaf
  going much faster.
• Process n-1 can reach the top and win and can
  repeat this arbitrarily many times before process
  0 even wins at level 1.
• Since we have not assumed any lower bound on
  process step times
• No
