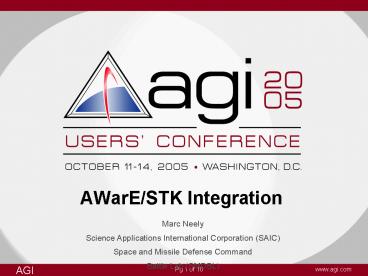

AWarE/STK Integration

• Marc Neely
• Science Applications International Corporation
  (SAIC)
• Space and Missile Defense Command
• Battle Lab (SMDBL)

2
Agenda

• AWarE Overview
• .NET Architecture for AWarE
• AWarE/STK Design Overview
• AWarE/STK Demos
• Active X (STKX)
• STK 6.0 Application
• Questions

3
Advanced Warfare Environment (AWarE)
ALLIES
INTEL
JSTARS
AWACS
NATO AGS via CGS (6)
TIBS/TDDS/ TADIL-J (8)/ GPS Time
TADIL-A (7)/ TADIL-J (4) (9)
DSS (12)
ICC (6)/ Link 1
AEGIS
TADIL-A/(9) TADIL-J/ (CEC) (1)
SIPRNET VIA COTS SATCOM
FIGHTER
BCS-F/M
SADL (2)
TADIL-B TADIL-J (6)
CD-2 (6) (4)
Radar
TADIL-B (6)/ TADIL-J (4)
JDNS (3)
PATRIOT ICC/ USAF/USMC
SLAMRAAM
DISM (5)/BFT/ FBCB2 (11)
FOC II
RRDL/FDL (3)
SOF/ Other
USMTF (TBD) /Other
DIS (6)
SMDC-HSV/ SMDC-COS OC/C2BMC
Sentinel
APCO 36 (6)(13)
Telemetry (6) Via Ground Station
Voice Circuits (14)
High Bandwidth WAN/DCP (10)
ABCS Units/ Joint Agencies/ Objective Force
Landline
UHF
HF
Modeling Sim
Reachback Agencies/COCOM
VHF (11)
UAV
911 EOC
4
Advanced Warfare Environment
Planning
IPB Preparation

• Tactical Feeds
• USMTF
• C2PC
• OTH Gold
• JSTARS (MTI)
• DIS
• JCDB
• Radar Feeds
• TADIL-A/B/J

Blue Red
Operational Control

• - FDL
• CEC
• FBCB2
• TIBS
• TDDS

• Windows-based
• MS Office
• MS Tools
• ArcView
• Satellite Tool Kit

with correlator
5
AWarE .Net Initial Design
Correlator
TADIL J
TADIL A
In n
In Services
USMTF
XML
Radar
Interface to legacy systems
DIS
Translation to Common (XML)
Leverages .NET capabilities
Queues/Cloning
Broker
Shared Storage (DBs)
Priority Management
Service Discovery
Publish / Subscribe
Performance Monitor
STK
Presentation Services
Backplane
Queue Monitor
Alert / Notification
Analysis Services
HPAC
AI Engine
JDP
ADOCS
Adapters interface to existing programs
Tiger
Pattern Recognition
Out Services
Adapters
Adapters
Adapters

Microsoft based programs
Expert Agent Search
PEGEM
ArcView
6
AWarE/STK Design OverviewActive X (STKX)
Tactical Data Feeds
CMF Entity All Control Geometry
Tactical Feed Controller (TFC)
Parsers convert Raw Tactical Feed to a CMF XML
Output
Backplane PUB/SUB
Message Parser Logic Resides
User Configurable Interface through AGIs STKX
Interface
TCP/IP Entity Subscriber
C Interface
7
AWarE/STK Design OverviewApplication (STK v6.0)
Tactical Data Feeds
Starts STK From the User Interface
CMF Entity All Control Geometry
Tactical Feed Controller (TFC)
Message Parser Logic Resides
C Interface
TCP/IP Entity Subscriber
BackPlane PUB/SUB
8
AWarE/STK Functionality

• Track Amplification Data
• User Definable
• Hook by List, Tree, Or Mouse Event
• TBM Related Events
• Pairing lines between the launch point and the
  predicted impact point
• Error ellipse.
• Correlated IBS Tracks via ISAT
• Limited STK Application Functions
• Mouse Events
• Globe Details
• Object Orientation

• Symbol Sets
• MIL-STD-2525B symbols
• Custom
• AGI Models
• Time based Fading
• Track History
• Filtering
• Filter with three Geolocation Areas of Interest
  (AOIs)
• Filter by Specific Type based on 2525B hierarchy
• Real or exercise track
• Replay and Archive Data

9
DEMOS (STKX and STK v6.0)
10
Questions
????
