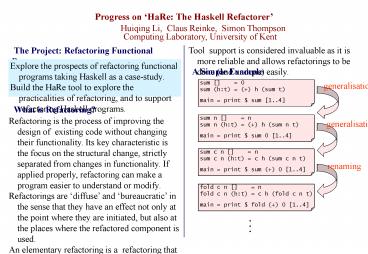

Progress on HaRe: The Haskell Refactorer

1
Progress on HaRe The Haskell Refactorer
Huiqing Li, Claus Reinke, Simon Thompson
Computing Laboratory, University of Kent

• Tool support is considered invaluable as it is
  more reliable and allows refactorings to be done
  (and undone) easily.

The Project Refactoring Functional Programs

• Explore the prospects of refactoring functional
  programs taking Haskell as a case-study.
• Build the HaRe tool to explore the practicalities
  of refactoring, and to support refactoring
  Haskell programs.

A Simple Example
generalisation
sum 0 sum (ht) () h (sum t) main
print sum 1..4
What is Refactoring?

• Refactoring is the process of improving the
  design of existing code without changing their
  functionality. Its key characteristic is the
  focus on the structural change, strictly
  separated from changes in functionality. If
  applied properly, refactoring can make a program
  easier to understand or modify.
• Refactorings are diffuse and bureaucratic in
  the sense that they have an effect not only at
  the point where they are initiated, but also at
  the places where the refactored component is
  used.
• An elementary refactoring is a refactoring that
  can not be decomposed into simpler refactorings,
  whereas a composite refactoring can be decomposed
  into a number of elementary refactorings.

sum n n sum n (ht) () h (sum n
t) main print sum 0 1..4
generalisation
sum c n n sum c n (ht) c h (sum c n
t) main print sum () 0 1..4
renaming
fold c n n fold c n (ht) c h (fold c n
t) main print fold () 0 1..4
. . .
2
HaRe the Haskell Refactorer
Refactorings Implemented in HaRe

• A system designed to support refactoring Haskell
  programs.
• Full Haskell 98 coverage.
• Integrated into two program editors (X)Emacs and
  Vim.
• Preserves both comments and layout of refactored
  program.
• Implemented in Haskell using Programaticas
  frontends and Strafunskis generic programming
  technique.
• Driving concerns usability and solid basis for
  extensions.
• The first version of HaRe was released in October
  2003. The current version is available online at
• http//www.cs.kent.ac.uk/projec
  ts/refactor-fp

• Structural Refactorings
• Rename an identifier
• Delete an unused function
• Duplicate a definition.
• Promote a definition to a wider scope
• Demote a definition to narrow its scope
• Unfold a definition
• Introduce a definition to name an identified
  expression
• Generalise a definition
• Add an argument to a function
• Remove an unused argument from a function
• Module Refactorings
• Clean the import list
• Make the used entities explicitly imported
• Add an item to the export list
• Remove an item from the export list
• Move a definition from one module to another
  module
• Data-oriented Refactorings
• From concrete to abstract data-type (ADT), which
  is a composite refactoring built from a set of
  primitive refactorings

Whats New in HaRe?

• All the implemented refactorings are now
  module-aware.
• Added new refactorings for the module system.
• Added data-oriented refactorings.
• Evolved architecture to allow the end users to
  define their own refactorings.

3
Implementing a Refactoring
Snapshots of HaRe Embedded in Emacs
program source
Information gathering using the Programatica
front-end for Haskell (lexer,parser, type checker
and module analysis)
Program analysis and transformation using
Strafunski's generic traversal library
After applying the From concrete to abstract
data type refactoring to the data type Tree
Program rendering by extracting program source
from token stream
refactored program source

• HaRe preserves the comments and layout of
  refactored programs by making use of the white
  space and comment information in the token
  stream, as well as the location information in
  both the token stream and the abstract syntax
  tree(AST). Both the AST and the token stream are
  modified during the program transformation
  process.

4
The Architecture of HaRe
Evaluation of HaRe
Composite Refactorings

• Testing by applying HaRe to medium/large-size
  Haskell 98 programs.
• Clarify and prove concepts by formalization.

Elementary Refactorings
RefacUtils
Future Directions

• Populate more refactorings into HaRe, such as
  removing duplicated code, monadification and
  further data-centred refactorings.
• Finalise the API for user-defined refactorings
  and further investigate the composition of
  refactorings.
• Extend HaRe to handle no-source files.
• Develop proofs of correctness for a variety of
  the refactorings implemented in HaRe.
• Extend HaRe to support Haskell 98 extensions.

RefacLocUtils
Programatica
Strafunski

• Hidden token stream manipulation. RefacLocUtils
  is a library for token stream manipulation. Its
  core is a layout adjustment algorithm which keeps
  the programs layout correct after a modification
  to the token stream.
• An API for program analysis and transformation.
  This API forms the basis for implementing
  primitive refactorings.
• Open architecture. Design your own refactorings.


Contact Information
-- Example Swapping the first two arguments to
the function pn in the AST mod doSwap pn mod
applyTP (full_buTP (idTP adhocTP swapInMatch
adhocTP swapInExp)) mod where
swapInMatch ((HsMatch loc fun pats rhs
ds)HsMatchP) pNTtoPN fun pn
case pats of (p1p2ps) -gt do swapInToks p1 p2

return (HsMatch loc fun (p2p1ps) rhs
ds) _
-gt error "Insufficient arguments to swap."
swapInExp ((Exp (HsApp (Exp (HsApp e e1))
e2))HsExpP) expToPN e pn do
swapInToks e1 e2 return (Exp
(HsApp (Exp (HsApp e e2)) e1)) swapInExp
e return e
The refactoring group at UKC refactor-fp_at_kent.ac.
uk Huiqing Li hl_at_kent.ac.uk Claus
Reinke cr3_at_kent.ac.uk Simon Thompson
sjt_at_kent.ac.uk
The project is funded by EPSRC. We are grateful
to Programatica (http//www.cse.ogi.edu/PacSoft
/projects/programatica/) and Strafunski
(http//www.cs.vu.nl/Strafunski/) development
teams.
