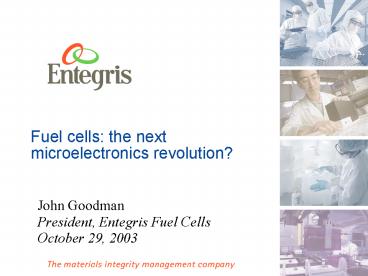

Fuel cells: the next microelectronics revolution

1
Fuel cells the next microelectronics revolution?

• John Goodman
• President, Entegris Fuel Cells
• October 29, 2003

2
Agenda

• Entegris Introduction
• Microelectronics vs. Fuel Cells
• Market Drivers/Evolution
• Microelectronics Technology Development
• Moores Law
• Cost and Volume 101
• RD
• Globalization
• Conclusions Lessons Learned

3
Entegris introduction

• Founded in 1966 grew up with microelectronics
  industry
• Active in development of SEMI (global trade
  association)
• Leading supplier of wafer, chemical and gas
  handling products/services (Materials Integrity
  Management)
• Global 14 plants around the world
• Aggressively investing in Fuel Cells and Life
  Sciences markets
• Provide balance of plant components/systems,
  bipolar plates and services to fuel cell
  developers

4
Microelectronics vs. fuel cell market
Fuel cells will develop like the microelectronics
Industry!
Semiconductors
Fuel Cells
5
Semiconductor market growth
6
Technology adoption cycles
Source US Fuel Cell Council
7
Microelectronics market drivers/evolution
Source Paraphrased from Garth Nash Motorola
(ISS 1997)
8
Fuel cell market drivers/evolution
9
MARKET TIMING / INDUSTRY COST CURVE
100,000
Innovators / Early Adopters
10,000
Backup / APUs
Assured Power

Remote Stationary
System Price (/kW)
1,000
Stationary Mass Markets
Residential CHP
Automotive
100
Portable/Micro Fuel Cells
10
2000
2010
2020
10
Drivers Segment
Applications
Source US Fuel Cell Council
11
Lessons learned focus on drivers

• Develop international industry roadmap/timeline
  by application
• Nurture the early adopters and celebrate
  successes with PR The fuel cell PC may be the
  first killer application
• Advocate appropriately
• Recognize timing and sequence of applications
• Focus on demonstrations to drive
  manufacturing/infrastructure

12
Microelectronics technology development

• The IC was invented in 1961
• 1 transistor per chip then to 42 million
  transistors on a Pentium 4
• 1 chip per wafer then to about 400 today
• Feature sizes of a human hair (100 micron) then
  to that of one aids virus (0.1 micron) today
• At the commodity costs of today
• No less daunting than the challenges we face
  today to reduce fuel cell cost, size and weight
  while we improve performance and lifetime!

13
Gordon Moore in 1965

• Integrated circuits will lead to such wonders as
  home computers or at least terminals connected
  to a central computer automatic controls for
  automobiles, and personal portable communications
  equipment. The electronic wristwatch needs only a
  display to be feasible today.
• Cramming more components onto integrated
  circuits. Gordon Moore. Electronics, Volume 38,
  Number 8, April 19, 1965.

14
Microelectronics technology development
Integrated Circuit in 2000
Integrated Circuit in 1961
Source Gordon Moore ISSCC, February 2003
Source Dr. Bernard Meyerson IBM (ASMC 2000)
15
Microelectronics technology development
Source Gordon Moore ISSCC, February 2003
16
Microelectronics Technology Development
Portable PC 1985
PC 2003

• 1500
• 6 Lbs.
• Li Ion Battery

• 1500
• 25 Lbs.
• No Battery had to plug in

From Geeks only to PCs for everyone
17
Mobile phones early 80s to today
Early portable phone
Dr. Martin Cooper with first handheld mobile phone
Source http//www.privateline.com/PCS/history9.ht
m
18
Hurdles to Fuel Cell Commercialization
1 Must address education, standards and
regulatory issues!
Source US Fuel Cell Council
19
Lessons learned technology development

• Recognize the technology hurdles size, cost and
  performance
• Address standards and regulatory issues early on
• Clearly communicate the challenges (roadmap)
• Note to view the semiconductor roadmap go to
  www.public.itrs.net
• Rally and focus the industry and RD Consortia to
  knock out the roadblocks in the roadmap

20
Moores Law 2x improvement in price/performance
each generation (18 months)
Source Gordon Moore ISSCC, February 2003
21
Moores Law 2x improvement in price/performance
each generation (18 months)
Source Bruce Sohn Intel (ASMC 2002)
22
Lessons learned create a FC Moores Law

• Fuel Cell Corollary to Moores Law double power
  output and system lifetime at half the cost every
  2 years?
• Create an industry focus on performance and cost
  that can be measured self fulfilling
  prophecy!
• Create competitive momentum and paranoia
• Risk credibility loss if we fall off the curve

23
Todays predictions will not all be correct
Source Gordon Moore ISSCC, February 2003
24
Cost and volume 101
Source Gordon Moore ISSCC, February 2003
25
Microelectronics volume drivers

• Product demand (obviously) government
  (military/aerospace) then business (mainframes)
  then consumers
• Focus on standards (test methods, materials,
  equipment and software interface)
• Focus and then glamorization of manufacturing
  science. At first, the glamour was in IC design.
  Now, manufacturing professionals are esteemed.
• IC manufacturers outsourced non-core competency
  items (equipment, material handling, automation,
  etc.)

26
Lessons learned focus on demand development and
manufacturing science

• Advocate Government purchase programs to generate
  volumes, like in early IC days
• Military applications
• Fuel Cell powered buildings and USP
• Government vehicles
• Volumes will drive developers out of labs and
  into production. The supply chain infrastructure
  will evolve naturally. Field learning will
  accelerate. Put product in the market!! (portable
  will lead)
• Accelerate international standards development

Fuel cell costs will decline!
27
RD

• RD is a huge cost for microelectronics companies
• Trend has been to outsource and form consortia to
  consolidate pre-competitive RD
• Sematech
• SRC
• Fraunhofer
• IMEC
• NSF Centers (U of AZ for contamination control)

28
RD lessons learned

• Support and nurture consortia approach for
  appropriate RD, for example
• Effect of contaminants on stack lifetime
• Development of test methods
• Advocate for shared Government/Industry funding
• Develop University/Industry partnership (such as
  NSF Center at U of South Carolina)
• Consortia will accelerate industry as
  pre-competitive technology is more widely
  available
• Caution pick RD areas carefully. What is
  pre-competitive to some is the lifeblood of
  others

29
Globalization

• Microelectronics, like most industries was
  nationally focused before 1980
• In the 80s, the lead in chip and IC
  manufacturing equipment market share shifted from
  the US to Japan
• Trade wars, dumping accusations, sanctions
  resulted
• Due to importance of ICs, US formed Sematech to
  improve US competitiveness
• Industry is now global

30
Globalization lessons learned

• Do not bury head in the sand recognize
  international competitive position
• Work towards globalization now open markets
  will drive faster industry growth and healthy
  competition
• Form an International (global) association
• Standards
• Information sharing
• International advocacy
• Cooperative RD

31
Conclusions lessons learned from
microelectronics industry development

• Identify and accelerate industry drivers
• Develop and publish an industry roadmap
• Create a Fuel Cell Moores Law mentality
• Create volume through government purchase
  programs and early adopter products
• Nurture manufacturing science
• Promote RD Consortia vs. go it alone approach
  for pre-competitive areas

32
Conclusions lessons learned

• Act like a global industry now it will
  eventually happen and more international
  cooperation will accelerate the growth of the FC
  market
• Develop one Global Industry Association to focus
  on
• Standards
• Advocacy (governmental and public relations)
• Industry Information collection and dissemination
  (products)

33
Conclusion

• Fuel cells will be pervasive as energy sources in
  the future and will power our portable devices,
  homes and automobiles. Fuel cells will create a
  large industry and will be a key element in the
  transition to a hydrogen based energy economy. We
  can apply the lessons learned from the
  development of the microelectronics industry to
  accelerate the evolution of fuel cells.
