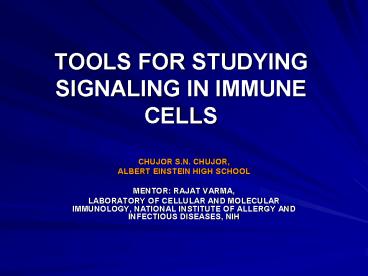

TOOLS FOR STUDYING SIGNALING IN IMMUNE CELLS

1
TOOLS FOR STUDYING SIGNALING IN IMMUNE CELLS

• CHUJOR S.N. CHUJOR,
• ALBERT EINSTEIN HIGH SCHOOL
• MENTOR RAJAT VARMA,
• LABORATORY OF CELLULAR AND MOLECULAR IMMUNOLOGY,
  NATIONAL INSTITUTE OF ALLERGY AND INFECTIOUS
  DISEASES, NIH

2
BACKGROUND

• Several molecules play key roles in the
  initiation and orchestration of immune responses
  against invasive foreign substances or infectious
  organisms.
• The signaling pathways that mediate this cellular
  event involve interaction between receptors and
  signaling molecules.

3
CYTOKINE SIGNALING PATHWAY
4
OVERALL GOAL

• To investigate cell surface dynamics,
  signaling, and trafficking of cytokine receptors

• To study these properties in various cell types,
  receptor molecules would be tagged to GFP and its
  variants.

5
SPECIFIC OBJECTIVES

• Determination and analysis of nucleotide
  structure of selected cytokines and receptor
  molecules
• Generation of Mutated RFP-containing Constructs
  For Enhanced Photo-stability
• Generation and Verification of Full-Length cDNA
  for Selected Cytokine/Receptor Molecules
• Design of Customized Primers for Sequencing and
  PCR work

6
EXPERIMENTAL DESIGN - I

• Verification of cDNAs for Cytokine Receptors and
  Janus Kinases for Studying Cytokine Signaling in
  Immune Cells.
• Transformation of Competent Bacteria Cells, DH-5a
  T1, with Recombinant Plasmid DNAs
• Isolation and Expansion of Colonies Harboring
  Drug-resistant Constructs of Interest
• Extraction and Purification of DNA
• Sequencing and Computer-aided Analysis of
  Nucleotide Structure of Selected
  Cytokine/Receptor Molecules
• Gel Electrophoresis and PCR (Amplification) of
  DNAs

7
EXPERIMENTAL DESIGN - II

• Primer Design
• Sequencing Primers
• PCR Primers
• Mutagenesis Primers
• Cloning strategies
• Mutagenesis of p65ENDOp-TagRFP-p65-C1 Construct
• Transformation of DH-5a T1 Cells with Mutated
• p65ENDOp-TagRFP-p65-C1 Construct
• Extraction, Purification, and Sequencing of
  Mutated p65ENDOp-TagRFP-p65-C1 Construct

8
RECOMBINANT PLASMID DNA CLONING DATA

• Verification of cDNA Sequences
• cDNA Size (Bp) Full-Length Sequence Status
• Previous-08 Current-09
• Jak 1 2365 No Yes
• Jak 2 4013 No Yes
• Jak 3 3749 No Yes
• IL-2Ra 1420 Yes Yes
• IL-2Rß 2678 No Yes
• IL-2R? 1800 Yes Yes
• IL-4Ra 2043 No Yes
• IL-15Ra 1465 Yes Yes

9
RECOMBINANT PLASMID DNA CLONING DATA Sequencing
Primers for Cytokines/Receptors - I Jak1-1Kb 5
TTC AGA AAA GCA GCC AAC AAC AG 3 Jak2-796 5
ACA GAT TTC GCA GAT TCA TTC AGC 3 Jak2-2591 5
CCT AGG GTT TTC TGG TGC TTT TG AG
3 Jak2-2688R 5 TCA TAG CGG CAC ATC TCC ACA CT
3 Jak3-1010 5 CCT GAG GCG CTG TCT TTC GTG
3 Jak3-1791 5 TCA TGG TGC AGG AAT TTG TGT ATC
3 Jak3-2688 5 AGA GCC TGC GGT TGG TGA TGG AG 3
10
RECOMBINANT PLASMID DNA CLONING DATA Sequencing
Primers for Cytokines/Receptors-II IL-2Rß-940 5
TTG GGC CAT GGC TGA AGA CA 3 IL-2Rß-1715 5
GGC CCA AGA TTC AGT CCA CCT AA 3 IL-2Rß-2289 5
GAG GGG TTG GGA AGG GTC ATC AGT
3 IL-4Ra -SP6 SP6 Sequencing Primer IL-4Ra-936
5 AGC GCC TTC CAC TGG GGG GTC AC
3 IL-4Ra-1839 5 GGC CGG C TG ACC CCC ATT CTT 3
11
RECOMBINANT PLASMID DNA CLONING DATA PCR Primers
for Cytokine/Receptor Molecules Jak1-Sal1-F 5
TAT CGT CGA CCC ACG CGT CCG ATG AAC
3 Jak1-SacII-R 5 CAT CCG CGG TAA AAG TGC TTC
AAA TCC TCC AA 3 Jak2-Sal1-F 5 ACG CGT CGA CAT
GGG AAT GGC CTG C 3 Jak2-SacII-R 5 GAT CCG CGG
CGC AGC TAT ACT GTC C 3 Jak3-Sal1-F 5 ACG CGT
CGA CAT GGC ACC TCC AAG TG 3 Jak3-SacII-R 5 AGT
CCG CGG TCC GGG TCT TCC ACG 3 IL-2Ra-Sal1-F 5
TAT CGT CGA CGC CAG GAA GAT GGA GC
3 IL-2Ra-SacII-R 5 AAG AGC AGA AGA ACC ATC CCG
CGG ATC 3 IL-2R?-Sal1-F 5 ACG CGT CGA CAT GTT
GAA ACT ATT ATT GTC 3 IL-2R?-SacII-R 5 TCT CCG
CGG GGC TTC CGG CTT CAG 3
12
RECOMBINANT PLASMID DNA CLONING DATA Tag RFP
DNA Sequence (Published) ATGGTGTCTAAGGGCGAAGAGCT
GATTAAGGAGAACATGCACATGAAGCTGTACATGGAGGGCACCGTGAACA
ACCACCACTTCAAGTGCACATCCGAGGGCGAAGGCAAGCCCTACGAGGGC
ACCCAGACCATGAGAATCAAGGTGGTCGAGGGCGGCCCTCTCCCCTTCGC
CTTCGACATCCTGGCTACCAGCTTCATGTACGGCAGCAGAACCTTCATCA
ACCACACCCAGGGCATCCCCGACTTCTTTAAGCAGTCCTTCCCTGAGGGC
TTCACATGGGAGAGAGTCACCACATACGAAGACGGGGGCGTGCTGACCGC
TACCCAGGACACCAGCCTCCAGGACGGCTGCCTCATCTACAACGTCAAGA
TCAGAGGGGTGAACTTCCCATCCAACGGCCCTGTGATGCAGAAGAAAACA
CTCGGCTGGGAGGCCAACACCCCGCTGACGAGATGCTGTACCGGCGGCCT
GGAAGGCAGAAGCGACATGGCCCTGAAGCTCGTGGGCGGGGGCCACCTGA
TCTGCAACTTCAAGACCACATACAGATCCAAGAAACCCGCTAAGAACCTC
AAGATGCCCGGCGTCTACTATGTGGACCACAGACTGGAAAGAATCAAGGA
GGCCGACAAAGAGACCTACGTCGAGCAGCACGAGGTGGCTGTGGCCAGAT
ACTGCGACCTCCCTAGCAAACTGGGGCACAAACTTAATTGA
13
RECOMBINANT PLASMID DNA CLONING
DATA Mutagenesis PCR Primers for RFP
Sequence S162 T F new 5 CTG GAA GGC AGA ACC
GAC ATG GCC CTG 3 Tm 66.6oC S162 T R
new 5 CAG GGC CAT GTC GGT TCT GCC TTC CAG
3 Tm 66.6oC PA RFP F 5 TCC CCG
CGG ATG GTG TCT AAG GGC GAA GAG 3 Tm
68.9oC Pa RFP R 5 TCT ACC GGT TCA ATT AAG
TTT GTG CCC CAG 3 Tm 61.9oC
14
RESTRICTION ENZYME ANALYSIS OF p65ENDOp-TagRFP-p65
-C1 VECTOR
1 2 3
Bp
6000
3998 Bp
3000
1000
735 Bp
750
Lane 1 1 Kb DNA Maker Lane 2 Undigested
Vector Lane 3 Age 1 vs. Not 1 Digestion
15
PCR AMPLIFICATION OF Tag RFP DNA SEGMENT
Lane 1 2
Bp
6000
3000
1000
750
735 Bp
Lane 1 1 Kb DNA Maker Lane 2 RFP-Primer
Fragment
16
PCR AMPLIFICATION OF p65ENDOp-TagRFP-p65-C1 VECTOR
Lane 1 2 3
Bp
7600 Bp
6000
3000
1000
Lane 1 1 Kb DNA Maker Lane 2 S162TF vs. S162TR
Primers Sample 1 Lane 3 S162TF vs. S162TR
Primers Sample 2
500
17
RECOMBINANT PLASMID DNA CLONING DATA Generation,
Isolation, and Analysis of Bacteria Colonies
18
RECOMBINANT PLASMID DNA CLONING
DATA Verification of DNA Sequences Tag RFP
GCTGTACCGGCGGCCTGGAAGGCAGAAGCGACATGGCCCTGAAGCTCG
TGGGCGGG ST1 Clone GCTGTACCGGCGGCCTGGAAGGCAGAACCG
ACATGGCCCTGAAGCTCGTGGGCGGG TAG RFP ...
LYPADGGLEGRSDMALKLVGG. ST1 CLONE ...
LYPADGGLEGRTDMALKLVGG..
19
NEXT STEP 1 GENERATION OF FUSION
CONSTRUCTS Jak 1 Tag RFP (S162T) Jak 2
Tag RFP (S162T) Jak 3 Tag RFP
(S162T) IL-2Ra Tag CFP IL-2Ra Tag
YFP IL-2Rß Tag CFP IL-2Rß Tag
YFP IL-2R? Tag YFP IL-2R? Tag
RFP (S162T) IL-4Ra Tag CFP
IL-4Ra Tag YFP IL-15Ra Tag CFP
IL-15Ra Tag YFP
20
NEXT STEP 2 TRANSFECTION OF CELL TYPES WITH
FUSION CONSTRUCTS NEXT STEP 3
BIOCHEMICAL AND BIOPHYSICAL STUDIES OF CELL
SURFACE DYNAMICS, SIGNALING, AND TRAFFICKING OF
CYTOKINE RECEPTORS
21
SUMMARY

• Tools for studying cell surface dynamics,
  signaling, and trafficking of cytokine receptors
  are being developed
• cDNA sequences for all selected cytokine
  receptors have been verified
• p65ENDOp-TagRFP-p65-C1 Vector carrying mutated
  RFP Gene has been constructed and verified by DNA
  sequencing
• PCR and Sequencing Primers for all selected
  cytokine receptors have been designed and
  synthesized.

22
ACKNOWLEDGEMENTS

• Gratefully acknowledge
• HHMI/NIH/MCPS for giving me this great research
  opportunity
• LCMI (NIAID), Dr. Schwartz, for warm welcome
• My Mentor, Dr. Rajat Varma, for professional
  advice and guidance
• Colleagues in our Lab (Drs. T. Crites and K.
  Padhan) for friendly interaction and helpful
  exchange of ideas
• Dr. Clare Waterman-Storer for help with some
  reagents
• Ms. Jill Latchana for effective communication and
  coordination
• Mr. James Fernandez and Mr. Damian DiCamillo for
  their support and encouragement
