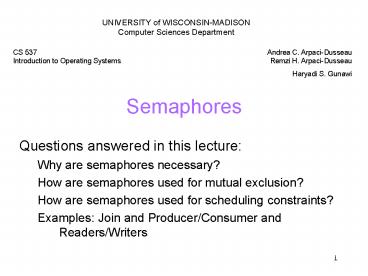

Semaphores

1
Semaphores
UNIVERSITY of WISCONSIN-MADISONComputer Sciences
Department
CS 537Introduction to Operating Systems
Andrea C. Arpaci-DusseauRemzi H.
Arpaci-Dusseau Haryadi S. Gunawi

• Questions answered in this lecture
• Why are semaphores necessary?
• How are semaphores used for mutual exclusion?
• How are semaphores used for scheduling
  constraints?
• Examples Join and Producer/Consumer and
  Readers/Writers

2
Motivation for Semaphores

• So far Locks only provide mutual exclusion
• Ensure only one thread is in critical section at
  a time
• L?lock can only be true/false (hence, some
  limitations exist)
• Cannot solve all real-world problems
• May want more Place ordering on scheduling of
  threads
• Examples
• Producer/Consumer
• Producer Creates a resource (data)
• Consumer Uses a resource (data)
• ps grep gcc wc
• thread_join()
• Dont want producers and consumers to operate in
  lock step
• Place a fixed-size buffer between producers and
  consumers
• Synchronize accesses to buffer
• Producer waits if buffer full consumer waits if
  buffer empty
• No point to run producer threads if buffer is
  full
• No point to run consumer threads if buffer is
  empty

3
Semaphores

• Semaphores Introduced by Dijkstra in 1960s
• Semaphores have two purposes
• Mutex
• Ensure threads dont access critical section at
  same time
• Scheduling constraints
• Ensure threads execute in specific order

4
Semaphore Operations

• Allocate and Initialize
• Semaphore initially contains a non-negative
  integer value
• User cannot read or write value directly after
  initialization
• There are only 3 operations init, wait and
  signal
• Sem_t sem
• Int sem_init(sem, is_shared, init_value)
• Wait or Test
• P() for test in Dutch (proberen)
• Waits until value of sem is gt 0, then decrements
  sem value
• Int sem_wait(sem)
• Signal or Increment or Post
• V() for increment in Dutch (verhogen)
• Increments value of semaphore
• Int sem_post(sem)

5
Semaphore Implementation

• typedef struct
• int value
• queue tlist
• semaphore
• wait (semaphore S) // Must be executed
  atomically
• S-gtvalue--
• if (S-gtvalue lt 0)
• add this process to S-gttlist
• block()
• signal (semaphore S) // Must be executed
  atomically
• S-gtvalue
• if (S-gtvalue lt 0)
• remove thread t from S-gttlist
• wakeup(t)

6
Semaphore Example

• What happens if sem is initialized to 2?
• Scenario Three threads call wait(sem)
• Two threads can proceed
• One thread will be blocked (current S.value -1)
• Observations
• Initial sem value is positive ? Number of threads
  that can be in c.s. at same time
• Current sem value is negative ? Number of waiters
  on queue currently

7
Ex1 Mutual Exclusion with Semaphores

• Previous example with lock L
• lock(L)
• balance amount
• unlock(L)
• Example with semaphore S
• wait(S)
• balance amount
• signal(S)
• To what value should S be initialized? 1
• Whenever you initialize a semaphore value to 1,
  it will work like a lock (I.e. Init(S,1) ? lock
  L)
• What happens if S is initialized to 0?
• No one will be able enter the C/S, the system is
  deadlock

8
Binary Semaphores

• Binary semaphore is sufficient for mutex
• Binary semaphore has boolean value (not integer)
• bsem_wait() Waits until value is 1, then sets to
  0
• bsem_signal() Sets value to 1, waking one
  waiting process
• General semaphore is also called counting
  semaphore

9
Ex2 Scheduling Constraints

• General case One thread waits for another to
  reach some point
• Example Implement thread_join()
• Parent thread creates 3 threads (if a child
  thread finishes, it will call exit())
• Parent thread should not exit before all child
  threads finish. Hence, parent thread calls
  thread_join() three times
• Lets say we have a shared sem S between parent
  and child (created when child thread is created)
• To what value is S initialized? 0
• How about if S is initialized to 1?
• The parent thread will finish before the last
  child thread exits

Child thread exit() signal(sem)
Parent thread Thread_join() wait(sem)
10
Ex3 Producer/Consumer Single Buffer

• Simplest case
• Single producer thread, single consumer thread
• Single shared buffer between producer and
  consumer
• Requirements
• Consumer must wait for producer to fill buffer
• Producer must wait for consumer to empty buffer
  (if filled)
• Requires 2 semaphores
• empty Initialize to 1
• full Initialize to 0
• What happens if
• empty is initialized to 0 produce can never
  start filling the buffer
• full is initialized to 1 consumer will consume a
  garbage buffer (the buffer that hasnt been
  filled)

Producer While (1) wait(empty) Fill(buffer)
signal(full)
Consumer While (1) wait(full) Use(buffer)
signal(empty)
11
Ex4 Prod/Cons Circular Buffer

• Next case
• Single producer thread, single consumer thread
• Shared buffer with N elements between producer
  and consumer
• Requirements
• Consumer can run as long as there is at least one
  filled element
• Producer must wait for if all elements are filled
• Requires 2 semaphores
• empty Initialized to N (denotes how many empty
  buffers)
• full Initialized to 0 (denotes how many used
  buffers)
• What happens if
• empty is initialized to 1 the producer can only
  fill one element (which implies the consumer can
  only use one element too)

Consumer j 0 While (1) wait(full) Use(bu
fferj) j (j1)N signal(empty)
Producer i 0 While (1) wait(empty) Fill
(bufferi) i (i1)N signal(full)
12
Ex4 Producer/Consumer Multiple Threads

• Final case
• Make the last case in the previous slide faster
• In the last case, we have N elements, but only
  one producer thread
• Make multiple producer threads, multiple consumer
  threads
• Shared buffer with N elements between producer
  and consumer
• Requirements
• A consumer thread can run if there is a filled
  element
• A producer thread must wait if buffer is full
• Each consumer thread must grab a unique filled
  element
• Each producer thread must grab a unique empty
  element
• Any problem?

Producer While (1) a) wait(empty) b) i
findempty(buffer) c) Fill(bufferi) d) signal(
full)
Consumer While (1) wait(full) j
findfull(buffer) Use(bufferj) signal(empty
)
13
Ex4 (contd)

• The code in the previous slide is broken
• Race condition could occur
• Example 3 producer threads running the same time
• Initially empty is N (say N is 10)
• T1 (a) (b) ltpreemptedgt
• Now empty is 9, and T1 finds element 0 (i 0)
  is free and needs to be filled
• T2 (a) (b) ltpreemptedgt
• Now empty is 8, and T2 will fill element 0 too
• T3 (a) (b) ltpreemptedgt
• Now empty is 7, and T3 will fill element 0 too
• Problem
• Critical section for findempty and Fill is
  not guarded with mutex semaphore, hence race
  condition happens
• When all three producer threads are done, the
  free semaphore will be 3, implying there are 3
  elements that have been filled (but actually
  there is only one)
• Observations
• empty and full semaphores are scheduling
  semaphores (they do not guarantee mutual
  exclusion)
• Hence, need a mutex semaphore (a semaphore
  initialized with 1)

14
Ex4 Solutions

• Consider two possible solutions Which work?
• mutex is initialized to 1
• empty is initialized to N
• full is initialized to 0

Producer Solution 1 wait(mutex) wait(empty)
i findempty(buffer) Fill(bufferi) signal
(full) signal(mutex)
Consumer Solution 1 wait(mutex) wait(full) j
findfull(buffer) Use(bufferj) signal(em
pty) signal(mutex)
Consumer Solution 2 wait(full) wait(mutex) j
findfull(buffer) Use(bufferj) signal(mu
tex) signal(empty)
Producer Solution 2 wait(empty) wait(mutex)
i findempty(buffer) Fill(bufferi) signal
(mutex) signal(full)
15
Ex4 Solution 1
Producer 1 wait(mutex) wait(empty) i
findempty(buffer) Fill(bufferi) signal(full
) signal(mutex)
Consumer 1 wait(mutex) wait(full) j
findfull(buffer) Use(bufferj) signal(empty
) signal(mutex)

• Producer
• Get the mutex lock, and then
• Check if I can fill the buffer or not. If not,
  block me
• Consumer
• Get the mutex lock, and then
• Check if I can empty the buffer or not. If not,
  block me.
• Deadlock?
• When the buffer is finally full, and a producer
  wants to fill the buffer again, it will be
  blocked on empty.
• If blocked on empty, it means this producer is
  also holding the mutex lock
• A consumer wants to consume the buffer but cannot
  obtain the mutex lock

16
Ex4 Solution 2 (the correct one)
Consumer 2 wait(full) wait(mutex) j
findfull(buffer) Use(bufferj) signal(mutex
) signal(empty)
Producer 2 wait(empty) wait(mutex) i
findempty(buffer) Fill(bufferi) signal(mute
x) signal(full)

• Producer
• Check first if can fill the buffer or not
• If so, then get the mutex lock and fill the
  buffer
• Consumer
• Check first if can empty the buffer or not
• If so, get the mutex lock and use the buffer
• Observations
• Be careful in terms of what you put inside the
  critical section

17
Ex5 Readers/Writers Problem

• Problem
• One or more threads read and write to a shared
  data
• Basic concept
• No writers all readers can read data without
  acquiring lock
• Two writers not allowed. Hence, can only allow
  one writer at a time, which means a writer must
  acquire a lock before proceeding
• Design
• Need to count the number of readers (if zero, the
  writer can proceed)

18

• Mutex 1
• Wrt 1
• Readcount 0
• Write()
• x) wait(wrt) // wait for any readers and
  writers
• y) doWrite()
• z) signal(wrt)
• Read()
• a) wait(mutex) // lock for ensuring mutex for
  readcount
• b) readcount
• c) if (readcount 1) // reader cannot proceed
  if writer
• d) wait(wrt) // use the lock
• e) signal(mutex)
• f) doRead()

19
Ex5 Observations

• A writer is running
• If there is a writer, the first reader cannot
  proceed.
• The first reader holds the mutex lock so no
  other readers can proceed
• A writer enters
• If a writer enters but some readers still exist,
  the last reader will signal the wrt.
• One of the threads that is waiting on the wrt
  thread can proceed (a reader or a writer can wait
  on wrt)
• E.g. a writer X is running, a writer Y and a
  reader Z wants to enter. After X is done. It is
  up to the thread scheduler which Y/Z to pick. If
  FIFO, then the first one who is waiting will get
  to run.
• Runtime example
• Initially mutex1, wrt1, readcount0
• R1 a b c d e f ltpreemptedgt mutex1, wrt0,
  readcount1
• R2 a b c d e f ltpreemptedgt mutex1, wrt0,
  readcount2
• W1 x ltblockedgt (why? Because mutex1, wrt-1,
  readcount2

20
Ex5 Problem?

• Starvation?
• Is there a case of starvation? Is there a
  scenario where a writer never runs?
• Initially mutex1, wrt1, readcount0
• R1 a b c d e f ltpreemptedgt mutex1, wrt0,
  readcount1
• R2 a b c d e f ltpreemptedgt mutex1, wrt0,
  readcount2
• W1 x ltblockedgt
• R3, R4, R5 comes in and go upto (f) mutex1,
  wrt0, readcount5
• R1 g h i j k mutex1, wrt0, readcount4
• R2 g h I j k mutex1, wrt0, readcount3
• Although W1 comes in before R3, R4, and R5, W1
  can only proceed if there is no readers in the
  system (i.e. readcount must go to 0 ?
  signal(wrt)).
• As long as readcount does not go to zero, the
  writer can never run ? Starvation
• The problem is there is no queue (semaphore
  queue) which maintains the ordering of arrival
• Solution
• Add another semaphore (e.g. f)
• All readers and writers must wait on f first such
  that all is queued properly in semaphore f
• Ex f.queue R1 R2 W1 R3 R4 R5
• New readers come after a writer (R3, R4 and R5)
  cannot read unless W1 has released f
• Hence the goal is when a writer is waiting on
  wrt, it also holds an extra lock f

21
Ex5 Fair Readers/Writers

• Mutex 1
• Wrt 1
• Readcount 0
• F 1
• Write()
• wait(f)
• wait(wrt) // While holding wrt, also hold f
  so that new readers cannot
• // proceed before me!
• signal(f) // If I have acquired the wrt lock,
  I can release f
• doWrite()
• signal(wrt)
• Read()
• wait(f) // all readers must go to f.queue
  first if there is a waiting writer
• wait(mutex)
• readcount

22
Next Time

• Semaphore ? still ugly
• Use Monitors.
• But why still learn semaphore?
• Monitors are only supported in high-level
  language such as Java.
• Inside OS (still written in C), there is no such
  nice support. Hence, must use semaphore, lock,
  etc.
