InletsInlet Morphology

1

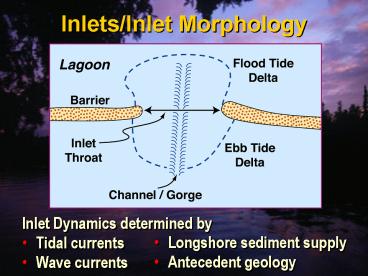

Inlets/Inlet Morphology

• Inlet Dynamics determined by
• Tidal currents
• Wave currents

• Longshore sediment supply
• Antecedent geology

2
Tidal Prism/X-Sectional Area

• TIDAL PRISM
• Total amount of H2O flowing into or out of an
  inlet with the rise and fall of the tide.

3
AC 2.00 x 10-5 P (OBrien, 1931, 1969) AC
5.44 x 10-6 P1.06 (Jarrett, 1976) NB Changes in
bed shear and littoral supply.
Maximum Inlet Velocity Concept (Escoffier, 1940,
1972)
Maximum velocity curve exists at inlets, along
with a critical x-section area (AC).
4
Inlet By-Passing of Sediment(Bruun, 1966)
Ratio of net littoral drift to maximum discharge
through inlet.
r MNET/QMAY MNET Net littoral drift
(yds3/yr.) QMAX Maximum discharge (yds3/sec.)
r lt 10-20 Tidal flow bypassing r gt 200-300 Bar
bypassing
NOW USED r W/MTOT W Tidal prism (m3/tidal
cycle) MTOT Total/gross drift (m3/yr.)
5
Sediment Sources for Ebb
Shoals

• Longshore transport
• Onshore transport
• Inlet gorge

6
Idealized Free Jet Flowing Through an Orifice
into a Frictionless Receiving Basin
Sectional View of Free Jet Illustrating Seabed
Response at Near Field and Far Field
7
Hypopycnal Flow
Plane jet flow with the reservoir fluid more
dense than the inflowing fluid. This situation is
characteristic of rivers flowing into oceans.
Modified from Bates (1953) By A.J. Scott.
8
Hyperpycnal Flow
A plane jet in which the inflowing fluid is more
dense than the reservoir fluid. This is the
situation prevalent in turbidity flows. Modified
from Bates (1953) By A.J. Scott.
9
Homopycnal Flow
Axial jet flow in which the inflow and reservoir
fluids have the same density. Rapid mixing
associated with this type of inflow results in
deposition of Gilbert-type deltas.
Modified from
Bates (1953) By A.J. Scott.
10
An Idealized Inlet
11
An Inlet System Showing
Diversion of Littoral Drift
12
Types of Ebb Tidal Deltas(after Oertel, 1975)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
