Pughs Total Design Process

1
Pughs Total DesignProcess

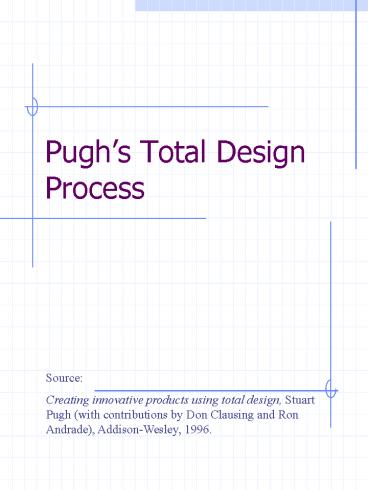

Source Creating innovative products using total
design, Stuart Pugh (with contributions by Don
Clausing and Ron Andrade), Addison-Wesley, 1996.
2
Performance Environment Life in
Service Maintenance Target Product
Cost Competition Shipping Packing Quantity Manuf
acturing Size Weight Appearance Materials Produc
t Life Span Standards Ergonomics Customer Quality
/Reliability Shelf Life Processes Testing Safety
Co. Constraints Market Constraints Patents Lega
l Installation Documentation Disposal
3
DESIGN CORE
METHODS APPLIED
Information/competitive analysis Parametric
analysis PDS elements as interrogators VOC/syste
m requirements PDS formation Total system
architecture level Concept generation/selection QF
D matrices Subsystem and component
level Concept generation/selection QFD
matrices Taguchi methods Concept generation
and QFD matrices JIT, SPC, MRP PDS elements
interrogation VOC - QFD
4
Static/DynamicDesign Concepts

• Static design concept
• One that has reached a conceptual plateau
  established in time and has subsequent products
  developed based on it.
• Primarily done in Product Engineering
• Example the automobile
• Dynamic design concept
• Originates from new approaches to existing
  problems or is generated by the necessity to find
  solutions to new problems
• Located towards the innovative end of design
  activity spectrum
• Product development work on dynamic aspects done
  primarily in Advanced Development

5
Main Design
Flow
Design Core Bounded by Product Design
Specification Dynamic Concepts
6
