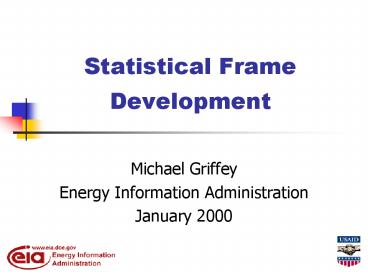

Statistical Frame Development

1
Statistical Frame Development

• Michael Griffey
• Energy Information Administration
• January 2000

2
(No Transcript)
3
Petroleum Marketing Surveys

• 2 weekly retail price surveys.
• 1 semi-monthly heating fuels survey.
• 6 monthly crude oil and petroleum product price
  and supply surveys.
• 1 annual fuel oil sales survey.
• 1 quadrennial frame survey.

4
Supplier Frame - Examples

• 260 refineries/blending plants.
• 220 importers per month
• 320 bulk terminals
• 7,000 home heating oil dealers
• 60,000 petroleum dealers
• 180,000 gasoline retailers

5
Consumption Surveys

• Collect data from the end-user/ consumer of the
  product.
• Have large frames/sample sizes. MECS200,000
  manufacturers, sample 18,000 establishments.
• Provide detailed information about consumer
  habits.
• Conducted every 4 years.

6
Supplier Surveys

• Collect information from suppliers, e.g.
  refiners, importers, retailers, etc.
• Have smaller frames, sample sizes.
• Provide information on volumes supplied/sold.
• Conducted weekly, monthly, and annually.

7
WHAT IS A FRAME ??

• A listing of all possible sampling units along
  with basic information about the units

8
Types of Frames

• List Frame - a listing of all possible sampling
  units or businesses along with basic information
  about the unit.
• Area Frame - a set of geographic areas from which
  a sample of areas are selected.

9
DEFINITIONS

• UNIT OF ANALYSIS
• Unit for which we wish to obtain statistical data

10
DEFINITIONS

• TARGET POPULATION
• All units of analysis whose characteristics are
  to be estimated

11
DEFINITIONS

• SAMPLING UNIT
• A unit selected from the sampling frame

12
DEFINITIONS

• SAMPLING FRAME
• Totality of the sampling units from which the
  sample is selected

13
DESIRABLE FEATURES (1)

• Complete, current, and non-duplicated coverage
• Standardized concepts, definition, and
  classifications
• Ability to update from other sources
• Standard statistical units
• Linkage across units/over time

14
DESIRABLE FEATURES (2)

• Software to extract samples/mailing lists
• Accessible, useable, and updatable for operations
  personnel
• Frame for several surveys
• Data integration across surveys
• Reasonable operating costs
• Flexibility for future expansion

15
Frame Examples

• Postal Service - mail exit points
• Bureau of Labor Statistics - unemployment
  insurance files
• EIA - product oriented - petroleum companies and
  sites importing, refining, storing, or selling
  petroleum products.

16
CONSIDERATIONS

• Data requirements
• Appropriate collection unit
• Timeliness requirements
• Multiple surveys
• Double sampling

17
Standard Industrial Classification

• Concept - allocate the economic activities of
  every company or establishment to an industry
  chosen from a set of mutually exclusive
  industries that account for all activities in the
  economy.

18
Establishment Sampling Unit

• Establishment defined as a production or sales
  unit at a single location.
• More timely data collection.
• Larger frame, more difficult to maintain.

19
Company Sampling Unit

• Company defined as the organizational unit that
  has the ultimate authority with respect to
  financial decision-making and to allocate
  resources.

20
FRAME DATA

• Identification data
• Classification data
• Contact data
• Maintenance and linkage data

21
EIAS PROCESS FOR CREATING A MAILING LIST

• Existing Surveys -- Master Frame File
• Contact sources--State Petroleum Marketing
  Associations from Oil Industry Directory and
  National Petroleum News Factbook, State
  Government Offices, Dun and Bradstreet (select
  SIC codes), Survey Sampling Inc (propane
  marketers)

22
SOURCE CONSIDERATIONS (1)

• Cost - purchase and formatting
• Coverage
• Frequency of update and
• time available

23
SOURCE CONSIDERATIONS (2)

• Definitions used
• Future
  availability
• Quality of data

24
OBJECTIVES OF MATCHING

• Match name and address within one file (internal
  match) or between two files (external match) to
  eliminate duplicate units
• Keep units that are unique births
• Remove records for units that ceased or are no
  longer in scope deaths
• Update information for known units

25
THREE TYPES OF RESULTS

• Match (M) duplicate unit / dont add

• Possible match (P) more follow-up necessary /
  manual review
• No match (N) new unit / add

26
ERROR TYPES

• Error Types--Type I N is really M--Type II M
  is really N
• Objective Control type I and type II errors
  while minimizing the size of P
• Considerations Cost of type I and type II errors
  (duplicates vs. undercoverage) resources for P
  expectations regarding births, deaths, and
  updates size of files

27
FIELDS

• Attributes of the record such as the name or
  street address
• The user specifies the fields to be matched
• Some fields provide stronger matches than others

28
BLOCKING (1)

• Used when number of total pairs between two
  files N(A) X N(B) is large
• If have a reliable field---gtBlocking --reduces
  number of pairs compared --forces pairs not in
  same block into N
• Files partitioned into mutually exclusive
• and exhaustive blocks

29
BLOCKING (2)

• ExamplesGeographic code in address -- consider
  typographical errors and mobilityClassification
  codes -- consider primary vs. secondary
• Matches only occur within blocks/pockets
• Unique identifiers must be accurate

30
RULES

• Rules produce outcomes of--agreement,
  disagreement or partial agreement of one or more
  input file fields
• Rules are independent of one anotherP(R) P(r1)
  x P(r2) x P(r3)
• Weights assigned to each rulecommon values low
  weights, rare values high weights

31
WEIGHTS

• Weights derived iterativelygt examine M, N, and
  Pgt adjust rules, thresholds, weights
• Logarithms, especially base two, often used
• Weights for all rules are summed to produce a
  total weight

32
THRESHOLDS (1)

• Lower Threshold Total weight lt TL
  (a,b) is a
  non-match
• Upper Threshold Total weight gt TU
  (a,b) is
  a match
• TL lt Total weightlt TU
• (a,b) is a potential match
• needs manual review or follow-up

33
THRESHOLDS (2)

• Estimate TL, TU , P(r(a,b)/(a,b) is M, and
  P(r(a,b)/(a,b) is N
• Use prior information or derive iteratively using
  current information

34
METHODOLOGY

• Preprocess and Standardize
• Standardized files
• Know the data - word frequencies, quality,
  commonality, anomalies
• Fix format - create extra fields
• Most time consuming aspect

35
EIAs Matching Programs(1)

• Zip code edit program--identifies
  incorrect city, state and zip code combinations
  on input file and outputs errors (zip vs state,
  zip vs post office list, city vs zip or city vs
  post office list)

36
EIAs Matching Programs (2)

• Standardization programs
• Removes punctuation and multiple blanks
• Standardizes representations of post office box
  and street address and box placement
• Spellings and abbreviations of common words
  changed to a
• common, abbreviated
• form

37
STANDARDIZATION PROGRAMS

• Character Elimination
  A.B. Smith Co A B Smith Co Smith's Oil
  Smiths Oil
• Address Standardization
  P.O. Box 10 PO Box 10
  Box 101 PO Box 101
• Abbreviations/Spellings Standardized
  Company Co Street ST

38
MATCH TYPES

• Exact Match - Deterministic - unique
  identifiers, stringent criteria
• Possible Match - Probabilistic - based on
  statistical probability of a match
• Internal/External

39
EXACT MATCH PROGRAM (1)

• Exact matches are eliminated automatically. No
  manual review required.
• Blocking criteria used1) 3 digits zip, 4
  characters of name2) 5 digits zip, 6 character
  of address 13) 10 digits of telephone4) sorted
  name field, then use 1

40
EXACT MATCH PROGRAM (2)

• Sort keys defined, same sort key is a block,
  examine within block, Fellegi-Sunter model for
  weight with upper and lower cutoffs
• Nonmatches pass on to potential match

41
POTENTIAL MATCH PROGRAM (1)

• Different approach to assignment of weights.
  Each word and number of the name and address from
  the add file is separated and held in a table.
• Searches base file of 70,000 companies for
  records containing these words
• Each word in the database has a weight based on
  frequency

42
POTENTIAL MATCH PROGRAM (2)

• Words and numbers that match, weight assigned
  5-log(frequency)
• Only count once in a target area target area has
  a weight you vary by importanceExample name
  field weight at 2, other at 1
• Total weight is sum of weights assigned to
  matched words

43
DECISION CHART AND ONLINE MATCH

• Decision chart was created to provide direction
  and consistency in the manual review--sometimes
  required calling company to determine resolution
  of conflict or confirmation of match
• Online match provided for matching one record vs
  base file, 9 highest weights

44
(No Transcript)
45
ONLINE MATCH (1)
46
ONLINE MATCH (2)
47
ADDING CLASSIFICATION DATA

• Determine what
• Determine how
• Existing sources vs. survey
• Industry burden/cost

48
FRAME SURVEY

• Field test
• Survey Considerations
• Survey nonresponse
• Editing

49
(No Transcript)
50
(No Transcript)
51
FRAME ACCURACY

• Coverage errors
• Classification errors
• Incomplete or missing data
• Impact of error on data collection
• Impact of error on survey estimates
• Age/industry dynamics

52
MASTER FRAME FILE FUNCTIONS

• Standardize Ids across surveys
• Identify births/deaths
• Communicate changes
• Identify and eliminate duplicates
• Assist in frame development
• Provide historical linkages
• Cross survey analysis
• Generate reports to assist managers

53
(No Transcript)
54
OTHER ISSUES

• Preparation for sample selection
• Query System
• Confidentiality vs. Public Use
• Systems and Platforms

55
TARGET QUERY
56
COST ESTIMATES

• Development costs
• Survey costs
• Maintenance costs
• Other cost considerations

57
THANK YOU
