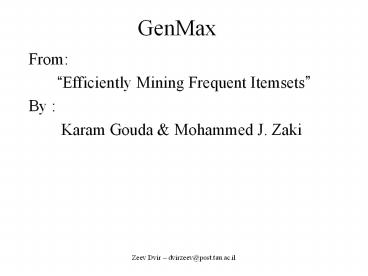

GenMax

1
GenMax

• From
• Efficiently Mining Frequent Itemsets
• By
• Karam Gouda Mohammed J. Zaki

2
The Problem

• Given a large database of items transactions,
  find all frequent itemsets
• A frequent itemset is a set of items that occurs
  in at-least a user-specified percentage of the
  data-base
• We call this percentage min_sup (for minimum
  support).

3

• A Maximal Frequent Itemset is a frequent
  itemset, that doesnt have a frequent superset
• FI frequent itemsets
• MFI maximal frequent itemsets
• Fact
• MFI ltlt FI
• GenMax is an algorithm to find the exact MFI

4
Example
Item/Tid A B C D
1 x x x
2 x x
3 x x x
4 x x x x
5 x
6 x x
7 x
Min_sup 3
ABCD ABC ABD
ACD BCD AB AC AD BC BD
CD A B C D
5
Some Useful Definitions

• The Combine-Set of an itemset I , is the set of
  items that can be added to I to create a frequent
  itemset.
• For example , in the previous example, The
  combine-set of the itemset A is B, C.
• The combine-set of the empty itemset is called F1
  and is actually the set of frequent itemsets
  ofsize 1.

6
(No Transcript)
7
(No Transcript)
8
Improvement

• At each level, sort the combine-set (C) in
  increasing order of support
• An itemset with low support has a smaller chance
  of producing a large combine-set in the next
  level
• The sooner we prune the tree, the more work we
  save
• This heuristic was first used in MaxMiner

9
Bottlenecks

• Superset checking
• The best algorithms for superset checking give
  an amortized bound of per
  operation.
• thats bad if we have many itemsets in the MFI.
• 2. Frequency testing
• How can we make frequency testing faster ?

10
Optimizing Superset Checking

• A technique called Progressive Focusing is
  used to narrow down the group of potential
  supersets, as the recursive calls are made
• LMFI Local MFI
• Before each recursive call, we construct the LMFI
  for the next call, based on the current LMFI and
  the new item added.

11
LMFI Example
FGHI FGHJ
FGH FGI
FG
12
(No Transcript)
13
Frequency Testing Optimization

• GenMax uses a vertical database format
• For each item , we have a set of all the
  transactions containing this item.
• This set is called a tidset. (Transaction ID
  Set).
• This method makes support computations easier,
  because we dont have to go over the entire
  database.

14
Vertical Database
Item/Tid A B C D
1 x x x
2 x x
3 x x x
4 x x x x
5 x
6 x x
7 x
A 1, 3, 4, 5 B 1, 3, 4, 6 C
1 ,2 ,3 ,4 ,7 D 2, 4, 6 t(A) 1, 3, 4,
5 t(AC) 1, 3, 4 supp(I) t(I)
15
ABC ABD ABE AB
C , E
t(ABC) t(ABE)
Each item y in the combine-set ,
actually represents the itemset ,
and stores the tidset associated with it.
16
Additional Optimization

• Diffsets dont store the entire tidsets, only
  the differences between tidsets (described in
  Fast Vertical Mining Using Diffsets)

17
Experimental Results

• GenMax is compared with
• MaxMiner , MAFIA, MAFIA-PP
• MaxMiner MAFIA-PP give the exact MFI, while
  MAFIA gives a superset of the MFI
• The Databases used in the experiments are grouped
  according to the MFI length distribution

18
Type I Datasets
19
Type II Datasets
20
Type III Datasets
21
Type IV Datasets
22
The End
