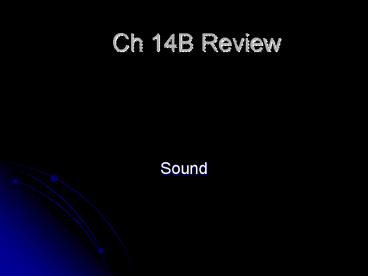

Ch 14B Review

1
Ch 14B Review

• Sound

2

• Before play, request pass, run, kick, or punt
• Playing card for yards gained if correct
• cards give gain for runs
• cards X 2 give gain for passes
• No gain for incorrect runs
• No gain for incorrect passes (incomplete)
• JQK runs correct 10 yds
• JQK runs incorrect lose 5 yds
• JQK passes correct 20 yds
• JQK passes incorrect lose 10 yds (sack)
• Aces passes correct touchdown runs 11 or
  -1
• Aces passes incorrect interception for
  touchdown
• Kicking inside 30 yd line, if answer correct
  then kick good
• JOKER fumble, ball to other team
• Punt Automatically goes 40 yards, ball to other
  team

3
Volleyball

• One group must answer a question to serve in
  bounds
• Other group must answer one question to bump/dig,
  one question to set, and one question to spike it
  to other team.
• This process repeats itself until a question is
  missed.
• Rally scoring (highest total wins or 25/game
• The team who got the previous point serves the
  following point.

4
1 Unit for frequency
5
1

• Hertz, abbreviated Hz

6
2 a unit used to measure sound level
7
2

• Decibel, abbreviated dB

8
3 a jarring combination of pitches often with
high ratio of frequency
9
3 dissonance

• Comes from a higher whole-number ratio of
  frequencies of sounds played simultaneously

10
4 apparent highness or lowness of a musical
note
11
4 pitch
12
5 two frequencies that have a ratio of 21
13
5 octave
14
6 sound waves are this type of wave
15
6 longitudinal wave

• Also called compressional wave

16
7 the fastest state of matter for sound to
travel in
17
7 solid

• Sound moves faster in a solid due to the high
  level of elasticity that the molecules have in a
  solid
• Liquids 2nd-best

18
8 an oscillation of wave sound amplitude
caused by the sounding of two nearly identical
frequencies
19
8 beats (beat frequency)

• To find beat frequency, take difference of
  frequencies being played.

20
9 a pleasant combination of pitches
21
9 consonance

• Usually occurs when frequencies are played in
  harmony with low simple whole ratio between
  frequencies
• Music synonym harmony

22
10 frequency higher than the human audible
range
23
10 ultrasonic

• Dog whistles, medical applications, sonar

24
11 When an object is moving 680 m/s in an
environment where sound moves 340 m/s, what is
the mach number of this objects speed?
25
11 Mach 2
26
12 The lowest frequency that will resonate in
a pipe
27
12 fundamental frequency
28
13 Equation to use to find perceived frequency
when source and observer are on collision course
29
13

• fp fe (v vo)
• (v - vs)

30
14 What is the beat frequency when two tuning
forks of frequencies 250 and 255 Hz are played at
the same time?
31
14 5 Hz

• Beat frequency f2 f1

32
15 Place in a sound wave with greater than
average pressure
33
15 compression
34
16 Place of maximum movement on string in
standing waves
35
16 antinode
36
17 What is the harmonics number for the
following string?
37
17 four
38
Halftime
39
18 When a source and an observer are running
away from each other, the perceived frequency
heard will be ___ compared to the emitted
frequency.
40
18 lower
41
19 part of a sound wave with less than average
pressure
42
19 rarefaction
43
20 As the temperature of air increases, the
speed of sound ____.
44
20 increases

• SOS (331 m/s) v1 Tc/273

45
21 something moving faster than the speed of
sound
46
21 supersonic
47
22 thunder-like sound created by the
constructive interference of sound waves emitted
by something moving faster than speed of sound
48
22 shock wave, sonic boom
49
23 term for tone quality, tone color, or sound
harmony quality
50
23 timbre
51
24 Equation for frequency of the fundamental
frequency of open pipe
52
24 (f (n/2L) v)
53
25 synonym for overtone
54
25 harmonic
55
26 Equation for the frequency heard by a string
56
26 f (n/2L) v(F/µ)
57
27 Synonym for shock wave
58
27 sonic boom
59
With closed tubes, the possible harmonics
60
28 odds only
61
29 place with maximum motion of the medium
62
29 antinode
63
30 Formula relating power and sound intensity
64
30 I P/A P/4pr2
65
31 Units for sound intensity
66
31 W/m2
67
32 the fourth harmonic of a 200 Hz fundamental
frequency
68
32 800 Hz
69
End of Game
