Title: Use of AP203 CAD Data for Engineering Analysis


1

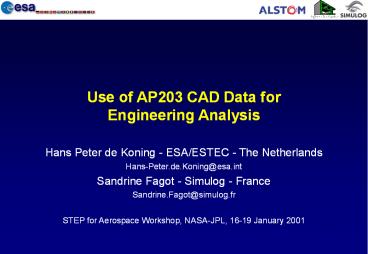

Use of AP203 CAD Data for Engineering Analysis
  • Hans Peter de Koning - ESA/ESTEC - The
    Netherlands
  • Hans-Peter.de.Koning_at_esa.int
  • Sandrine Fagot - Simulog - France
  • Sandrine.Fagot_at_simulog.fr
  • STEP for Aerospace Workshop, NASA-JPL, 16-19
    January 2001

2
Agenda
  • Recap Usage of CAD to create CAE model
  • Use of AP203 as input
  • Specific application for thermal-radiative CAE
    (ESARAD)
  • Real world example
  • Further plans

3
Recap Why use CAD geometry to construct CAE
models?
  • Main objectives
  • To reduce CAE model construction effort
  • To improve CAE model accuracy and fidelity
  • To transfer and retain product structure and part
    identification information
  • To improve consistency between CAE models for
    different engineering disciplines -- CAD model as
    master digital mock-up
  • Avoid duplication of effort
  • If it has been modelled in CAD already, why do it
    again?
  • CAD modeller is probably richer in shape creation
    functionality than the CAE modeller

4
Potential pitfalls with usage of CAD for CAE
  • CAE virtually always needs idealised shape
  • Idealised shape geometric represention of the
    object under analysiswhich is appropriate,
    adequate and sufficiently detailedfor the
    analysis task at hand
  • Who said engineering is a hard science?
  • Lot of engineering judgement involved
  • Depends on environmental conditions, operational
    context
  • Depends on engineering life cycle stage
  • Nevertheless, still serious benefits from
    automated transfer of CAD models to CAE when used
    with caution

5
Use of AP203 for CAD - CAE model transfer
  • Nearly all CAD tools now have reliable, good
    quality AP203 import/export functionality
  • Very attractive for CAE tools to support AP203
  • Good investment one interface supports all CAD
    tools
  • First import of AP203 models, later perhaps also
    export
  • But also problems
  • Most CAE tools can not directly handle all AP203
    shapes
  • NURB curves and surfaces, trimming loops, general
    surface of revolution, etc.
  • Different CAD tools generate different AP203
    models
  • For example many different ways to define a
    cylindrical surface

NURB Non-Uniform Rational B-spline
6
Specific Application Thermal-radiative CAE
  • STEP AP203 model import and NURB processing
    capability for ESARAD
  • RD activity in 2000 under ESA contract
  • ALSTOM Power Technology Centre (UK)
  • ESARAD tool vendor
  • Management, integration and test
  • Simulog (France)
  • AP203 to ESARAD import translator
  • Formal Software Construction Ltd. (UK)
  • ESARAD NURB surface processing

ESARAD Thermal-radiative analysis tool
(Monte-Carlo raytracer)
7
Usage scenario Construct CAD/AP203 to ESARAD
  • Identify CAD model for export
  • Optionally prepare CAE view in CAD tool
  • Suppress features, filter small details, flatten
    hierarchy, remove irrelevant parts
  • Export to STEP AP203 part 21 file
  • Translate AP203 model to native ESARAD model
  • Clean-up and adapt model in ESARAD modeller
  • Add thermal-radiative features
  • meshing, properties, environmental conditions,
    kinematics, ...
  • ? Ready to run ESARAD analysis

8
Translate AP203 model to native ESARAD model (1)
  • Problem Mapping of AP203 shapes to ESARAD shapes
  • ESARAD is a surface modeller
  • primitive surface shapes
  • triangular, rectangular, quadrilateral plate
  • disc (-sector, -annulus)
  • cylinder (-segment)
  • cone, sphere, paraboloid (-segment, truncated-)
  • compound surfaces (union of primitive or compound
    surfaces)
  • boolean cut surfaces (e.g. plate with circular
    hole)
  • Most CAD tools export AP203 evaluated BREP solid
    models
  • AP203 CC4, CC5, CC6 models with lots of advanced
    shapes using NURB, trimming loops, etc.

9
Translate AP203 model to native ESARAD model (2)
  • Approach
  • Develop heuristic algorithm to recognise / deduct
    as much as possible primitive shapes in the CAD
    AP203 export
  • Transfer any remaining shapes as NURB surfaces
    (with trimming loops)
  • Retain model hierarchy and axis placements
  • Retain shape identification labels, etc.
  • Translator is a stand-alone Unix filter type tool
  • Simple, maintainable, easily extendible to
    support new output formats
  • Upgrade ESARAD to accept NURB surfaces
  • In shape definition, but also in ray-tracing
    algorithm!

10
Translate AP203 model to native ESARAD model (3)
  • Target Catia v4 as first CAD export tool for
    testing
  • Is most used CAD tool in European space industry
  • Developed Catia generated AP203 test suite
  • Artificial little CAD models containing different
    ways to construct the primitive shapes (also
    asking different engineers)
  • Replicated the STEP-TAS test suite using Catia
  • Real world CAD models, including a complete
    detailed spacecraft CAD model (generates more
    than 220,000 instances in Part 21 file)
  • Developed heuristic algorithm
  • As much as possible works on generic STEP p42
    concepts
  • As little as possible tuned to Catia specific
    constructs / oddities
  • Outcome is a translator that works!

11
Translate AP203 model to native ESARAD model
(4)Example from test-suite
12
Real World Example Test jig for METOP spacecraft
  • METOP earth observation satellite for Eumetsat
  • Sun-synchronous polar orbit - similar to ERS,
    Envisat, NASA-EOS
  • Modelled in detail in ESARAD (more than 4000
    surfaces)
  • Currently in Phase C/D - Starting thermal balance
    test predictions
  • Task Create ESARAD model of test jig
  • Test jig for thermal test, containing cold
    targets and guard heaters
  • Complicated shape - geometry available in Catia v4

13
Real World Example Test jig for METOP
spacecraftAP203 export from Catia
ISO-10303-21 HEADER FILE_DESCRIPTION((''),
'1') FILE_NAME('METOP FRAME UPPER

', '2000-09-25T0911380200',
(''), (''), 'CATIA.STEP
INTERFACE', 'CATIA SOLUTIONS V4
RELEASE 2.0 FR 4.2.0',
'') FILE_SCHEMA(('CONFIG_CONTROL_DESIGN')) ENDSE
C DATA 1APPLICATION_CONTEXT('configuration
controlled 3D designs of mechanical parts and
assemblies') 2APPLICATION_PROTOCOL_DEFINITION('
international standard','config_control_design',19
94,1) 3PERSON('111111','Last_Name','First_Name
',,,) ... 650VERTEX_POINT('NONE',649) 651
B_SPLINE_CURVE_WITH_KNOTS('CRV273',1,(652,653)
,.UNSPECIFIED.,.U.,.U.,(2,2),(0.00000000000,1.0000
0000000),.UNSPECIFIED.) 652CARTESIAN_POINT('NON
E',(-6663.00000000,2.51588360813,-18.6521285509))
16704TRIMMED_CURVE('CRV558',16703,(90.00000
00000),(108.628958036),.T.,.UNSPECIFIED.) 16705
B_SPLINE_CURVE_WITH_KNOTS('CRV559',5,(16706,167
07,16708,16709,16710,16711,16712,16713,1671
4,16715,16716,16717),.UNSPECIFIED.,.U.,.U.,(6,3
,3,6),(0.00000000000,1.00000000000,1.70960642440,2
.31910764281),.UNSPECIFIED.)
14
Real World Example Test jig for METOP
spacecraftTranslation into ESARAD definition
language
/ ESARAD GENERATED FILE FROM STEP AP203 FILE
/ / ------------------------------------------
/ / INFORMATION ON STEP AP203 FILE /
/ COMPANY / / LOCATION
location / / SERVICE
service name / / PERSON
/ / PROJECT project name /
/ PREPROCESSOR_VERSION CATIA.STEP INTERFACE
/ / ORIGINATING_SYSTEM CATIA SOLUTIONS
V4 RELEASE 2.0 FR 4.2.0 / / DATE
25/9/2000 / BEGIN_MODEL
MetopFrameUpper SHELL generated_id_1 generated_i
d_1 SHELL_DISC( point1 -6.763000,
1.125000, 0.160000, point2 -6.762765,
1.125882, 0.159592, point3 -6.763000,
1.127516, 0.165447, point5 -6.763000,
1.122903, 0.155461)
SHELL generated_id_3 generated_id_3
SHELL_NURB_SURFACE( u_dim 9, v_dim 2,
points -6.727706, 1.254837, 0.093422,
-6.698294, 1.365131, 0.042479,
-6.733537, 1.256119, 0.092830, -6.704126,
1.366413, 0.041887, -6.733537,
1.258635, 0.098277, -6.704126, 1.368929,
0.047334, -6.733537, 1.261150,
0.103724, -6.704126, 1.371445, 0.052781,
-6.727706, 1.259869, 0.104316,
-6.698294, 1.370163, 0.053373,
-6.721874, 1.258587, 0.104908, -6.692463,
1.368881, 0.053965, -6.721874,
1.256071, 0.099461, -6.692463, 1.366365,
0.048518, -6.721874, 1.253555,
0.094014, -6.692463, 1.363850, 0.043071,
-6.727706, 1.254837, 0.093422,
-6.698294, 1.365131, 0.042479, weights
1.000000, 1.000000, 0.707107,
0.707107, 1.000000, 1.000000,
0.707107, 0.707107, 1.000000,
1.000000, 0.707107, 0.707107,
1.000000, 1.000000, 0.707107,
0.707107, 1.000000, 1.000000,
u_degree 2, v_degree 1, u_knots
0.000000, 0.000000, 0.000000, 1.570796,
1.570796, 3.141593, 3.141593, 4.712389, 4.712389,
6.283185, 6.283185, 6.283185, v_knots
0.150000, 0.150000, 0.275000, 0.275000,
num_loops 1, loops DEFINE_NURB_TRIM_LOO
P ( num_curves 4, curves
15
Real World Example Test jig for METOP
spacecraftRaw AP203 export in ESARAD
  • Produced with first beta version of translator
    Sep-2000
  • All NURB-related shapes removed, because at that
    stage not yet supported in ESARAD visualisation
    and ray-tracing
  • Still a large amount of useful reference surfaces
    and points

16
Real World Example Test jig for METOP
spacecraftFinal jig model positioned on
spacecraft
  • After adaptation in ESARAD modeller and adding
    thermal features
  • Estimated 25 reduction in model construction
    effort
  • So, even without NURB support already significant
    savings

17
Ray-tracing with NURB surfaces
  • Status
  • Algorithm works functionally
  • First round of performance tuning done
  • Just before workshop delivered to ESA for
    acceptance testing
  • Functionality will be incorporated in next
    industrial release of ESARAD

18
Example NURB shapes now supported in ESARAD
ray-tracing
Some X-38-like concept -- no status -- just a
test model
19
Conclusions
  • Import from CAD to ESARAD is working well
  • Could not have been done sensibly without STEP
  • Very promising development
  • Emphasis is on improving the engineering analysis
    cycle
  • NURB support in ESARAD is for most cases not
    really needed from the thermal analysis point of
    view
  • Striving to increase the efficiency and
    effectivity of the engineer, not optimising on
    CPU or other computer resource usage
  • However, high-fidelity NURB surfaces can be
    appropriate in some special cases thermal or
    thermal/optical analysis
  • Mirror optics
  • Parasitic heatloads infra-red sensors, passive
    cooler baffles

20
Future
  • Complete testing
  • Testing with exports from other CAD packages -
    enhancement of heuristic shape recognition
  • Improve transfer of product and part info (meta
    data)
  • AP203 to STEP-TAS converter?
  • AP203 import and NURB ray-tracing in next major
    industrial release of ESARAD
