Space Science Archives at NASA

1

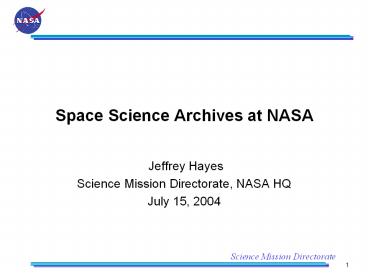

Space Science Archives at NASA

• Jeffrey Hayes
• Science Mission Directorate, NASA HQ
• July 15, 2004

2
The funding agencies and muses
How we really work! (Note where Urania is)
3
Space Science Archives

• The idea of archiving data is old in the NASA
  science

• community. Data are the only legacy a mission
  has

• once it has ended.
• Because data was being archived in a hap-hazard
  manner early on, it was decided in the late
  1960s to form a central archive to capture all
  Space Science data -- the National Space Science
  Data Center (NSSDC) at Goddard Space Flight
  Center (GSFC). This is still the deep archive
  for all NASA Space Science missions.

4
Space Science Archives

• Over the years the NSSDC evolved to include not
  only

• Space Science data, but large ground-based
• Astronomical catalogues needed by both the NASA
  and

• the general science communities.
• All data were available on request.
• All data were maintained on (by todays
  standards) very primitive media (i.e. cards, 7
  track mag. tape)

• Leads to questions of accessibility and
  usefulness.

5
Standards

• For data to be useful, it must conform to a form
  that most of the community agrees to, and can
  understand.

• Catalogue data was standardized on the
  80-character line of data (hold-over from punch
  cards). There were limitations, because some
  records were longer than 80 characters. Image
  data was essentially photographic prints.
  Spectroscopy was in lists of lines and
  wavelengths.
• All of these formats had severe limitations for
  transport and further analysis.

6
Standards

• In 1977 the Flexible Image Transport System
  (FITS) standard was published (Wells). This was
  a self-describing data structure that allowed for
  the storage of data on a computer as a file with
  an embedded header.
• Quickly became the standard in the astronomical
  and parts of the Solar physics communities, and
  with substantial modifications, is still the
  standard.
• All FITS data can be read by all FITS readers
  (with provisos).

• Became a NASA standard for data in 1999.
• New standards are coming on-line (XML, VOTable).

7
Archival Evolution

• The NSSDC was a great idea, but the advances in
• computer science made it out of date.
  Astronomers

• wanted access to digital data that was
  straight-forward

• and did not require translation from one data
  format to

• another. There was also a desire for rapid
• dissemination of that data other than by US Mail.


• The growth in the Internet and the decline of
  computer

• hardware prices made this possible.

8
Archival Evolution

• In the mid 1980s NASA tried to develop the
  Astronomical Data System (ADS), which would
  combine all astronomical data. It was a failure
  because there was not enough compute power or
  network capacity for such system. (A sideline to
  the ADS work was digitizing all the astronomical
  literature, and the ADS is now the premier site
  for such data in the world. All scanned papers
  are in PDF or JPEG formats.)
• 1990 NASA started the HEASARC with a more limited
  view of systematically archiving all High Energy
  Astrophysics data. This was very successful and
  the model for other space science archives.

9
Active Archives

• HEASARC was the first of a series of active
  archives that allowed the community to interact
  with the data by allowing down-loads of
  post-Level 1 data sets. The archive model now
  consists of scientists who maintain the integrity
  of the data, and also develop new and better
  tools for the manipulation and analysis of these
  data.
• The model has been generalized across wavelength
  regimes HEA -- HEASARC UV/Optical -- MAST
  IR/sub-mm -- IRSA CMB -- LAMBDA etc.

• The planetary sciences have the Planetary Data
  System (PDS) which parallels the Astronomy
  archives, but with differences (i.e. includes
  FITS as well as other standards, and nodes based
  on science discipline type).

10
Philosophy

• The last decade has seen the phenomenal growth in
  the power and ability in computers. This has
  allowed for the rapid evolution in archives and
  their ability to respond to the communitys
  needs.
• We have moved from a main-frame, static archive
  philosophy, to one that is more mobile and
  dynamic and evolves through feedback with more
  sophisticated data products.
• We have moved away from simple curation to
  managing the data. Data must now be migrated
  from one medium to another with a reasonable plan
  on how to do it.

11
Philosophy

• It is NASA policy that all science data come into
  the public domain as soon as possible. The
  researcher signs an agreement that all data taken
  by a NASA mission will be archived and after a
  suitable length of time (within 6 to 12 months
  from the date of observation/data acquisition),
  the data becomes publicly accessible. The are
  very few exceptions to this rule.

12
Hardware

• Hardware is now cheap. Both memory and disks are
  to the point where it is logical and practical to
  spin all data possible and make it accessible via
  the Web to all users.
• Less than 10 years ago, we were still using
  9-track tapes, some Exabytes, some DAT, and M/O
  disks. Little data was spinning. Now with the
  advent of RAID disks on the TB scale, flash
  drives on the GB scale, and laptops with G-flop
  compute power, the only problem is bandwidth.
  That too is getting cheaper and more accessible.
• The NASA archives are trying to keep abreast of
  all these developments.

13
Software

• The archiving tools used are usually COTS
  products. It is not cost effective to develop
  entire stand-alone SQL systems for archives. The
  customization is in adapting their use in an
  astronomical context. However as the evolution
  of database management continues, we are seeing a
  tremendous flexibility in how these data can be
  managed.
• The compute power also allows for the development
  of very sophisticated data imaging, manipulation,
  and analysis tools. This is now considered to be
  within the purview of the active science archives.

14
Management

• Day-to-day operations are managed at the active
  archive level by a scientist responsible to NASA
  HQ for the assigned activities.

• There are biannual meetings of a coordinating
  committee (ADEC) with NASA HQ having ex-officio
  membership.

• The active Astronomy archives are peer-reviewed
  every 4 years in the Astronomy Senior Review
  process. On-going and new activities are
  proposed and judged. Funding can be reallocated
  as needed.

15
Operational Archives

• The suite of NASA Space Science archives
  currently consists of

• 1 deep archive
• NSSDC
• 7 active archives
• HEASARC, MAST, IRSA, LAMBDA, MSC, PDS, SSDC
• 2 data services
• ADS, NED
• 3 on-going Great Observatory missions have
  stand-alone archives which are associated with
  the above active archives

• HST, CXO, SIRTF

16
Interoperability

• There is a movement in the astronomical community
  to have access to data from multiple wavelength
  regimes in order to cross-correlate them. The
  Space Science archives are now working on a plan
  to implement such interoperability (the NVO by
  another name). In addition, we want to
  incorporate both theory and modeling data in the
  infrastructure.
• This promises a huge leap in science by using the
  Internet, Grid technologies, and very fast
  computing techniques.

• NASA is working on a response to the white paper
  produced by the archives.

17
Historical Data

• One last point What to do with old, pre-digital
  data?

• Photographic plates exist in huge numbers and are
  both fragile and of finite lifetime. Harvard and
  Caltech are digitizing their plate collections,
  but most other institutions cannot because of the
  cost.
• Do we accept the lost of such historical data, or
  so we collect only those collections at large or
  national observatories which have a uniform
  pedigree?
• Should data have expiration dates? (Like milk.)

18
NASA Astronomy Archives

• Backup Material

19
Data Archive Centers LAMBDA

• Legacy Archive for Microwave Background Data
  Analysis (LAMBDA)

• http//lambda.gsfc.nasa.gov/
• One Stop Shopping for CMB Researchers
• Contains Cosmic Microwave Background data and
  data products from WMAP, COBE, IRAS, SWAS
  missions related software (CMBFAST, HEALPix
  etc) and archives of news and science papers.

20
Data Archive Centers IRSA

• NASA/IPAC InfraRed Science Archive (IRSA)
• http//irsa.ipac.caltech.edu/
• Archive node for scientific data sets from
  NASAs infrared and sub-millimeter astronomy
  projects and missions

• Contains data from 2MASS, IRAS, MSX, SWAS, ISO,
  Spitzer, and related inventory, software, and
  data exploration services.

21
Data Archive Centers MAST

• Multimission Archive at Space Telescope (MAST)
• http//archive.stsci.edu/
• Supports a variety of astronomical data
  archives, with the primary focus on
  scientifically related data sets in the optical,
  ultraviolet, and near-infrared parts of the
  spectrum
• Contains data and data products from HST, FUSE,
  IUE, EUVE, ASTRO, HUT, UIT, WUPPE, and others

• Also, catalogues and surveys from GALEX, SDSS,
  GSC, DSS, VLA-FIRST, relevant software (STSDAS),
  etc.


22
Data Archive Centers HEASARC

• High Energy Astrophysics Science Archive Research
  Center (HEASARC)

• http//heasarc.gsfc.nasa.gov/
• An archive of astronomy data from extreme
  ultraviolet, X-ray, and gamma-ray observatories


• Contains data from ASCA, BeppoSAX, CGRO, Chandra,
  EUVE, HETE-2, Integral, ROSAT, RXTE, XMM-Newton,
  and others. In the future will serve data from
  Astro-E2 and Swift. Also multi-mission software
  and analysis tools, and information for educators
  and the public

23
Data Archive Centers CXC

• Chandra X-ray Center (CXC)
• http//chandra.harvard.edu/
• Center for Chandra science and calibration data,
  proposer information, data analysis software
  assistance, public information and education
  resources.

24
Services ADS and NED

• NASA Astrophysics Data System (ADS)
• http//adswww.harvard.edu/
• The main body of data in the ADS consists of
  bibliographic records searchable through database
  queries, and full-text scans of much of the
  astronomical literature.
• NASA/IPAC Extragalactic Database (NED)
• http//nedwww.ipac.caltech.edu/
• Database built around a master list of
  extragalactic objects bibliographic references,
  photometry, position and redshift data, etc.

25
Data Archive Centers MSC

• Michelson Science Center (MSC)
• http//msc.caltech.edu/
• Science operations and analysis service
  organization for selected NASA Origins Theme
  projects - software infrastructure, science ops
  and consulting to Navigator Program projects and
  their user communities
• Up-and-coming archive for data Palomar Testbed
  Interferometer, Keck Interferometer, SIM, and TPF.

26
Data Archive Centers NSSDC

• National Space Science Data Center (NSSDC)
• http//nssdc.gsfc.nasa.gov/
• The NSSDC is responsible for the long term
  archiving and preservation of all space science
  data - provides a permanent archive for OSS data
  (for space physics, solar physics and
  planetary/lunar, as well as astrophysics)
• Relatively recent data is held on CD-ROMs older
  astrophysics datasets available on offline
  media.


27
Data Archive Centers SSDC

• Solar Science Data Center (SSDC)
• http//ssdc.gsfc.nasa.gov/
• Provides a permanent archive for Solar data (for
  space physics, solar physics as well as upper
  atmospheric physics)

• Relatively recent data is held on CD-ROMs older
  astrophysics datasets available on offline
  media.

• Data is in mixed formats mainly FITS for
  imaging, but HDF used for spectra.

• Colocated with NSSDC at GSFC.

28
Data Archive Centers PDS

• Planetary Data System (PDS)
• http//pds.jpl.nasa.gov/
• Provides active archive for various aspects of
  planetary mission data. Unlike other centers, it
  is discipline specific, not wavelength specific
  (i.e. rings, small bodies, satellites, etc.)
• Relatively recent data is held on CD-ROMs older
  datasets available on RAID disks or on offline
  media.

• Data is in mixed formats some FITS for imaging,
  but mainly HDF of various flavors for other
  data.

• Various discipline nodes across the country with
  central coordination at JPL Central Node.

29
Data Archives Funding Levels

• NASA archive funding levels in FY04 (in M)
