Improving IJVM Performance

1

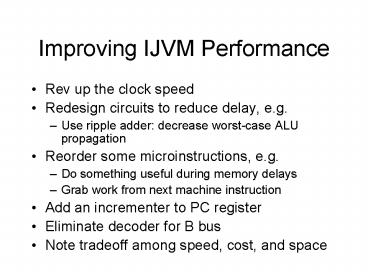

Improving IJVM Performance

• Rev up the clock speed
• Redesign circuits to reduce delay, e.g.
• Use ripple adder decrease worst-case ALU
  propagation
• Reorder some microinstructions, e.g.
• Do something useful during memory delays
• Grab work from next machine instruction
• Add an incrementer to PC register
• Eliminate decoder for B bus
• Note tradeoff among speed, cost, and space

2
More Improvements

• Add a bus for A side of ALU
• Do fetch separately pre-fetch in batches
• This is really a simple two-stage pipeline
• Find parallelism (the wall is serial tasks)

3
(No Transcript)
4
Still More Improvements

• Pipeline around ALU (3 stages)
• Note pipeline enables faster clock too
• Add lots of registers (a RISC-y thing to do)
• Add level(s) of cache
• P4 has a trace cache for micro-ops
• Add smarter decoding, e.g.
• Go superscalar
• Dispatch/route as you decode

5
(No Transcript)
6
(No Transcript)
7
Pipelines and Control Signals
8
(No Transcript)
9
Pentium II Dispatch/Execute Unit
10
UltraSPARC II Microarchitecture
11
UltraSPARC II Pipeline
12
Even More Improvements

• Add branch prediction
• Track history (works like cache)
• Allow two misses before switching prediction
• Out-of-order execution
• Register renaming enables multiple versions
• Scoreboards track which registers instructions
  use
• What about interrupts?
• Pentium 4 reorders execution only, not
  issue/retire
• Speculative execution (like EPIC)

13
Out of Order Scoreboard
14
Pentium 4 Path
15
Possibly Even More Improvements

• IJVM is really kinda CISC-y
• RISC might skip most of this micro-sequencing
• Note how P4 does it both ways (ROM is optional)
• Symmetric MultiProcessor (SMP)
• Shared RAM, but separate caches (coherency
  issues)
• Alternatives clusters/blades, NUMA/CC-NUMA
• Hyperthreading (or Simultaneous Multi-Threading)
• Something between superscalar and multicore
• Dispatch instructions from collection of threads
• Vector processing (SIMD single instr, multiple
  data)
• Multicore share outer cache, separate inner
  cache(s)

16
SMP
17
Cluster
18
CC-NUMA
19
Hyperthreading and Multicore
20
Multicore Chip Organization
