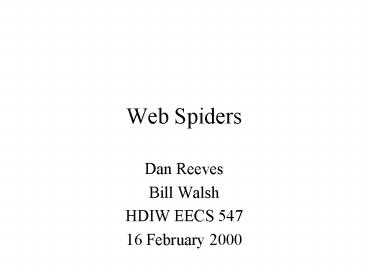

Web Spiders

1
Web Spiders

• Dan Reeves
• Bill Walsh
• HDIW EECS 547
• 16 February 2000

2
What is a Web Spider?

• A program that uses HTTP to automatically
• download documents from a web server
• analyze documents retrieved from a web server
• send data back to a web server

3
Spider Usage

• Search engines
• Lycos analyzes 10,000,000 Web pages a day
• Comparison shopping
• ShopBot
• Data analysis
• bidding behavior at online auctions
• Automated Web interactions
• daily comics delivery
• stock trading agent
• Other (Mirroring, HTML/link validation, )

4
How Humans Typically Access The Web

• Web browser
• human friendly interface
• hides details of HTTP
• Web browser is just a program written in some
  language
• Whatever it does, you (a programmer) can do too!

5
What Components We Need to Use the Web

• socket connection
• HTTP
• page knowledge

6
Setting Up a Socket Connection

• Programmatically (C, Perl, Java, Lisp, etc.)
• Unix command prompt
• telnet address port_number
• address is web site address
• default port_number for most web sites 80
• telnet http//www.netscape.com 80

7
HTTP

• A well-defined specification for message formats
• Orthogonal to
• TCP/IP
• HTML
• XML
• W3C World Wide Web Consortium
• www.w3.org

8
Page Knowledge

• Markup language HTML, XML, free text
• Data formatting
• regular expressions
• domain-specific conventions
• freeform text
• How to get the knowledge
• coded by humans
• learning

9
telnet www.netscape.com 80
telnet www.netscape.com 80 Trying
207.200.75.204... Connected to www-ld2.netscape.co
m. Escape character is ''. GET /index.html
HTTP/1.0 User-Agent An Evil Spider Accept
image/gif, / Accept-Language en,
de Purpose-of-Request Denial of Service Attack
HTTP/1.1 200 OK Server Netscape-Enterprise/3.6
Date Thu, 10 Feb 2000 212239 GMT Set-Cookie
UIDC141.213.12.1860950217760031129domain.nets
cape.compath/ expires31-Dec-2010 235959
GMT Content-type text/html Connection
close - Hide from old browsers if (parseFloat(navigator.
appVersion) ') l
ocation.href "http//home.netscape.com/computing
/download/upgrade_index.html" // Stop Hiding
From Old Browsers -- Netcenter about 40k snipped
window.pupP
up() Connection closed by
foreign host.
10
Setting Up a Proxy in Netscape
11
Example of GET
GET / HTTP/1.0M Proxy-Connection
Keep-AliveM User-Agent Mozilla/4.7 en (X11
U SunOS 5.7 sun4u)M Host www.netscape.comM Acc
ept image/gif, image/x-xbitmap, image/jpeg,
image/pjpeg, image/png, /M Accept-Encoding
gzipM Accept-Language de, enM Accept-Charset
iso-8859-1,,utf-8M Cookie UIDC141.213.12.1570
937196127933529 HITO_VISITSA151853E21368C1E
00B21M
12
Example of GET-Based Form
GET /lookup/Lookup.tibco?searchsunwst_symbolon
HTTP/1.0 Referer http//www.netscape.com/ Proxy-C
onnection Keep-Alive User-Agent Mozilla/4.7
en (X11 U SunOS 5.7 sun4u) Host
lookup.netscape.com Accept image/gif,
image/x-xbitmap, image/jpeg, image/pjpeg,
image/png, / Accept-Encoding
gzip Accept-Language de, en Accept-Charset
iso-8859-1,,utf-8 Cookie UIDC141.213.12.157093
7196127933529 HITO_VISITSA151853E21368C1E00
B21 NSPOPmyn12
13
Example of POST-Based Form
POST /dreeves/bin/quote-submit.cgi
HTTP/1.0 Referer http//www.eecs.umich.edu/dreev
es/add-quote.html Proxy-Connection
Keep-Alive User-Agent Mozilla/4.7 en (X11 U
SunOS 5.7 sun4u) Host www.eecs.umich.edu Accept
image/gif, image/x-xbitmap, image/jpeg,
image/pjpeg, image/png, / Accept-Encoding
gzip Accept-Language de, en Accept-Charset
iso-8859-1,,utf-8 Content-type
application/x-www-form-urlencoded Content-length
234 recipientdanielsubjectQUOTEDATABASESUBMI
SSIONnameeecs547student emaildreeves40umich
.edu body22Bewareofbugsintheabovecode
3BIhaveonlyproveditcorrect2Cnottriedit.
220D0A--DonaldKnuth0D0A
14
Basic Perl Web Library (web.pl)

• getURLAsString
• Given a URL, returns contents as string.
• submitForm
• Given a URL and a perl hash of HTML form fields
  and contents, submits the form and returns
  response.
• html2text
• Uses lynx to parse html into a reasonable text
  approximation.

15
Example Get Todays Dilbert and Package it for
Email
16
Other Issues and Gotchas

• SSL
• Perl SSLeay library
• Cookies
• Perl libraries exist
• robots.txt file
• Sometimes for spiders benefit
• Politeness
• Dont get your domain blocked!

17
For More Information...

• All examples and links at
• http//www.eecs.umich.edu/
• dreeves/hdiw/main.html
