Spark Plugs

1

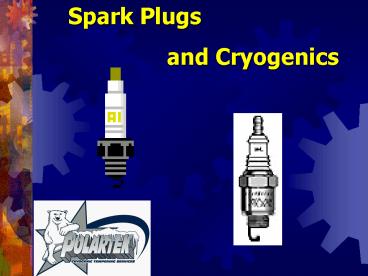

Spark Plugs and Cryogenics

2
Spark Plug Efficiency Test

• Ignition Cold Crank Test
• Ran twice
• 1st 6 untreated spark plugs
• 2nd same 6 spark plugs after Cryo treatment

3
Spark Plug Efficiency Test
4
Spark Plug Efficiency Test of Change
I N C R E A S E
Cylinder Number
5
Spark Plug Efficiency Test

• Test measured
• Voltage
• Ignition spark duration
• during the engine turnover
• Measurement was on the primary side of
  ignition coil
• Induced voltage into the coil is 10 volts DC
• While engine is turning at 100 RPM

6
Spark Plug Efficiency Test

• The findings conclude that
• Treated spark plugs produced a
• Stronger
• Longer
• output than the non-treated spark plugs
• For the entire, 6 cylinder system
• The increase measured an average of approximately
  12.5

7
12.5 average increase
Save money buy less gas
8
s Saved on Cryo Treated Plugs

• Miles driven in one year 15,000
• Cost of untreated plugs
• Gal of gas used _at_ 20 MPG 750 gal
• Cost per gal _at_ 1.50 1125
• Cost with cryo treated plugs
• Gal of gas used _at_ 23 MPG 652 gal
• Cost per gal _at_ 1.50 978
• Total Cost Savings in one year

147
9
Gas Cost Savings of Untreated Treated
Plugsat 60,000 miles at the Price of 1.50 a
gallon

• Average life of untreated plug at 60,000 miles
• Cost of gas _at_ 20 MPG 4,500
• Cryo treated plugs _at_ 60,000 miles
• Cost of gas _at_ 23 MPG 3,913
• Total Saving on gas

587
10
IMPORTANT!!!

• This saving does not include less wear and tear
  on the engine because of a more efficient burn in
  each cylinder
• But most important is that because it is a
  cleaner burn there is less air pollution

11

• Cryo treated spark plugs
• Cleaner environment
• Longer engine life
• Save money
• Burn less gas
