Plug-in Architectures

1

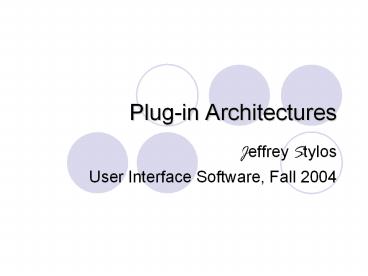

Plug-in Architectures

• Jeffrey Stylos
• User Interface Software, Fall 2004

2
Introduction
3
Component architectures

• What are components good for?
• Being able to reuse standard components within
  your own applications
• Allowing applications to be architected and
  implemented more modularly
• Allowing applications to be extended (by
  plug-ins) after they are compiled and released

4
What is a plug-in?

• For my purposes, a plug-in is a piece of software
  that extends or changes the behavior or interface
  of an existing, compiled application

5
What are plug-ins good for?

• Extending an applications functionality
• Changing the UI of an application (skins or
  themes)
• Extracting data from an application
• To connect it to another app
• For logging

6
What are the issues with plug-in architectures?

• What sort of plug-ins can you create?
• What aspects of the original program can you
  override?
• How difficult does this make it to create the
  base application?
• How are the plug-ins created and installed? Are
  they compiled?
• How do plug-in authors debug their plug-ins?
• How you create an architecture that balance these
  different issues is an interesting research
  question

7
My goals for this lecture

• Give an overview of several different examples of
  plug-in architectures and their capabilities and
  limitations
• Give you an idea of what resources and tools to
  use if you want to create one of these plug-ins
• Not to die from coughing

8
Why you should care about plug-in architectures

• Writing plug-ins is a way to connect your
  research with real applications, making it more
  compelling
• Writing plug-ins is a relatively easy way to
  write software that can make your life easier
• Building a plug-in architecture into your project
  is a way to let other people improve your project
  for you
• Designing new plug-in architectures is a
  potentially fruitful research avenue

9
DISCLAIMER

• This wasnt one of the existing topics
• I picked it because I wanted to learn more, not
  because I was already an expert
• These slides suck
• I have a cough

10
Overview

• Intro
• Emacs
• Mozilla
• Eclipse
• Skinnable apps

11
Emacs
12
Emacs

• "Editor MACroS
• One of the first runtime extensible systems
• Designed for text editing
• Used for everything
• Contains a core written in C
• The rest is written in elisp

13
Emacs extensions

• Extensions are written in elisp
• Can provide new functions or replace existing
  functionality
• Most extensions are macros that provide some sort
  of automation when explicitly invoked
• Can also do things like change text formatting
• Can display images, but only in the context of
  lines of text
• Auto spell-checking (flyspell)
• Its hard to
• Write multi-threaded extensions (makes network
  programming difficult)
• Do arbitrary painting (assumes lines of text)

14
Emacs extensions (continued)

• Everything loaded from initialization file
• To install an extension
• Set the correct paths in the initialization file
• Load the extension from the initialization file
• Can also manually load any lisp file, or even
  execute code as you write it

15
How do you debug extensions?

• Because much of Emacs is in Lisp, can step
  through it
• Has a built-in debugging mode
• Extensions for more detailed debugging (Edebug)
  and profiling (ELP)
• Don't have to build Emacs to run or debug an
  extension

16
Emacs examples

• Show Tetris example

17
Mozilla
18
Mozilla

• Several different applications
• Current code base provides
• Mozilla 1.8
• Netscape 7.2
• Firefox 1.0
• Thunderbird 1.0
• Different from old Netscape (which also provided
  some extensibility)
• Current extensibility features allow modification
  of the browser interface components (not just
  interactive webpage elements)

19
Mozilla extensibility architectures

• XPCOM
• Heavier weight supports C and other
  programming languages
• XUL / JavaScript
• User interface modification and scripting
• Also used for themes
• XPConnect
• Bridges XPCOM and Javascript
• XPInstall
• Installation and package management

20
XPCOM

• Cross-Platform COM
• A cross platform clone of COM
• Multi-threaded, but no remote support (not DCOM)
• Used to create heavy-weight components that can
  be called by XUL and JavaScript elements
• Code can be cross platform, but has to be
  recompiled

21
XPCOM (continued)

• Used to implement much of Mozillas core
  functionality

22
XPCOM (continued)

• Uses the IDL (Interface Definition Language) to
  specify capabilities
• IDL compiles to C
• Connects to JavaScript
• As with COM, XPCOM programming uses lots of
  interface pointers
• Badvoid ProcessSample(nsSampleImpl aSample)
      aSample-gtPoke(hello)Goodvoid
  ProcessSample(nsISample aSample)
  aSample-gtPoke(Hello)

23
Using XPCOM

• (Usually) needs Mozilla framework to compile
• Can be difficult to compile
• Needs the Mozilla framework to debug component
• Requires special tool to generate IDL
  specification
• Can use XPCOM for programming other than Mozilla
  plug-ins, but few do

24
Debugging XPCOM components

• Effective when you debug all of Mozilla
• Tools for detecting memory leaks
• BloatView, Boehm GC Leak Detector, Refcount
  Tracing, Trace-Malloc, etc.

25
High level overview of XPCOM Mozilla plug-ins

• Make a DLL that implements necessary methods
  (NSGetModule, etc.)
• Create a IDL specification
• Create an XPT specification from the IDL
• Put everything in Mozillas components directory

26
XPCOM Examples

• Using XPCOM
• var sound Components.classes"_at_mozilla.org/sound
  1".createInstance()
• if (sound) sound.QueryInterface(Components.interfa
  ces.nsISound)
• IDL
• scriptable, uuid(1BDC2EE0-E92A-11d4-BCC0-00600892
  96CB)
• interface mozIGPS nsISupports
• boolean Open(in string strDevice)
• boolean Close()
• string Reason(in boolean bClear)
• readonly attribute double latitude
• readonly attribute double longitude
• readonly attribute double elevation
• readonly attribute double gpstime

27
XPCOM resources

• High level information
• http//www.mozilla.org/projects/xpcom/
• An Introduction to XPCOM
• http//www-128.ibm.com/developerworks/webservices/
  library/co-xpcom.html
• I dont know of any good tutorial for creating
  and compiling an XPCOM extension

28
Mozilla Plug-ins XUL and JavaScript

• Used to build the base Mozilla user interface
• What most of the available extensions are written
  in
• Uses XUL to specify the static layout of the UI
  elements
• Uses JavaScript to specify how each of the
  elements interacts

29
XUL

• zool
• XML User-interface Language
• Initial ambitions of also being a language for
  richer webpages (sort of works now)
• Cross platform
• Can be used to create stand alone applications
  (with difficulty)

30
XUL (continued)

• Uses overlays to add new interface elements to
  existing interfaces
• Easy to add a new button to an existing form
• Can also replace existing interface elements
• Uses CSS to specify many of the formatting
  elements of the UI

31
How to write a XUL-based plug-in

• Write a .xul and .js file in Notepad
• Put in Mozillas extension directory

32
Debugging XUL and JavaScript plug-ins

• Difficult most common solution is trial and
  error
• Prints out red error messages on the UI
• There exists a debugging tool
• Venkman JavaScript debugger
• but it hasnt worked with Firefox or Thunderbird
  for a year or so
• Update Theres a development branch that might
  work with some version of Firefox

33
Example XUL code

• lt?xml version"1.0"?gt
• lt!DOCTYPE windowgt
• lt?xul-overlay href"file//src/HTML/moztests/sampl
  eoverlay.xul"?gt
• ltwindow orient"vertical"
• xmlns"http//www.mozilla.org/keymaster/ga
  tekeeper/there.is.only.xul"gt
• ltbox orient"vertical"gt
• ltbox orient"horizontal" flex"1"gt
• lttext value"Sample text number ONE"/gt
• ltspring flex"1"/gt
• lttext value"Sample text number TWO"/gt
• lt/boxgt
• ltbox orient"vertical"gt
• lttext value"Sample text number THREE"/gt
• lttext value"Sample text number FOUR"/gt
• lt/boxgt

34
Example JavaScript / XUL code

• function toggleContactsPicker()
• var sidebarBox top.document.getElementById("si
  debar-box")
• var sidebarSplitter top.document.getElementByI
  d("contacts-pane-splitter")
• var sidebarState sidebarSplitter.getAttribute(
  "state")
• var menuItem top.document.getElementById("menu
  _showContacts")
• var toolbarButton top.document.getElementById(
  "button-contacts")
• if (sidebarBox.hidden)
• sidebarBox.hidden false
• sidebarSplitter.hidden false
• if (menuItem)
• menuItem.setAttribute("checked","true")
• if (toolbarButton)
• toolbarButton.setAttribute("checked","true")

• ...

35
Example XUL extensions

• Show Firefox and Thunderbird extensions
• Thunderbird extensions
• Contact sidebar
• Quote colors

36
Themes

• Uses the swap-ability of XUL elements to create
  plug-ins that change the appearance but not the
  functionality
• Show theme examples

37
XUL and JavaScript resources

• Lots, high-level overviews, reference sites, and
  examples
• Because they are non-compiled languages, you can
  view the source of every current available
  extension

38
XUL / JavaScript overview

• Powerful and flexible UI scripting
• Can override existing elements
• Can dynamically transform UI elements
• Provides support for separating formatting
  decisions into CSS files
• Provides support for internationalization by
  separating text strings into language files
• Dont have to compile
• Hard to debug
• Cant write arbitrary C code
• Potentially slow

39
Break
40
Eclipse
41
Eclipse

• A modern Emacs
• Designed to have a very small core that loads
  independent components
• Written in Java, primary selling point is its
  included Java developing components
• The Eclipse Platform is an IDE for anything, and
  for nothing in particular.
• Cross platform

42
Eclipse (continued)

• Designed for building IDEs
• People used it for other apps
• Remail, Haystack (new version)
• Now formalized Rich Client Protocol

43
Eclipse architecture
44
Eclipse plug-ins

• All written in Java
• Found at Eclipse launch
• Heavier-weight than Emacs model cant
  dynamically swap plug-ins or write and execute
  code
• Include a manifest file
• Specifies visibility of included classes and
  methods
• Used to add information to the plug-in registry

45
Manifest file example

• lt?xml version"1.0" encoding"UTF-8"?gt
• ltplugin
• name"JUnit Testing Framework"
• id"org.junit"
• version"3.7"
• provider-name"Eclipse.org"gt
• ltruntimegt
• ltlibrary name"junit.jar"gt
• ltexport name""/gt
• lt/librarygt
• lt/runtimegt
• lt/plugingt

46
Eclipse plug-in architecture

• Load-on-demand strategy makes it feasible to have
  many different plug-ins and still have reasonable
  performance
• Extension points make it easy for plug-ins to
  themselves be extendable
• Allows for multi-level extensibility
• (Most architectures only support a single level
  of extensibility)
• Uses explicit ports to make plug-in connections
  clear
• Plug-ins say what they can extend
• Helps support multi-layered extensibility
• Manifests help encapsulate plug-ins from each
  other (they can only use each other in specified
  ways)
• Again, helps multi-layered extensibility

47
Eclipse plug-in architecture (cont.)

• Limitations
• Extensibility points are tied to specific
  implementations
• Cant have multiple swappable implementations of
  the same functionality
• Cant have strict dependencies
• All components are optional
• Cant say this plug-in only works when this
  other plug-in is available
• Reference Evaluating the Eclipse Platform as a
  Composition Environment

48
SWT and JFace

• Standard Widget Toolkit
• Really just a widget set
• JFace is the higher-level toolkit built on top of
  SWT
• Allows for portable plug-ins that use native
  widgets
• Usable outside of Eclipse
• Opinionated claim Best Java widget set
• Supports widget extensibility by allowing Java
  extensions of native widgets

49
Different types of Eclipse plug-ins

• Whole apps
• C IDE (CDE)
• Visual UI Editor (SWT/Swing Designer)
• Aspect oriented language extension (AspectJ)
• Profiler (EclipseProfiler)

50
Sample Eclipse plug-in

• Show HelloWorld Eclipse plug-in

51
How do you debug your Eclipse plug-in?

• Eclipse comes with tools to help build, run and
  debug Eclipse plug-ins
• Plug-in wizard
• Runs separate instances of Eclipse for developing
  and testing
• Provides support for the packaging of plug-ins
• EclipseProfiler plug-in

52
Eclipse resources

• Many high level articles
• Most on eclipse.org
• Relatively active mailing list
• Archived on eclipse.org, (poorly) searchable
• For many things, only reference is the Eclipse
  source code

53
Skinnable Apps
54
Skinnable Apps

• Is this research related?
• Some history
• Remember Winamp 1?
• (Thats an mp3 player, by the way)
• Not intentionally skinnable
• Someone figured out how to modify the bitmap
  resources in the compiled Winamp executable
• Became wildly popular, then supported

55
Winamp 2 skins
56
Winamp 3

• More than just changing bitmaps
• Let skin authors specify size and location of
  buttons, and simple scripting (MAKI scripts)
• Used an XML-based language to define the location
  of UI elements, similar to resource editors

57
Winamp 3 skins

• Show Winamp

58
Sonique

• (Another mp3 player)
• Flash-like graphic capabilities in a skin

• Show Sonique

59
Skinnable Apps wrap up

• Natural evolution of a separation between UI and
  underlying functionality
• A form of end-user programming
• Many limitations as a plug-in architecture
• Difficult to trap events
• Limiting even just considering UI capabilities

60
Conclusions

• Different plug-in architectures support different
  type of extensibility
• Plug-in programming is very different from
  regular GUI programming
• Never get a cough before you have to give a
  presentation

61
Thanks!

• Good luck on homework 5!
