July 22, 2003 The Mid South Derecho

1

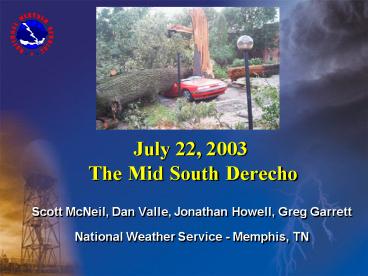

July 22, 2003 The Mid South Derecho

• Scott McNeil, Dan Valle, Jonathan Howell, Greg
  Garrett
• National Weather Service - Memphis, TN

2
July 22nd Derecho

• Scope and extent of the damage
• Meteorological aspects of the event
• Radar imagery

3
Event Overview
4
The Great Damage Corridor

• A series of violent downburst winds swept
  through the greater Memphis area

80-105 mph
5
Facts

• Occurred on July 22nd during the early daylight
  hours
• 1 direct fatality and 6 indirect fatalities
• Wind gusts topped 100 mph
• 84 mph at Channel 3
• 61 mph at Airport
• 77 mph at Agricenter
• 102 mph at Autozone
• 500 Million in damage

6
Major Power Outage
338,000 at peak (over 750,000 people)
My house
47,000 w/o power after 10 days (over 100,000
people)
7
Facts

• Transportation was interrupted
• Worlds busiest freight airport and Northwest
  Airlines hub closed
• 75 of electric traffic signals didnt work
• Some communities lost water along with electricity

• Shelby county declared a federal disaster area by
  the President.

8
Widespread Damage
9
What is a Derecho ?Johns and Hirt 1987

• Area of wind damage and/or convective gusts 50
  kts or greater.
• Major axis length of at least 400 km.
• Reports must show chronological progression.
• There must be at least 3 reports separated by 64
  km or more, of either F1 damage or convective
  gusts of 65 kts or greater.
• No more than 3 hours can lapse between wind
  damage events.

10
Types of DerechosJohns and Hirt 1987 , Johns
1993 (adapted from Barnes and Newton 1985)
Progressive
Serial
11
Progressive Derecho EnvironmentJohns et al. 1990

• Surface Pattern
• East-west frontal boundary (genesis area
  frequently north of front).
• Strong surface convergence (near genesis area).
• High dewpoints pooled near front/genesis area.
• Surface Theta-E values very high along derecho
  track.
• Derecho often moves parallel to front with slight
  component toward warm sector.

12
09z MSAS surface analysis

• East-west surface boundary
• Surface dewpoints in the mid 70s south of the
  front
• Cold pool over SW Missouri and NW Arkansas

13
09z LAPS CAPE LI/CIN
14
Progressive Derecho EnvironmentJohns et al. 1990

• B. Upper Pattern
• Anticyclonically curved flow near upper ridge
  axis.
• Weak shortwave trough located upstream.
• Warm advection present at 850 mb and 700 mb near
  genesis area with weaker advection downwind.
• 850 mb moisture very high and pooled just south
  of the bow echo track.
• Large dewpoint depressions can be present at 700
  and 500 mb.

15
12z Eta Analysis 250 mb

• Upstream trough axis from the Great Lakes into
  Missouri
• Mid South located in right entrance region of
  Ohio Valley jet max
• Strong divergence across the Mid South
• Weak upper ridge axis across the Mid South

16
06z Eta 3hr Forecast VT 09z 850mb

• Moisture pooling south of boundary

17
Progressive Derecho EnvironmentJohns et al. 1990

• C. Thermodynamic and Vertical Wind Profile
• Long lived events associated with very unstable
  air mass.
• Average maximum CAPE roughly 2400 j/kg in genesis
  area.
• Greater instability downwind where average
  maximum CAPE is 3500-4000 j/kg.
• Extreme instability due to pooling of moisture
  near front.
• Winds at 850 and 700 mb show good veering near
  genesis area, and mainly speed shear parallel to
  the storm track.

18
7/21/03 00z LZK sounding

• CAPE
• 6584 j/kg
• Lifted Index
• -13C
• 850500mb lapse rate
• 7.6 C/KM
• DCAPE
• 1992 j/kg!!!

19
06z Eta VT 09Z Theta E
329 K

• Theta E difference
• 31K

360 K
MEM
20
Radar Loop0848Z 1345Z
21
0.5 Reflectivity - 1117Z

• Strong thunderstorms working southeast toward
  area overnight
• Reached area of unstable air just west of Memphis
• Storms quickly exploded

Supercell 3
RIJ
Supercell 2
RFD
Supercell 1
RFD
22
Conceptual model of squall line with trailing
stratiform areaHouze et al. 1989
23
1.5 Velocity - 1117Z

• Rear Inflow Jet 50-64 knots

• Rear Inflow Jet may be reaching gust front

24
0.5 Reflectivity - 1132Z

• Cells merging just west of the river

RFDs intersecting
25
0.5 Velocity (8 bit) - 1132Z
KNQA 88D

• 60 mph winds approaching river
• Winds are stronger since the WSR 88D measures a
  component of the actual wind
• 1900 ft AGL

26
0.5 Reflectivity 1147Z
1147Z July 22, 2003
Pronounced Rear Inflow Notch (RIN)
Bow Apex
Outflow Boundary
27
0.5 Reflectivity 1152Z
1152Z July 22, 2003
Continued pronounced Rear Inflow Notch (RIN)
Bow Apex
Outflow Boundary
28
0.5 Velocity (8 bit) - 1157Z
100 mph

• Doppler measures 58 mph wind (component away from
  radar)
• Calculations (Cosine times measured wind) yield
  over 100 mph wind over East Memphis
• 800 ft agl

29
Radar Loop1117Z 1214Z
30
0.5 Velocity (8 bit) - 1226Z

• 109 mph at 1500 ft agl

• As bow echo moves away from radar we have a
  better view of the actual wind speeds

31
Destruction at Dawn WMC - TV5
32
Summary

• Bow echo moved through the Memphis Metropolitan
  Area during the early morning of July 22nd
• City of Memphis paralyzed
• Airport closed
• Over 750,000 people without power
• 75 of traffic signals not working
• Widespread effect on human activity ranks this as
  probably the most severe wind storm (non tornado)
  in recent Mid South history.

33
Special Thanks

• James Duke, MIC - WFO Memphis
• Scott Cordero, WCM - WFO Memphis
• Gerry Rigdon, SOO - WFO Memphis
• Bob Rozumalski - COMET
• Mark Frazier, Forecaster WFO Memphis
• Kati Sommer, Forecaster WFO Memphis

The End
