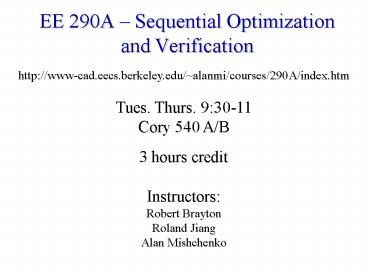

EE 290A Sequential Optimization and Verification

1
EE 290A Sequential Optimization and Verification
http//www-cad.eecs.berkeley.edu/alanmi/courses/2
90A/index.htm Tues. Thurs. 930-11 Cory 540 A/B
3 hours credit Instructors Robert
Brayton Roland Jiang Alan Mishchenko
2
Outline

• Introduction
• Schedule
• Latches and Flip-flops
• Verification of a clock-schedule

3
Requirements

• Attend class and participate in discussions
• Do research on an individual project
  collaborating with a mentor
• Give two presentations on your project
• preliminary overview (March 3) and
• final project lecture (May 10, 12)
• lecture should be similar to a conference
  presentation of 20-25 minutes
• Final project report (May 20)
• should be similar to a conference paper
• Learn a lot and have fun

4
Web site contents

• News (probably we will send out e-mail to class
  roster instead of posting here)
• General
• Overview
• Syllabus (rough and preliminary description of
  course content)
• Lectures (lectures will be posted here
  hopefully before the class)
• Examples (this contains examples on which some
  CAD programs can be applied)
• Reading (this contains a list of relevant papers
  for more info.)
• Projects (some proposed ones are here already
  with mentors but this list is preliminary. Final
  list will be given out early in February)
• Summary

5
Computing Resources

• All students will be given an account on the CAD
  computers if dont have one see Roland Jiang
• These can be used to run programs MVSIS, VIS,
  SIS, ESPRESSO, SPICE on examples
• Used for project work

6
Coordination with 219B Logic Synthesis 8-930
Tues. Thurs.

• Schedule with 219B has been coordinated with
  Prof. Kuehlmann so some basic material will be
  presented there prior to use in 290A.
• Required that 219B schedule to be changed from
  previous years.
• This makes it possible to take both courses at
  the same time
• This makes it possible to just take 290A without
  having taken 219B just make sure you attend
  219B when basic material is taught.
• Other than this dependency, 290A is self
  contained.
• Auditors are welcome to attend classes and can
  opt to do a project.

7
Sequential Optimization

• Much research exists lots of effort in 90s
• Could lead to important improvements in area
  performance etc.
• Interesting work from a theoretical standpoint
• Not really used in commercial CAD
• except retiming
• Computationally expensive and therefore a lot of
  techniques can only be applied to small examples
• Optimization use restricted by need to verify.

8
Sequential Verification

• Big area and a lot of current work
• Abstraction methods help in scalability to larger
  problems
• Interesting theoretical foundations
• Lots of commercial interest in CAD companies and
  in system design houses.
• Recent SAT-based methods have increased
  capability (also applied to optimization)

9
Purpose of Course

• Only very small subset has been taught previously
• Bring into focus best state-of-the-art methods to
  get synergistic view
• See if these can be integrated and advanced in
  light of recent advancements in logic synthesis
  and verification
• Expose fruitful directions of research
• Create a few conference papers.

10
Outline

• Introduction
• Schedule
• Latches and Flip-flops
• Verification of a clock-schedule

11
Schedule

• Week 1 (January 18-20)
• Jan 18 Introduction, latches and flipflops,
  clock schedule analysis (Bob)
• Jan 20 Basics of reachability analysis (Alan)
• Week 2 (January 25-27)
• Jan 25 Cyclic circuits Part 1 (Roland)
• Jan 27 Cyclic circuits Part 2 (Roland)
• Week 3 (February 1-3)
• Feb 1 Asynchronous synthesis Part 1 (Alex
  Kondratyev, CBL)
• Feb 3 Asynchronous synthesis Part 2 (Alex
  Kondratyev, CBL)
• Week 4 (February 8-10)
• Feb 8 Asynchronous synthesis part 3 (Alex
  Kondratyev, CBL)
• Feb 10 Clocking networks (Rajeev Murgai, Fujitsu)

12
Schedule

• Week 5 (February 15-17)
• Feb 15 State-based FSM manipulations Advanced
  reachability (Alan)
• Feb 17 State-based FSM manipulations
  Sequential flexibility (Alan)
• Week 6 (February 22-24)
• Feb 22 State-based FSM manipulations State
  minimization (Alan)
• Feb 24 Structure-based FSM manipulations Clock
  skewing (Alan / Aaron Hurst)
• Week 7 (March 1-3)
• Mar 1 Structure-based FSM manipulations
  Retiming (Alan)
• Mar 3 Preliminary project presentations (290A
  students)
• Week 8 (March 8-10)
• Mar 8 Structure-based FSM manipulations
  Initialization sequences, peripheral retiming
  (Roland)
• Mar 10 Structure-based FSM manipulations
  Inherent power of retiming and resynthesis
  (Roland)

13
Schedule

• Week 9 (March 15-17)
• Mar 15 Structure-based FSM manipulations
  Sequential testing and redundancy removal (Bob)
• Mar 17 Structure-based FSM manipulations
  High-level retiming (Bob)
• Week 10 (spring break)
• Week 11 (March 29-31)
• Mar 29 Structure-based FSM manipulations
  Retiming and technology mapping (Alan)
• Mar 31 Structure-based FSM manipulations
  Sequential optimization w/o reachability (Alan)
• Week 12 (April 5-7)
• Apr 5 Formal verification Temporal logic,
  omega automata, language containment (Bob)
• Apr 7 Formal verification Bounded model
  checking, temporal induction (Alan)
• Week 13 (April 12-14)
• Apr 12 Formal verification Unbounded model
  checking Part1 (Ken McMillan, CBL)
• Apr 14 Formal verification Unbounded model
  checking Part2 (Ken McMillan, CBL)

14
Schedule

• Week 14 (April 19-21)
• Apr 19 Formal verification Sequential
  equivalence checking Part1 (Roland)
• Apr 21 Formal verification Sequential
  equivalence checking Part2 (Roland)
• Week 15 (April 26-28)
• Apr 26 Formal verification Functional
  dependency (Roland)
• Apr 28 GALS and Latency Insensitive Design (Bob)
• Week 16 (May 3-May 5)
• May 3 Other topics
• May 5 Other topics
• Week 17 (May 10)
• May 10 Final project presentations Part1 (290A
  students)
• May 12 Final project presentations Part2 (290A
  students)
• May 13 20 Final examinations period
• May 20 Hand in Final Project Reports

15
Outline

• Introduction
• Schedule
• Latches and Flip-flops
• Verification of a clock-schedule

16
Latches and Flip-flops
Bi-stable circuit (no inputs)
17
SR Latch (bi-stable circuit with control)
18
D latch
symbol
19
D flip-flop
master
slave

• When C is asserted ( 1)
• Old value of is captured in slave
• Master is opened
• follows the D input
• When C is de-asserted ( 0)
• Master is closed and D value is captured in
  master
• Slave is opened
• Transmits the output from the master

20
Summary of latch and flip-flop characteristics

• SR latch
• Gated SR latch
• D latch
• SR flip-flop
• D flip-flop
• JK flip-flop
• T flip-flop (edge triggered)
• T flip-flop (clocked)

21
Set-up and hold times

• Set-up time
• Time during which data must be stable before the
  clock comes
• Hold time
• Time during which data must be stable after the
  clock comes

22
Analog analysis

• Assume pure CMOS thresholds, 5V rail
• Theoretical threshold center is 2.5 V

23
Analog analysis
24
Metastability
Metastability is inherent in any bi-stable system
stable
metastable
stable
25
Metastability - dynamics
Separatrix
stable
metastable
stable
stable
26
D-latch operation
latch acts like a wire while its control is
active latch (later) grabs data when control
changes
27
D-latch timing parameters

• Propagation delay (from C or D)
• Setup time (D before C edge)
• Hold time (D after C edge)

metastability
28
Metastability - dynamics
Separatrix
stable
metastable
stable
stable
29
Pos.-edge-triggered D flip-flop behavior
master
slave
30
D flip-flop timing parameters

• Propagation delay (from CLK)
• Setup time (D before CLK)
• Hold time (D after CLK)

metastability
31
Outline

• Introduction
• Schedule
• Latches and Flip-flops
• Verification of a clock-schedule

32
Timing verification of synchronous circuits

• checkTc and minTc Timing Verification of
  Optimal Clocking of Synchronous Digital
  Circuits, K. Sakallah,T. Mudge and O. Olukotun
• Verifying Clock Schedules, T. Szymanski and N.
  Shenoy.
• Sakallah et. al. formulation
• Handles arbitrary multi-phase clocks
• Captures signal propagation along short as well
  as long paths
• Simple formulation

33
Clocking system

• A set of clock k phases
• A set of n D-latches
• Assume that all clock phases are active high,
  i.e. are transparent when clock is high
• Data is captured when clock transits low.

34
Parameters

• number of latches in circuit
• clock phase controlling latch i
• setup time of latch i
• hold time of latch i
• minimum combinational delay from latch i to latch
  j
• maximum combinational delay from latch i to latch
  j

35
Variables Defining Clock Schedule

• clock period
• length of time that clock phase i is active
• absolute time within first period when phase i
  begins, i.e. when clock phase rises. (different
  from Szymanski paper)

36
Other Variables

• time between start of phase i and next phase j
• earliest signal arrival time at latch i (relative
  to start time of pi)
• latest signal arrival time at latch i (relative
  to start time of pi)
• earliest signal departure time from latch i
  (relative to start time of pi)
• latest signal departure time from latch i
  (relative to start time of pi)

All arrival and departure times are in their
local time frame where the origin is at ei (i.e.
tilocal 0 when t ei np). Eij is used to
translate between time frames.
37
Equations and Constraints
ei
wi
fi
wj
fj
ej
p
0
38
(No Transcript)
39
dj
Dj
dji
Dji
pi
pi
pj
pj
40
Constraints for Correct Operation
ei
wi
fpi
wj
fpj
ej
setup
0
p
41
Constraints for Correct Operation
ei
wi
fpi
wj
fpj
ej
0
p
hold
42
Verification and Optimization

• Clock schedule optimization problem find the
  minimum value of p for which there is an
  assignment to all variables (including w and e)
  consistent with the constraints.
• Clock schedule verification problem Given values
  for p, w and e, find values for the rest of the
  variables that satisfy the constraints.

43
Iterative construction

• Note
• a solution is a fixed point
• iteration from below
• both min and max times are computed
  simultaneously

44
Lemmas

• For all i and m 0, (monotone increasing)
• Let be a solution. Then for all
  i, m 0,
• If for some i,
  then the equations have no solution. (n is
  latches)
• If the iteration converges, then it converges to
  the minimum solution.

45
Uniqueness results

• The construction is run to find a solution to the
  equations, and then this solution is checked to
  see if it satisfies the setup and hold
  inequalities. But what if there is not a unique
  solution?
• There can be multiple solutions
• If there is more than one solution, then the
  clock period p is optimum
• If there is more than one solution, then some of
  those violate the setup constraints.
• The minimum solution is the correct one because
  if we slow down the clock by just e , all other
  solutions disappear.

46
Example
D d 10
2
8
Latch 1 S 2 H 3
p 10
E11 p
Try p 10 e
47
Theorem

• If p is optimum, then there exists a cycle,
  j0,j1,,jk j0 such that

48
Pseudo code
49
Experience (Szym. Shen)

• Run in ISCAS89 benchmarks
• Largest circuit had 3272 latches and 67704 edges
• Run time on this largest example was 20 sec.,
  (1992 computers) most of which was spent reading
  in the circuit.
• Typically only a few iterations were needed for
  convergence.
