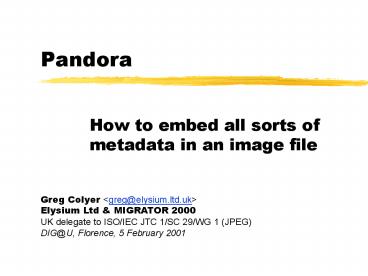

Pandora

1
Pandora

• How to embed all sorts of metadata in an image
  file

Greg Colyer Elysium Ltd
MIGRATOR 2000 UK delegate to ISO/IEC JTC 1/SC
29/WG 1 (JPEG) DIG_at_U, Florence, 5 February 2001
2
MIGRATOR 2000

• A European shared-cost RTD project under the
  Fifth Framework Programme
• To migrate imaging tools to JPEG 2000 and
  demonstrate its novel features
• Specialising in certain areas, for example
• image security and watermarking
• Internet delivery

3
Elysiums role in MIGRATOR 2000

• Web site design, development and maintenance
• http//www.migrator2000.org/
• Internet delivery of images
• client/server software
• protocol design
• Dissemination

4
Pandora participants

• Rui Costa, ADETTI
• file creation tool
• file decomposition tools
• JPEG 2000 to JPEG transcoding
• Greg Colyer, Elysium
• architecture and design
• submissions to WG 1
• XML and web-server technology

5
JPEG file formats

• JPEG (ISO/IEC 10918-1) was just a codestream
• JFIF became the de facto file format
• very basic
• ISO/IEC 10918-3 later defined an official file
  format, SPIFF
• more advanced but little used

6
JPEG 2000 file formats

• Part 1 (ISO/IEC 15444-1) defines a basic file
  format, JP2
• Also, implicitly, a JP family architecture
  based on QuickTime/MPEG-4
• Extensions in other Parts
• Part 2 (JPX) mainly multi-layer
• Part 3 (MJ2) motion
• Part 6 (JPM) document imaging (MRC)

7
JP family architecture

• A file is a sequence of boxes
• A box is
• a 4-byte length
• a 4-byte type identifier
• the contents
• The contents is a sequence of fields and/or
  boxes, as defined for each type

8
Example file boxes

• JPEG 2000 Signature box
• Contiguous Codestream box
• Codestream Header box
• Label box
• XML box

9
Example file

• See the Pandora home page
• http//www.migrator2000.org/pandora/

10
All kinds of metadata

• XML need not be XHTML
• For example, Part 2 defines many specific
  metadata boxes, based on DIG35
• Not all metadata is in XML boxes
• For example, there is a specific IPR box
• Pandora is just one (novel) example

11
Pandora features

• Applies JPEG 2000 technology on the web
• Provides an upgrade path
• transcoding JPEG 2000 images to JPEG for existing
  browsers
• Self-contained and portable, but with the online
  character of HTML
• User-aware intelligent content delivery

12
Pandora II

• Multiple pages in a single file
• As a result of MIGRATOR 2000 contributions, JPX
  now supports labelled XML documents as well as
  labelled images
• Advanced delivery options
• transcoding parameters
• packet streaming?
• Region of Interest (ROI)?

13
Pandoras box /pandOr_at_z "bQks/ n. phr. New
Shorter OED

• M16. f. Gk Pandora, lit. all-gifted, name in
  Greek mythol. of the first mortal woman, on whom,
  when made by Vulcan, all the gods and goddesses
  bestowed gifts, f. as pan- doron gift.
• In Greek mythology, the gift of Jupiter to
  Pandora, a box enclosing all human ills, which
  flew out when the box was foolishly opened (or in
  a later version, containing all the blessings of
  the gods, which with the exception of hope
  escaped and were lost when the box was opened)
  gen. a thing which once activated will give rise
  to many unmanageable problems.
