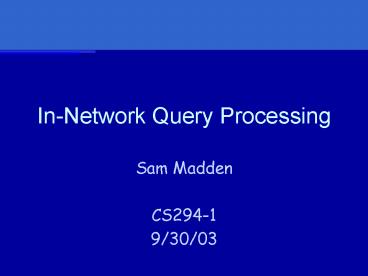

In-Network Query Processing

• Sam Madden
• CS294-1
• 9/30/03

2
Outline

• TinyDB
• And demo!
• Aggregate Queries
• ACQP
• Break
• Adaptive Operator Placement

3
Outline

• TinyDB
• And demo!
• Aggregate Queries
• ACQP
• Break
• Adaptive Operator Placement

4
Programming Sensor Nets Is Hard

• Months of lifetime required from small batteries
• 3-5 days naively cant recharge often
• Interleave sleep with processing
• Lossy, low-bandwidth, short range communication
• Nodes coming and going
• Multi-hop
• Remote, zero administration deployments
• Highly distributed environment
• Limited Development Tools
• Embedded, LEDs for Debugging!

High-Level Abstraction Is Needed!
5
A Solution Declarative Queries

• Users specify the data they want
• Simple, SQL-like queries
• Using predicates, not specific addresses
• Our system TinyDB
• Challenge is to provide
• Expressive easy-to-use interface
• High-level operators
• Transparent Optimizations that many programmers
  would miss
• Sensor-net specific techniques
• Power efficient execution framework

6
TinyDB Demo
7
TinyDB Architecture
Multihop Network

• Schema
• Catalog of commands attributes

Query Processor
10,000 Lines Embedded C Code 5,000 Lines
(PC-Side) Java 3200 Bytes RAM (w/ 768 byte
heap) 58 kB compiled code (3x larger than 2nd
largest TinyOS Program)
Filterlight gt 400
Schema
TinyOS
TinyDB
8
Declarative Queries for Sensor Networks
Find the sensors in bright nests.
Sensors

• Examples
• SELECT nodeid, nestNo, light
• FROM sensors
• WHERE light gt 400
• EPOCH DURATION 1s

1
9
Aggregation Queries
Count the number occupied nests in each loud
region of the island.
10
Benefits of Declarative Queries

• Specification of whole-network behavior
• Simple, safe
• Complex behavior via multiple queries, app logic
• Optimizable
• Exploit (non-obvious) interactions
• E.g.
• ACQP operator ordering, Adaptive join operator
  placement, Lifetime selection, Topology selection
• Versus other approaches, e.g., Diffusion
• Black box filter operators
• Intanagonwiwat ,  Directed Diffusion, Mobicomm
  2000

11
Outline

• TinyDB
• And demo!
• Aggregate Queries
• ACQP
• Break
• Adaptive Operator Placement

12
Tiny Aggregation (TAG)

• Not in todays reading
• In-network processing of aggregates
• Common data analysis operation
• Aka gather operation or reduction in
  programming
• Communication reducing
• Operator dependent benefit
• Exploit query semantics to improve efficiency!

Madden, Franklin, Hellerstein, Hong. Tiny
AGgregation (TAG), OSDI 2002.
13
Query Propagation Via Tree-Based Routing

• Tree-based routing
• Used in
• Query delivery
• Data collection
• Topology selection is important e.g.
• Krishnamachari, DEBS 2002, Intanagonwiwat, ICDCS
  2002, Heidemann, SOSP 2001
• LEACH/SPIN, Heinzelman et al. MOBICOM 99
• SIGMOD 2003
• Continuous process
• Mitigates failures

14
Basic Aggregation

• In each epoch
• Each node samples local sensors once
• Generates partial state record (PSR)
• local readings
• readings from children
• Outputs PSR during assigned comm. interval
• Communication scheduling for power reduction
• At end of epoch, PSR for whole network output at
  root
• New result on each successive epoch
• Extras
• Predicate-based partitioning via GROUP BY

15
Illustration Aggregation
SELECT COUNT() FROM sensors
Sensor
lt- Time
1
16
Illustration Aggregation
SELECT COUNT() FROM sensors
Sensor
2
lt- Time
17
Illustration Aggregation
SELECT COUNT() FROM sensors
Sensor
1
3
lt- Time
18
Illustration Aggregation
SELECT COUNT() FROM sensors
5
Sensor
lt- Time
19
Illustration Aggregation
SELECT COUNT() FROM sensors
Sensor
lt- Time
1
20
Aggregation Framework

• As in extensible databases, TAG supports any
  aggregation function conforming to

Aggnfinit, fmerge, fevaluate Finit a0 ?
lta0gt Fmerge lta1gt,lta2gt ? lta12gt Fevaluate lta1gt
? aggregate value
Partial State Record (PSR)
Example Average AVGinit v ?
ltv,1gt AVGmerge ltS1, C1gt, ltS2, C2gt ? lt S1
S2 , C1 C2gt AVGevaluateltS, Cgt ? S/C
Restriction Merge associative, commutative
21
Types of Aggregates

• SQL supports MIN, MAX, SUM, COUNT, AVERAGE
• Any function over a set can be computed via TAG
• In network benefit for many operations
• E.g. Standard deviation, top/bottom N, spatial
  union/intersection, histograms, etc.
• Compactness of PSR

22
Taxonomy of Aggregates

• TAG insight classify aggregates according to
  various functional properties
• Yields a general set of optimizations that can
  automatically be applied

Drives an API!
23
Partial State

• Growth of PSR vs. number of aggregated values (n)

• Algebraic PSR 1 (e.g. MIN)
• Distributive PSR c (e.g. AVG)
• Holistic PSR n (e.g. MEDIAN)
• Unique PSR d (e.g. COUNT DISTINCT)
• d of distinct values
• Content Sensitive PSR lt n (e.g. HISTOGRAM)

Data Cube, Gray et. al
24
Benefit of In-Network Processing

• Simulation Results
• 2500 Nodes
• 50x50 Grid
• Depth 10
• Neighbors 20
• Uniform Dist
• over 0,100

• Aggregate depth dependent benefit!

25
Outline

• TinyDB
• And demo!
• Aggregate Queries
• ACQP
• Break
• Adaptive Operator Placement

26
Acquisitional Query Processing (ACQP)

• Traditional DBMS processes data already in the
  system
• Acquisitional DBMS generates the data in the
  system!
• An acquisitional query processor controls
• when,
• where,
• and with what frequency data is collected
• Versus traditional systems where data is provided
  a priori

27
ACQP Whats Different?

• Basic Acquisitional Processing
• Continuous queries, with rates or lifetimes
• Events for asynchronous triggering
• Avoiding Acquisition Through Optimization
• Sampling as a query operator
• Choosing Where to Sample via Co-acquisition
• Index-like data structures
• Acquiring data from the network
• Prioritization, summary, and rate control

28
Lifetime Queries

• Lifetime vs. sample rate
• SELECT
• EPOCH DURATION 10 s
• SELECT
• LIFETIME 30 days
• Extra Allow a MAX SAMPLE PERIOD
• Discard some samples
• Sampling cheaper than transmitting

29
(Single Node) Lifetime Prediction
SELECT nodeid, light LIFETIME 24 Weeks
30
Operator Ordering Interleave Sampling Selection
At 1 sample / sec, total power savings could be
as much as 3.5mW ? Comparable to processor!

• SELECT light, mag
• FROM sensors
• WHERE pred1(mag)
• AND pred2(light)
• EPOCH DURATION 1s

• E(sampling mag) gtgt E(sampling light)
• 1500 uJ vs. 90 uJ

31
Exemplary Aggregate Pushdown

• SELECT WINMAX(light,8s,8s)
• FROM sensors
• WHERE mag gt x
• EPOCH DURATION 1s

• Novel, general pushdown technique
• Mag sampling is the most expensive operation!

32
Event Based Processing

• Epochs are synchronous
• Might want to issue queries in response to
  asynchronous events
• Avoid unneccessary polling

CREATE TABLE birds(uint16 cnt) SIZE 1
CIRCULAR
ON EVENT bird-enter() SELECT b.cnt1 FROM
birds AS b OUTPUT INTO b ONCE
33
Attribute Driven Network Construction

• Goal co-acquisition -- sensors that sample
  together route together
• Observation queries often over limited area
• Or some other subset of the network
• E.g. regions with light value in 10,20
• Idea build network topology such that
  like-valued nodes route through each other
• For range queries
• Relatively static attributes (e.g. location)
• Maintenance Issues

34
Tracking Co-Acquisition Via Semantic Routing Trees

• Idea send range queries only to participating
  nodes
• Parents maintain ranges of descendants

35
Parent Selection for SRTs
Idea Node picks parent whose ancestors
interval most overlap its descendants interval
0
3,6 ? 1,10 3,6 3,6 ? 7,15 ø 3,6 ?
20,40 ø
36
Simulation Result
37
Outline

• TinyDB
• And demo!
• Aggregate Queries
• ACQP
• Break
• Adaptive Operator Placement

38
Outline

• TinyDB
• And demo!
• Aggregate Queries
• ACQP
• Break
• Adaptive Operator Placement

39
Adaptive Decentralized Operator Placement

• IPSN 2003 Paper
• Main Idea
• Place operators near data sources
• Greater operator rate ? Closer placement
• For each operator
• Explore candidate neighbors
• Migrate to lower cost placements
• Via extra messages

Proper placement depends on path lengths and
relative rates!
40
Adaptivity in Databases

• Adaptivity changing query plans on the fly
• Typically at the physical level
• Where the plan runs
• Ordering of operators
• Instantiations of operators, e.g. hash join vs
  merge join
• Non-traditional
• Conventionally, complete plans are built prior to
  execution
• Using cost estimates (collected from history)
• Important in volatile or long running
  environments
• Where a priori estimates are unlikely to be good
• E.g., sensor networks

41
Adaptivity for Operator Placement

• Adaptivity comes at a cost
• Extra work on each operator, each tuple
• In a DBMS, processing per tuple is small
• 100s of instructions per operator
• Unless you have to hit the disk!
• Costs in this case?
• Extra communication hurts
• Finding candidate placements (exploration)
• Cost advertisements from local node
• New costs from candidates
• Moving state (migration)
• Joins, windowed aggregates

42
Do Benefits Justify Costs?

• Not Evaluated!
• 3x reduction on messages vs. external
• Excluding exploration migration costs
• Seems somewhat implausible, especially given
  added complexity
• Hard to make migration protocol work
• Depends on ability to reliably quiesce child ops.
• What else could you do?
• Static placement

43
Summary

• Declarative QP
• Simplify data collection in sensornets
• In-network processing, query optimization for
  performance
• Acquisitional QP
• Focus on costs associated with sampling data
• New challenge of sensornets, other streaming
  systems?
• Adaptive Join Placement
• In-network optimization
• Some benefit, but practicality unclear
• Operator pushdown still a good idea

44
Open Problems

• Many a few
• In-network storage and operator placement
• Dealing with heterogeneity
• Dealing with loss
• Need real implementations of many of these ideas
• See me! (madden_at_cs.berkeley.edu)

45
Questions / Discussion
46
Making TinyDB REALLY Work

• Berkeley Botanical Garden
• First real deployment
• Requirements
• At least 1 month unattended operation
• Support for calibrated environmental sensors
• Multi-hop routing
• What we started with
• Limited power management, no time-synchronization
• Motes crashed hard occasionally
• Limited, relatively untested multihop routing

47
Power Consumption in Sensornets

• Waking current 12mA
• Fairly evenly spread between sensors, processor,
  radio
• Sleeping current 20-100uA
• Power consumption dominated by sensing,
  reception
• 1s Power up on Mica2Dot sensor board
• Most mote apps use always on radio
• Completely unstructured communication
• Bad for battery life

48
Why Not Use TDMA?

• CSMA is very flexible easy for new nodes to
  join
• Reasonably scalable (relative to Bluetooth)
• CSMA implemented, available
• We wanted to build something that worked

49
Power Management Approach

• Coarse-grained communication scheduling

Epoch (10s -100s of seconds)
Mote ID
1
zzz
zzz
2
3
4
5
time
2-4s Waking Period
50
Benefits / Drawbacks

• Benefits
• Can still use CSMA within waking period
• No reservation required new nodes can join
  easily!
• Waking period duration is easily tunable
• Depending on network size
• Drawbacks
• Longer waking time vs. TDMA?
• Could stagger slots based on tree-depth
• No guaranteed slot reservation
• Nothing is guaranteed anyway

51
Challenges

• Time Synchronization
• Fault recovery
• Joining, starting, and stopping
• Parameter Tuning
• Waking period Hardcode at 4s?

52
Time Synchronization

• All messages include a 5 byte time stamp
  indicating system time in ms
• Synchronize (e.g. set local system time to
  timestamp) with
• Any message from parent
• Any new query message (even if not from parent)
• Punt on multiple queries
• Timestamps written just after preamble is xmitted
• All nodes agree that the waking period begins
  when (system time epoch dur 0)
• And lasts for WAKING_PERIOD ms

53
Wrinkles

• If node hasnt heard from its parent for k
  epochs
• Switch to always on mode for 1 epoch
• If waking period ends
• Punt on this epoch
• Query dissemination / deletion via always-on
  basestation and viral propagation
• Data messages as advertisements for running
  queries
• Explicit requests for missing queries
• Explicit dead query messages for stopped
  queries
• Dont request the last dead query

54
Results

• 30 Nodes in the Garden
• Lasted 21 days
• 10 duty cycle
• Sample period 30s, waking period 3s
• Next deployment
• 1-2 duty cycle
• Fixes to clock to reduce baseline power
• Should last at least 60 days
• Time sync test 2,500 readings
• 5 readings out of synch
• 15s epoch duration, 3s waking period

55
Garden Data
36m
33m 111
32m 110
30m 109,108,107
20m 106,105,104
10m 103, 102, 101
56
Data Quality
