Software Engineering

1

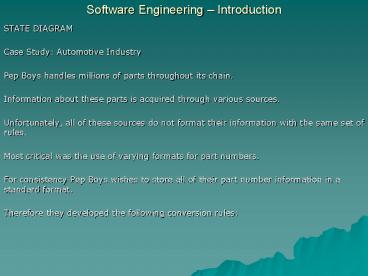

Software Engineering Introduction

• STATE DIAGRAM
• Case Study Automotive Industry
• Pep Boys handles millions of parts throughout its
  chain.
• Information about these parts is acquired through
  various sources.
• Unfortunately, all of these sources do not format
  their information with the same set of rules.
• Most critical was the use of varying formats for
  part numbers.
• For consistency Pep Boys wishes to store all of
  their part number information in a standard
  format.
• Therefore they developed the following conversion
  rules

2
Software Engineering Introduction

• STATE DIAGRAM
• Remove any dashes that separate an alpha
  character followed by a numeric character or a
  numeric character followed by an alpha character.
  i.e. P-101 becomes P101
• If a dash separates an alpha character from an
  alpha character, leave the dash in the part
  number. i.e. P-ABC stays P-ABC
• If a dash separates a numeric character from a
  numeric character, leave the dash in the part
  number. i.e. P1-101 stays P1-101
• If there is a space between numeric characters,
  the space is replaced with a dash. i.e. P1 101
  becomes P1-101
• If there is a space between alpha characters, the
  space is replaced with a dash. i.e. PA BCD
  becomes PA-BCD
• If there is a space between alpha and numeric
  characters or numeric and alpha characters, the
  space should be removed. i.e. P 101 becomes P101

3
Software Engineering Introduction

• STATE DIAGRAM
• If there is a dash (-) followed by a dot (.),
  then you should remove the dash.
• A part number can not start with a dash (-) or a
  dot (.), but may appear elsewhere within a part
  number.
• Remove any leading spaces from the part number.
• If there is a plus sign, left parentheses, or
  right parentheses anywhere in the part number,
  remove it. i.e. P101 becomes P101
• An alpha character can follow another alpha
  character.
• A numeric character can follow a numeric
  character.
• An alpha character can follow a numeric
  character.
• A numeric character can follow an alpha character

4
Software Engineering Introduction

• STATE DIAGRAM
• Tackling this problem definitely relies on
  developing a good strategy.
• There are many approaches you can take.
• You could attempt to solve the problem using
  brute force.
• To solve our problem, we could take the approach
  of processing one rule at a time.
• By searching through the part number we can look
  for the characters that the rule effects and then
  upon finding them, convert the string to the
  proper format.
• The solution is simple to implement if we are
  comfortable with the string functions required.

5
Software Engineering Introduction

• STATE DIAGRAM
• A more elegant and efficient solution is to use
  the technique of a state diagram.
• A state diagram stores valid transitions of input
  from one possible state to another.
• It allows us to group input and determine the
  proper course of action for each circumstance.
• A complete state diagram encompasses all of the
  transitions and associated actions that are
  dictated by the rules required by the business
  model.
• By using the state diagram, we essentially make
  one pass over the part number, correcting the
  violations to the rules as we go.
• By not needing to pass over the part number for
  each rule, we save considerable time.
• The drawback to this method is it does require
  the user to develop a new technique.
• It also requires external documentation, because
  the key to this solution is using a diagram that
  represents all the possible transitions from one
  type of input to another.

6
Software Engineering Introduction

• STATE DIAGRAM
• The first step in producing a state diagram is to
  list the type of input that we may find within a
  part number. They are
• Letters (both lower and uppercase)
• Numeric digits (0,1,2,3,4,5,6,7,8,9)
• Dots (.)
• Dashes(-)
• Spaces
• Plus Sign ()
• Any other input found in a part number is an
  illegal character and will result in producing an
  error upon converting from the input to the
  corrected part number.
• Now we proceed by developing a series of states
  and transitions that are valid for each type of
  input.
• The best way to explain this is to show how it is
  implemented with our current problem.

7
Software Engineering Introduction

• STATE DIAGRAM
• State S
• We start by developing a diagram that shows a
  starting state, S, and all the possible states
  that it can reach by each type of input.

There are three valid inputs from the starting
location S. Each time we accept a valid input
from a state that takes us to a new state, we
indicate a transition from the previous state to
the new state. A circle and the number of the
state represent the new state. A transition
between states is represented by an arrow with
the valid input for the transition labeled above
it.
8
Software Engineering Introduction

• STATE DIAGRAM
• State S

An alpha character is a valid input from the
starting state, because a part number is
permitted to start with an alpha character.
The first state added, 1, is reached by
entering an alpha character. A part number
can start with a numeric character, the second
state, 2, is reached by entering a numeric
character. The reason the 1st two states are
drawn as separate states is that the rules differ
on how to handle transitions from alpha
characters vs. numeric characters. Upon
reaching either of these states no action occurs
other than we realize that the input so far is
valid.
9
Software Engineering Introduction

• STATE DIAGRAM
• State S

However, rule 9 states that we should remove any
leading spaces. By processing a space from the
starting location, we reach state 3. The
circle representing state 3 is bolder than either
state 1 or state 2. This signifies that an
action will take place upon reaching this state.
In this case, the action will be to remove the
space. However, the actual action is not
represented in the diagram. Two symbols, .
and -, are missing as possible inputs from
state S. Neither symbol is valid as a starting
symbol.
10
Software Engineering Introduction

• STATE DIAGRAM
• State 1
• We continue by drawing all the possible
  transitions from state 1. We ask ourselves if
  each type of input has a valid transition from
  this state.
• Since an alpha character can follow an alpha
  character, rule 11, then alpha characters have a
  valid transition from state 1.
• Since a numeric character can follow an alpha
  character, rule 14, then numeric characters have
  a valid transition from state 1.
• Since a space can appear after an alpha
  character, rules 5 and 6, then a space has a
  valid transition from state 1.
• Since a dash can appear after an alpha
  character, rules 1, 2, and 7, a dash is a valid
  transition from state 1.
• Since a dot can appear after an alpha character,
  rule 8, a dot is a valid transition from state 1.

11
Software Engineering Introduction

• STATE DIAGRAM
• Therefore, when the last character processed was
  an alpha character, the following character can
  be any of the valid input values.

12
Software Engineering Introduction

• STATE DIAGRAM
• For each transition we must decide whether a new
  state is reached or if we transition to a
  previously existing state.
• Remember that we reached state 1 by processing an
  alpha character.
• Lets start by reviewing the rules and look if
  any special transition comes from alpha to alpha.

• There are none.
• Therefore, we can represent the transition from
  state 1 on processing an alpha character to
  remain in state 1.
• This is shown in our figure by drawing an arrow
  from the current state and point it back to the
  current state.

13
Software Engineering Introduction

• STATE DIAGRAM
• Next we evaluate the transition of a numeric
  character from state 1.
• When we transition from an alpha character to a
  numeric character, we find no action occurs in
  the output string.
• Therefore, we can draw the transition line from
  state 1 to the previously existing state 2.
• State 2 represents the state reached when the
  previous transition was the processing of a
  numeric character.
• Since this is the same whether we transition from
  the start or from state 1, we can use the same
  state.
• Each of the remaining three valid inputs, ( ,
  -, and .), lead to a new state.
• Therefore we draw an arrow from state 1 to states
  4, 5, and 6 for transitions on , -, and .
  respectively.

14
Software Engineering Introduction

• State 2
• We continue by repeating the process used for
  state 1 with state 2. We ask ourselves if each
  type of input has a valid transition from this
  state.
• Since an alpha character can follow an numeric
  character, rule 13, then alpha characters have a
  valid transition from state 2.
• Since a numeric character can follow an numeric
  character, rule 12, then numeric characters have
  a valid transition from state 2.
• Since a space can appear after a numeric
  character, rules 4 and 6, then a space is a valid
  transition from state 2.
• Since a dash can appear after a numeric
  character, rules 3, 7, and 8, a dash is a valid
  transition from state 2.
• Since a dot can appear after a numeric character,
  rule 8, a dot is a valid transition from state 2.
• Therefore, when the last character processed was
  an alpha character, the following character can
  be any of the valid input values.
• The five new transitions are shown in the
  following figure

15
Software Engineering Introduction

• State 2
• We continue by repeating the process used for
  state 1 with state 2. We ask ourselves if each
  type of input has a valid transition from this
  state.
• Since an alpha character can follow an numeric
  character, rule 13, then alpha characters have a
  valid transition from state 2.
• Since a numeric character can follow an numeric
  character, rule 12, then numeric characters have
  a valid transition from state 2.
• Since a space can appear after a numeric
  character, rules 4 and 6, then a space is a valid
  transition from state 2.
• Since a dash can appear after a numeric
  character, rules 3, 7, and 8, a dash is a valid
  transition from state 2.
• Since a dot can appear after a numeric character,
  rule 8, a dot is a valid transition from state 2.
• Therefore, when the last character processed was
  an alpha character, the following character can
  be any of the valid input values.
• The five new transitions are shown in the
  following figure

16
Software Engineering Introduction

• State 2

17
Software Engineering Introduction

• State 2
• The transitions from state 2 are virtually a
  mirror image of the transitions from state
• 1.
• We reached state 2 by processing a numeric
  character. As with state 1s alpha transition,
  we can represent the transition from state 2 on a
  numeric to remain in state 2.
• We draw this by drawing an arrow from the current
  state and point it back to the current state.
• The next output we evaluate is when we process an
  alpha character.
• From a numeric character to an alpha character,
  we find nothing happens.
• Therefore, we can draw the transition line from
  state 2 to the previously existing state 1.
• Each of the remaining three valid inputs, ( ,
  -, and .), lead to a new state.
• Therefore we draw an arrow from state 1 to states
  4, 5, and 6 for transitions on , -, and .
  respectively.

18
Software Engineering Introduction

• State 3
• Since state 3 is associated with an action, we do
  not look for additional states to transition to.

• We only have to add to the figure is a dashed
  arrow to return from the action to the starting
  state.

State 3 is reached when a space character is
processed from the starting state. State 3 has an
action associated with it that will remove the
space from the converted part number. Notice
that the arrow leaving state 3 has a dotted line
and no character for its transition. This
symbolizes an automatic transition to the state
the arrow points at, S. After the action
associated with state 3 is completed, we continue
processes starting with state S.
19
Software Engineering Introduction

• State 4
• State 4 was reached after a space was processed
  after an alpha character was processed.
• There are only two possible transitions from
  state 4.
• The rules allow for an alpha character followed
  by a space followed by an alpha character, rule
  5, or for an alpha character to be followed by a
  space to be followed by a numeric character, rule
  6.
• These two transitions are shown in the following
  diagram

20
Software Engineering Introduction

• State 4
• If an alpha character is processed from state 4,
  we have processed an alpha character, followed by
  a space, followed by another alpha character.
• This transition would bring us to state 9.
• State 9 is represented with a bold circle, since
  rule 5 indicates the space should be replaced
  with a dash.
• Then the state is returned to state 1, since an
  alpha character is the last character processed.
• If a numeric character is processed from state 4,
  we have processed a numeric character, followed
  by a space, followed by a numeric character.
• This transition would bring us to state 10.
• State 10 is represented with a bold circle, since
  rule 6 indicates the space should be removed.
• Then the state is returned to state 2, since the
  numeric character is the last character processed.

21
Software Engineering Introduction

• State 5
• State 5 is reached when an alpha character is
  followed by a dash.
• There are three possible valid transitions.
• An input of an alpha character from state 5 is
  valid, rule 2, because we would have processed an
  alpha character followed by a dash followed by an
  alpha character.
• An input of a numeric character from state 5 is
  valid, rule 1, because we would have processed an
  alpha character followed by a dash followed by a
  numeric character.
• An input of a dot from state 5 is valid, rule 7,
  because we would have processed an alpha
  character followed by a dash followed by a dot.
• These three transitions are shown in the
  following figure

22
Software Engineering Introduction

• State 5

If an additional alpha character is processed,
then we return to state 1. Since an alpha
character, dash, and alpha character sequence
requires no action, we can return to state 1
since it is in essence the neutral state after an
alpha character is read. However, if a numeric
value is processed, rule 1 states that we must
remove the dash. Therefore, from state 5 on a
numeric, we reach state 11. State 11 performs
the action to remove the dash and returns to
state 2, since the last character processed was a
numeric. If a '.' follows the dash, we are
transferred to state 12 where the dash is
removed.
23
Software Engineering Introduction

• State 6
• We can reach State 6 from multiple states, but in
  each case the last character processed was a dot.

• There is no action that occurs when a dot is
  in-between an alpha character and an alpha
  character, a numeric character and a numeric
  character, or an alpha character and a numeric
  character.
• Therefore, the valid transitions from this state
  are on an alpha character or a numeric character.
• If an alpha is entered, then we transfer back to
  state 1.
• If a numeric is entered then we transfer back to
  state 2.

24
Software Engineering Introduction

• State 7
• State 7 is reached when a numeric character is
  followed by a dash.
• There are three possible valid transitions.
• An input of a numeric character from state 7 is
  valid, rule 3, because we would have processed a
  numeric character followed by a dash followed by
  a numeric character.
• An input of an alpha character from state 7 is
  valid, rule 1, because we would have processed a
  numeric character followed by a dash followed by
  an alpha character.
• An input of a dot from state 7 is valid, rule 7,
  because we would have processed an numeric
  character followed by a dash followed by a dot.
• These three transitions are shown in the
  following figure

25
Software Engineering Introduction

• State 7
• If an additional numeric character is processed,
  then we return to state 2.
• Since an numeric character, dash, and numeric
  character sequence requires no action, we can
  return to state 2 since it is in essence the
  neutral state after a numeric character is read.

• However, if an alpha character is processed, rule
  1 states that we must remove the dash.
• Therefore, from state 7 on an alpha character, we
  reach state 14.
• State 14 performs the action to remove the dash
  and returns to state 2, since the last character
  processed was a numeric.
• If a '.' follows the dash, we are transferred to
  state 13 where the dash is removed.

26
Software Engineering Introduction

• State 8
• State 8 was reached after a space was processed
  after a numeric character was processed.
• There are only two possible transitions from
  state 8.
• The rules allow for a numeric character followed
  by a space followed by an numeric character, rule
  4, or for a numeric character to be followed by a
  space to be followed by an alpha character, rule
  6.
• These two transitions are shown in the following
  diagram

27
Software Engineering Introduction

• State 8
• If a numeric character is processed from state 8,
  we have processed a numeric character, followed
  by a space, followed by another numeric
  character.
• This transition would bring us to state 15.
• State 15 is represented with a bold circle, since
  rule 4 indicates the space should be replaced
  with a dash.
• Then the state is returned to state 2, since a
  numeric character is the last character
  processed.
• If an alpha character is processed from state 8,
  we have processed a numeric character, followed
  by a space, followed by an alpha character.
• This transition would bring us to state 16.
• State 16 is represented with a bold circle, since
  rule 6 indicates the space should be removed.
• Then the state is returned to state 1, since the
  numeric character is the last character processed.

28
Software Engineering Introduction

• State 9
• State 9 is reached when an alpha character is
  followed by a space followed by an alpha
  character.
• State 9 has an action associated with it
  according to rule 5.
• The action replaces the space with a dash.
• Since the last character of the new string is
  still an alpha character, we draw a dashed line
  back to state 1, where we can continue processing
  the input.

29
Software Engineering Introduction

• State 10
• State 10 is reached when an alpha character is
  followed by a space followed by a numeric
  character.
• State 10 has an action associated with it
  according to rule 6.
• The action removes the space.
• Since the last character of the new string is a
  numeric character, we draw a dashed line back to
  state 2, where we can continue processing the
  input.

30
Software Engineering Introduction

• State 11
• State 11 is reached when an alpha character is
  followed by a dash followed by a numeric
  character.
• According to rule 1, state 11 has an action
  associated with it to remove the dash.
• Since the last character of new string is a
  numeric character, we draw a dashed line back to
  state 2, where we can continue processing input.

31
Software Engineering Introduction

• State 12
• State 12 was reached when an alpha character is
  followed by a dash followed by a dot.
• According to rule 7, when a dash is followed by a
  dot, we remove the dash.
• Because the last character in the new string is
  now a dot, we can not return to state 1 or state
  2, since they imply that an alpha or numeric
  character was the last one processed.
• Therefore, we draw a dashed line from state 12 to
  state 6.

32
Software Engineering Introduction

• State 14
• State 14 is reached when a numeric character is
  followed by a dash followed by an alpha
  character.
• According to rule 1, state 14 has an action
  associated with it to remove the dash.
• Since the last character of new string is an
  alpha character, we draw a dashed line back to
  state 1, where we can continue processing input.

33
Software Engineering Introduction

• State 15
• State 15 is reached when a numeric character is
  followed by a space is followed by a numeric
  character.
• According to rule 5, the space should be replaced
  with a dash.
• Then the state is returned to state 2, since a
  numeric character is the last character processed.

34
Software Engineering Introduction

• State 16
• State 15 is reached when a numeric character is
  followed by a space is followed by an alpha
  character.
• According to rule 5, the space should be replaced
  with a dash.
• Then the state is returned to state 1, since an
  alpha character is the last character processed.

35
Software Engineering Introduction

• Final Diagram

36
Software Engineering Introduction

• Create a State Table
• Once the diagram is complete, we must create a
  table that shows the transitions from state to
  state given each of the following transitions.
• We list each of the valid types of input across
  the top and list each of the states down the
  first column.
• We enter the state number that each state would
  transition to given each type of input.
• If a transition does not exist, then we indicate
  so by placing an x in the appropriate cell of the
  table.

37
Software Engineering Introduction

• The table for our state diagram follows

38
Software Engineering Introduction

• Here is the actual code that will implement the
  state diagram.
• The code is actually the simplest part.
• Creating the correct state diagram is the most
  difficult aspect of this solution.
• We start by declaring a two dimensional array
  that will store the state table.
• We have called it position, because by using it
  we find the next position in the state diagram.
• It is followed by an array that stores the action
  associated with each state.
• The action array is filled with values that
  represent each type of action.
• If we inspect carefully, we see that there is
  only four actual actions that occur in our entire
  diagram.

39
Software Engineering Introduction

• NO
• The first action, NO, is the simplest.
• When a NO action is specified, it means that we
  are passing from one state of the diagram to
  another without a specific action being taken.
• In this case the only objective is to copy the
  current source character to the destination
  string.
• SPACE
• The SPACE action is only taken from one state, 3.

• When we perform this action we are removing
  spaces from the beginning of the input string.
• Therefore, the only action performed when this
  option is selected is to advance the pointer of
  the source string.
• REMOVE
• This action is actual used to perform many
  actions.
• It removed the second to last character read from
  the result string.

40
Software Engineering Introduction

• ADD_DASH
• The final action is taken when either an alpha
  character followed by a space followed by an
  alpha character is processed, or a numeric
  character followed by a space followed by a
  numeric character is processed.
• This action replaces the space in the result
  string with a dash and then copies the current
  input character to the result string.
• These actions are implemented using a switch
  statement.
• It is assumed that in this application that only
  valid options are used in the action array so
  there is no need to have a default value for
  invalid input.
• It is important to notice that the order of the
  switch statement is important for performance
  sake.
• The choices are listed in the order from most
  prevalent to least.
• This way when the switch statement is evaluated
  the least number of options must be tried.

41
Software Engineering Introduction

• The main routine asks the user to enter a part
  number.
• The program then calls the ConvertPartNumber
  function that will output the converted part
  number.
• The function operates by looping through the
  input one character at a time.
• If it encounters a '', '(', or ')' character, it
  simply moves on to the next character.
• We conveniently left this rule out of our state
  diagram, because it was simpler to check for it
  at the beginning of the loop that to add it to
  almost every state in our diagram.
• Next the function determines which type of valid
  input is the current character.
• It then moves down the state diagram based on
  that input.
• If an action exists for that state, then it
  processes the appropriate action.
• When the function reaches the end of the string,
  it outputs the newly converted string to the
  screen.

42
Software Engineering Introduction

• //State Diagram Program
• //Includes
• include ltstdlib.hgt
• include ltiostream.hgt
• include ltstring.hgt
• include ltctype.hgt
• //Constants
• define NO -1
• define SPACE 0
• define REMOVE 1
• define ADD_DASH 2
• define PART_NMB_LENGTH 20
• //Array to store the state diagram
• int position175
• 1,2,-1,-1,3, //start
• 1,2,6,5,4, //1
• 1,2,6,7,8, //2
• 0,0,0,0,0, //3
• 9,10,-1,-1,-1, //4

43
Software Engineering Introduction

• //Array to store the actions associated with each
• //state
• int action17NO,NO,NO,SPACE,NO,
• NO,NO,NO,NO,ADD_DASH,
• REMOVE,REMOVE,REMOVE,
• REMOVE,REMOVE,ADD_DASH,REMOVE

44
Software Engineering Introduction

• //Function to perform the conversion
• void ConvertPartNumber(char source)
• //Array to store the result
• char destPART_NMB_LENGTH
• //Pointer to the array for efficiency
• char tempdest
• int len
• int i0
• int pos0
• lenstrlen(source)
• //Loop thru the input values
• while (i lt len)
• //Strip specific characters
• if (source '' source'('
• source')')
• source

45
Software Engineering Introduction

• else
• // Check for alpha character
• if (isalpha(source))
• pospositionpos0
• //Check for numeric character
• else if (isdigit(source))
• pospositionpos1
• //Check for dot character
• else if (source '.')
• pospositionpos2
• //Check for dash character
• else if (source '-')
• pospositionpos3
• //Check for space
• else if (source ' ')
• pospositionpos4
• //Check for invalid input
• else

46
Software Engineering Introduction

• //Handle action
• switch (actionpos)
• case NO
• //Copy current character over.
• tempsource
• break
• case REMOVE
• //Copy second character over the
• // previously written one
• (temp-1) source
• pospositionpos4
• break
• case SPACE
• //Skip over the space
• source
• pospositionpos4
• break
• case ADD_DASH

47
Software Engineering Introduction

• //close if
• i
• //End While
• temp '\0'
• coutltltendlltltdestltltendl
• //Main Routine
• void main()
• char bufferPART_NMB_LENGTH1"FILLER"
• while (buffer0 ! '\0')
• coutltlt"Enter a part number to be
  converted"ltltendl
• cin.getline(buffer,PART_NMB_LENGTH,'\n')
• ConvertPartNumber(buffer)
• return 0
