Title: Sparse matrix data structure one example


1

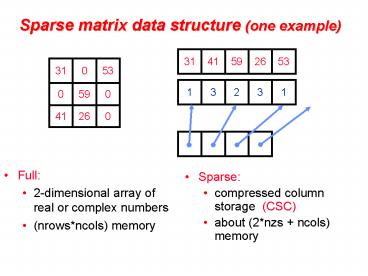

Sparse matrix data structure (one example)
  • Full
  • 2-dimensional array of real or complex numbers
  • (nrowsncols) memory
  • Sparse
  • compressed column storage (CSC)
  • about (2nzs ncols) memory

2
Graphs and Matrices
Matrix
Graph
  • Starting with the matrix
  • One graph vertex for each row (or column) of the
    matrix
  • One graph edge (i,j) for each nonzero A(j,i) in
    the matrix
  • (Some people direct the edges the opposite way,
    from rows to columns either way is ok as long as
    its consistent.)
  • Or, starting with the graph
  • The adjacency matrix has A(j,i)1 if (i,j) is an
    edge.

3
Google and the Random Surfer
How does Google figure out which web pages are
most important?
  • An important page is one that lots of important
    pages point to.
  • Start at any web page and follow links at random.
    Forever.
  • Youll see important pages more often than
    unimportant ones.

4
Analyzing the Web with graphs and matrices
Matrix
Graph
  • Graph nodes are web pages
  • Arrows between nodes are links between web pages
  • Matrix entries are links from column pages to
    row pages
  • The Page Rank comes from algebra on the matrix
  • The matrix has 8,058,044,651 rows columns (in
    March 2005)

5
Web graph PageRank (Google)
An important page is one that many important
pages point to.
  • Markov process follow a random link most of the
    time otherwise, go to any page at random.
  • Importance stationary distribution of Markov
    process.
  • Transition matrix is pG (1-p)ones(size(G)),
    scaled so each column sums to 1.
  • Importance of page i is the i-th entry in the
    principal eigenvector of the transition matrix.

6
A Page Rank Matrix
  • Importance ranking of web pages
  • Stationary distribution of a Markov chain
  • Power method matvec and vector arithmetic
  • MatlabP page ranking demo (from SC03) on
    a web crawl of mit.edu (170,000 pages)
