Resource Management Working Group

1

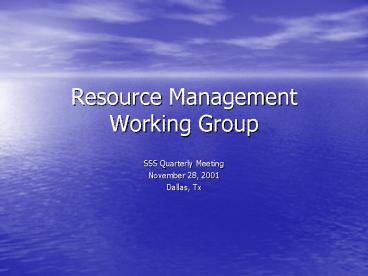

Resource Management Working Group

• SSS Quarterly Meeting
• November 28, 2001
• Dallas, Tx

2
Resource Management and Accounting Working Group

• Working group scope and components
• Progress made
• Current and future issues
• Next steps

3
Working Group Scope

• The Resource Management Working Group encompasses
  the areas of resource management, scheduling and
  accounting.
• This working group will focus on the following
  software components
• Queue Manager
• Scheduler
• Allocation Manager
• Meta Scheduler
• Our charter will also encompass the following
  capabilities
• Accounting
• Usage Reports

4
Phase 1 Milestones

• 6 months Contribute to checkpoint/restart report
  with regard to scheduling related aspects
• 12 months Establish and release initial resource
  management interface specifications
• 12 months Establishment of the CVS repository
  and module structure, agreement on document
  conventions
• 12 months Finalized API for system initiated
  checkpoint/restart of parallel MPI jobs on Linux
  systems
• 18 months Release v1.0 of the Centers resource
  management system based on existing open source
  code and the results of the scalability testing.

5
High Level Progress

• Establishing high level design covering initial
  component functionality and required interfaces
• Determining inter-group requirements (GUI,
  security, IS, process management, etc)
• Preparing existing tools (Maui, Silver, QBank)
  for use within SSS
• Creating infrastructure within which to develop
  and test RM deliverables
• Creating infrastructure within which to develop
  and test intra- and inter-group interfaces

6
Proposed Component Architecture
Meta Scheduler
Security System
Information Service
Allocation Manager
Scheduler
Discovery Service
Queue Manager
Collector
Node Manager
Process Manager
7
Component Interaction DiagramJob submitted to
Queue Manager
User Interface
Collector
Meta Scheduler
Queue Manager
Allocation Manager
Scheduler
Process Manager
1
2
3
4
5
6
7
8
9
10
11
8
Component Interaction TraceJob submitted to
Queue Manager

• A user submits a job to the Queue Manager
• The Queue Manager does a sanity balance check
  with the Bank
• The Queue Manager notifies the Scheduler that a
  new job has arrived
• The Scheduler queries node and job status until
  job can run
• A bank reservation is made with the Allocation
  Manager
• The Scheduler requests the Queue Manager to run
  the job
• The Queue Manager passes job control to the
  Process Manager
• The Process Manager notifies Queue Manager of job
  completion
• The Queue Manager notifies Scheduler of job
  completion
• A bank withdrawal is made with the Allocation
  Manager
• The user is notified of job completion

9
Component Interaction Diagram Job submitted to
Meta Scheduler
User Interface
Collector
Meta Scheduler
Queue Manager
Allocation Manager
Scheduler
Process Manager
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
10
Component Interaction TraceJob submitted to Meta
Scheduler

• A user submits a job to the Meta Scheduler
• The Meta Scheduler contacts Schedulers to
  determine which systems could run the job the
  soonest
• The Schedulers request quotes from Allocation
  Banks to determine which systems would run the
  job for the lowest cost
• A Scheduler reservation is created for the job on
  the resource providing the best service -- this
  reservation can be moved or improved upon until
  the job is staged
• The job is staged and queued at the system where
  it is to run
• The Queue Manager notifies the Scheduler that a
  new job has arrived
• The Scheduler queries node and job status until
  job can run
• A bank reservation is made with the Allocation
  Manager
• The Scheduler requests the Queue Manager to run
  the job
• The Queue Manager passes job control to the
  Process Manager
• The Process Manager notifies Queue Manager of job
  completion
• The Queue Manager notifies Scheduler of job
  completion
• A bank withdrawal is made with the Allocation
  Manager
• The Scheduler notifies the Meta Scheduler of job
  completion
• The user is notified of job completion

11
Design/Interface Progress

• Initial high level RMS architecture defined
• Resource management dictionary created defining
  objects within resource management world
• Object tokens declared for major objects
• Component functional interfaces identified
• Initial XML request/response syntax proposed
• Prototypes being constructed to test
  communication protocols
• Initial detailed extra-group component
  requirements document created

12
Local Scheduler Rationale

• Local interfaces with majority of inter and intra
  RM components
• Establish test platform from which interfaces can
  be tested
• Leverage existing capabilities to accelerate SSS
  development
• Establish infrastructure within which scheduling
  and metascheduling services and capabilities can
  be developed
• Establish driver to evaluate other resource
  management components

13
Local Scheduler Progress

• Baseline scheduler established (Maui 3.2) for SSS
  scheduling services integrating production and
  development capabilities
• Prototype interface enabling XML communication
  with queue manager, metascheduler, and node
  manager
• Extended QoS infrastructure integrated
• Extended Job prioritization infrastructure
  integrated
• Prototype created for object-oriented data access
• Advanced metascheduling interface integrated

14
Meta Scheduler Progress

• Initial distribution packaging created to allow
  collaborative development
• Documentation enhanced and extended
• Prototype XML scheduler to metascheduler query
  interface developed
• Initial fault tolerance framework designed

15
Queue Manager Design

• Established need for unified queue manager design
  common to Scheduler and Metascheduler
• Queue manager will interface directly with
  Process manager
• In process of refining the queue manager tasks
• Queue manager will provide an interface to obtain
  information about any job regardless of job state
  including completed jobs (i.e. it will maintain a
  job information archive)

16
Allocation Manager Progress

• QBank placed under revision control
• Java prototype created which sends requests in
  XML
• Experimenting with protocol frameworks (simple
  octet-counting, octet-stuffing, SOAP, BEEP)

17
Next Steps (In Progress)

• Software Lifecycle Infrastructure
• Online intra-RM schedule and dependencies
  document
• Detailed extra-RM working group requirements
• Coordinate creation of component level regression
  test suite
• Bug tracking systems activated (used to track
  internal defects and development plans)
• Interface
• Produce validating intra-RM XML schema
• Produce prototype RM components communicating in
  initial protocol
• Feature Enhancements
• Contribution to checkpoint/restart report
• Creation of queue manager prototype

18
Next Steps (6 Months)

• Usability
• GUI-server interface, GUI format, security
  determined and prototypes created
• Documentation of initial meta job
  constraints/features and specification language
• Inter-group Collaboration
• Creation of early scheduler XML implementation
  for use as RM driver
• Development of initial dynamic job
  scheduler-queue manager interface
• Extension of RM specifications/requirement
  document
• Extension of internal component test
  infrastructure
• Determination of best practices in
  documentation maintenance
• Evaluation and adoption of web project management
  and collaboration tools
• Creation of prototype queue manager with
  scheduler/task manager interfaces

19
Next Steps (6 Months)

• Fault Tolerance
• Enhance metascheduler to survive local daemon
  failure
• Enhancement of threaded scheduling interface.
• Development of threaded metascheduling interface.
• Resource Optimization
• Development of local optimization features of
  meta workload
• Feature Enhancements
• Creation of resource manager extension features.
• Development of direct metascheduler to queue
  manager staging roadmap.
• Interfaces
• Specification of best guess security
  infrastructure and evaluation of impact on system
  internals and communication protocols

20
Next Steps (1 year)

• Software Lifecycle Infrastructure
• Create multi-component regression tests
• Generate alpha package of scheduling,
  metascheduling, and allocation management
  packages.
• Interfaces
• Development of functional XML interfaces for all
  components
• Early adoption of security infrastructure
• Creation of optional information service
  interfaces
• Admin and end-user GUIs proposed to enable use
  of new functionality
• Inter-group Collaboration
• Enhanced suspend/resume and checkpoint/restart
  features with detailed roadmap specified for all
  remaining suspend/resume and checkpoint restart
  deliverables

21
Current Issues

• Should there be an enveloping protocol framework
  which handles framing (where the XML document
  begins and ends), authentication, multiplexing,
  streaming data, etc? (should we look at something
  like BEEP, or start from scratch and invent
  something of our own?)
• The queue manager/collector to node/process
  manager functionality and data interface requires
  further refinement.
• Queue manager/collector and node/process manager
  development schedules must be determined and
  coordinated.

22
Issues

• Continued effort is required to complete an
  intra-RM XML schema to handle initial RMS
  interaction needs. Boundaries between internal
  intra-RM and global XML schema is needed.
• Understanding of open source requirements (I.e.
  can software be included in SSS distribution that
  requires registration and usage agreements)

23
Inter-Group Issues

• Need for coordination of resource management
  system across working groups so that the pieces
  all function together properly and no part is
  overlooked. Need to coordinate schedules for
  delivery of RMWG-dependent non-RMWG components.
• Early vendor/industry collaborations (Wed better
  do this while it can still influence our design.
  Need to talk to decision makers and develop
  business plans)

24
Inter-group Issues

• Information service should we rather be looking
  for something existing? (i.e. MDS2)
• Need to solidify SSS-wide standards for
  packaging, revision control, documentation
  content, format, and packaging, problem tracking,
  and establish mechanisms and places to home
  them.
• Creation of regression and integration test suite
  (w/ Validation and Testing WG we need this from
  an early stage)

25
Conclusions

• Questions
