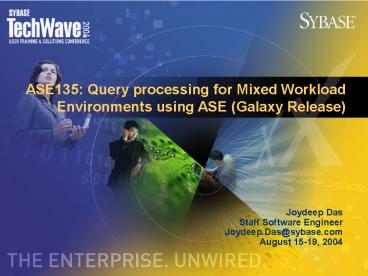

ASE135 Query processing for Mixed Workload
Environments using ASE (Galaxy Release)
Joydeep Das Staff Software Engineer Joydeep.Das_at_sy
base.com August 15-19, 2004
2
The Enterprise. Unwired.
3
The Enterprise. Unwired.
Industry and Cross Platform Solutions
Unwire People
Unwire Information
Manage Information

• Adaptive Server Enterprise
• Adaptive Server Anywhere
• Sybase IQ
• Dynamic Archive
• Dynamic ODS
• Replication Server
• OpenSwitch
• Mirror Activator
• PowerDesigner
• Connectivity Options
• EAServer
• Industry Warehouse Studio

• Unwired Accelerator
• Unwired Orchestrator
• Unwired Toolkit
• Enterprise Portal
• Real Time Data Services

• SQL Anywhere Studio
• M-Business Anywhere
• Pylon Family (Mobile Email)
• Mobile Sales
• XcelleNet Frontline Solutions
• PocketBuilder
• PowerBuilder Family
• AvantGo

Sybase Workspace
4
Agenda

• Query Processing (QP) for Mixed Workload
  Environments
• Motivation
• Enhanced Query Processing solutions in Galaxy
• Feedback and QA

5
Agenda

• Query Processing for Mixed Workload Environments
• Motivation
• Enhanced Query Processing solutions in Galaxy
  Release
• Feedback and QA

6
Motivation ASEs Current QP Capabilities

• Extremely well-suited for demanding OLTP
  environments
• Good plans for all types of transactional queries
• Meets some demands of Operational DSS
• Good plans for several types of complex queries
• Meets some demands of mixed workload environments
• (OLTP Operational DSS)
• Good plans for mixed workloads if system
  appropriately configured for
• Cache characteristics Large I/Os, LRU/MRU,
  bindings
• Parallel operations table scans, index scans,
  joins

7
Motivation - Your Requests

• Need better mixed workload capabilities from ASE
• Need better performance for specific
  transactional queries
• Need better performance for highly complex
  queries (reporting apps)
• Need efficient query processing for large data
  sets (VLDB)
• Need advanced database administration
  capabilities
• More intuitive diagnostics to track problem
  queries
• Useful tools to monitor query performance
  characteristics

8
Motivation - Our Response

• We have reviewed your inputs and requests
• To understand and appreciate your challenges
• To provide quick solutions wherever possible
• We have analyzed current and future industry
  trends
• Based on your inputs and our analysis, we now
  offer
• A rich and comprehensive set of query processing
  enhancements in the ASE Galaxy Release

9
Agenda

• Query Processing for Mixed Workload Environments
• Motivation
• Enhanced Query Processing solutions in Galaxy
• Feedback and QA

10
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

11
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

12
Enhancements For Specific Requests

• Index Usage with mismatched data types
• select from Parts, Lineitem where
  Parts.p_partkey Lineitem.l_partkey
• - Parts.p_partkey is float
• - Lineitem.l_partkey is int and has an index on
  it
• - Parts is small (10,000 rows), Lineitem is
  larger (300,000 rows)
• Galaxy is 3.7 times faster
• Galaxy QP ensures that
• - an index scan on Lineitem.l_partkey is selected
• - the index scan is positioned based on values
  from Parts.p_partkey

13
Enhancements For Specific Requests

• Accurate Join costing
• select count() from Lineitem, Orders
• where Lineitem.l_orderkey Orders.o_orderkey
• and Lineitem.l_orderkey 3
• - 60 of Lineitem.l_orderkey 3
• - Lineitem has 30,000 rows Orders has 200 rows
• - Highly duplicated value from l_orderkey results
  in data skew
• Galaxy is 1.2 times faster
• Galaxy QP estimates the join selectivity very
  accurately
• join selectivity is based on dynamically computed
  join histograms
• translates to optimal join order Lineitem, Orders

14
Enhancements For Specific Requests

• Fewer Materializations avoiding work tables for
  sorting
• select count(), l_orderkey from lineitem
• group by l_orderkey
• order by l_orderkey
• - Lineitem has 300,000 rows
• Galaxy is 3.7 times faster
• Galaxy QP avoids sorting for ORDER BY by
  remembering the ordering from GROUP BY
• Similar materializations also avoided for
  union-in-view queries

15
Enhancements For Specific Requests

• Unlimited terms in IN-list
• select from tab
• where col1 in (1,2,3,..16000)
• Galaxy QP will successfully process and execute
  this query
• Only limited by size of procedure cache

16
Enhancements For Specific Requests

• Removed column limits with grouped aggregation
• select col1, . col50, MAX(col52) from tab
• GROUP BY col1, . Col50
• Galaxy QP will process and execute it
  successfully if widths of col1 col50 plus the
  result of the MAX is less than 16K
• Max width increased to 16K, independent of page
  size
• Limit of 31 columns in a GROUP BY clause removed

17
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

18
Tackles Complex Queries

• Improved Union operator processing
• select l_orderkey, l_shipdate, l_commitdate,
  l_receiptdate
• from Lineitem where l_orderkey lt 10000
• union
• select l_orderkey, l_shipdate, l_commitdate,
  l_receiptdate
• from Lineitem where l_orderkey gt 50
• - Lineitem has 300,000 rows
• - No index on l_orderkey
• Galaxy is 1.5 times faster
• Galaxy QP uses new feature hash based union
  distinct

19
Tackles Complex Queries

• Improved Aggregations
• select sum(l_quantity), max(l_discount),
  l_suppkey, l_partkey
• from Lineitem group by l_suppkey, l_partkey
• - Lineitem has 300,000 rows
• - Index on l_suppkey, l_partkey
• Galaxy is 2.8 times faster
• Galaxy QP uses on-the-fly grouping (hash based)
• - no work tables created

20
Tackles Complex Queries

• Index Union
• select from lineitem
• where l_orderkey  between 10 and 20 OR
• l_suppkey between 40 and 50
• - Lineitem has 300,000 rows
• - Indices available on l_orderkey and l_suppkey
• Galaxy is 1.1 times faster
• Uses new operator hash based union distinct

21
Tackles Complex Queries

• Index Intersection
• select Lineitem.l_orderkey, Lineitem.l_suppkey
• from Lineitem where Lineitem.l_orderkey gt 1000
  and Lineitem.l_ lt 10000
• and Lineitem.l_suppkey gt 200 and
  Lineitem.l_suppkey lt 2000
• - Lineitem has 300,000 rows
• - Indexes available on Lineitem.l_orderkey and
  Lineitem.l_suppkey
• Galaxy is at least 1.1 times faster
• Galaxy QP ensures that both indexes scanned and
  hash-intersected
• - may be selected with Index Union if AND/OR
  present in query
• - may be selected in STAR queries if FACT table
  has indexes for each DIMENSION table joining
  column

22
Tackles Complex Queries

• Large number of tables
• select from T1, T2, .. T50
• where T1.a T2.a AND T2.a T3.a AND
  .. T49.a T50.a
• Early greedy strategy combined with accurate
  cost-based plan pruning helps in obtaining good
  plans quickly
• Built-in timer in Galaxy stops long running
  optimization
• - the best plan chosen thus far is selected
• - extra optimization may not yield a
  significantly better plan
• - timer limit is user configurable at
  server/session/query level
• - default 10 of internal query processing
  time given to optimization

23
Tackles Complex Queries

• Superior plans for Star/Snowflake schema joins
• STAR, SNOWFLAKE schemas have
• - Large FACT table, smaller (relative to FACT)
  DIMENSION tables
• - Joins only between FACT and DIMENSION tables
• - Index available on joining columns

Star schema
Snowflake schema
24
Tackles Complex Queries

• Superior plans for Star/Snowflake schema joins
• select from lineitem, orders, parts, supplier
• where lineitem.l_orderkey orders.o_orderkey
• AND lineitem.l_partkey parts.p_partkey
• AND lineitem.l_suppkey supplier.s_suppkey
• - FACT table lineitem has 300,000 rows
• - DIMENSION tables orders, parts, suppliers have
  10 rows each
• Galaxy is at least 2 times faster
• recognizes Star/Snowfalke patterns, places FACT
  in the end
• May use Index intersection Lineitem joining
  columns have indices

25
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

26
Handles Large Data Sets

• Improved join algorithms
• select count(), count(c.ProcessID),
  count(l.ProcessID)
• from Clients c, Clients l
• where (isnull(l.ClientName,'x')
  rtrim(lClientID)
• (isnull(c.ClientName,'x') rtrim(c.ClientID))
• - No indices, expression join Client is a large
  table ( gt 300,000 rows)
• Galaxy is more than 100,000 times faster!
• Galaxy QP selects Hash join method
• Galaxy may select merge join when proper ordering
  available

27
Handles Large Data Sets

• Support for data partitioning strategies
• Round robin partitioning (available in
  pre-Galaxy)
• - Data set distribution in round robin fashion
• - No semantics associated, data row can end up in
  any partition
• Hash based partitioning (NEW)
• - Data set distributed according to a hash
  function
• - Semantics associated data rows belong to
  specific partitions
• Range partitioning (NEW)
• - Data set distributed according to an attributes
  value range
• - Semantics associated data rows belong to
  specific partitions

28
Handles Large Data Sets

• Intelligent Partition elimination
• create table customer(c_custkey int, c_name
  varchar(25),
• c_region varchar(4), c_acctbal double) partition
  by range (c_custkey)
• (PC1 values lt (100), PC2 values lt (200), PC3
  values lt (300))
• - data partitioned by range customer has
  10,000 rows
• select from customer where c_custkey
• between 50 and 150 or c_custkey lt 10
• Galaxy is 1.25 times faster
• Galaxy QP Partition Elimination disqualifies
  partitions (PC3 here)
• can handle complex AND/OR expression
• can handle variables unknown at compile time

29
Handles Large Data Sets

• Directed joins with partitioned data
• create table orders(o_orderkey int, o_custkey
  int,
• o_orderstatus char(1), o_price double,
  o_orderdate smalldatetime)
• partition by range (o_custkey)
• (PO1 values lt (100), PO2 values lt (200), PO3
  values lt (300))
• - Orders, Customers have 10,000 rows both
  partitioned by range
• select from customers, orders where c_custkey
  o_custkey and c_custkey gt 110
• Galaxy is 2.5 times faster
• Galaxy QP eliminates partitions PC1 and PO1 from
  customers and orders. Only corresponding
  partitions PC2/PO2, PC3/PO3 are joined

30
Handles Large Data Sets

• Parallelism
• select sum(o_price), o_custkey from orders
• where o_orderdate gt 01/31/2003
• group by o_custkey
• - orders has 25,000 rows partitioned by
  o_custkey
• Almost all SQL operations can be done in parallel
• Galaxy is 1.2 times faster
• Galaxy QP groups each partition separately, but
  merges results concurrently

31
Handles Large Data Sets

• Parallelism
• SQL operations can be done in parallel and
  pipelined to work in tandem
• select sum(o_price), c_region from orders,
  customers
• where o_orderdate gt 01/31/2003 and
• c_custkey o_custkey group by c_region
• Query has 2 partition join of customers and
  orders followed by Grouping, all of which are
  done in tandem

Pipe 1
Pipe 2
32
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

33
Offers Goal Oriented Optimization

• Applications often have varying query processing
  needs
• Fast response time for first few rows of the
  result set
• Fast response time for queries in OLTP systems
• - Low to medium complexity transactional queries
• Fast response time for queries in Mixed workload
  systems
• - Low to medium complexity transactional queries
• - High complexity operational decision support
  queries
• Galaxy QP is powerful and versatile
• Can be tailored to deliver good performance for
  the above demands

34
Offers Goal Oriented Optimization

• 3 optimization goals - can be set at
  query/session/server level
• fastfirstrow goal returns first ltngt rows of
  result set quickly
• set plan optgoal fastfirstrow
• select from Lineitem where Lineitem.l_suppkey
  gt 2900
• order by Lineitem.l_orderkey
• - May use set rowcount 10 to limit to first 10
  rows
• - Lineitem has 300,000 rows
• Galaxy is 814 times faster with fastfirstrow
  goal !
• Galaxy QP selects index based on the orderby
  column

35
Offers Goal Oriented Optimization

• 3 optimization goals - can be set at
  query/session/server level
• allrows_oltp generates plans useful for OLTP
  queries
• - optimizes for complete result set (allrows)
• - considers techniques relevant for OLTP e.g.
  Nested Loop Join
• allrows goal (default) generates plans for
  mixed workload
• - optimizes for complete result set (allrows)
• - considers all available optimization
  techniques
• - balances the needs of OLTP and operational
  decision support

36
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

37
Offers Auto Update Statistics

• Identifies when update statistics would need to
  be run
• New built-in datachange() indicates dml changes
  on a table
• Utilizes idle cycles via housekeeper to schedule
  update statistics automatically
• Effectively utilizing system resources
• Shrinking maintenance windows
• Utilizes sampling by default
• Speeds up the process of update statistics

38
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

39
Offers Advanced Monitoring and Diagnosis

• QP Metrics
• Captures per query execution metrics
• - Min/max/avg PIO/LIO/CPU and number of times
  query is executed
• - SQL query text is captured as well
• - Stores in a system catalog - sysquerymetrics
• Easy to identify the problem queries
• - Simple ORDER BY selects from the catalog
• - Integrated in front end tools
• Easy to use
• - Metrics gathering can be enabled thru a
  configurable option
• - Stored metrics can be queried from
  sysquerymetrics

40
Offers Advanced Monitoring and Diagnosis

• Text format trace output
• No more 302, 310, 317 to diagnose the optimizer
• Set commands to tailor optimizer tracing
• - faster isolation of problems
• - can generate different levels of detail in Text
  format
• - set option show ltbrief/normal/longgt
• - can generate trace for specific area of concern
• set option show_histograms ltbrief/normal/longgt
• set option show search_engine ltbrief/normal/longgt

41
Offers Advanced Monitoring and Diagnosis

• XML format trace output
• Can be queried using ASE built-in XML querying
  capabilities
• Ease of plan tracking for testing, diagnosis,
  tool development
• Generate the XML format trace
• Query the XML format trace

42
Offers Advanced Monitoring and Diagnosis

• XML format trace output
•
• Generate the XML format trace
•   - set plan for show_exec_xml to message on
• - select from A, B where a1
  b1
• - select showplan_in_xml(-1)
• XML format trace output
• lt?xml version1.0"?gt
• ltEmitgt
• ltMergeJoingt
• ltDetailsgt

• ltJoinTypegt Inner Join lt/JoinTypegt

• lt/Detailsgt
• ...............
• lt/MergeJoingt
• lt/Emitgt

43
Offers Advanced Monitoring and Diagnosis

• XML format trace output
• Query the XML format trace
• - set plan for show_exec_xml to message
  on
• - select from A, B where a1 b1
• - select "Found Plan" where
• '/Emit/MergeJoin' xmltest showplan_in_xml(-1)

44
Offers Advanced Monitoring and Diagnosis

• GUI based plan viewer
• SHOWPLANs difficult to interpret as query
  complexity increases
• A graphical view of query execution plan more
  intuitive
• Galaxy provides a new tool planviewer
• Displays query execution plans in graphical
  format from SHOWPLANs
• Operator drill down capability

45
Offers Advanced Monitoring and Diagnosis

• Sample graphical plan generated by planviewer

46
Enhanced Query Processing in Galaxy

• Enhancements for specific requests
• Tackles Complex Queries
• Handles Large Data Sets
• Offers Goal Oriented Optimization
• Offers Auto Update Statistics
• Offers Advanced Monitoring Diagnosis
• And much more

47
And Much More

• Improved DISTINCT processing
• Sophisticated parallel resource scheduler
• Bushy tree based plans for pipelined parallelism,
  outer joins, etc
• Complex predicates - search arguments with
  expressions
• Min/Max scalar aggregate processing with useful
  indices
• Accurate placement of correlated sub-queries,
  outer joins in join orders
• Accurate estimation of physical I/Os based on
  caching
• EXISTS query processing with Semi-Joins
• There is still more

48
Current Status

• ASE (Galaxy) is being put through rigorous
  quality control
• New functional, stress, and regression testing
• In-house customer and ISV application testing
• A recent test with a mixed workload customer
  application (using 21 key queries) reveals that
  Galaxy server performs
• significantly faster in 14 queries (from 1.22 to
  18705 times)
• equally well in 7 queries
• Standard benchmarking (TPC-C, TPC-H)

49
The Ask

• No substitute for your feedback
• - Please join the Galaxy beta program to try out
  the enhanced Engine
• Your participation is invaluable
• - If you are looking for better query performance
• If you want to migrate applications from the
  competition to ASE
• With your help we can

50
Enhanced Query Processing in Galaxy
unlock the true value of Galaxy query
processing
HIGH
Query Performance
LOW
LOW
HIGH
Query Complexity / Data Volume
Galaxy QP
51
Enhanced Query Processing in Galaxy

• Feedback Q A
