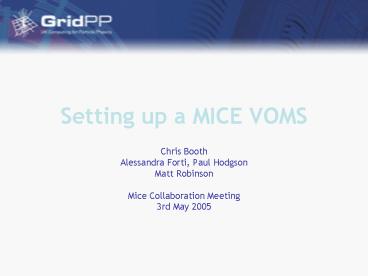

Setting up a MICE VOMS

1
Setting up a MICE VOMS

• Chris Booth
• Alessandra Forti, Paul Hodgson
• Matt Robinson
• Mice Collaboration Meeting
• 3rd May 2005

2
The Current System

• Limitations
• It relies on an LDAP server to distribute the
  gridmap file to grid sites (push model)
• A user cannot belong to more than one VO
• A user cannot have more than 1 role in a VO
• A VO cannot have subgroups
• A VO is not in charge of the whole registration
  process
• The existing system works well if the VO is an
  LHC experiment but other smaller VOs are not well
  catered for

3
What is VOMS?

• Virtual Organization Membership Service
• A new way of authenticating GRID users
• Each VO needs to setup a VO server
• This can then be accessed to provide
  authentication
• Users need to register with CERN and read the LCG
  Usage Rules
• After this VO members can access grid resources
  through the grid-mapfile mechanism where they are
  mapped to local pool accounts in the usual
  manner.

4
VOMS

• Good points
• Solves the above problems
• Relatively easy to deploy
• It is well documented
• Easy for users to use hopefully !
• Drawbacks
• It is not fully integrated with the current LCG
  software distribution
• Need to tweak the LCG install to cope with this

5
Deployment

• It can be deployed in three ways
• Old extract the information from VOMS put it in
  ldap server and point mkgridmapfile.conf to the
  ldap server
• Current point the mkgridmapfile.conf directly
  to the VOMS server
• Future forget about mkgridmapfile.conf and use
  only VOMS through LCAS/LCMAPS
• Above method is new for 2.4.0 but not tried this
  yet

6
What we have now

• A test VOMS server has been installed using
  Northgrid Tier 2 resources at Manchester
• Originally the UK testzone only supported the
  gridpp VO
• Now we have started to use it to support the MICE
  VO
• It still uses the current method of building the
  grid-mapfile directly from the VOMS as that is
  the easiest way of deploying at the moment.

7
What we have now

• It can support multiple VOs and the VO manager
  doesnt have to be local to the machine.
• This is not production service yet.
• It has been demonstrated to work !
• The MICE and GridPP VO have been created
  informally and it is not an official VO
• There are procedures to become an official EGEE
  VO
• These need to be completed by the appropriate
  MICE people
• We still need at a RB that inserts the VOMS
  entries in its grid-mapfile
• Apart from these small issues it can be used now
• The Sheffield LCG cluster has been configured to
  accept the VO and can be accessed now for testing

8
How to use it

• To register to the MICE VO
• load your GRID certificate into your browser and
  go to
• https//voms.tier2.hep.man.ac.uk8443/edg-voms-adm
  in/mice/index.html
• Follow the links on the left bar
• Request to admin
• Requesting VO membership
• Get to a web-form you will need to complete
• After that the VO manager will approve or deny
  your request.
• After approval you will receive an confirmation
  email

9
Details of Setup

• UI client software is included in LCG2_4_0
• Create a file /opt/edg/etc/vomses/VO-name.voms.tie
  r2.hep.man.ac.uk with the information for that VO
• VO-name Vo-server-name VO-port VO-server-dn
  VO-name

10
Details of Setup

• CE,SE,RB client software is also included and to
  create the gridmapfile you have to add to
  edg-mkgridmap.conf the following line
• group vomss//voms.tier2.hep.man.ac.uk8443/edg-v
  oms-admin/VO-name?/VO-name/lcg1 .VO-name

11
Voms-proxy-init

• To create a proxy the new command is
  voms-proxy-init
• Without additional arguments this behaves like
  grid-proxy-init
• With arguments it allows to chose the VO and the
  role and the subgroup you want the proxy for.
• However because we are not using the full VOMS
  features the options are not relevant at the
  moment

12
Conclusion

• VOMS is a powerful and flexible system
• We can start to use it now
• The installation is relatively straightforward
• This seems to be a good way for small experiments
  to access the grid resources
• Need to formalise the MICE VO
• Need to persuade individual grid sites to support
  our VO
• Expect later releases of the LCG middleware will
  fully support the VOMS mechanism
