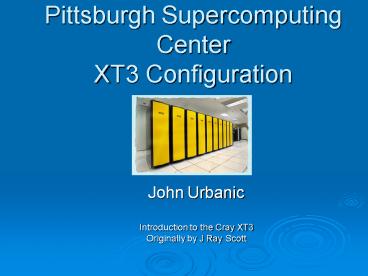

Pittsburgh Supercomputing Center XT3 Configuration

1
Pittsburgh Supercomputing CenterXT3 Configuration

• John Urbanic
• Introduction to the Cray XT3
• Originally by J Ray Scott

2
Pittsburgh Supercomputing Center
ETF (Rachel) 512GB Main Memory
TCS (LeMieux) 6.0 TFlop
XT3 (BigBen)
Visualization Nodes NVidia Quadro4 980XGL
Storage Cache Nodes 100 TB
Storage Silos 2 PB
DMF Archive Server
3
Hardware Summary

• 2,090 CPUs
• AMD Opteron 2.4GHz
• 2,068 Compute Nodes
• 22 I/O nodes
• Boot/Login Node
• System Management Node
• Login Node (3)
• Storage Nodes

4
Software Summary

• Catmount on Compute Nodes
• Linux on I/O nodes
• Job Scheduling through PBS
• Torque/PSC now
• yod integration
• Console Log Support
• Custom Scheduler
• PBS Pro soon

5
File Systems

• UFS-type home directories
• /usr/users/Nlogin-name
• Not high-performance
• Lustre
• /lustre
• Accessible from all compute and I/O nodes
• 200 TB RAID-Protected Storage
• HOME and SCRATCH

6
Networking

• ssh access to frontends (tg-login.bigben.psc.terag
  rid.org )
• scp to file systems
• PSC far command to archiver

7
System Overview
pbsyod
qsub
8
PBS Outline

• Running A Job
• Scheduling Policies
• Batch Access
• Interactive Access
• Packing Jobs
• Monitoring And Killing Jobs

9
Scheduling Policies

• The Portable Batch Scheduler (PBS) controls all
  access to bigben's compute processors, for both
  batch and interactive jobs. PBS on bigben
  currently has two queues. Interactive and batch
  jobs compete in these queues for scheduling.
  The two queues are "batch" and "debug" which
  are controlled through two different modes during
  a 24 hour day.  The "batch" or default queue
  (does not need to be explicitly named in a job
  submission) is active during both day and night
  modes discussed next.  The "debug" queue must be
  explicitly named in a job script     PBS -q
  debug and is limited to 32 cpus and 15 minutes
  of wall-clock time.  PBS specifications are
  discussed below. Day Mode During the day,
  defined to be 8am-8pm, 64 cpus will be reserved
  for debugging jobs (jobs run from the "debug"
  queue).  Jobs submitted to the "debug" queue may
  request no more than 32 cpus and 15 minutes of
  wall-clock time.  Jobs submitted to the "batch"
  (default) queue may be any size up to the limit
  of the machine but only jobs of 1024 cpus or less
  will be scheduled to start during Day Mode.
  "batch" jobs are limited to 6 wall-clock hours in
  duration.  Jobs in the "debug" and "batch" queues
  will be ordered FIFO and also in a way to keep
  any one user from dominating usage and to ensure
  fair turnaround. Jobs started during the Day
  Mode must finish by 8pm at which time the machine
  will be rebooted. Night Mode During the
  night, defined to be 8pm-8am (starts following a
  machine reboot), jobs of 2048 cpus or less will
  be allowed to run and are limited to 6 wall-clock
  hours in duration.  Jobs will be ordered largest
  to smallest and in a way to keep any one user
  from dominating usage. Jobs in the "debug" queue
  will not be allowed to run during Night Mode.

10
Scheduling Queues
11
Batch Access

• You use the qsub command to submit a job script
  to PBS.
• A PBS job script consists of PBS directives,
  comments and executable commands.
• A sample job script is
• !/bin/csh
• PBS -l size4
• PBS -l walltime500
• PBS -j oe
• set echo
• move to my /scratch directory
• cd /scratch/myscratchdir
• run my executable
• pbsyod ./hellompi

12
Batch Access (contd)

• PBS -l size4
• The first directive requests 4 processors.
• PBS -l walltime500
• The first directive requests 5 minutes of
  wallclock time. Specify the time in the format
  HHMMSS. At most two digits can be used for
  minutes and seconds. Do not use leading zeroes in
  your walltime specification.
• PBS -j oe
• The final PBS directive combines your .o and .e
  output into one file, in this case your .o file.
  This will make your program easier to debug.
• The remaining lines in the script are comments or
  command lines.
• set echo
• This command causes your batch output to display
  each command next to its corresponding output.
  This will make your program easier to debug. If
  you are using the Bourne shell or one of its
  descendants use 'set -x' instead of 'set echo'.
• Comment lines
• The other lines in the sample script that begin
  with '' are comment lines. The '' for comments
  and PBS directives must begin in column one of
  your script file. The remaining lines in the
  sample script are executable commands.
• pbsyod
• The pbsyod command is used to launch your
  executable on your compute processors. Only
  programs executed with pbsyod are executed on
  your compute processors. All other commands are
  executed on the front end processor. Thus, you
  must use pbsyod to run your executable or it will
  run on the front end, where it will probably not
  work. If it does work it will degrade system
  performance.

13
Batch Access (contd)

• Within your batch script the variable
  PBS_O_WORKDIR is set to the directory from which
  you issued your qsub command. The variable
  PBS_O_SIZE is set to the number of processors you
  requested.
• After you create your script you must make it
  executable with the chmod command. chmod 755
  myscript.job
• Then you can submit it to PBS with the qsub
  command.
• qsub myscript.job
• Your batch output--your .o and .e files--is
  returned to the directory from which you issued
  the qsub comand after your job finishes.
• You can also specify PBS directives as
  command-line options to qsub. Thus, you could
  omit the PBS directives in the sample script
  above and submit the script with qsub -l size4
  -l walltime50000 -j oe
• Command-line options override PBS directives
  included in your script.
• The -M and -m options can be used to have the
  system send you email when your job undergoes
  specified state transitions.

14
Interactive Access

• The command
• qsub -I -l walltime1000 -l size2 requests
  interactive access to 2 processors for 10
  minutes.
• The system will respond with a message similar to

• qsub waiting for job 54.bigben.psc.edu to start

• When your job starts you will receive the message

• qsub job 54.bigben.psc.edu ready and then you
  will your shell prompt. At this point any
  commands you enter will be run as if you had
  entered them in a batch script.
• Use the pbsyod command to send executables to the
  compute nodes.
• Stdin, stdout, and stderr are all connected to
  your terminal.
• When you are finished with your interactive
  session type D. The system will respond
• qsub job 54.bigben.psc.edu completed

15
Packing Jobs

• You can pack several pbsyod commands into a
  single job and have each of them run on a
  distinct set of processors. This will allow you
  to increase the number of total processors your
  job asks for, which will become important once
  the scheduler is changed to favor large jobs.
• For example, the job
• !/bin/csh PBS -l size12
• PBS -l walltime3000
• PBS -j oe
• set echo
• cd /scratch/myscratchdir
• pbsyod -size 4 -base 0 ./mympi
• pbsyod -size 4 -base 4 ./mympi
• pbsyod -size 4 -base 8 ./mympi
• will launch three executions, each on a distinct
  set of 4 processors.
• The -size option to pbsyod indicates how many
  processors a pbsyod is to use. The default is to
  use all of your compute processors. The -base
  option indicates on which processor a pbsyod
  should begin executing, with your first processor
  having a base of 0. Thus, the first pbsyod above
  will begin executing on your first processor and
  use 4 processors, the second will run on the next
  4 processors starting with your fifth processor
  and the third pbsyod will run on your final 4
  processors. If you do not use the -base option
  all of your executions will run on top of each
  other on the same set of processors.

16
Monitoring and Killing Jobs

• The qstat -a command is used to display the
  status of the PBS queue. It includes running and
  queued jobs. For each job in the queue it shows
  the amount of walltime and number of processors
  requested. This information can be useful in
  predicting when your job might run. The -f option
  to qstat provides you with more extensive status
  information for a single job.
• The shownids command, located in /usr/local/bin,
  shows you the status of all the compute
  processors on bigben. A nid is a node id or
  processor. The output of shownids shows the
  number of processors in certain types of states.
  Enabled processors are all processors available
  to PBS for scheduling. Allocated processors are
  those enabled processors that are currently
  running jobs. Free processors are those enabled
  processors that are currently free. You can use
  the output from shownids and qstat -a to
  determine when your jobs might start.
• The qdel command is used to kill queued and
  running jobs.
• qdel 54
• The argument to qdel is the jobid of the job you
  want to kill. If you cannot kill a job that you
  want to kill send email to remarks_at_psc.edu.

17
Workshop Scheduling

• For the workshop, users should submit jobs to the
  "training" queue qsub -q training
• or in their job scripts as PBS -q training
• We all share 128 PEs in this queue, but the
  individual limits are 32 PEs and 30 minutes.
  You should normally be using a lot less than this.

18
Staying In Touch

• remarks_at_psc.edu
• xt3-users_at_psc.edu
