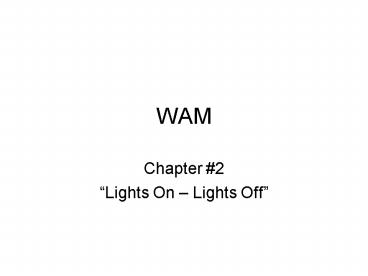

• Chapter 2
• Lights On Lights Off

2
The following are some examples of devices that
use indicator lights

• Car Stereos
• Televisions
• VCRs
• Disk Drives
• Printers
• Alarm system control panels

3
Most indicator lights are Light Emitting Diodes
or LEDs
4
The LED can be connected to the BS2, which can be
programmed to connect and disconnect power to it

• In addition, the BS2 can
• Turn the LED on and off at different rates
• Turn an LED on and off a certain number of times
• Control more than one LED
• Control a bi-color LED

5
Voltage and Current

• Voltage and current can be compared to water
  pressure and flow. When the valve is opened,
  what will happen? What determines how fast the
  water will flow?

6

• Of course water will flow from the fuller tank
  because it has greater pressure than the empty
  tank.
• The flow rate is dependent on
• The difference in pressure between the two tanks.
• The amount of restriction to flow in the pipe and
  valve.
• The water that flows from your faucet is
  dependent on the height of your town's water
  tank, the size of the pipes, and how far you open
  the faucet.

7

• In a battery, there is surplus of electrons on
  one side, and a deficiency of electrons on the
  other side (holes).
• When a circuit is completed, such as putting an
  LED in it, a flow exists from one side to the
  other. This is called Current.

8

• Current can be viewed in one of 2 ways
• Electron Flow Electrons flow from the negative
  side(-) to the positive side.OR
• Conventional Flow The absence of electrons
  move from positive to negative as the electrons
  move.

An atom with an excess of electrons has a
charge. One with a deficiency of electrons has a
charge.
9

• Which version of flow is used doesn't matter.
  How much flows does. Just as with the water
  tanks
• The greater the pressure, or the difference in
  potential (Voltage), the greater the amount of
  current that can flow in a unit time (Amperes).
• The greater the restriction to flow (Ohms), the
  lower the amount current that can flow.

10
Ohm's Law

• Ohms Law states The amount of current (I) that
  will flow is proportional to the voltage applied
  (V), and inversely proportional to the resistance
  (R) of the circuit. I V/R
• As Resistance increases, current decreases.

11

• LEDs have minimal resistance to current flow. A
  5 volt source can destroy an LED if current is
  not restricted. From Ohm's Law, if R is 1 ?, how
  much current will try to flow? An LED drops
  approximately 1.4V, leaving 3.6V.
• I (5V-1.4V)/1? 3.6 AThe maximum current a
  typical LED can handle is around 30mA, or .030 A.
• So in this case we would burn out the LED

12
The Resistor

• The resistor is a device used to limit the amount
  of current in a circuit. Because it is so small,
  color bands are used to identify the value.
• 1st Band 1st Digit
• 2nd Band 2nd Digit
• 3rd Band Multiplier
• 4th Band (if present) Tolerance.

SchematicSymbol
PartDrawing
13

• For the resistor shownYellow 4, 1st
  DigitViolet 7, 2nd DigitBrown 1, add 1
  zero.470 Ohm or 470?
• Tolerance is how far off itcould be from the
  labeledvalueGold 5Silver 10none 20

14

• Using the 470? resistor in series with the LED,
  how much current will be able to flow with a 5V
  source?(5V-1.4V)/470? 0.0077 Amps or 7.7mA
• Would this be a safe choice to use in our LED
  circuit?

Answer SureLEDs can allow a maximum of 30ma
15

• What is the resistance of a resistor colored
  Brown-Black-Orange?

Answer Brown 1, Black 0, Orange 31, 0 ,
3 zeros 10,000 ohms or 10K Ohm
16
LEDs

• A Diode is like a one-way check valve in that
  current can flow in only one direction. An LED
  is a diode that emits light as current is passed
  through it (Light Emitting Diode).
• Note the connections on the LED
• Anode Connected to side ofvoltage. Typically
  has a longer lead.
• Cathode Connected to side of voltage.
  Typically has a shorter lead AND a flat
  portionon the lens.

17
(No Transcript)
18
(No Transcript)
19
Breadboard Area

• A Breadboard is an electrical testing area for
  prototyping by quickly connecting components.
• The rows are electrically connected to make
  connectionsbetween devices.
• Headers are providedon 2 sides for
• I/O connections to the BASICStamp (P0-P15)
• Vdd Voltage (voltage drain drain)
• Vss - Voltage (voltage source sink)
• Vin Supply Voltagefrom battery or wall
  transformer

Use of Vin should be used only as directed as it
can damage the BASIC Stamp or components.
20
Activity 1 Building and Testing the LED Circuit

• Construct the circuit per your text (Pg. 43).
• As the current path from Vdd() to Vss(-) is
  completed, the LED will light.
• What happens if the LED is reversed? Try it.
• What happens if a 1K ohm resistor is used? Try
  it.
• Why is substituting1kohm safe?
• Would substituting a 100 ohm resistor be safe? Do
  not try this!!

21
Some useful tips

• If no light is visible
• View the LED from above its domed region, LEDS
  emit the most light there
• Cast a shadow on the LED with your hands
• If possible, turn the lights off
• Remember, an LED will only allow a current to
  flow in one direction through it, be sure the
  flat side (-) is closest VSS or ground
• There must be a difference in potential between
  the two sides of the LED to allow current to flow

22
Activity 2 On/Off Control With the BASIC Stamp

• With the BASIC Stamp the Input/Output pins
  (P0-P15) are controlled to supply either the Vdd
  () or Vss (-) potential. This will control
  whether a device has a path for current to flow
  or not.

23
(No Transcript)
24
Advantage of BS2 LED control

• The BS2 can make these changes thousands of times
  per second vs. the human ability of several times
  per minute

25

• Connect the circuit below.

26

• Supply power to the boe by switching to 1
• Enter the code below, save it in
  desktop/wam/chapter2, and run

27

• The LED should be flashing on and off once per
  second.
• Key Commands
• HIGH 14 Places I/O pin P14 High. This
  correlates to 5V or Vdd (digital 1). Current
  flows between P14 and Vss energizing the LED.
  Potential difference exists between two sides of
  LED. Current can flow in correct direction
  through LED.
• PAUSE 500 BASIC Stamp pauses operation for the
  specified time in milliseconds. 500
  milliseconds 0.5 seconds
• LOW 14 Places I/O pin P14 Low. This correlates
  to 0V or Vss (digital 0). Current does not flow
  between P14 and Vss, LED is not energized. No
  potential difference between two sides of LED.
• DO and LOOP Creates a looping structure for
  repetition.

28

• Now that the LED is blinking per the program,
  test this
• Disconnect the serial cable from the BASIC Stamp.
  What happens? Why?
• Turn off power to your BASIC Stamp count to 10
  turn it back on. What happens? Why?

29

• The program was transmitted to the BASIC Stamp,
  stored in a permanent memory (EEPROM--
  programmable, non-volatile ROM) and the computer
  is no longer required.
• The BASIC Stamp could now be placed into some
  device to become Embedded Control for the device.
• A program CANNOT be retrieved from a BASIC Stamp,
  so make sure you save yours!

30
Your turn-Timing repetitions

• What happens as the arguments for the PAUSE
  instructions are changed?
• Change both pause durations to 250 ms. This
  should cause the LED to flash on and off every ½
  second right?...TRY IT!
• Now change the first pause duration to 1000ms and
  the second to 2000 ms..TRY IT!
• This should have the effect of flashing the led
  on then off every 3 seconds right?
• See how short you can make the pauses and still
  see the LED flash. TRY IT!
• To do this start with both durations at 100 and
  reduce each by 5 for every trialonce the light
  looks continuous you will be experiencing what is
  called persistence of vision
• Last, what would happen if you put an apostrophe
  before the DO and LOOP commands? Why? TRY IT!

31
Activity 3 Counting and Repeating

• Counting and making decisions based on a value
  are key components to many programs.
• It is desired to make the LED blink 10 times
  through looping and then stop.

32
Counting with a FOR-NEXT Loop

• A FOR-NEXT Loop is a simple structure to count
  between 2 values. The NEXT increments the value
  and the loop (NEXT) will repeat if not at the end
  value.

Notice that code inside a loop is indented. This
is a visual aid to assist in seeing blocks of
common code, such as in a loop.
33
Enter, run, and save the code below
' STAMP BS2 ' PBASIC 2.5 'What's a
Microcontroller ledonofftentimes.bs2 'Turn led
on then off. Repeat 10 times. counter VAR
byte FOR counter 1 TO 10 DEBUG ? counter
HIGH 14 PAUSE 500 LOW 14 PAUSE
500 next DEBUG "All done!" end
34

• Code with full comments

35
Variables

• Variables are named locations in RAM memory that
  hold data values. The general format for
  defining a variable is Name VAR Type
• The name you select should be representative of
  what the variable holds and has the following
  limitations
• Cannot be a word used by PBASIC, such as END or
  LOOP.
• Cannot contain spaces.
• May contain numbers or underscores, but cannot
  start with those.
• Must be less than 33 characters long.
• By convention, variables start with upper-case
  for each word in it. Examples MyValue,
  ValueIn, Left_Drive

36

• Variable type defines how large a value a
  variable can hold. The larger the variable, the
  greater the amount of RAM memory used.

37

• Create a variable to hold the number of pups born
  in a litter.
• SEE BELOW

Pups_In_Litter VAR NibA Nib was chosen
because a typical maximum is 8, and a Nibble is
the smallest type which could hold this value.
38

• What happens if the end value in the FOR
  statement is changed from 10 to 20? TRY IT!

39
Should blink 20 times displaying the counter
values 1 through 20 right!
40
What does the STEP command do for a FOR-NEXT
Loop?Replace the FOR statement withFOR Counter
20 TO 120 STEP 10What will be the result?
41
Should only blink 11 times displaying the value
of counter as 20,30,40,50,60,70,80,90,100,110,
120
42
Activity 4 Second LED Circuit.

• Add a second LED on P15.

43
Enter, Save, and Run TestSecondLed.bs2 as shown
below
' STAMP BS2 ' PBASIC 2.5 'What's a
Microcontroller-TestSecondLed.bs2 'Turn LED
connected to p15 on and off. 'Repeat 1 time per
second indefinitely. DEBUG "Program Running!" Do
HIGH 15 PAUSE 500 LOW 15 PAUSE 500 loop
44
Controlling both LEDs

• This is done by using two high commands for pins
  14 and 15 before the pause command and two low
  commands after
• Yes, both LEDs will not turn on and off at
  exactly the same time, but there is no more than
  a millisecond between one high and the next high
  command
• The human eye cannot detect it! The same is true
  for both lows

45
Enter, Save, and Run FlashBothLeds.bs2 as shown
below
' STAMP BS2 ' PBASIC 2.5 'What's a
Microcontroller-FlshBothLeds.bs2 'Turn LEDs
connected to p14 and p15 on and off. DEBUG
"Program Running!" DO HIGH 14 HIGH 15
PAUSE 500 LOW 14 LOW 15 PAUSE 500 LOOP
46
LEDs can also be programmed to alternate by
swapping the HIGH and LOW commands..Modify the
current program to make this happenModify so you
have the following

• DEBUG "Program Running!"
• DO
• HIGH 15
• low 15
• PAUSE 500
• LOW 14
• high 15
• PAUSE 500
• LOOP

47
Activity 5 Using a Bi-Color LED

• A Bi-Color LED is one which will light 2
  different colors, such as red or green, depending
  on direction of current flow through it. An
  example is a security light.

48

• The bi-color LED is simply 2 LED elements in a
  single package connected in opposite ways.

49

• By using 2 I/O Pins and defining which is Vss
  (LOW) and which is Vdd (HIGH) the direction of
  current flow can be controlled.

Create the circuit as shown above on your BOE
50
Enter, Run, and Save TestBiColorLED.bs2then
check to be sure the colors cycle in the correct
order
' STAMP BS2 ' PBASIC 2.5 'What's a
Microcontroller-TestBicolorLED.bs2 'Turn bi-color
LED red, then green, then off in a loop DEBUG
"program Running!" Do HIGH 15 'red LOW 14
PAUSE 500 LOW 15 'green HIGH 14 PAUSE
500 LOW 15 'off LOW 14 PAUSE 500 Loop
51
Lights Display

• Now lets use the value of the counter variable to
  control the pause commands duration
• Rename and save testbicolorled.bs2 as test
  bicolorledyourturn.bs2
• Add a counter variable declaration before the DO
  statement
• The resulting code should look like the program
  on the next page

52
Enter, Save, and Run the following code
' STAMP BS2 ' PBASIC 2.5 'What's a
Microcontroller-TestBicolorLEDyourturn.bs2 'This
program should alternate between red and green,
but the time between the change should increase
each timeby 1 ms counter VAR byte do FOR counter
1 TO 50 HIGH 15 LOW 14 PAUSE counter
LOW 15 HIGH 14 PAUSE counter next loop
53
Try changing the loop so that it ends at 100 then
200. Notice the effect. Why does this happen?
54

• LEDs are just one example of a device that can be
  controlled with simple HIGHs and LOWs from the
  BASIC Stamp.
• You will find many more in your education and
  experimentations!
