Title: Advanced Compressor Engine Controls to Enhance Operation, Reliability,

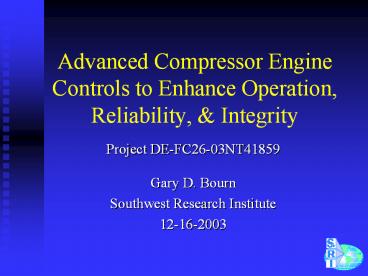

1
Advanced Compressor Engine Controls to Enhance
Operation, Reliability, Integrity
  • Project DE-FC26-03NT41859
  • Gary D. Bourn
  • Southwest Research Institute
  • 12-16-2003

2
Presentation Outline
  • Executive Summary
  • Technical Overview
  • Project Schedule

3
Executive Summary
  • The gas transmission industry operates gt3,000
    integral engine compressors with a median age of
    40 years and a median size of 2000 horsepower.
    These engines pump at least half of the 23 TCF of
    natural gas presently consumed.
  • The natural gas consumption is projected to
    exceed 30 TCF by 2020. While new pipelines and
    compressors will be installed to increase
    capacity, the reliability of the existing
    infrastructure is critical to meet the demand.
  • Wholesale replacement of existing integral
    compressors is not economically feasible.
    Therefore, the integrity, capacity, emissions,
    and efficiency of existing units must improve to
    help meet the project growth.

4
Executive Summary (cont.)
  • New technologies are required to improve the
    older integral compressors, and these include
    combustion, ignition, breathing, and controls.
  • Advanced control technologies are necessary for
    these older integral engines to meet impending
    emissions regulations, and achieve enhanced
    operation, integrity, and capacity for continued
    use in the U.S. natural gas transmission network.
  • The objective of this project is to develop,
    evaluate, and demonstrate advanced engine control
    technologies and hardware, specifically
    closed-loop NOX emissions control, on a
    two-stroke integral gas compressor engine.

5
Technical Overview
  • Current Engine Control Status
  • Proposed Advanced Controls Technologies
  • Project Co-Funder
  • Test Bed
  • Project Work Breakdown Structure

6
Example Two-Stroke Integral Compressor Engine
7
Typical Control Strategy for Integral Compressor
Engines
  • Fuel Header Pressure is modulated to maintain
    engine speed - governor
  • Controller adjusts Wastegate to modulate Air
    Manifold Pressure based on derived relationship -
    air/fuel ratio
  • Linear relationship of Air Manifold Pressure as a
    function Fuel Header Pressure is derived
  • Individual Cylinder Balancing usually done
    manually.
  • Ignition Controller does not always communicate
    with Air/Fuel Ratio Controller

8
Typical Control Strategy for Integral Compressor
Engines
9
Two-Stroke Integral Engine Issues
  • Open Chamber configurations w/ mechanical fuel
    admissions exhibit relatively high
    cylinder-to-cylinder cycle-to-cycle deviation
    in firing pressure
  • These deviations contribute to higher NOX
    emissions, reduced fuel efficiency, reduced
    operating envelope, as well as increased stress
    peaks on the crankshaft
  • Combustion instability often blamed on
    inconsistent fuel/air mixing - improved w/
    pre-combustion chambers enhanced mixing fuel
    injectors
  • Data suggests imbalance between cylinders in
    airflow (trapped air mass), which would create
    air/fuel ratio variances
  • Two-Stroke breathing highly dependent on
    instantaneous manifold dynamics port open
    duration
  • Individual cylinder control is necessary to
    improve engine performance

10
Variation in Compression Combustion Pressure
Clark HBA-6T TGP Station 823
11
Advantages of Individual Cylinder Control
A/F Imbalance between cylinders leads to reduced
Knock Lean Limit margins, lower overall
efficiency, higher overall NOx emissions.
Overall NOx emissions skews toward rich cylinders
due to non-linear relationship with Equivalence
Ratio.
A/F Balance between cylinders gives increased
Knock Lean Limit margins, allowing more timing
advance leaner overall operation. This
improves the Efficiency-NOx tradeoff.
12
Current Advanced Control Technologies
  • Advantages of controlling to fuel/air equivalence
    ratio are being realized
  • Current approaches involve calculated equivalence
    ratio from in-direct measurements mapping of
    NOX
  • Parametric Emissions Monitoring (PEM)
  • Advanced versions incorporate continuous cylinder
    pressure measurement tuned models to predict
    NOX
  • Electronic fuel injection
  • Offer increased control flexibility improved
    in-cylinder mixing of air/fuel charge
  • Coupled w/ calculated equivalence ratio
    continuous cylinder pressure measurement

13
Proposed Advanced Control Technologies
  • Utilize NGK-Locke sensor to directly measure
    exhaust NOX equivalence ratio (similar to
    automotive controls)
  • More accurate real-time control can be achieved
  • Reduced engine mapping required to tune control
    algorithm for specific engine model
  • Generalizes control algorithm for easier
    application to different engine models
  • NGK-Locke sensor provides both NOX O2
    concentration in exhaust
  • O2 channel can be calibrated to Equivalence Ratio
    (like UEGO)
  • Has been demonstrated in both spark-ignition
    diesel engines
  • SwRI has demonstrated sensor performance in
    two-stroke integral compressor engines

14
NGK-Locke NOX / O2 Sensor
  • Utilizes thick film ZrO2
  • 5th generation type
  • Integrated control electronics temperature
    compensation
  • 14.0 /-0.5V power requirement
  • Linear in O2 and NOX concentrations gt 0-5v
    output
  • lt 30 msec response time
  • NOX measurement accuracy is 5ppm of reading

15
Calibration on GMVH Engine - NOX Concentration
16
Calibration on GMVH Engine - Equivalence Ratio
17
Proposed Advanced Control Technologies (cont.)
  • Advanced control will take global NOX
    concentration input control engine to maintain
    this specific level w/ optimized efficiency on a
    cylinder-to-cylinder basis
  • Most common engine configuration w/ mechanical
    fuel admission will be targeted
  • Global Fuel Header Pressure still used for speed
    governing.
  • Equivalence Ratio input used to modulate
    Wastegate.
  • Spark Timing set for optimal efficiency trimmed
    globally (if necessary) to maintain NOX.
  • Cylinder pressure input provides for
    trimming/biasing individual cylinder Spark Timing
    Fuel Flow for balancing of NOX. This feature
    will increase efficiency for a given exhaust NOX,
    increase operating range, improve mechanical
    integrity.

18
Advanced Control Strategy for Integral Compressor
Engines
Not Shown Individual Cylinder Firing Pressure
Sensors
19
Project Co-Funder
  • Cooper Energy Services (CES) is not only
    providing co-funding to this project, but making
    available their research engine and expertise of
    integral compressor engines as an OEM.
  • Cooper-Bessemer engines make up a large
    percentage of the integral compressor engine
    fleet
  • CES previously contracted with SwRI to setup
    their GMVH-6 laboratory engine at SwRI
    facilities.

20
Engine Test Facility
  • 330 rpm, 1350 bhp gas compressor engine
  • Engine highly instrumented for RD technologies

21
Engine/System Controls
  • Rapid Prototype Electronic Control System
    (RPECS)
  • Full-authority controller
  • SwRI developed
  • Commercially available
  • Rapid algorithm development
  • SwRI interfaces with well-known control system
    manufacturers to assist engine manufacturers with
    technology transfer

22
Engine/System Controls
  • Algorithm Software Development
  • Classic Modern Control Algorithms
  • Real-time Model-based Control
  • Diagnostics for Service OBD
  • Adaptive Learn Algorithms
  • Advanced Signal Processing
  • Source Code Development in Assembly, C, and
    Graphical Environments Such As Matlab/Simulink

23
Project WBS
  • 1.0 System Configuration
  • 2.0 Baseline Mapping
  • 3.0 Algorithm Development
  • 4.0 Closed-Loop Control Evaluation
  • 5.0 Data Analysis
  • 6.0 Algorithm Schematic Development

24
Project Schedule
25
Conclusion
  • The SwRI/CES team appreciates the support of DOE,
    looks forward to the opportunity to advance the
    state of the art in integral compressor engine
    controls
  • Our goal is to develop technology that can be
    realistically cost-effectively implemented by
    the gas transmission industry to help meet the
    growing demand for natural gas, while meeting
    current future emissions regulations
