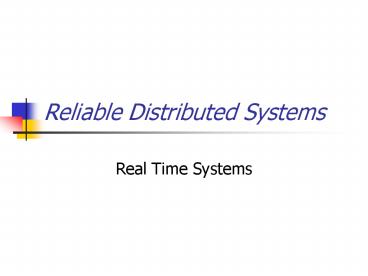

Title: Reliable Distributed Systems


1
Reliable Distributed Systems
  • Real Time Systems

2
Topics for this lecture
  • Adding clocks to distributed systems
  • Also, to non-distributed ones
  • Well just touch on real-time operating systems
    and scheduling an active area until recently
  • Recent machines are so fast that importance of
    topic is now reduced
  • Using time in broadcast protocols
  • Comparison of CASD with gossip

3
Many systems need real-time
  • Air traffic control talks about when planes
    will be at various locations
  • Doctors talk about how patients responded after
    drug was given, or change therapy after some
    amount of time
  • Process control software runs factor floors by
    coordinating what machine tools do, and when

4
Many systems need real-time
  • Video and multi-media systems need isochronous
    communication protocols that coordinate video,
    voice, and other data sources
  • Telecommunications systems must guarantee
    real-time response despite failures, for example
    when switching telephone calls

5
Real time in real systems
  • These real systems combine the need for logical
    consistency and coordination (for control) with
    the need for physical coordination and timely
    behavior
  • Issue becomes one of integrating real-time tools
    and support with logical tools and support such
    as we have already considered
  • Not real-time or logical time, but want both for
    different aspects of a single application!

6
Clock Synchronization and Synchronous Systems
  • Up to now, we restricted attention to logical
    notions of time a happens before b
  • But recall that we also touched on real clocks
  • Two views of real-time
  • Supporting clocks that programs can consult as
    needed
  • Making direct use of real-time inside protocols

7
Clock Synchronization
  • Topic was extremely active during early 1980s
  • Best known algorithms include the one in OSF/1
    UNIX (based on one by Marzullo at Xerox), the
    optimally accurate algorithm of Srikanth and
    Toueg, and the probabilistic algorithm of
    Cristian
  • Introduction of Global Positioning System is
    eliminating the need for this form of
    synchronization

8
Clock synchronization protocols
  • Would like to think of network as having a single
    clock that all processes can consult
  • But need to implement this using many local
    clocks that can
  • Initially be set incorrectly
  • Drift over the course of time
  • Clock synchronization tries to keep clocks close
    to true real-time and minimize their tendency to
    drift

9
Precision and Accuracy
  • Accuracy measures local clocks relative to an
    external source of accurate real-time. Accurate
    clocks are close to real-time
  • Precision measures local clocks relative to each
    other. Precise clocks are close to each other
  • Skew is the numerical limit on the maximum
    dis-tance that correct clocks can drift apart.
    E.g. could say the maximum skew is 1sec for
    some system

10
How clock synchronization used to work
  • Periodically, all processors would run a clock
    sync protocol, for example by broadcasting the
    reading from their clocks
  • Each receives a set of values from the others
    (sets may differ due to faults!)
  • Algorithm would pick a synchronized value from
    the set analysis used to prove properties of
    clocks

11
Global Positioning System
  • Satellite system launched by military in early
    1990s, became public and inexpensive
  • Can think of satellites as broadcasting the time
  • Small radio receiver picks up signals from three
    satellites and triangulates to determine position
  • Same computation also yields extremely accurate
    clock (accurate to a few milliseconds)

12
Clock synchronization with GPS
  • Put two GPS receivers (or more) on a network
  • Periodically, receivers broadcast the true time
  • Other machines only need to adjust their clocks
    to overcome propagation delays for clock sync
    messages through the network!
  • Well matched to the a-posteriori clock
    synchronization approach

13
Basic idea
  • GPS receiver broadcasts the time is now 1000
    on a broadcast network (ethernet)
  • Receivers note the time when they receive the
    message 1001, 958, .... and reply with
    values
  • GPS receiver subtracts the median value
  • Differences 1, -2, ... now give the drift of
    the clock of the destination relative to the
    median clock

14
A-posteriori method, adjustment stage
  • Now we distribute these drift values back to the
    processors, which compensate for the rate of
    drift over the time period to the next
    synchronization
  • Can show that this yields clocks that are optimal
    both in accuracy and precision
  • A processor with a broken clock has a good chance
    of discovering it during synchronization

15
Using real-time
  • One option is to use a real-time operating
    system, clock synchronization algorithm, and to
    design protocols that exploit time
  • Example MARS system uses pairs of redundant
    processors to perform actions fault-tolerantly
    and meet deadlines. Has been applied in process
    control systems. (Another example Delta-4)

16
Features of real-time operating systems
  • The O/S itself tends to be rather simple
  • Big black boxes behave unpredictably
  • They are structured in terms of tasks
  • A task is more or less a thread
  • But typically come with expected runtime,
    deadlines, priorities, interruptability, etc
  • User decomposes application into task-like
    component parts and then expresses goals in a
    form that RTOS can handle
  • Widely used on things like medical devices

17
RTOS can be beneficial
  • Lockheed Martin ATL timed CORBA method
    invocations
  • Variation in response time was huge with a normal
    Linux OS
  • When using a Timesys RTOS the variability is
    eliminated!

18
Real-time broadcast protocols
  • Can also implement broadcast protocols that make
    direct use of temporal information
  • Examples
  • Broadcast that is delivered at same time by all
    correct processes (plus or minus the clock skew)
  • Distributed shared memory that is updated within
    a known maximum delay
  • Group of processes that can perform periodic
    actions

19
A real-time broadcast
ta
tb
t





Message is sent at time t by p0. Later both p0
and p1 fail. But message is still delivered
atomically, after a bounded delay, and within a
bounded interval of time (at non-faulty processes)
20
A real-time distributed shared memory
ta
tb
t
set x3
x3
At time t p0 updates a variable in a distributed
shared memory. All correct processes observe the
new value after a bounded delay, and within a
bounded interval of time.
21
Periodic process group Marzullo
Periodically, all members of a group take some
action. Idea is to accomplish this with minimal
communication
22
The CASD protocols
  • Also known as the ? -T protocols
  • Developed by Cristian and others at IBM, was
    intended for use in the (ultimately, failed) FAA
    project
  • Goal is to implement a timed atomic broadcast
    tolerant of Byzantine failures

23
Basic idea of the CASD protocols
  • Assumes use of clock synchronization
  • Sender timestamps message
  • Recipients forward the message using a flooding
    technique (each echos the message to others)
  • Wait until all correct processors have a copy,
    then deliver in unison (up to limits of the clock
    skew)

24
CASD picture
ta
tb
t





p0, p1 fail. Messages are lost when echoed by
p2, p3
25
Idea of CASD
  • Assume known limits on number of processes that
    fail during protocol, number of messages lost
  • Using these and the temporal assumptions, deduce
    worst-case scenario
  • Now now that if we wait long enough, all (or no)
    correct process will have the message
  • Then schedule delivery using original time plus a
    delay computed from the worst-case assumptions

26
The problems with CASD
  • In the usual case, nothing goes wrong, hence the
    delay can be very conservative
  • Even if things do go wrong, is it right to assume
    that if a message needs between 0 and ?ms to make
    one hope, it needs 0,n ? to make n hops?
  • How realistic is it to bound the number of
    failures expected during a run?

27
CASD in a more typical run
ta
tb
t






28
... leading developers to employ more aggressive
parameter settings
ta
tb
t






29
CASD with over-aggressive paramter settings
starts to malfunction
ta
tb
t




all processes look incorrect (red) from time to
time
30
CASD mile high
  • When run slowly protocol is like a real-time
    version of abcast
  • When run quickly protocol starts to give
    probabilistic behavior
  • If I am correct (and there is no way to know!)
    then I am guaranteed the properties of the
    protocol, but if not, I may deliver the wrong
    messages

31
How to repair CASD in this case?
  • Gopal and Toueg developed an extension, but it
    slows the basic CASD protocol down, so it
    wouldnt be useful in the case where we want
    speed and also real-time guarantees
  • Can argue that the best we can hope to do is to
    superimpose a process group mechanism over CASD
    (Verissimo and Almeida are looking at this).

32
Why worry?
  • CASD can be used to implement a distributed
    shared memory (delta-common storage)
  • But when this is done, the memory consistency
    properties will be those of the CASD protocol
    itself
  • If CASD protocol delivers different sets of
    messages to different processes, memory will
    become inconsistent

33
Why worry?
  • In fact, we have seen that CASD can do just this,
    if the parameters are set aggressively
  • Moreover, the problem is not detectable either by
    technically faulty processes or correct ones
  • Thus, DSM can become inconsistent and we lack any
    obvious way to get it back into a consistent state

34
Using CASD in real environments
  • Would probably need to set the parameters close
    to the range where CASD can malfunction, but
    rarely
  • Hence would need to add a self-stabilization
    algorithm to restore consistent state of memory
    after it becomes inconsistent
  • Problem has not been treated in papers on CASD
  • pbcast protocol does this

35
Using CASD in real environments
  • Once we build the CASD mechanism how would we use
    it?
  • Could implement a shared memory
  • Or could use it to implement a real-time state
    machine replication scheme for processes
  • US air traffic project adopted latter approach
  • But stumbled on many complexities

36
Using CASD in real environments
  • Pipelined computation
  • Transformed computation

37
Issues?
  • Could be quite slow if we use conservative
    parameter settings
  • But with aggressive settings, either process
    could be deemed faulty by the protocol
  • If so, it might become inconsistent
  • Protocol guarantees dont apply
  • No obvious mechanism to reconcile states within
    the pair
  • Method was used by IBM in a failed effort to
    build a new US Air Traffic Control system

38
Similar to MARS
  • Research system done in Austria by Hermann Kopetz
  • Basic idea is that everything happens twice
  • Receiver can suppress duplicates but is
    guaranteed of at least one copy of each message
  • Used to overcome faults without loss of real-time
    guarantees
  • MARS is used in the BMW but gets close to a
    hardware f.tol. scheme

39
Many more issues.
  • What if a process starts to lag?
  • What if applications arent strictly
    deterministic?
  • How should such a system be managed?
  • How can a process be restarted?
  • If not, the system eventually shuts down!
  • How to measure the timing behavior of components,
    including the network

40
FAA experience?
  • It became too hard to work all of this out
  • Then they tried a transactional approach, also
    had limited success
  • Finally, they gave up!
  • 6B was lost
  • A major fiasco, ATC is still a mess

41
Totem approach
  • Start with extended virtual synchrony model
  • Analysis used to prove real-time delivery
    properties
  • Enables them to guarantee delivery within about
    100-200ms on a standard broadcast LAN
  • Contrast with our 85us latency for Horus!

42
Tradeoffs between consistency, time
  • Notice that as we push CASD to run faster we lose
    consistency
  • Contrast with our virtual synchrony protocols
    they run as fast as they can (often, much faster
    than CASD when it is not malfunctioning) but
    dont guarantee real-time delivery

43
A puzzle
  • Suppose that experiments show that 99.99 of
    Horus or Ensemble messages are delivered in 85us
    /- 10us for some known maximum load
  • Also have a theory that shows that 100 of Totem
    messages are delivered in about 150ms for
    reasonable assumptions
  • And have the CASD protocols which work well with
    ? around 250ms for similar LANs

44
A puzzle
  • Question is there really a difference between
    these forms of guarantees?
  • We saw that CASD is ultimately probabilistic.
    Since Totem makes assumptions, it is also,
    ultimately, probabilistic
  • But the experimentally observed behavior of Horus
    is also probabilistic
  • ... so why isnt Horus a real-time system?

45
What does real-time mean?
  • To the real-time community?
  • A system that provably achieves its deadlines
    under stated assumptions
  • Often achieved using delays!
  • To the pragmatic community?
  • The system is fast enough to accomplish our goals
  • Experimentally, it never seems to lag behind or
    screw up

46
Some real-time issues
  • Scheduling
  • Given goals, how should tasks be scheduled?
  • Periodic, a-periodic and completely ad-hoc tasks
  • What should we do if a system misses its goals?
  • How can we make components highly predictable in
    terms of their real-time performance profile?

47
Real-time today
  • Slow transition
  • Older, special purpose operating systems and
    components, carefully hand-crafted for
    predictability
  • Newer systems are simply so fast (and can be
    dedicated to task) that what used to be hard is
    now easy
  • In effect, we no longer need to worry about
    real-time, in many cases, because our goals are
    so easily satisfied!
Write a Comment
User Comments (0)
About PowerShow.com
