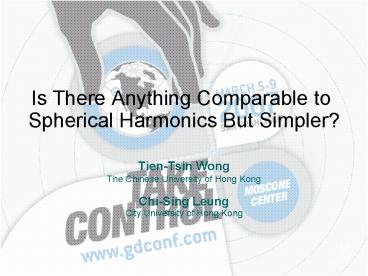

1
Is There Anything Comparable to Spherical
Harmonics But Simpler?
  • Tien-Tsin Wong The Chinese University of Hong
    Kong
  • Chi-Sing Leung City University of Hong Kong

2
Motivation
  • SH lighting offers fast realistic rendering
  • But its mathematics is

Quite complicated!
3
What This Talk is About
  • Advanced lecture with equations
  • Spherical Radial Basis Function
    (SRBF)Comparable, but intuitive and simple
  • How it works
  • How to use SRBF lighting in games
  • How to reduce data size safely
  • Results

4
SH vs SRBF (Round 1)
  • Lets first show how SRBF performs

5
SH vs SRBF (Round 2)
  • more

6
SH vs SRBF (3)
  • SRBF is comparable to SH in quality
  • So, what is its advantage?
  • Simpler mathematics
  • More efficient local illumination
  • Fast projection of distant environment (can even
    be time-varying)

7
Precomputed Lighting
  • Basic idea
  • Pre-computating the lighting effect
  • Compressing it offline
  • Decompressing it during the runtime
  • Rendering as linear combination

8
Basis Functions
  • Key is to select a good basis
  • For SH, all basis functions are different
  • Inefficient to evaluate the functions
  • Local illumination is inefficient

9
Simpler Basis?
  • Any simpler basis? or even homogeneous?
  • The answer is spherical radial basis function
    (SRBF)
  • A spherical function f is approximated by a
    linear combination of SRBFs

10
What is SRBF?
  • All basis functions Ri have in same mathematical
    form and same shape
  • Only different in orientation
  • Intuitively, each basis function is responsible
    for a part of the sphere

11
What is SRBF? (2)
  • In fact, Ri can be any symmetric function
  • Gaussian
  • Poisson

12
How SRBF Looks Like?
  • On plane, a RBF is just a hill
  • In spherical domain, a SRBF is a lobe

13
Things to Decide
  • Number of basis functions
  • SRBF centers
  • SRBF coverage

14
Number of Basis Functions
  • More SRBFs, better quality, more memory
  • More SRBFs are needed if
  • Hard shadow
  • Specular highlight

original
15
SRBF Center
  • How to orient the SRBF or position its SRBF
    center on sphere?
  • Uniform distribution
  • Possible sampling patterns
  • icosahedron HEALPix

Check out our 20-min lecture at 1200pm tomorrow
in Room 44
16
SRBF Coverage
  • Last thing to decide is the coverage (width) of
    SRBF
  • The same coverage for all SRBFsHence, no extra
    storage overhead

17
SRBF Coverage (2)
  • What if the coverage is too small?

18
SRBF Coverage (3)
  • What if the coverage is too large?

19
SRBF Coverage (4)
  • Appropriate coverage
  • For each center, the geodesic distance to its
    closest neighbor is found
  • Their average is used as the coverage

20
Rendering
21
Rendering
  • Local illumination
  • Local illumination such as point light sources
    are common in games
  • A spotlight or moving a point source closer
    cannot be achieved with a distant environment
  • Distant Environment
  • Including distant area light sources
  • Pseudo global illumination

22
Local Illumination
  • Given a point or directional source, we get a
    light vector L for each surface element
  • Use L to obtain the precomputed radiance or
    reflectance, i.e. f(L)
  • Require fast evaluation of basis function Ri(L)
    to obtain f(L)

23
Local Illumination (2)
  • For SRBF, evaluation of all basis functions is
    just a lookup to the same 1D table
  • In contrast, all SH basis functions are different
    and inefficient (require time-consuming
    evaluation or many lookup tables)

This is the 1D table
24
Prepare for Rendering
  • Note that each vertex holds a vector of SRBF
    coefficients ci
  • In practice, we group the coefficients so that
    the i-th coefficients are grouped to form the
    i-th coefficient map

25
Prepare for Rendering (2)
  • i.e.
  • Why? Coeff. maps can be linearly combined by
    fragment shaders

26
Directional Source
  • For illustration purpose, lets start with the
    simplest case, directional source

27
Result
VIDEO (dir.avi)
28
Point Source
  • Each vertex p has its own light vector Lp
  • Need to evaluate Ri multiple times for each vertex

29
Point Source (2)
  • Attenuation can be added to the result of
    previous linear combination

30
Result
VIDEO (pt.avi)
31
Distant Environment
  • To simulate global illumination, the scene can be
    illuminated by a distant environment E(L)
  • Reflected radiance from surface element p

Represented by SRBF
Represented in dual space
32
Distant Environment (2)
  • For SH, both E and can be stored as SH
  • For SRBF, E is stored in dual space
  • What is dual space?

A dot product Just like in SH
33
Fast Projection
  • This dual space projection is computed only once
    for the environment map
  • Graphically,

Multiplying each SRBF to the environment and
summing
34
Fast Projection (2)
  • Why is it fast?
  • Very low resolution maps are sufficient for such
    integration
  • Ri(L) can be looked up
  • E(L) can be downsampled in preprocess stage
  • Such integration (dot product) can be computed by
    GPU in real-time
  • Even for 770 coeff., 3072 samples on the maps are
    sufficient

X
35
Time-Varying Environment
  • Dont be fooled by the integration
  • The projection can be computed in real-time even
    the environment is time-varying
  • A special case rotation of environment
  • More general environment sequence

36
Result (Rotation)
VIDEO (distenv-rotation.avi)
37
Result (Environment Video)
VIDEO (distenv-timevary.avi)
38
More Details Maths
39
Glossy Surfaces
  • View-dependent
  • 4D transfer function (double sphere)
  • Two approaches
  • Double projection
  • Decomposition

40
Double Projection
  • Transfer functions at all vertices are aligned to
    a common (global) coordinate system
  • First, fix V and project for L
  • Then, project for V

41
Decomposition
  • Decompose the transfer function f into
  • gk(V), functions of V
  • fk(L), functions of L
  • By singular value decomposition,
  • fk(L) can be SRBF projected as usual

42
Rotation of Basis
  • Given a SRBF coeff. vector c, how to rotate f
    without re-projection?
  • is the transformation
  • This can be done by multiplying two matrices

43
Rotation of Basis (2)
  • The elements in the above two matrices are
  • Wow, that seems to be overkill
  • Dont worry, all of them can be obtained by
    looking up another 1D table!

44
Rotation of Basis (3)
  • Think about two SRBF, Ri and Rj
  • The integration means the
    summation of the white region above
  • For certain SRBF kernels (e.g. Poisson), the
    above integration has a simple close-form solution

45
Rotation of Basis (4)
  • As SRBF is symmetric, the integration depends
    only on the angle between 2 SRBF centers
  • We can construct a 1D table indexed by the dot
    product of 2 centers
  • Much simpler and efficient than the analytical
    equations of SH rotation

46
Determine Coefficients
  • How?
  • Least square fit
  • Step 1 projection
  • Step 2 least square fit
  • The same A-1 shown before

47
Noise Vulnerability
  • The coefficients obtained are very noise
    sensitive
  • If they are further compressed,

48
Noise-Proof Estimation
  • Why?
  • Because A is near singular
  • magnitudes of coeff. are very large
  • Most compression introduce following noise
  • Larger magnitudes larger error

49
Noise-Proof Estimation (2)
  • Solution control magnitudes during estimation
  • Iteratively find out the smallest value of l
  • such that

50
Noise-Proofing
  • Here is the result

51
Discussions
  • Truncating the basis function may result in
    holes because each SRBF is responsible for part
    of the sky
  • Dilemma of constant coverage (single-scale SRBF)

52
Constant Coverage
  • If f contains high frequency, and large coverage
    is selected

f
basis function
53
Constant Coverage (2)
  • If f contains low frequency, and small coverage
    is selected

f
basis function
54
Multiscale SRBF
  • Solution is to use multiscale SRBF
  • Divides SRBF into groups (levels)
  • Each group has different coverage (from small to
    large)

level 1
level 2
level 3
55
Comparison
single-scale(large width)
single-scale(small width)
56
Advantages
  • True all-frequency rendering
  • Multi-resolution analysis
  • Continuous wavelet approach

57
Conclusion
  • Visually, SRBF is comparable to SH
  • Mathematically, SRBF is simpler than SH
  • Computationally, SRBF is more efficient than SH
  • So, why not use SRBF
  • There are demo source codes on our websites

58
References
  • Ease to read
  • T. T. Wong, C. S. Leung and K. H. Choy, Lighting
    Precomputation Using the Relighting Map", Shader
    X3 Advanced Rendering with Direct X and OpenGL,
    Edited by W. Engel, Charles River Media, 2005,
    pp. 379-392.
  • For mathematics
  • C. S. Leung, T. T. Wong, P. M. Lam and K. H.
    Choy, An RBF-based Image Compression Method for
    Image-based Rendering, IEEE Transactions on
    Image Processing, Vol. 15, No. 4, April 2006, pp.
    1031-1041.
  • Further questions
  • Tien-Tsin Wong ttwong_at_cse.cuhk.edu.hk
  • Chi-Sing Leung eeleungc_at_cityu.edu.hk

59
Web Resources
  • Updated version of this presentation
  • http//www.cse.cuhk.edu.hk/ttwong/papers/srbf/sr
    bf.html
  • http//www.ee.cityu.edu.hk/csleung
  • Sample source codes and tools
  • http//www.cse.cuhk.edu.hk/ttwong/demo/srbf/srbf
    .html

60
Acknowledgments
  • Ping-Man Lam and Gary Ho for implementation,
    figures, and video
  • Liang Wan for preparation of figures
  • This work is supported by Research Grants Council
    of the Hong Kong Special Administrative Region,
    under RGC Earmarked Grants (Project No.
    CUHK417005 and CityU115606)

61
Q A
62
The End
63
Time-Varying Environment
  • Let E (L) be a distant environment
  • gi projection
  • Rotation a special case of time varying E(G, L)
Write a Comment
