Transformer Based Oscillators

1

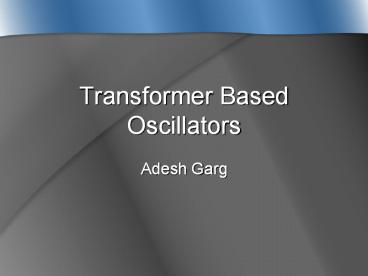

Transformer Based Oscillators

• Adesh Garg

2
Outline

• Why use a Transformer instead of an Inductor?
• What is a Monolithic Transformer?
• Physical Layout
• Equivalent Model
• Electrical Characteristics
• Application of Transformers to Oscillator
• Ring Oscillator
• LC Tank Oscillator
• References

3
Transformers Replacing Inductors

• Inductors tend to have...
• Low quality factor (Q)
• Highly Lossy
• Lack Tunability
• Large amounts of Chip area
• Transformers have been used to correct the above
  short coming 1-5

4
What is a Monolithic Transformer?

• Physical Layout

5
What is a Monolithic Transformer?

• Equivalent Model 1

6
What is a Monolithic Transformer?

• Electrical Characteristics
• The coupling between stages for typical process
  is usually between 0.75 lt Km lt 0.9 1
• Largely dependant on width and spacing of the
  metal traces
• Depends on layout and structure. Different
  benefits for different architecture 12
• Coupling, Resonance, Loses, Symmetry

7
Background Types of Oscillators

• Ring Oscillator
• Uses the delay between stages to determine
  Oscillators frequency (either transmission lines
  or lumped delays).
• LC Tank Oscillator
• Uses Inductor and Capacitor to determine
  Oscillators frequency

8
Ring Oscillator 3

• Ring Oscillator
• Inductively Tuned

9
LC Tank VCO 4

• Transformer used to change impedance of resonator
  tank.
• Improves Q factor for equivalent inductor of
  similar size
• Phase Noise improvement

10
LC Tank VCO 4 cont
11
Conclusion

• Transformers are relatively new and their
  application to tuned circuits have only begin to
  be explored
• I expect to see continued research in this field
  and the use of transformers for RF circuit like
  the oscillator

12
